32-bit Microcontroller Optimized for Dual-Motor and PFC Control
Jump to Page Section:
Overview
Description
RX26T Group microcontrollers are 5V-compatible products which provide dual-motor control using Field Oriented Control (FOC) and Power Factor Correction (PFC) control on a single chip. The RXv3 core, a 3rd generation RX CPU core operating at 120 MHz, flash memory capable of 120 MHz read operations, and a trigonometric function unit (TFUv2) provide a higher level of compute performance. The timer functions support 120MHz PWM (3-phase complementary x 2 channels + single-phase complementary x 2 channels), and analog function is provided by 12-bit A/D converter x 3 units (2 units with a 3-channel simultaneous sample & hold circuit). The lineup includes a HOCO with guaranteed oscillation accuracy of ±1.0% (-20°C≤Ta), data flash memory, a single-ended PGA, comparator and other components in a compact QFN package attributes to reduction in the number of components and space saving. In addition, it offers CAN-FD for high-speed inter-device communication and I3C Basic for high-speed communication with sensors which enable faster data transfers. The flash memory has a dual bank configuration, and the BGO/SWAP function to enable rewriting of the firmware without system stoppage. Trusted Secure IP-Lite with its integrated key management function and cryptographic engine reduces the risk of information leaks from the system.
Features
- 120 MHz CPU RXv3 core (721 CoreMark)
- Single-precision FPU, batch register save function for faster interrupt response, Trigonometric Function Accelerator (TFUv2)
- Operating temperature -40°C to 105°C
- Up to 512 KB flash memory (120 MHz read access, dual bank function), up to 64 KB SRAM
- 16KB data flash that can store data like an EEPROM
- 12-bit A/D converter x 3 units, 12-bit D/A converter x 2 channels
- Comparator x 6 channels, single-ended PGA x 6 channels
- 120 MHz PWM
- 3-phase complementary x 2 channels, 5-phase complementary x 1 channel, single-phase complementary x 8 channels
- High-resolution PWM x 4 channels with timing adjustment down to 260 ps (picoseconds)
- +/-1.0% accuracy high-speed on-chip oscillator
- Trusted Secure IP-Lite (AES/TRNG)
- CAN FD (ISO 11898-1:2015 compliant, max. 5 Mbps)
- I3C Basic (max. 10 Mbps)
Applications
Documentation
| Document title | Document type
|
Date Date | |
|---|---|---|---|
| PDF 1.78 MB 日本語 | Datasheet | ||
| PDF 41.02 MB 日本語 | Manual - Hardware | ||
| PDF 3.61 MB 日本語 | Manual - Software | ||
| PDF 3.18 MB 日本語 | Application Note | ||
| PDF 3.49 MB 日本語 | Application Note | ||
| PDF 3.67 MB | Application Note | ||
| PDF 2.45 MB 日本語 | Application Note | ||
| PDF 3.04 MB 日本語 | Application Note | ||
| PDF 96 KB 日本語 | Application Note | ||
| PDF 1.33 MB 日本語 | Application Note | ||
| PDF 718 KB 日本語 | Application Note | ||
| PDF 3.41 MB 日本語 | Application Note | ||
| PDF 1.17 MB 日本語 | Application Note | ||
| PDF 1.16 MB 日本語 | Application Note | ||
| PDF 1.83 MB 日本語 | Application Note | ||
| PDF 2.27 MB 日本語 | Application Note | ||
| PDF 1.95 MB 日本語 | Application Note | ||
| PDF 1.19 MB 日本語 | Application Note | ||
| PDF 242 KB 日本語 | Application Note | ||
| PDF 313 KB 日本語 | Flyer | ||
| PDF 303 KB 日本語 , 简体中文 | Flyer | ||
| PDF 417 KB 日本語 , 简体中文 | Flyer | ||
| PDF 14.70 MB 日本語 | General Reliability Literature | ||
| PDF 468 KB | Guide | ||
| PDF 1.03 MB 日本語 | Manual - Development Tools | ||
| PDF 910 KB 日本語 | Manual - Development Tools | ||
| PDF 870 KB 日本語 | Manual - Development Tools | ||
| PDF 1.86 MB 日本語 | Manual - Development Tools | ||
| PDF 10.28 MB 日本語 , 简体中文 | Other | ||
| PDF 1.36 MB 日本語 | Quick Start Guide | ||
| PDF 237 KB 日本語 | Technical Update | ||
| PDF 171 KB 日本語 | Technical Update | ||
|
32 items
|
|||
Design & Development
Software & Tools
Software & Tools
| Software title
|
Software type
|
Company
|
|---|---|---|
| RI600V4 Real-time OS for RX Family μITRON4.0 Specification real-time OS for RX Family [Required IDE : e2 studio, CS+] * RI600V4 is not generally promoted to U.S. and European customers. Customers in U.S. and Europe who are interested in RI600V4 are requested to contact our regional marketing departments for details.
|
ITRON OS | Renesas |
| RI600PX Real-time OS for RX Family μITRON4.0/PX Specification real-time OS for RX Family [Required IDE : CS+] * RI600PX is not generally promoted to U.S. and European customers. Customers in U.S. and Europe who are interested in RI600PX are requested to contact our regional marketing departments for details.
|
ITRON OS | Renesas |
| E20 emulator [R0E000200KCT00] On-chip debugging emulator. Also available as a flash memory programmer. For RX600 or RX700 Series MCU, trace functions and Real-time RAM monitor functions available. For MCUs other than RX600 or RX700, the available debugging function corresponds to that of E2 Emulator Lite. [Support MCU/MPU: RX, RL78, RH850, V850, 78K0R, 78K0, R8C]
|
Emulator | Renesas |
| E2 emulator [RTE0T00020KCE00000R] On-chip debugging emulator. Also available as a flash memory programmer. [Support MCU/MPU: RA, RE, RH850, R-Car D1, RL78, RX]
|
Emulator | Renesas |
| E2 emulator Lite [RTE0T0002LKCE00000R] On-chip debugging emulator. Also available as a flash memory programmer. [Support MCU/MPU: RA, RE, RL78, RX]
|
Emulator | Renesas |
| e² studio - Information for the RX Family Eclipse-based Renesas integrated development environment (IDE).
|
IDE and Coding Tool | Renesas |
| e² studio Partner OS Aware Debugging Standard debugger in e2 studio for supporting task level debugging of real-time OS applications.
|
Plug-in, OS Aware Debugging, Etc. | Renesas |
| Simulator for CS+ of RX Family Simulator for CS+ of RX Family [Support IDE : CS+] (Note: This product is included in Compiler Package and is not available separately.)
|
Simulator | Renesas |
| CS+ Renesas integrated development environment (IDE) [Support MCU/MPU: RH850, V850, RX, RL78, 78K0R, 78K0]
(Note: CS+ is not generally promoted to U.S. and European customers.)
(Note: To use Smart Configurator on CS+ for RL78/G23 and RX family MCUs, install the Smart Configurator for each MCU family separately downloading from ”Design & Support” > ”Development Tools” > ”Smart Configurator”)
|
IDE and Coding Tool | Renesas |
| CS+ Partner OS Aware Debugging Plug-in Features for task level debugging of real-time OS applications [Plugin for Renesas IDE CS+] [Support MCU/MPU: RX, RL78]
|
Plug-in, OS Aware Debugging, Etc. | Renesas |
| C/C++ Compiler Package for RX Family [CC-RX] C/C++ Compiler Package for RX Family [IDE: CS+, e² studio, High-performance Embedded Workshop]
|
Compiler/Assembler | Renesas |
| External Flash Definition Editor Utility for downloading data to external flash memory (for emulators)
|
Other Emulators and Options | Renesas |
| RX Smart Configurator RX Smart Configurator is a utility for combining software in ways that meet your needs. It simplifies the embedding of Renesas drivers in your systems through supports for importing middleware and drivers and configuring pins.
|
Solution Toolkit | Renesas |
| PG-FP6 Flash memory programmer [Programming software: Dedicated GUI-based software, the "FP6 Terminal"] [Support MCU/MPU and devices: RA, RE, RX, RL78, RH850, Renesas Synergy, Power Management, Renesas USB Power Delivery Family, ICs for Motor Driver/Actuator Driver, SuperH RISC engine, V850, 78K, R8C]
|
Programmer (Unit/SW) | Renesas |
| Renesas Flash Programmer (Programming GUI) Flash memory programming software [Support MCU/MPU and devices: RA, RE, RX, RL78, RH850, Renesas Synergy, Power Management, Renesas USB Power Delivery Family, ICs for Motor Driver/Actuator Driver, V850, 78KR, 78K0]
|
Programmer (Unit/SW) | Renesas |
| QE for Motor: Development Assistance Tool for Motor Applications The development assistance tool that supports the development of motor software for MCUs. It allows to configure motor middleware and drivers easily, and tune and analyze motors with Renesas Motor Workbench. [Plugin for Renesas IDE "e² studio"] [Support MCU/MPU: RA, RX, RL78]
|
Solution Toolkit | Renesas |
| Trusted Secure IP Driver Trusted Secure IP driver software: this software supports AES with 128- and 256-bit keys), AES-GCM, AES-CMAC, and random number generation. Safely executes AES key management, secure updating of firmware, and secure booting at high speeds.
|
Security / Crypto | Renesas |
| DSP Library for RX Family Software library that implements numeric operation function used in DSP with general purpose MCU
|
DSP / FFT | Renesas |
| RX Driver Package Device driver set for the RX Family (including major middleware). Target devices : RX130, RX23W, RX231, RX24U, RX64M, RX65N, RX66T, RX71M, RX72M etc.
|
Software Package | Renesas |
| Renesas Motor Workbench Renesas Motor Workbench is a development support tool for debugging, analyzing, and tuning motor control programs.
|
Solution Toolkit | Renesas |
| QE for Display: Development Assistance Tool for Display Applications This development assistance tool supports the development of embedded systems which use the LCD display functions of display controllers from Renesas. [Plugin for Renesas IDE "e² studio"] [Support MCU/MPU:RZ, RX, RA]
|
Solution Toolkit | Renesas |
| Crypto Library Robust encode library to ensure security for all types of system developments
|
Security / Crypto | Renesas |
|
22 items
|
||
Sample Code
Sample Code
Filters
|
|||
|---|---|---|---|
| Title | Type | Date Date | |
|
[Toolchains=CC-RX|V3.05.00]
ZIP
67.12 MB
日本語
Application:
Consumer Electronics, Industrial
Compiler:
CC-RX
Function:
Application Example
IDE:
CS+ for CC, e2 studio
|
Sample Code | ||
|
[Toolchains=CC-RX|V3.05.00]
ZIP
44.87 MB
日本語
Application:
Consumer Electronics, Industrial
Compiler:
CC-RX
Function:
Application Example
IDE:
CS+ for CC, e2 studio
|
Sample Code | ||
|
[Toolchains=CC-RX|v3.05.00]
ZIP
5.82 MB
Application:
Consumer Electronics, Industrial, Key Technology, Medical and Healthcare Solutions, Power and Energy
Compiler:
CC-RX
Function:
Application Example
IDE:
CS+, e2 studio
|
Sample Code | ||
|
[Toolchains=CC-RX|v3.04.00]
ZIP
7.69 MB
Application:
Consumer Electronics, Industrial, Key Technology, Medical and Healthcare Solutions, Power and Energy
Compiler:
CC-RX
Function:
Application Example
IDE:
CS+, e2 studio
|
Sample Code | ||
|
[Toolchains=CC-RX|v3.05.00]
ZIP
3.27 MB
日本語
Compiler:
CC-RX
IDE:
e2 studio
|
Sample Code | ||
|
[Toolchains=CC-RX|v3.04.00]
ZIP
24.16 MB
日本語
Application:
Consumer Electronics, Industrial, IoT Applications, Key Technology, Power and Energy
Compiler:
CC-RX
Function:
Timer
IDE:
e2 studio
|
Sample Code | ||
|
[Toolchains=CC-RX|v3.04.00]
ZIP
6.83 MB
日本語
Application:
Consumer Electronics, Industrial, IoT Applications, Key Technology, Power and Energy
Compiler:
CC-RX
Function:
Timer
IDE:
e2 studio
|
Sample Code | ||
|
[Toolchains=CC-RX|v3.04.00]
ZIP
10.63 MB
日本語
Application:
Consumer Electronics, Industrial, IoT Applications, Key Technology, Power and Energy
Compiler:
CC-RX
Function:
Timer
IDE:
e2 studio
|
Sample Code | ||
|
[Toolchains=CC-RX|V3.04.00]
ZIP
5.95 MB
日本語
Application:
Consumer Electronics, Industrial
Compiler:
CC-RX
Function:
Application Example, Memory
IDE:
CS+ for CC, e2 studio
|
Sample Code | ||
|
9 items
|
|||
Boards & Kits
Boards & Kits
MCK-RX26T Renesas Flexible Motor Control Kit for RX26T MCU Group
The MCK-RX26T is a development kit that enables easy evaluation of motor control using permanent magnet synchronous motors (brushless DC motors).
With this product...
Featured Documents:
MCB-RX26T Type A / CPU Board for RX26T MCU Group
This product is a CPU board for motor control equipped with RX26T. Motor control using RX26T can be easily realized by using it in combination with a supported inverter...
Featured Documents:
MCB-RX26T Type B / CPU Board for RX26T MCU Group with Trusted Secure IP (TSIP-Lite)
This product is a CPU board for motor control equipped with RX26T. Motor control using RX26T can be easily realized by using it in combination with a supported inverter...
Featured Documents:
MCB-RX26T Type C / CPU Board for RX26T MCU Group
This product is a CPU board for motor control equipped with RX26T (P/N:R5F526TACDFM). Motor control using RX26T can be easily realized by using it in combination with a supported inverter board.
Featured Documents:
Models
ECAD Models
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.

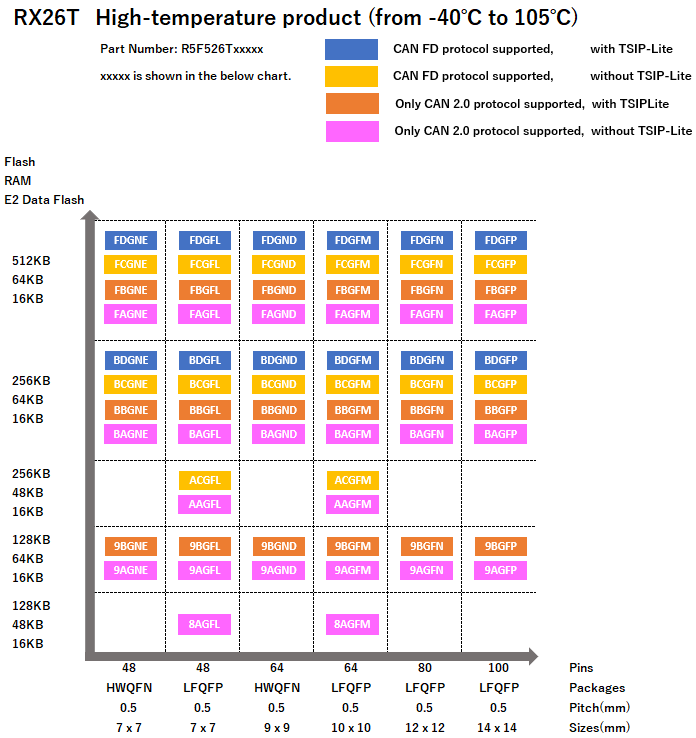

Product Options
Processing table
Carrier Type |
PLP |
CPU |
Program Memory (KB) |
Data Flash (KB) |
RAM (KB) |
Lead Count (#) |
Pkg. Type |
Supply Voltage (V) |
Operating Freq (Max) (MHz) |
I/O Ports |
Ethernet |
USB |
UART (#) |
SPI (#) |
I2C (#) |
CAN (ch) |
DMA |
Timer |
ADC |
24-Bit Sigma-Delta A/D Converter (ch) (#) |
DAC |
Human Machine Interface |
RTC |
Watchdog Timer (#) |
LVD |
Pkg. Dimensions (mm) |
Buy / Sample |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Part Number | ||||||||||||||||||||||||||||
| Tray (Full Carton) | TBD | RXv3 | 128 | 16 | 64 | 48 | LFQFP | 2.7 - 5.5 | 120 | 38 | No | 7 | 9 | 8 | CAN x 1-ch | Yes | 8-bit x 8-ch, 16-bit x 13-ch, 32-bit x 10-ch | 12-bit x 10-ch | 12-bit x 2-ch | No | 2 | No | 7 x 7 x 1.7 | |||||
| Tray | TBD | RXv3 | 128 | 16 | 64 | 48 | LFQFP | 2.7 - 5.5 | 120 | 38 | No | 7 | 9 | 8 | CAN x 1-ch | Yes | 8-bit x 8-ch, 16-bit x 13-ch, 32-bit x 10-ch | 12-bit x 10-ch | 12-bit x 2-ch | No | 2 | No | 7 x 7 x 1.7 | |||||
| Tray (Full Carton) | TBD | RXv3 | 128 | 16 | 64 | 64 | LFQFP | 2.7 - 5.5 | 120 | 50 | No | 7 | 9 | 8 | CAN x 1-ch | Yes | 8-bit x 8-ch, 16-bit x 13-ch, 32-bit x 10-ch | 12-bit x 15-ch | 12-bit x 2-ch | No | 2 | No | 10 x 10 x 1.7 | |||||
| Tray | TBD | RXv3 | 128 | 16 | 64 | 64 | LFQFP | 2.7 - 5.5 | 120 | 50 | No | 7 | 9 | 8 | CAN x 1-ch | Yes | 8-bit x 8-ch, 16-bit x 13-ch, 32-bit x 10-ch | 12-bit x 15-ch | 12-bit x 2-ch | No | 2 | No | 10 x 10 x 1.7 | |||||
| Tray (Full Carton) | TBD | RXv3 | 128 | 16 | 64 | 80 | LFQFP | 2.7 - 5.5 | 120 | 63 | No | 7 | 9 | 8 | CAN x 1-ch | Yes | 8-bit x 8-ch, 16-bit x 13-ch, 32-bit x 10-ch | 12-bit x 19-ch | 12-bit x 2-ch | No | 2 | No | 12 x 12 x 1.7 | |||||
| Tray | TBD | RXv3 | 128 | 16 | 64 | 80 | LFQFP | 2.7 - 5.5 | 120 | 63 | No | 7 | 9 | 8 | CAN x 1-ch | Yes | 8-bit x 8-ch, 16-bit x 13-ch, 32-bit x 10-ch | 12-bit x 19-ch | 12-bit x 2-ch | No | 2 | No | 12 x 12 x 1.7 | |||||
| Tray (Full Carton) | TBD | RXv3 | 128 | 16 | 64 | 100 | LFQFP | 2.7 - 5.5 | 120 | 83 | No | 7 | 9 | 8 | CAN x 1-ch | Yes | 8-bit x 8-ch, 16-bit x 13-ch, 32-bit x 10-ch | 12-bit x 22-ch | 12-bit x 2-ch | No | 2 | No | 14 x 14 x 1.7 | |||||
| Tray | TBD | RXv3 | 128 | 16 | 64 | 100 | LFQFP | 2.7 - 5.5 | 120 | 83 | No | 7 | 9 | 8 | CAN x 1-ch | Yes | 8-bit x 8-ch, 16-bit x 13-ch, 32-bit x 10-ch | 12-bit x 22-ch | 12-bit x 2-ch | No | 2 | No | 14 x 14 x 1.7 | |||||
| Tray (Full Carton) | TBD | RXv3 | 128 | 16 | 64 | 64 | HWQFN | 2.7 - 5.5 | 120 | 50 | No | 7 | 9 | 8 | CAN x 1-ch | Yes | 8-bit x 8-ch, 16-bit x 13-ch, 32-bit x 10-ch | 12-bit x 15-ch | 12-bit x 2-ch | No | 2 | No | 9 x 9 x 0.8 | |||||
| Tray | TBD | RXv3 | 128 | 16 | 64 | 64 | HWQFN | 2.7 - 5.5 | 120 | 50 | No | 7 | 9 | 8 | CAN x 1-ch | Yes | 8-bit x 8-ch, 16-bit x 13-ch, 32-bit x 10-ch | 12-bit x 15-ch | 12-bit x 2-ch | No | 2 | No | 9 x 9 x 0.8 | |||||
| Tray (Full Carton) | TBD | RXv3 | 128 | 16 | 64 | 48 | HWQFN | 2.7 - 5.5 | 120 | 38 | No | 7 | 9 | 8 | CAN x 1-ch | Yes | 8-bit x 8-ch, 16-bit x 13-ch, 32-bit x 10-ch | 12-bit x 10-ch | 12-bit x 2-ch | No | 2 | No | 7 x 7 x 0.8 | |||||
| Tray | TBD | RXv3 | 128 | 16 | 64 | 48 | HWQFN | 2.7 - 5.5 | 120 | 38 | No | 7 | 9 | 8 | CAN x 1-ch | Yes | 8-bit x 8-ch, 16-bit x 13-ch, 32-bit x 10-ch | 12-bit x 10-ch | 12-bit x 2-ch | No | 2 | No | 7 x 7 x 0.8 | |||||
| Tray (Full Carton) | TBD | RXv3 | 128 | 16 | 64 | 48 | LFQFP | 2.7 - 5.5 | 120 | 38 | No | 7 | 9 | 8 | CAN x 1-ch | Yes | 8-bit x 8-ch, 16-bit x 13-ch, 32-bit x 10-ch | 12-bit x 10-ch | 12-bit x 2-ch | No | 2 | No | 7 x 7 x 1.7 | |||||
| Tray | TBD | RXv3 | 128 | 16 | 64 | 48 | LFQFP | 2.7 - 5.5 | 120 | 38 | No | 7 | 9 | 8 | CAN x 1-ch | Yes | 8-bit x 8-ch, 16-bit x 13-ch, 32-bit x 10-ch | 12-bit x 10-ch | 12-bit x 2-ch | No | 2 | No | 7 x 7 x 1.7 | |||||
| Tray (Full Carton) | TBD | RXv3 | 128 | 16 | 64 | 64 | LFQFP | 2.7 - 5.5 | 120 | 50 | No | 7 | 9 | 8 | CAN x 1-ch | Yes | 8-bit x 8-ch, 16-bit x 13-ch, 32-bit x 10-ch | 12-bit x 15-ch | 12-bit x 2-ch | No | 2 | No | 10 x 10 x 1.7 | |||||
| Tray | TBD | RXv3 | 128 | 16 | 64 | 64 | LFQFP | 2.7 - 5.5 | 120 | 50 | No | 7 | 9 | 8 | CAN x 1-ch | Yes | 8-bit x 8-ch, 16-bit x 13-ch, 32-bit x 10-ch | 12-bit x 15-ch | 12-bit x 2-ch | No | 2 | No | 10 x 10 x 1.7 | |||||
| Tray (Full Carton) | TBD | RXv3 | 128 | 16 | 64 | 80 | LFQFP | 2.7 - 5.5 | 120 | 63 | No | 7 | 9 | 8 | CAN x 1-ch | Yes | 8-bit x 8-ch, 16-bit x 13-ch, 32-bit x 10-ch | 12-bit x 19-ch | 12-bit x 2-ch | No | 2 | No | 12 x 12 x 1.7 | |||||
| Tray | TBD | RXv3 | 128 | 16 | 64 | 80 | LFQFP | 2.7 - 5.5 | 120 | 63 | No | 7 | 9 | 8 | CAN x 1-ch | Yes | 8-bit x 8-ch, 16-bit x 13-ch, 32-bit x 10-ch | 12-bit x 19-ch | 12-bit x 2-ch | No | 2 | No | 12 x 12 x 1.7 | |||||
| Tray (Full Carton) | TBD | RXv3 | 128 | 16 | 64 | 100 | LFQFP | 2.7 - 5.5 | 120 | 83 | No | 7 | 9 | 8 | CAN x 1-ch | Yes | 8-bit x 8-ch, 16-bit x 13-ch, 32-bit x 10-ch | 12-bit x 22-ch | 12-bit x 2-ch | No | 2 | No | 14 x 14 x 1.7 | |||||
| Tray | TBD | RXv3 | 128 | 16 | 64 | 100 | LFQFP | 2.7 - 5.5 | 120 | 83 | No | 7 | 9 | 8 | CAN x 1-ch | Yes | 8-bit x 8-ch, 16-bit x 13-ch, 32-bit x 10-ch | 12-bit x 22-ch | 12-bit x 2-ch | No | 2 | No | 14 x 14 x 1.7 | |||||
| Tray (Full Carton) | TBD | RXv3 | 128 | 16 | 64 | 64 | HWQFN | 2.7 - 5.5 | 120 | 50 | No | 7 | 9 | 8 | CAN x 1-ch | Yes | 8-bit x 8-ch, 16-bit x 13-ch, 32-bit x 10-ch | 12-bit x 15-ch | 12-bit x 2-ch | No | 2 | No | 9 x 9 x 0.8 | |||||
| Tray | TBD | RXv3 | 128 | 16 | 64 | 64 | HWQFN | 2.7 - 5.5 | 120 | 50 | No | 7 | 9 | 8 | CAN x 1-ch | Yes | 8-bit x 8-ch, 16-bit x 13-ch, 32-bit x 10-ch | 12-bit x 15-ch | 12-bit x 2-ch | No | 2 | No | 9 x 9 x 0.8 | |||||
| Tray (Full Carton) | TBD | RXv3 | 128 | 16 | 64 | 48 | HWQFN | 2.7 - 5.5 | 120 | 38 | No | 7 | 9 | 8 | CAN x 1-ch | Yes | 8-bit x 8-ch, 16-bit x 13-ch, 32-bit x 10-ch | 12-bit x 10-ch | 12-bit x 2-ch | No | 2 | No | 7 x 7 x 0.8 | |||||
| Tray | TBD | RXv3 | 128 | 16 | 64 | 48 | HWQFN | 2.7 - 5.5 | 120 | 38 | No | 7 | 9 | 8 | CAN x 1-ch | Yes | 8-bit x 8-ch, 16-bit x 13-ch, 32-bit x 10-ch | 12-bit x 10-ch | 12-bit x 2-ch | No | 2 | No | 7 x 7 x 0.8 | |||||
| Tray (Full Carton) | TBD | RXv3 | 128 | 16 | 64 | 48 | LFQFP | 2.7 - 5.5 | 120 | 38 | No | 7 | 9 | 8 | CAN x 1-ch | Yes | 8-bit x 8-ch, 16-bit x 13-ch, 32-bit x 10-ch | 12-bit x 10-ch | 12-bit x 2-ch | No | 2 | No | 7 x 7 x 1.7 | |||||
| Tray | TBD | RXv3 | 128 | 16 | 64 | 48 | LFQFP | 2.7 - 5.5 | 120 | 38 | No | 7 | 9 | 8 | CAN x 1-ch | Yes | 8-bit x 8-ch, 16-bit x 13-ch, 32-bit x 10-ch | 12-bit x 10-ch | 12-bit x 2-ch | No | 2 | No | 7 x 7 x 1.7 | |||||
| Tray (Full Carton) | TBD | RXv3 | 128 | 16 | 64 | 64 | LFQFP | 2.7 - 5.5 | 120 | 50 | No | 7 | 9 | 8 | CAN x 1-ch | Yes | 8-bit x 8-ch, 16-bit x 13-ch, 32-bit x 10-ch | 12-bit x 15-ch | 12-bit x 2-ch | No | 2 | No | 10 x 10 x 1.7 | |||||
| Tray | TBD | RXv3 | 128 | 16 | 64 | 64 | LFQFP | 2.7 - 5.5 | 120 | 50 | No | 7 | 9 | 8 | CAN x 1-ch | Yes | 8-bit x 8-ch, 16-bit x 13-ch, 32-bit x 10-ch | 12-bit x 15-ch | 12-bit x 2-ch | No | 2 | No | 10 x 10 x 1.7 | |||||
| Tray (Full Carton) | TBD | RXv3 | 128 | 16 | 64 | 80 | LFQFP | 2.7 - 5.5 | 120 | 63 | No | 7 | 9 | 8 | CAN x 1-ch | Yes | 8-bit x 8-ch, 16-bit x 13-ch, 32-bit x 10-ch | 12-bit x 19-ch | 12-bit x 2-ch | No | 2 | No | 12 x 12 x 1.7 | |||||
| Tray | TBD | RXv3 | 128 | 16 | 64 | 80 | LFQFP | 2.7 - 5.5 | 120 | 63 | No | 7 | 9 | 8 | CAN x 1-ch | Yes | 8-bit x 8-ch, 16-bit x 13-ch, 32-bit x 10-ch | 12-bit x 19-ch | 12-bit x 2-ch | No | 2 | No | 12 x 12 x 1.7 | |||||
| Tray (Full Carton) | TBD | RXv3 | 128 | 16 | 64 | 100 | LFQFP | 2.7 - 5.5 | 120 | 83 | No | 7 | 9 | 8 | CAN x 1-ch | Yes | 8-bit x 8-ch, 16-bit x 13-ch, 32-bit x 10-ch | 12-bit x 22-ch | 12-bit x 2-ch | No | 2 | No | 14 x 14 x 1.7 | |||||
| Tray | TBD | RXv3 | 128 | 16 | 64 | 100 | LFQFP | 2.7 - 5.5 | 120 | 83 | No | 7 | 9 | 8 | CAN x 1-ch | Yes | 8-bit x 8-ch, 16-bit x 13-ch, 32-bit x 10-ch | 12-bit x 22-ch | 12-bit x 2-ch | No | 2 | No | 14 x 14 x 1.7 | |||||
| Tray (Full Carton) | TBD | RXv3 | 128 | 16 | 64 | 64 | HWQFN | 2.7 - 5.5 | 120 | 50 | No | 7 | 9 | 8 | CAN x 1-ch | Yes | 8-bit x 8-ch, 16-bit x 13-ch, 32-bit x 10-ch | 12-bit x 15-ch | 12-bit x 2-ch | No | 2 | No | 9 x 9 x 0.8 | |||||
| Tray | TBD | RXv3 | 128 | 16 | 64 | 64 | HWQFN | 2.7 - 5.5 | 120 | 50 | No | 7 | 9 | 8 | CAN x 1-ch | Yes | 8-bit x 8-ch, 16-bit x 13-ch, 32-bit x 10-ch | 12-bit x 15-ch | 12-bit x 2-ch | No | 2 | No | 9 x 9 x 0.8 | |||||
| Tray (Full Carton) | TBD | RXv3 | 128 | 16 | 64 | 48 | HWQFN | 2.7 - 5.5 | 120 | 38 | No | 7 | 9 | 8 | CAN x 1-ch | Yes | 8-bit x 8-ch, 16-bit x 13-ch, 32-bit x 10-ch | 12-bit x 10-ch | 12-bit x 2-ch | No | 2 | No | 7 x 7 x 0.8 | |||||
| Tray | TBD | RXv3 | 128 | 16 | 64 | 48 | HWQFN | 2.7 - 5.5 | 120 | 38 | No | 7 | 9 | 8 | CAN x 1-ch | Yes | 8-bit x 8-ch, 16-bit x 13-ch, 32-bit x 10-ch | 12-bit x 10-ch | 12-bit x 2-ch | No | 2 | No | 7 x 7 x 0.8 | |||||
| Tray (Full Carton) | TBD | RXv3 | 128 | 16 | 64 | 48 | LFQFP | 2.7 - 5.5 | 120 | 38 | No | 7 | 9 | 8 | CAN x 1-ch | Yes | 8-bit x 8-ch, 16-bit x 13-ch, 32-bit x 10-ch | 12-bit x 10-ch | 12-bit x 2-ch | No | 2 | No | 7 x 7 x 1.7 | |||||
| Tray | TBD | RXv3 | 128 | 16 | 64 | 48 | LFQFP | 2.7 - 5.5 | 120 | 38 | No | 7 | 9 | 8 | CAN x 1-ch | Yes | 8-bit x 8-ch, 16-bit x 13-ch, 32-bit x 10-ch | 12-bit x 10-ch | 12-bit x 2-ch | No | 2 | No | 7 x 7 x 1.7 | |||||
| Tray (Full Carton) | TBD | RXv3 | 128 | 16 | 64 | 64 | LFQFP | 2.7 - 5.5 | 120 | 50 | No | 7 | 9 | 8 | CAN x 1-ch | Yes | 8-bit x 8-ch, 16-bit x 13-ch, 32-bit x 10-ch | 12-bit x 15-ch | 12-bit x 2-ch | No | 2 | No | 10 x 10 x 1.7 | |||||
| Tray | TBD | RXv3 | 128 | 16 | 64 | 64 | LFQFP | 2.7 - 5.5 | 120 | 50 | No | 7 | 9 | 8 | CAN x 1-ch | Yes | 8-bit x 8-ch, 16-bit x 13-ch, 32-bit x 10-ch | 12-bit x 15-ch | 12-bit x 2-ch | No | 2 | No | 10 x 10 x 1.7 | |||||
| Tray (Full Carton) | TBD | RXv3 | 128 | 16 | 64 | 80 | LFQFP | 2.7 - 5.5 | 120 | 63 | No | 7 | 9 | 8 | CAN x 1-ch | Yes | 8-bit x 8-ch, 16-bit x 13-ch, 32-bit x 10-ch | 12-bit x 19-ch | 12-bit x 2-ch | No | 2 | No | 12 x 12 x 1.7 | |||||
| Tray | TBD | RXv3 | 128 | 16 | 64 | 80 | LFQFP | 2.7 - 5.5 | 120 | 63 | No | 7 | 9 | 8 | CAN x 1-ch | Yes | 8-bit x 8-ch, 16-bit x 13-ch, 32-bit x 10-ch | 12-bit x 19-ch | 12-bit x 2-ch | No | 2 | No | 12 x 12 x 1.7 | |||||
| Tray (Full Carton) | TBD | RXv3 | 128 | 16 | 64 | 100 | LFQFP | 2.7 - 5.5 | 120 | 83 | No | 7 | 9 | 8 | CAN x 1-ch | Yes | 8-bit x 8-ch, 16-bit x 13-ch, 32-bit x 10-ch | 12-bit x 22-ch | 12-bit x 2-ch | No | 2 | No | 14 x 14 x 1.7 | |||||
| Tray | TBD | RXv3 | 128 | 16 | 64 | 100 | LFQFP | 2.7 - 5.5 | 120 | 83 | No | 7 | 9 | 8 | CAN x 1-ch | Yes | 8-bit x 8-ch, 16-bit x 13-ch, 32-bit x 10-ch | 12-bit x 22-ch | 12-bit x 2-ch | No | 2 | No | 14 x 14 x 1.7 | |||||
| Tray (Full Carton) | TBD | RXv3 | 128 | 16 | 64 | 64 | HWQFN | 2.7 - 5.5 | 120 | 50 | No | 7 | 9 | 8 | CAN x 1-ch | Yes | 8-bit x 8-ch, 16-bit x 13-ch, 32-bit x 10-ch | 12-bit x 15-ch | 12-bit x 2-ch | No | 2 | No | 9 x 9 x 0.8 | |||||
| Tray | TBD | RXv3 | 128 | 16 | 64 | 64 | HWQFN | 2.7 - 5.5 | 120 | 50 | No | 7 | 9 | 8 | CAN x 1-ch | Yes | 8-bit x 8-ch, 16-bit x 13-ch, 32-bit x 10-ch | 12-bit x 15-ch | 12-bit x 2-ch | No | 2 | No | 9 x 9 x 0.8 | |||||
| Tray (Full Carton) | TBD | RXv3 | 128 | 16 | 64 | 48 | HWQFN | 2.7 - 5.5 | 120 | 38 | No | 7 | 9 | 8 | CAN x 1-ch | Yes | 8-bit x 8-ch, 16-bit x 13-ch, 32-bit x 10-ch | 12-bit x 10-ch | 12-bit x 2-ch | No | 2 | No | 7 x 7 x 0.8 | |||||
| Tray | TBD | RXv3 | 128 | 16 | 64 | 48 | HWQFN | 2.7 - 5.5 | 120 | 38 | No | 7 | 9 | 8 | CAN x 1-ch | Yes | 8-bit x 8-ch, 16-bit x 13-ch, 32-bit x 10-ch | 12-bit x 10-ch | 12-bit x 2-ch | No | 2 | No | 7 x 7 x 0.8 | |||||
| Tray (Full Carton) | TBD | RXv3 | 256 | 16 | 64 | 48 | LFQFP | 2.7 - 5.5 | 120 | 38 | No | 7 | 9 | 8 | CAN x 1-ch | Yes | 8-bit x 8-ch, 16-bit x 13-ch, 32-bit x 10-ch | 12-bit x 10-ch | 12-bit x 2-ch | No | 2 | No | 7 x 7 x 1.7 | |||||
| Tray | TBD | RXv3 | 256 | 16 | 64 | 48 | LFQFP | 2.7 - 5.5 | 120 | 38 | No | 7 | 9 | 8 | CAN x 1-ch | Yes | 8-bit x 8-ch, 16-bit x 13-ch, 32-bit x 10-ch | 12-bit x 10-ch | 12-bit x 2-ch | No | 2 | No | 7 x 7 x 1.7 |
Tips for Using This Parametric Table:
- Hide Filters button in header: Collapse or expands filters
- Column sort buttons in header: Sort Column alphabetically / numerically descending or ascending
- Reset button in header: Reset all filters to the page default
- Full Screen button in header: Expand the table to full screen view (user must close out of full screen before they can interact with rest of page)
- Export button in header: Export the filtered results of the table to an Excel document
- Filter parts search bar in header: Type to filter table results by part number
- Hide column button in column headers: Select to hide columns in table
- AND / OR toggle switches in header: Toggles the logic of this particular filter to be “AND” or “OR” logic for filtering results
- Multiselect checkboxes at beginning of each row in table: Select these checkboxes to compare products against each other
- Document icon next to product name in row: View the featured document for this product
- Chip icon next to the right of the document icon in row: View the block diagram for this product
- Cart icon to the right of the chip icon: Indicates that samples are available for this product
Support
play_circle_filledVideos & Training
Introducing 32-bit RX MCU RX26T
Learn more about the key features of the RX26T MCU, which enables dual-motor and PFC control, and is the newest addition to the RX-T series optimized for motor control applications.
Video List
News & Blog Posts
| RX26T New Lineup Expansion: Suitable for Motor Control Applications | Blog Post | Aug 30, 2023 | |
| The New RX26T – Ideal Microcontroller for Motor Control Applications | Blog Post | Jun 14, 2023 | |
| Renesas Expands Market-Leading Motor Control Embedded Processing Portfolio with Over 35 New MCUs | News | May 30, 2023 |
