Renesas Flexible Motor Control CPU Board for RA6T2 MCU Group

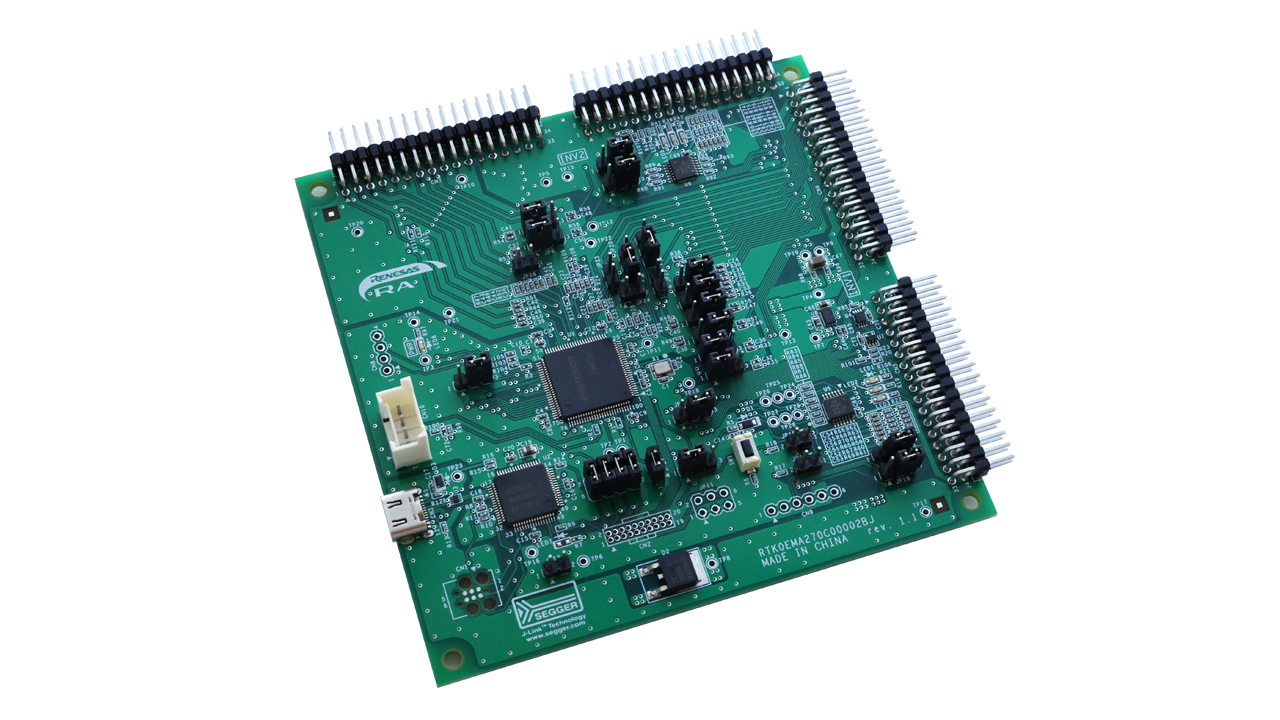

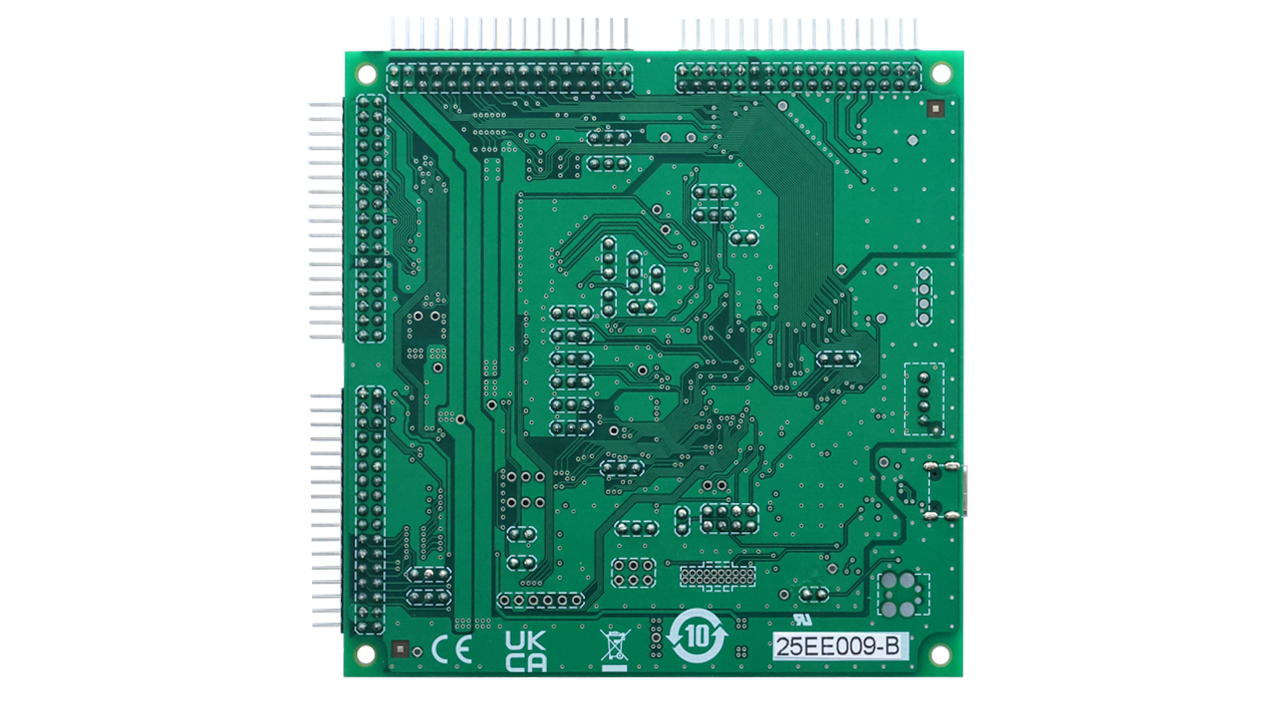

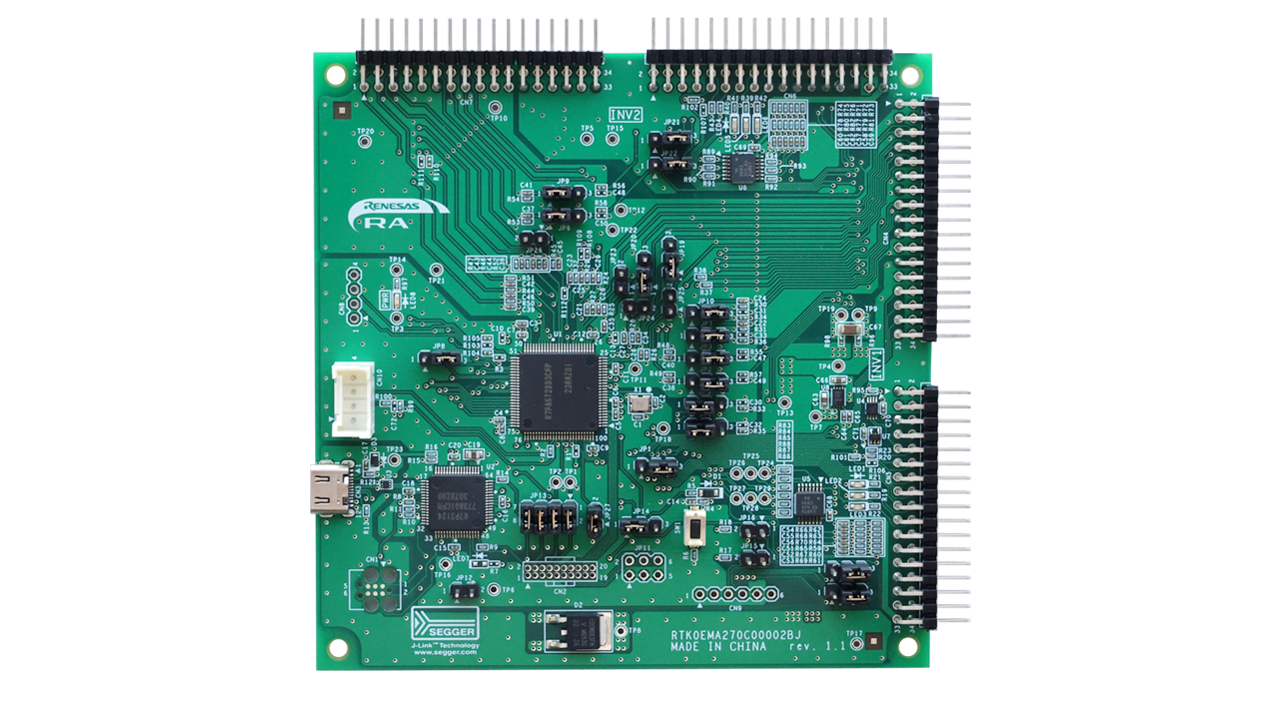

This product is a CPU board for motor control equipped with RA6T2. Motor control using RA6T2 can be easily realized by using it in combination with a supported inverter board. By using a supported communication board, the CPU board can be electrically isolated from the PC for safe motor control evaluation and debugging.

This product has two versions: Version 1 (P/N: RTK0EMA270C00000BJ) and Version 2 (P/N: RTK0EMA270C00002BJ).

• Version 1 supports only single power factor correction (PFC) control for the high voltage inverter board, while Version 2 supports single PFC control and interleaved PFC control.
• Version 1 will be discontinued. Please consider using the successor product, Version 2.

Please note that Version 1 and Version 2 are not sample code compatible. Therefore, sample code is provided for both Version 1 and Version 2. The supported boards are listed in the application notes included with the sample code. Please be sure to use the sample code corresponding to the board version.

Supported inverter boards:

• MCI-LV-1 (P/N: RTK0EM0000S04020BJ)
• MCI-HV-1 (P/N: RTK0EM0000B14030BJ)
• MCI-HV-2-3PH (P/N: RTK0EM0000B16030BJ)
• MCI-HV-2-1PH (P/N: RTK0EM0000B18030BJ)

Supported communication board:

• MC-COM (P/N: RTK0EMXC90S00000BJ)
