An inverter board that allows users to evaluate motor control with ease using a high-voltage brushless DC (BLDC)/induction motor. By combining with a compatible CPU board, users can immediately start evaluating motor control.

This product supports only 1-phase AC200 - 240V 50Hz/60Hz input voltage.

Features

Supports overcurrent detection, overvoltage protection, over-temperature detection.
Reinforced isolation between high-voltage domain and user interface domain
Supports 3-phase current inline sensing
Supports Hall sensor and encoder signal input with reinforced isolation

Applications

Motor Control, Motor Drives, Robotics

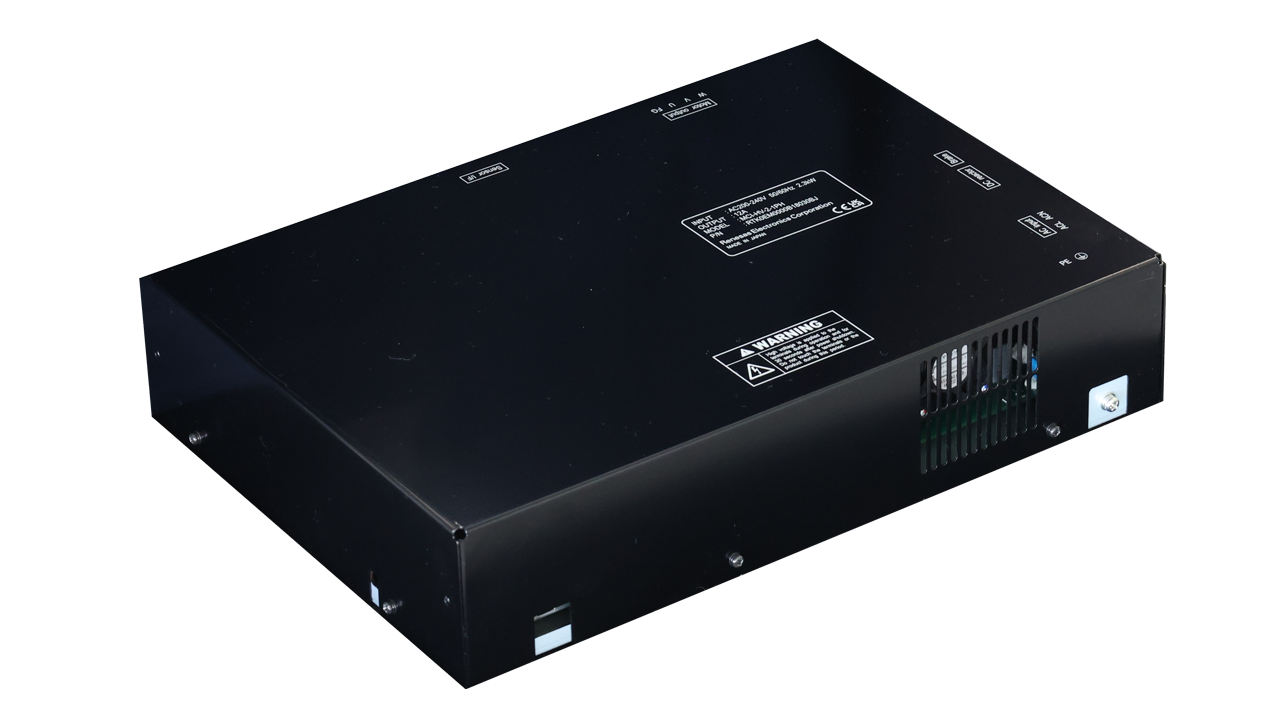

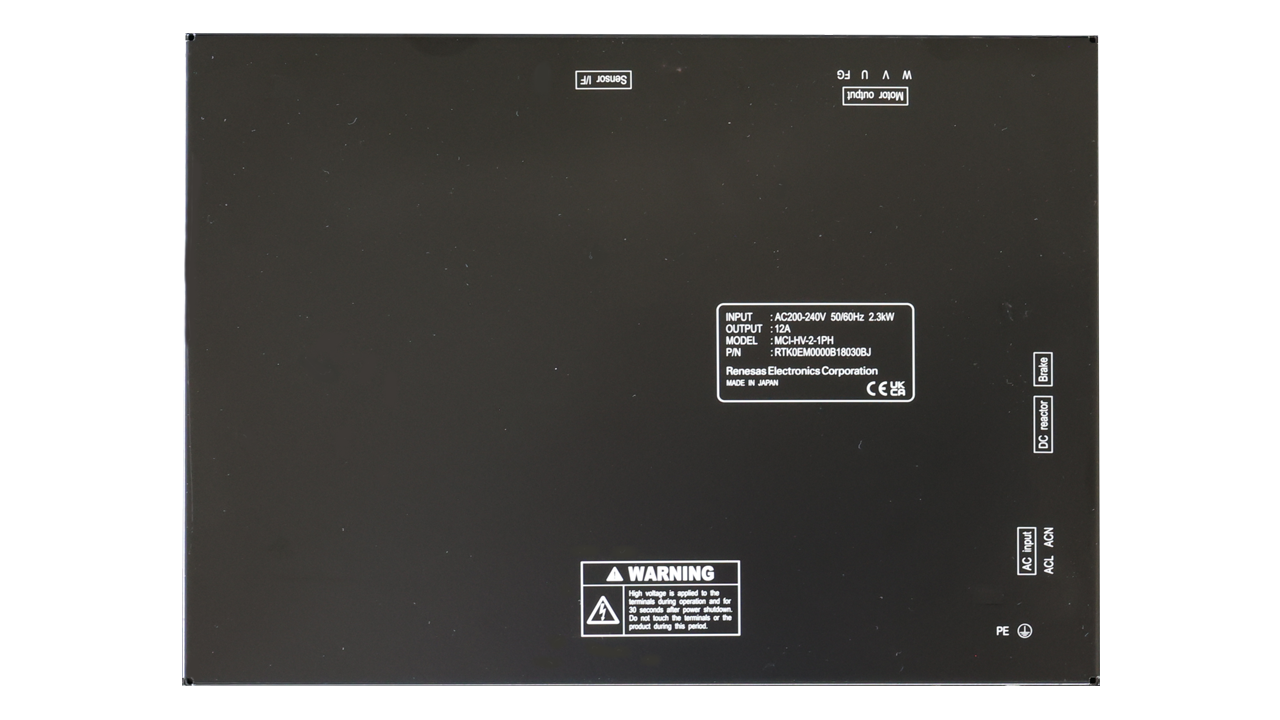

MCI-HV-2-1PH Development Board with Cover

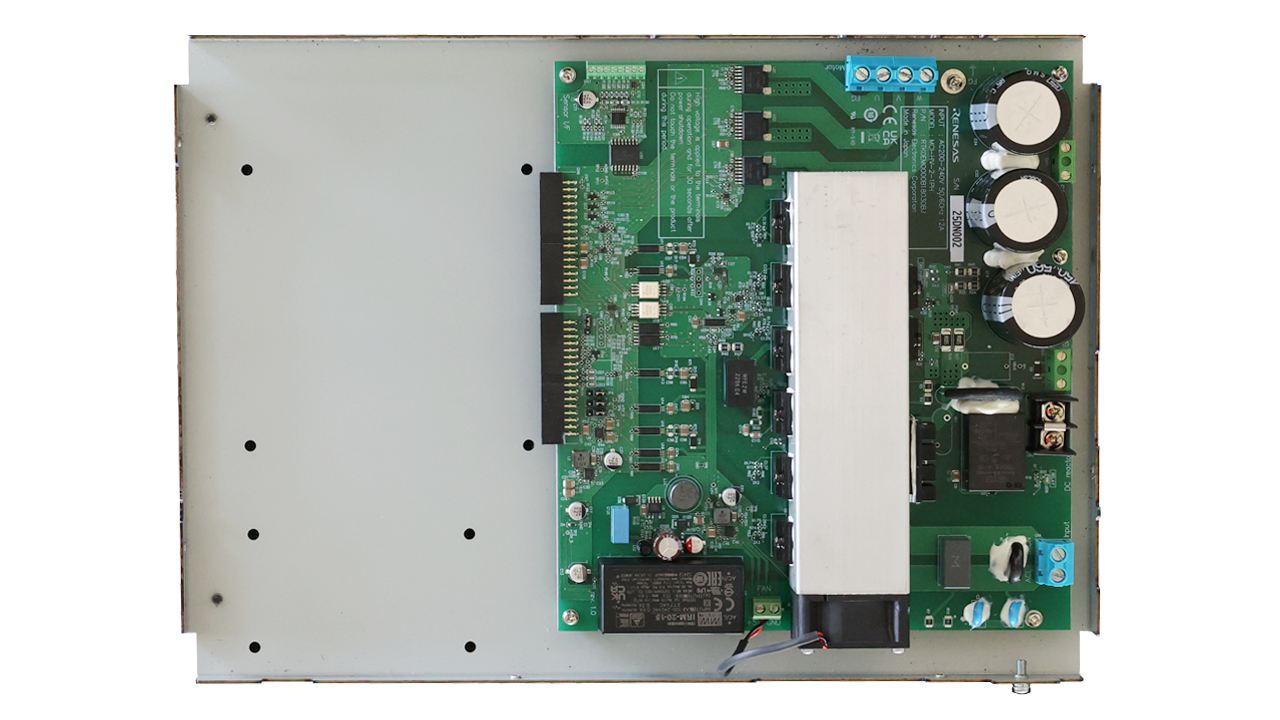

MCI-HV-2-1PH Development Board with Cover - Top

Products in the Design

3D illustration featuring top and bottom views of TO-3PFP chip package with 3 lead count.

General Parts

RJH65T04BDPM-A0

IGBT 650V 30A TO-3PFP Built-In FRD

Datasheet

3D illustration featuring top and bottom views of SSOP chip package with 5 lead count.

Photocouplers/Optocouplers Motor Drive

RV1S9207A

0.6 A Output Current, High CMR, IGBT Gate Drive, 5-PIN SSOP (LSSO5 WITH 8.2mm Creepage Distance) Photocoupler

Datasheet

Photocouplers/Optocouplers Motor Drive

PS9013

1 Mbps, Open Collector Output, High CMR, IPM DRIVER, 5-PIN SSOP (LSO5) Photocoupler

Datasheet

Photocouplers/Optocouplers IC Output

PS8352AL2

Analog Output Type Optical Coupled Isolation Amplifier

Datasheet

GreenPAK: Programmable Mixed-Signal Products

SLG46826

GreenPAK Programmable Mixed-Signal IC, VDD Range: 2.3-5.5V, 17 GPIOs, 4 ACMPs, Multi-Time Programmable, I2C, Dual Supply VDD2 Range: 1.71-5.5V

Datasheet

RS-485/422, RS-232, & Multi-protocol Transceivers

ISL32173E

QUAD, ±16.5kV ESD Protected, 3.0V to 5.5V, RS-485/RS-422 Receivers

Datasheet

3D illustration featuring top and bottom views of UTDFN IC chip package with 6 lead count.

General-purpose Op Amps

ISL28191

Single Supply Ultra-Low Noise, Low Distortion Rail-to-Rail Output, Op Amp

Datasheet

Buck Regulators (Integrated FETs)

ISL85003A

Highly Efficient 3A Synchronous Buck Regulator

Datasheet

3D illustration featuring top and bottom views of SOICN chip package with 7 lead count.

Non-Isolated AC/DC Buck Converters

RAA223021

700V AC/DC Regulator with Ultra-Low Standby Power and up to 12W Output Power

Datasheet

Linear Regulators (LDO)

ISL80103

High Performance 3A Linear Regulator

Datasheet

Photocouplers/Optocouplers Motor Drive

RV1S9231A

2.5A Output Current, High CMR, IGBT Gate Drive, 5-Pin SSOP (LSSO5 With 8.2mm Creepage Distance) Photocoupler

Datasheet

3D illustration featuring top and bottom of LFQFP ic chip package with 48 leads

RA Arm Cortex-M MCUs

RA6T2

240MHz Arm Cortex-M33 TrustZone, High Real-time Engine for Motor Control

Datasheet

RX 32-Bit Performance/Efficiency MCUs

RX26T

32-bit Microcontroller Optimized for Dual-Motor and PFC Control

Datasheet

3D illustration featuring top and bottom views of LQFP IC chip package with 64 lead count.

RX 32-Bit Performance/Efficiency MCUs

RX14T

48MHz Entry-Level 32-bit Microcontroller for Motor Control with 128KB Flash

Datasheet

Sample & Buy

1ph Input Flexible Motor Control High Voltage Inverter

RTK0EM0000B18030BJ

1u | $941.18Budgetary Price

Add-on Hardware

Additional boards that work with this platform. Some may be required for full functionality or to evaluate specific features.

Renesas Flexible Motor Control Kit for RA6T2 MCU Group

MCK-RA6T2

The MCK-RA6T2 is a development kit that enables easy evaluation of motor control using permanent magnet synchronous motors (brushless DC motors). With this product and the sample code and QE for Motor that can be downloaded from the website, you can start evaluating motor control using the RA6T2... Read More
