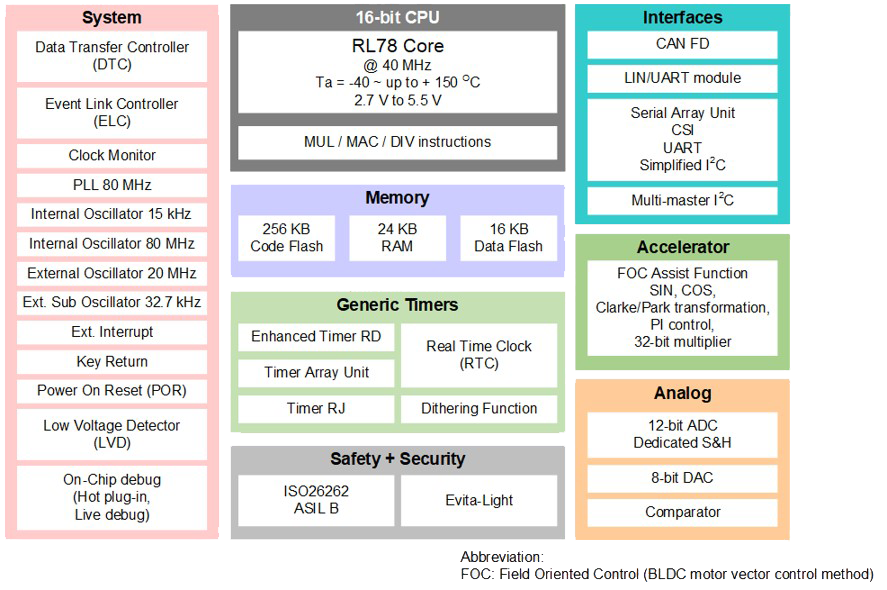

Features
- Key Features
- RL78 core, Max. 40MHz
- 256KB Flash
- 24KB RAM
- 12-bit A/D converter
- 8-bit D/A converter
- Comparator with 4-fold multiplexer

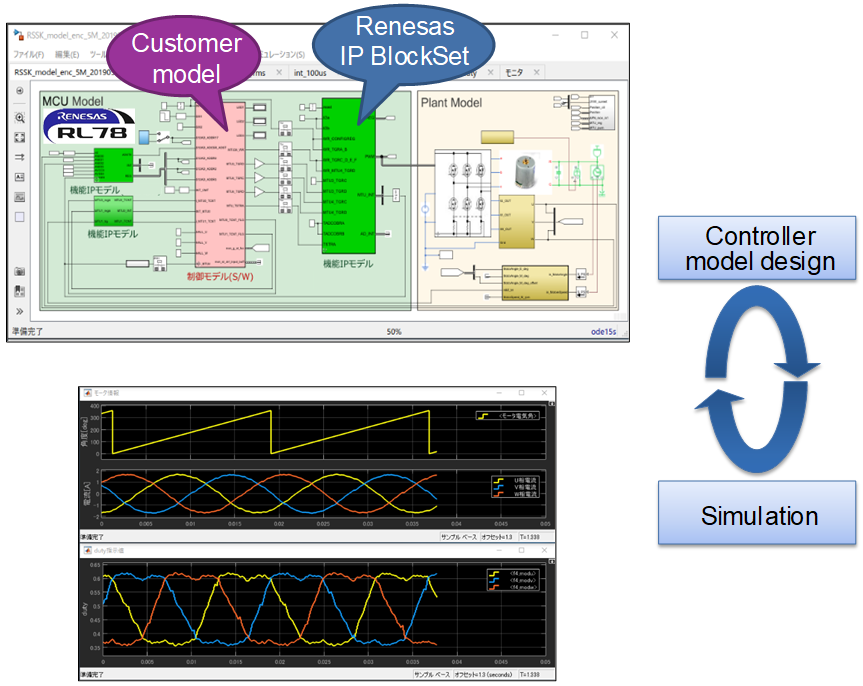

- Motor control: DC and BLDC - Field-oriented Control (FOC)
- Application accelerator unit
- Optimized DC/DC converter support
- High-temperature support: up to Ta = 150 °C
- Super-low power consumption
- State-of-the-Art Interfaces
- CAN FD, LIN, UART, SPI, I2C, SENT
- 20 x PWM output
- Support for FuSa and Security
- Security module with EVITA-Light support
- ISO 26262 ASIL B
- AUTOSAR MCAL
- QINeS-Lite (manufactured by FPT Automotive): AUTOSAR MCAL (ASIL B) support
- Extensive ecosystem supporting the latest standards concerning tool, hardware, and software areas
Description
The RL78/F24 next-generation super-low power automotive microcontrollers are ideal for realizing future highly reliable smart actuators and sensors, as well as low-end body ECUs. As an innovative prolongation of the known RL78/F1x MCUs, the RL78/F24 can cover prospective market requirements. With its increased CPU performance, high-temperature capability, and enhanced peripheral feature set, the RL78/F24 is a perfect fit for various applications.
RL78/F2x products are designed according to ISO 26262 and support functional safety (FuSa) up to ASIL B. Additionally, partner-provided AUTOSAR MCAL (ASIL B) is also available. RL78/F2x products support up to the EVITA-Light security standard or more. An AES crypto module can handle key lengths of up to 256 bits and supports secure boot and authentication. To further boost the calculation performance for BLDC field-oriented control (FOC) motor control and DC/DC control systems, RL78/F2x is equipped with the unique application accelerator IP to offload complex trigonometric and arithmetic processing.
To respond to the E/E automotive architecture trend, the RL78/F24 is equipped with a CAN FD interface. RL78/F2x MCUs are fully hardware and software compatible with RL78/F1x, enabling software reuse.
Parameters
| Attributes | Value |
|---|---|
| Program Memory (KB) | 256 |
| Data Flash (KB) | 16 |
| RAM (KB) | 24 |
| Carrier Type | Bulk (Tray), Full Carton (Tray), Tape & Reel |
| Supply Voltage (V) | 2.7 - 5.5 |
| I/O Ports | 25, 38, 52, 68, 86 |
| Temp. Range (°C) | Ta = -40 to +105, Ta = -40 to +125, Ta = -40 to +150 |
| Operating Freq (Max) (MHz) | 40 |
| USB FS (host ch/device ch) | ( 0 / 0 ) |
| SCI or UART (ch) | 4 |
| SPI (ch) | 3, 4 |
| I2C (#) | 4, 5 |
| CAN (ch) | 1 |
| CAN-FD (ch) | 1 |
| Wireless | No |
| LIN (#) | 2 |
| 16-Bit Timer (ch) (#) | 19 |
| 12-Bit A/D Converter (ch) | 10, 19, 24, 25, 31 |
| 10-Bit A/D Converter (ch) | 0 |
| 24-Bit Sigma-Delta A/D Converter (ch) | 0 |
| 12-Bit D/A Converter (ch) | 0 |
| 10-Bit D/A Converter (ch) (#) | 0 |
| 8-Bit D/A Converter (ch) | 1 |
| Capacitive Touch Sensing Unit (ch) | 0 |
| Segment LCD Controller | No |
| Security & Encryption | Secure Boot, AES, TRNG |
Application Block Diagrams
 | Low-End Camera Monitoring System A cost-effective, low-end camera monitoring system optimizes brightness with an MCU optical sensor and video processor. |
 | Cost-Effective Automotive Haptic Touch Key Module for Enhanced Driver Safety Touch interfaces with haptic feedback boost safety and user experience in advanced vehicle interiors. |
 | 48V/3kW Motor Control for 2/3 Wheelers The 48V/3kW motor control system features a scalable inverter design, phase overcurrent fault detection, and ASIL-B safety. |
 | Bidirectional GaN DC/DC Converter for 12V/48V EV/HEV Systems High-efficiency bidirectional GaN-based DC/DC converter ideal for 12V/48V EV and HEV systems. |
 | 12V Motor Controller Compact 12V BLDC motor controller with FOC or trapezoidal control for fast, efficient development. |
 | Remote Sensing with Inductive Position Sensor & CAN/LIN Remote sensing system boosts data security, enables ECU centralization, and reduces wiring in vehicles. |
Additional Applications
- Smart actuators
- Sensors ECUs
- Low-end body
