The CC-Link IE TSN is an open industrial network technology (and an extension of the Ethernet standard) that the CC-Link Partner Association adopted for time sensitive networking (TSN). Renesas provides a system solution based on this technology for smart factory applications. As one of the first controllers to support the CC-Link IE TSN Class B standard, the R-IN32M4-CL3 system-on-chip (SoC) meets the strict specifications. This protocol enables ultra high-speed and high-precision motion control solutions. TSN also enables seamlessly linked interoperation between information technology (IT) networks and operational technology (OT) networks, allowing product models or production volumes to be changed in real time, while also providing flexible support for the manufacturer. This boosts factory productivity overall.

System Benefits:

  • The R-IN32M4-CL3 complies with the CC-Link IE TSN Class B standard. It features an R-IN engine, Gigabit Ethernet PHY and 1.3MB of RAM for Ethernet communication. This enables high-speed, large-capacity communication without a software real-time operating system and external parts.

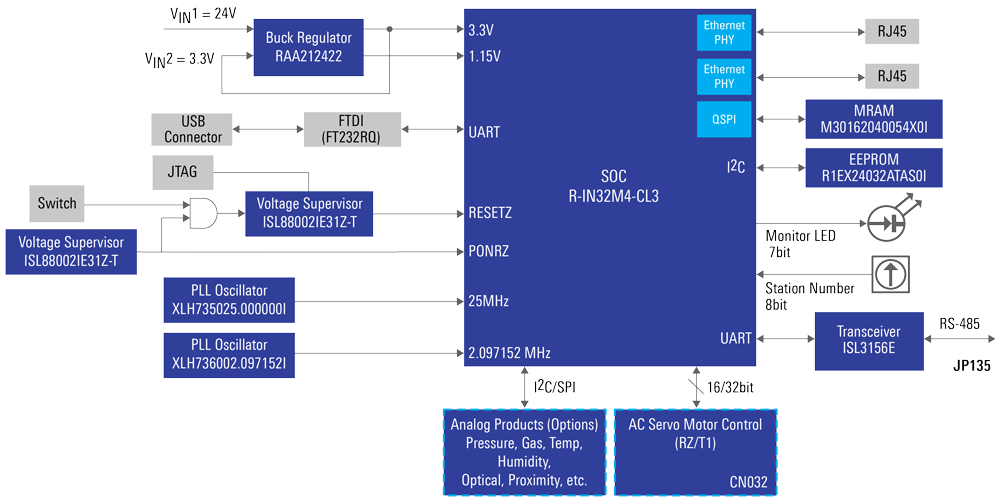

jp135-block-diagram

Related Products

Category Description Featured Document Ordering

System-on-Chip (SoC)
R-IN32M4-CL3 ICs for industrial Ethernet communication that support CC-Link IE TSN Datasheet Select Specific Device

Buck Regulator
RAA212422 Wide VIN 1.1A with Low VIN 1.5A Synchronous Buck Regulators Datasheet Buy/Sample

Voltage Supervisor
ISL88002 Ultra-Low Power 3 Ld Voltage Supervisors in SC-70 and SOT-23 Packages Datasheet Buy/Sample

PLL Oscillator
XLH735025.000000I 1000fs Quartz-based PLL Oscillator Datasheet Buy/Sample
XLH736002.097152I 1000fs Quartz-based PLL Oscillator Datasheet Buy/Sample

Memory
M3016204 Non-Volatile 16Mb High-Performance MRAM, 3.0V Datasheet Buy/Sample

EEPROM
R1EX24032ATAS0I Two-wire serial interface 32k EEPROM (4-kword × 8-bit) Datasheet Buy/Sample

Transceiver
ISL3156E 16kV ESD Protected, RS-485/RS-422 Differential Transceiver with Full Fail-safe Rx Datasheet Buy/Sample
