Overview

The DA14531 SmartBond TINY™ Module is the Bluetooth® Low Energy (LE) solution that will power the next 1 billion IoT devices through ease of use.

The DA14531 SmartBond TINY™ Module, based on the world’s smallest and lowest power Bluetooth 5.1 system-on-chip (SoC), brings the DA14531 SoC advantages to an integrated module. It just requires a power supply and a printed circuit board to build a Bluetooth application. The module targets broad market use and is certified across regions providing significant savings in development cost and time-to-market. It comes with an integrated antenna and easy-to-use software making Bluetooth Low Energy development easier than ever before. This combination takes mobile connectivity to applications previously out of reach, enabling the next billion IoT devices, with SmartBond TINY™ at their core.

Need for a pre-programmed DA14531 TINY Module with your own code?

Digi-Key® and EPS Global are selected third parties who provide programming services of small sample to high volume batches.

Digi-Key Electronics
Digi-Key is one of the fastest growing distributors of electronic components in the world. For more information on Digi-Key’s programming services contact [email protected].
EPS Global Logo
EPS Global is one of the world's largest programming service providers. For more information on EPS Global’s programming services go to www.epsprogramming.com or contact Munteanu Florentin.

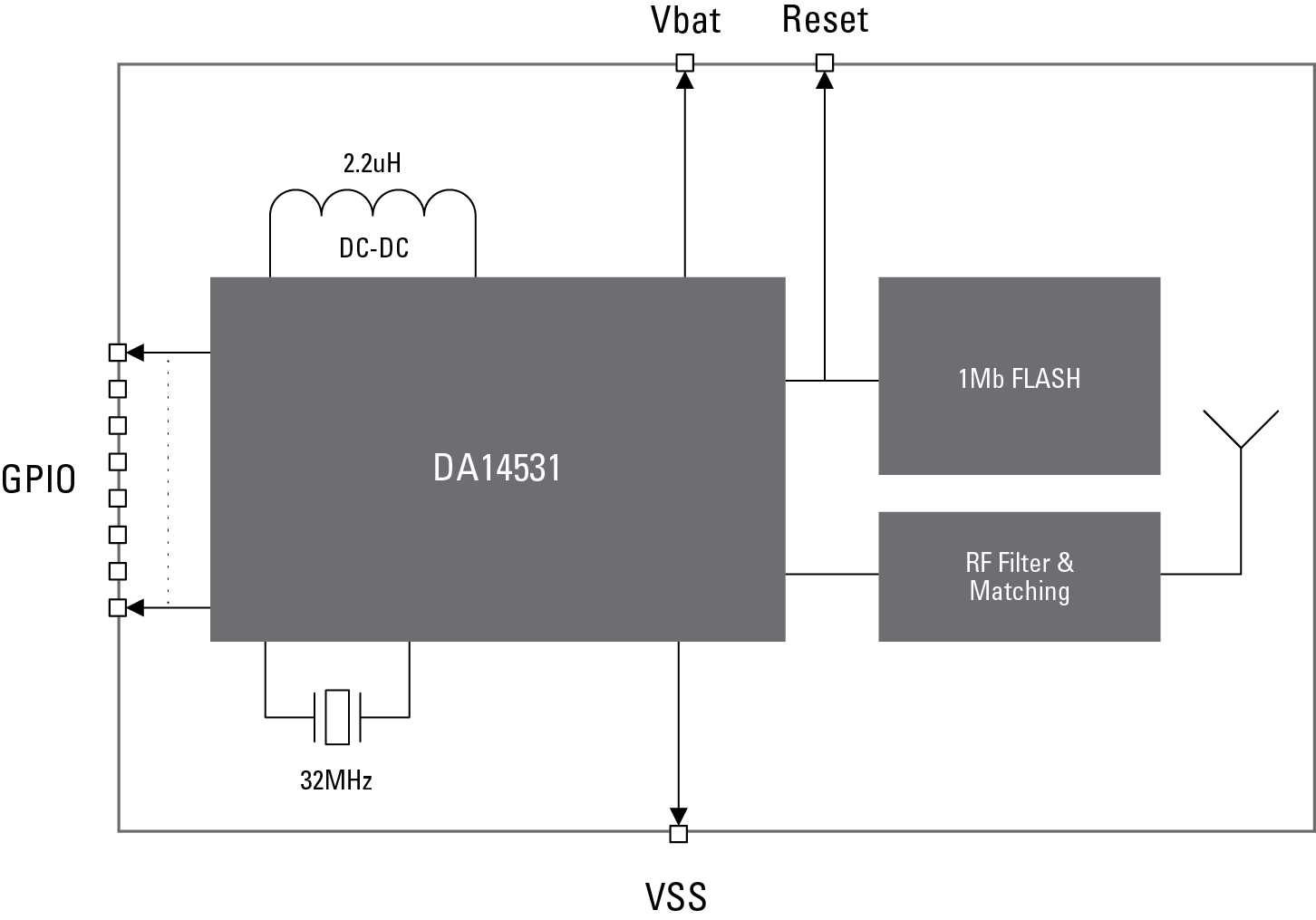

DA14531 SmartBond TINY™ Module Block Diagram

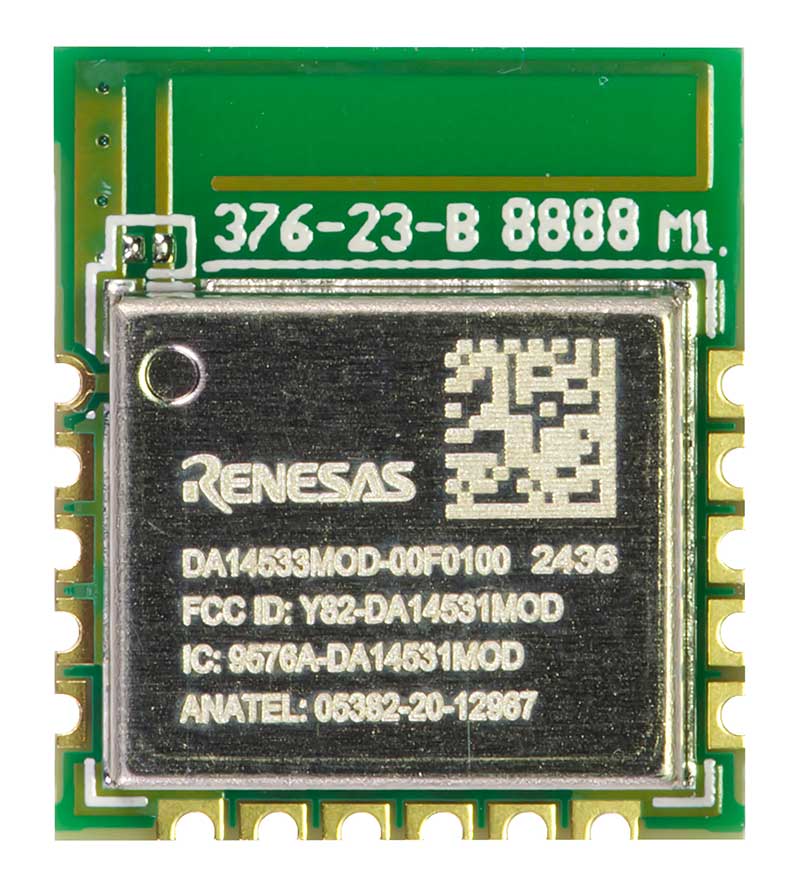

DA14531 SmartBond TINY™ Module
DA14531 SmartBond TINY™ Module Block Diagram
DA14531 SmartBond TINY™ Module
  • Bluetooth 5.1 core qualified
  • Integrated antenna
  • Worldwide certification
  • Arm® Cortex®-M0+ at 16MHz
  • IoTMark™-BLE score of 18300
  • 23.75µA/MHz MCU current
  • Memory: 48kB RAM, 32kB OTP and 1Mb Flash
  • 1.8V to 3.3V supply range
  • +2.2dBM max output power
  • -93dBm sensitivity
  • Rx current 2mA at 3V
  • Tx current 4mA at 3V at 0dBm
  • Interfaces: 2xUART, SPI, I2C
  • 4-channel 10-bit ADC
  • 8 GPIO
  • Built-in temperature sensor
  • Operating temperature: -40 °C to +8 5°C
  • Dimensions: 12.5mm x 14.5mm x 2.8mm

Applications

  • Beacons
  • Remote controls
  • Proximity tags
  • Toys
  • Low power sensors
  • Bluetooth LE add-on "pipe" to existing applications
  • Provisioning of any type of equipment providing ease of use with smartphone app-based setup and control, eliminating the need for printed user manuals

Documentation

Design & Development

Software & Tools
Serial Port Service (SPS)
The Serial Port Service (SPS) emulates serial cable communication.
Emulator Renesas
SmartBond™ - CodeLess™ AT Commands
The SmartBond™ CodeLess AT Commands platform enables control of the Bluetooth® Low Energy connectivity, sensor read-out and battery check of the device.
 IDE and Coding Tool Renesas
QE for BLE: Development Assistance Tool for Bluetooth® Low Energy
Debugging support tool that specializes in Bluetooth® Low Energy system development [Plugin for Renesas IDE "e² studio"] [Support MCU/MPU: RA, RX, RL78]
 Solution Toolkit Renesas
Renesas Bluetooth® Low Energy Mobile Application Suite
Renesas’ comprehensive collection of Bluetooth® Low Energy mobile applications: SmartBond, SmartConfig, SmartConsole, SmartTags, and SUOTA
 Software Package Renesas
e² studio
Eclipse-based Renesas integrated development environment (IDE). [Support MCU/MPU: RA, RE, RX, RL78, RH850, Renesas Synergy, RZ]
IDE and Coding Tool Renesas
5 items

Software Downloads

= Featured
Type Title Date
Software & Tools - Other
SDK6.0.22.1401 for DA1453x, DA14585/6
Log in to Download ZIP 15.70 MB
Related Files:
PCB Design Files
DA1453x QFN/Boost Altium PCB Design Source Files
ZIP 1.02 MB
Related Files:
PCB Design Files
DA1453x QFN/Buck Altium PCB Design Source Files
ZIP 1.37 MB
Related Files:
PCB Design Files
DA1453x QFN/Bypass Altium PCB Design Source Files
ZIP 998 KB
Related Files:
Add 5 hidden items
4 items

Boards & Kits

DA14531 Bluetooth® Low Energy 5.1 System-on-Chip Module Development Kit Pro

DA14531MOD-00DEVKT-P

Development
Learn More

SmartBond TINY™ DA14531 Bluetooth® Low Energy 5.1 System-on-Chip Module Development Kit Pro

The DA14531MOD-00DEVKT-P Bluetooth Low Energy Development Kit Pro for the DA14531 SmartBond TINY™ module includes a motherboard, daughterboard and cables. This kit is...

Featured Documents:
UM-B-141: DA14531 SMARTBOND TINY™ MODULE Development Kit Pro Hardware User Manual
Available on Lab on the Cloud
Use our PC-based GUI to instantly start configuring and testing designs in our virtual lab, no physical board needed.
Launch Lab on the Cloud
SmartBond TINY™ DA14531 Module Development Kit Pro - Daughterboard

DA14531MOD-00F1DB-P

Development
Learn More

SmartBond TINY™ DA14531 Bluetooth® Low Energy 5.1 System-on-Chip Module Development Kit Pro - Daughterboard

The DA14531MOD-00DEVKT-P Bluetooth Low Energy Development Kit Pro for the DA14531 SmartBond TINY™ module includes a motherboard, daughterboard and cables. This kit is...

Featured Documents:
UM-B-141: DA14531 SMARTBOND TINY™ MODULE Development Kit Pro Hardware User Manual

BLUETOOTH-LE-TINY-CLICK

Development
Learn More

Mikroe Bluetooth® LE TINY Click™ with SmartBond™ DA14531 Module

BDE-BLEM301

Development
Learn More

Bluetooth® 5.1 Low Energy Module

US159-DA14531EVZ Pmod Board

US159-DA14531EVZ

Evaluation
Learn More

Low Power Bluetooth® Pmod™ Board (Renesas QuickConnect IoT)

The US159-DA14531EVZ Low Power Bluetooth Pmod™ module enables the user to add low power Bluetooth capability to any evaluation kit or microcontroller board equipped...

Featured Documents:
US159-DA14531EVZ Evaluation Board Manual
DA14580PRODTLKT Production Line Tool Kit Board

DA14580PRODTLKT

Development
Learn More

Bluetooth Low Energy SoC 16-site Production Line Tool Kit

Renesas offers a production test and programming unit that enables you to reduce the time to ramp-up at a lower cost. The Production Line Tool (PLT) helps to increase...

Featured Documents:
UM-B-174: DA1459x Production Line Tool Software and HW User Manual
UM-B-041: DA1470x Production Line Tool Software and HW User Manual
UM-B-163: DA1453x-DA1469x Production Line Tool Software and HW User Manual
RCTIMING-DEMO Front

RCTIMING-DEMO

Demonstration
Learn More

Renesas Timing Product Demo Kit

RCTIMING-DEMO is a Renesas products combination kit. The kit includes a Renesas RL78 MCU, DA14531MOD Bluetooth® Low Energy (LE) module, LDO, RTC (1338-31DVG) and...

Featured Documents:
VersaClock 7 Setup Process for RCTIMING-DEMO Timing Solution
Odor Detector Development Kit

JP010-ODORCAREREFZ

Development
Learn More

Odor Detector Development Kit

This system measures an odor and transmits the data via Bluetooth® Low Energy (LE) communication. Implementation of this design shows how the combination of a gas,...

Featured Documents:
JP010-ODORCAREREFZ User's Manual
Available on Lab on the Cloud
Use our PC-based GUI to instantly start configuring and testing designs in our virtual lab, no physical board needed.
Launch Lab on the Cloud

CN051-SMRTRNGEVZ

Development
Learn More

Smart Rangefinder Solution Development Kit

The Smart Rangefinder Solution development kit enables distant measurement from an observer to a target and is optimized for handheld applications. The kit incorporates...

Featured Documents:
Smart Rangefinder Solution User's Guide
Available on Lab on the Cloud
Use our PC-based GUI to instantly start configuring and testing designs in our virtual lab, no physical board needed.
Launch Lab on the Cloud

AS049-1-REIN-WCU-V1

Reference Designs
Learn More

Wireless Communication Unit Reference Design

This reference design integrates various wireless modules, including Bluetooth® Low Energy (LE), Wi-Fi, and LTE+GPS, offering a powerful solution for connected...

Featured Documents:
AS049-1-REIN-WCU-V1 Wireless Communication Unit Design Files
AS049-1-REIN-WCU-V1 Wireless Communication Unit Quick Start Guide
