Overview

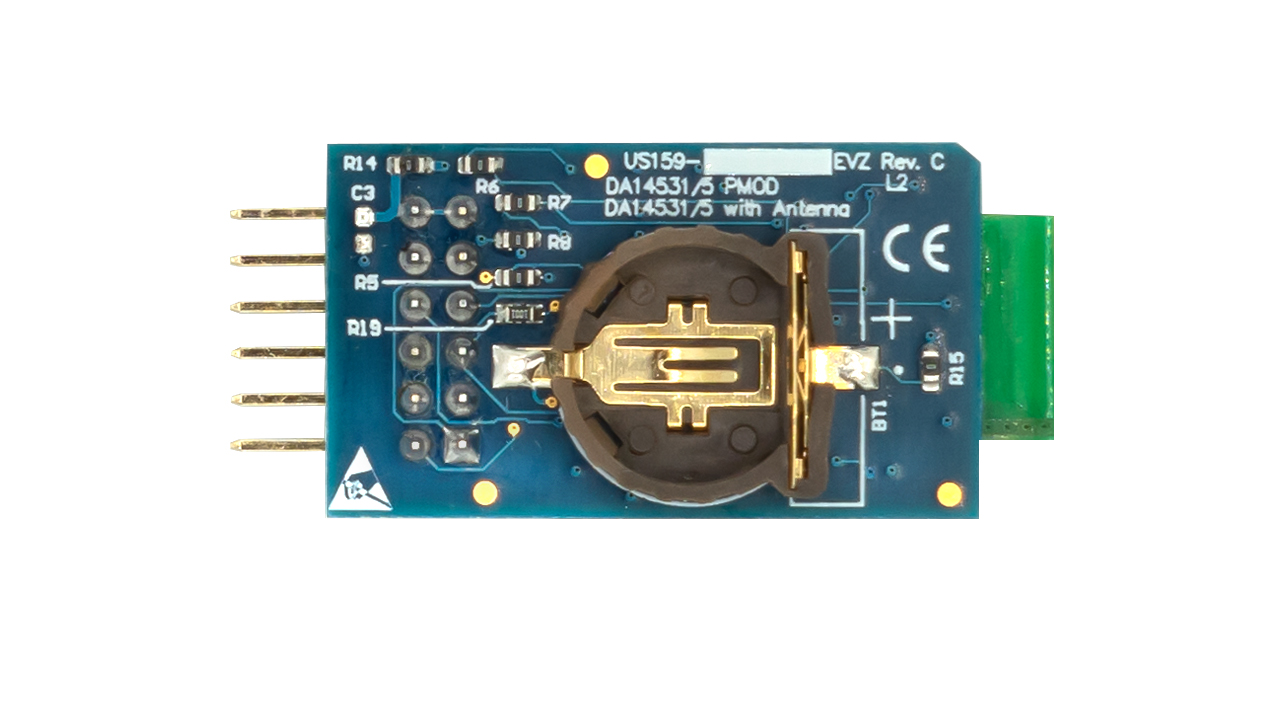

The US159-DA14531EVZ Low Power Bluetooth® Pmod™ module enables the user to add low-power Bluetooth capability to any evaluation kit or microcontroller board equipped with a Pmod expansion capability. The board provides a standard Pmod Type 3A (Expanded UART) connection for the onboard Bluetooth 5.1 module.
The US159-DA14531EVZ features a Type 3A Pmod connector and incorporates the DA14531 SmartBond TINY™ Module, based on the world’s smallest and lowest power Bluetooth 5.1 System-on-Chip (SoC). Due to the standard connector and software support, the US159-DA14531EVZ is ideal for Renesas’ QuickConnect platform to rapidly create an Internet of Things (IoT) system.
Features
- DA14531 SmartBond TINY™ Module:
- Cortex M0+ at 16MHz
- Memory: 4kB RAM, 32kB OTP, and 1Mb Flash
- Bluetooth 5.1 core qualified
- Integrated chip antenna
- Worldwide certification
- IoTMark™ - Bluetooth LE score of 18300
- 3.3V supply voltage
- +2.2dBm maximum output power
- -93dBm sensitivity
- Rx current 2mA at 3.3V
- Tx current 4mA at 3.3V at 0dBm
- Standardized Type 3A Pmod connector supports Expanded UART interface
- Optional battery operation with onboard CR1220 coin cell
- Momentary pushbutton switch (SW1) to aid in user software debug
- LED (D1) to aid in user software debug
- 10-pin 1.27mm pitch Arm® Cortex® debug connector (J2) for software development and debug support
