Automotive GreenPAK™ Programmable Mixed-signal Matrix with In-System Programmability
ページセクションへ移動：
Back to top
ECADモデルを調べる
概要
Description
The SLG46827-A provides a small, low power component for commonly used mixed-signal functions. The user creates the circuit design by programming the multiple time Non-Volatile Memory (NVM) to configure the interconnect logic, the IOs and the macrocells of the SLG46826. This highly versatile device allows a wide variety of mixed-signal functions to be designed within a very small, low power single integrated circuit.
特長
- In-System-Debug Feature
- Multiple Time Programmable Memory In Development
- Wide Range Power Supply
- 2.5 V (±8%) to 5 V (±10%) VDD
- 1.8 V (±5%) to 5 V (±10%) VDD2 (VDD2 ≤ VDD)
- RoHS Compliant / Halogen-Free
- AEC-Q100 Grade 2

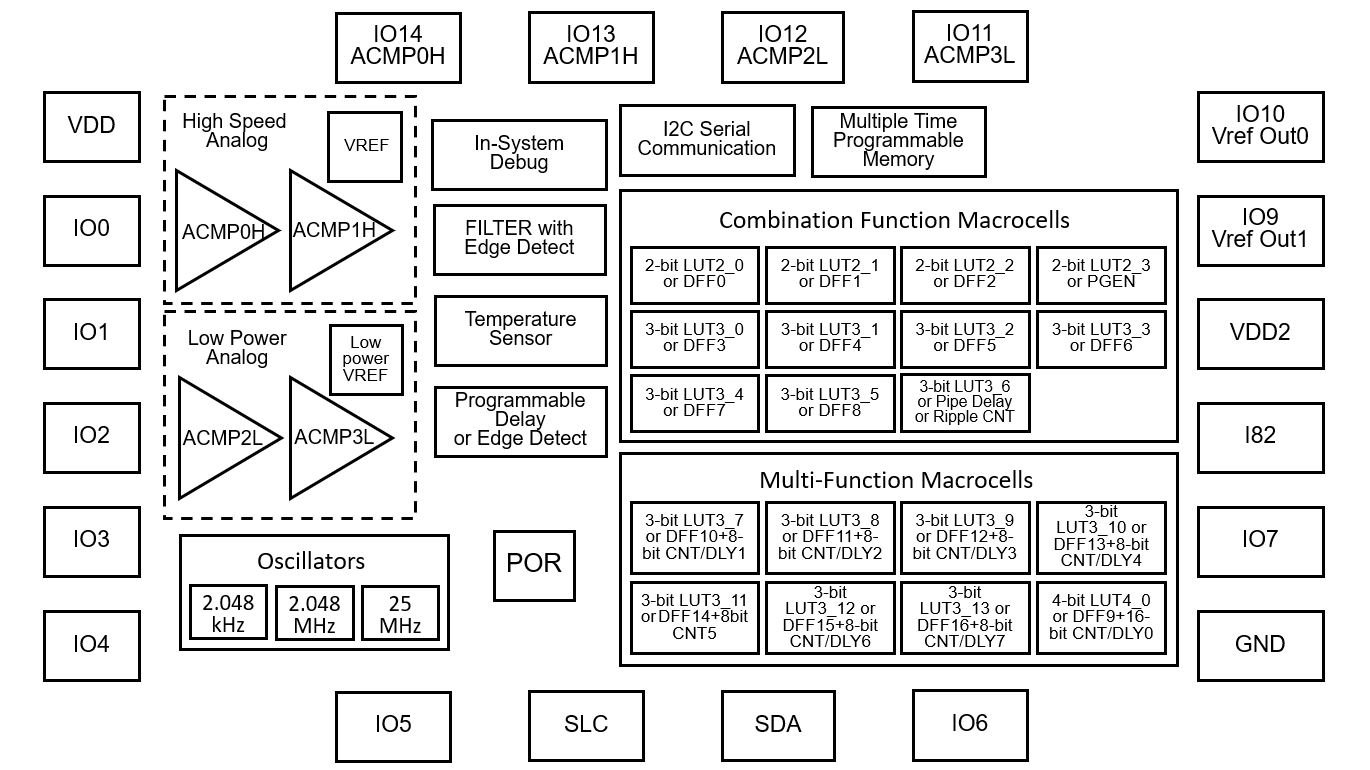

Macrocells Overview
- Two High Speed General Purpose Rail-to-Rail Analog Comparators (ACMPxH);
- Two Low Power General Purpose Rail-to-Rail Analog Comparators (ACMPxL);
- Two Voltage References (Vref)
- Two Vref Outputs;
- Eleven Combination Function Macrocells:
- Three Selectable DFF/Latch or 2-bit LUTs;
- One Selectable Programmable Pattern Generator or 2-bit LUT;
- Six Selectable DFF/Latch or 3-bit LUTs;
- One Selectable Pipe Delay or Ripple Counter or 3-bit LUT;
- Eight Multi-Function Macrocells:
- Seven Selectable DFF/Latch or 3-bit LUTs + 8-bit Delay/Counters;
- One Selectable DFF/Latch or 4-bit LUT + 16-bit Delay/Counter;
- Serial Communications:
- I2C Protocol Interface;
- Programmable Delay with Edge Detector Output;
- Deglitch Filter with Edge Detector;
- Three Oscillators (OSC):
- 2.048 kHz Oscillator;
- 2.048 MHz Oscillator;
- 25 MHz Oscillator;
- Analog Temperature Sensor;
- Power On Reset (POR).
アプリケーション
アプリケーション
- In-Vehicle Navigation
- Infotainment
- Advanced Driver Assistance Systems (ADAS)
- Automotive Display Clusters
- Body Electronics
設計・開発
ソフトウェア／ツール
ソフトウェア／ツール
| Go Configure™ Software HubGo Configure Software Hub provides development support for a variety of products, including GreenPAK configurable mixed signal matrix and ForgeFPGA™ devices. | Software Package | ルネサス |
ボード＆キット
ボード＆キット
GreenPAK SLG46827-A Development Kit with Socket Adapter
The SLG46827AG-SKT includes the SLG4SA20-65x64 socket adapter and 50 SLG46827A samples.
GreenPAK Advanced Development Board
Provides full programming, emulation, and testing functions for GreenPAK devices. For use with SLG46xxxX-SKT sockets kits.
Working in tandem with the GreenPAK...
GreenPAK DIP Development Board
The SLG4DVKDIP is perfect for breadboarding and fast prototyping. Working in tandem with the GreenPAK Designer software, GreenPAK DIP Development Board allows designers...
GreenPAK Serial Debugger Board (GSD)
GreenPAK Serial Debugger (GSD) device can be used for programming GreenPAK products with multiple-time Non-Volatile Memory (NVM) or for configuring the interconnect...
