特長

  • Bluetooth dual mode, Bluetooth 6.0 compliant
  • 32-bit Arm Cortex-M33F processor, up to 160MHz
  • Tensilica Fusion F1 DSP, up to 320MHz
  • Low-power voice activity detection (VAD) and hot-word detection (HWD)
  • USB 2.0 HS/FS device interface
  • 80MHz Quad/Octa SPI Flash controller with on-the-fly M33 XIP decryption
  • 80MHz Quad SPI PSRAM/Flash controller
  • Cryptographic engine supporting AES-128/192/256 and SHA-224/256
  • Audio Development Platform (ADP) for streamlined integration
  • Highly efficient external system PMIC
  • External Smart ANC Codec for advanced noise cancellation

説明

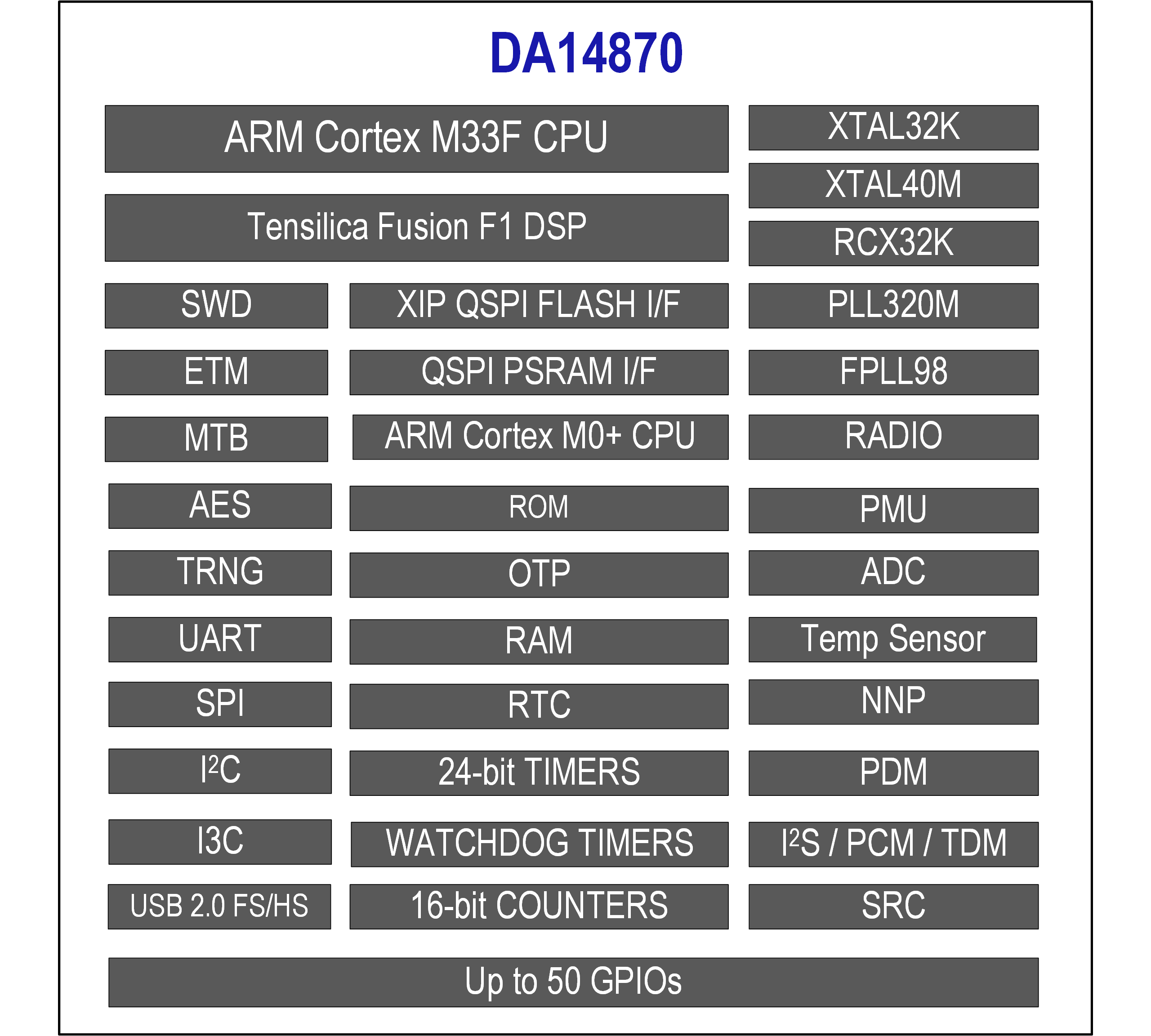

The DA14870 Bluetooth® dual-mode audio IC, combined with Renesas Smart Codecs and system PMICs, forms a flexible, low-power chipset for high-performance portable Bluetooth audio products. It features an Arm® Cortex®-M33F processor, Tensilica® Fusion F1 audio DSP, Bluetooth SIG v6.0 qualified core layers, and a rich set of peripherals and communication interfaces, including USB 2.0 HS/FS. A dedicated low-power Edge AI Neural Network Processor (NNP) supports advanced features such as voice activity detection (VAD), hot-word detection (HWD), acoustic event detection (e.g., glass breaking), and audio scene detection (e.g., music), enabling contextual awareness.

The DA14870 development kit, including the Customer Development Kit (CDK) hardware and Audio Development Platform (ADP) software and tools, provides a flexible platform to accelerate Bluetooth audio product deployment and reduce time to market.

パラメータ

属性
Device Functions Single chip
I/O Type GPIOs, SPIs, UARTs, I2Cs, I3C, USB2.0, DAIs, PDMs, 6 ch ADC
Memory External Yes
Power Amplifier 12
Processor CPU MIPS (MIPS) 160
Processor DSP MIPS (MIPS) 320
Radio DECT (6.0) No
Radio JDECT No
Radio KDECT No
Software Support ADP, ADP - NNP, ADP - NNP&PYOUR
Temp. Range (°C) -30 to +85°C

パッケージオプション

Pkg. Type Pkg. Dimensions (mm) Lead Count (#)
VFBGA 4.20x4.65 104
WLCSP 2.90x3.42 64

アプリケーション・ブロック図

Bluetooth Low Energy audio player interactive block diagram features an ultra-low power Bluetooth audio SoCs, audio codec, boost converter, and battery charger IC.
Bluetooth Low Energy Audio Player
Modular Bluetooth LE audio player with ultra-low power and voice control for smart, portable devices.

その他アプリケーション

  • Bluetooth classic and Low Energy (LE) hearables
  • Bluetooth LE Auracast™ sink and source
  • Hearing protection earwear
  • Hearing assistive earwear
  • Wireless mobile gaming
  • Wireless audio gateways
