RL78/F15

Renesas MCU Guide

Download the mobile app

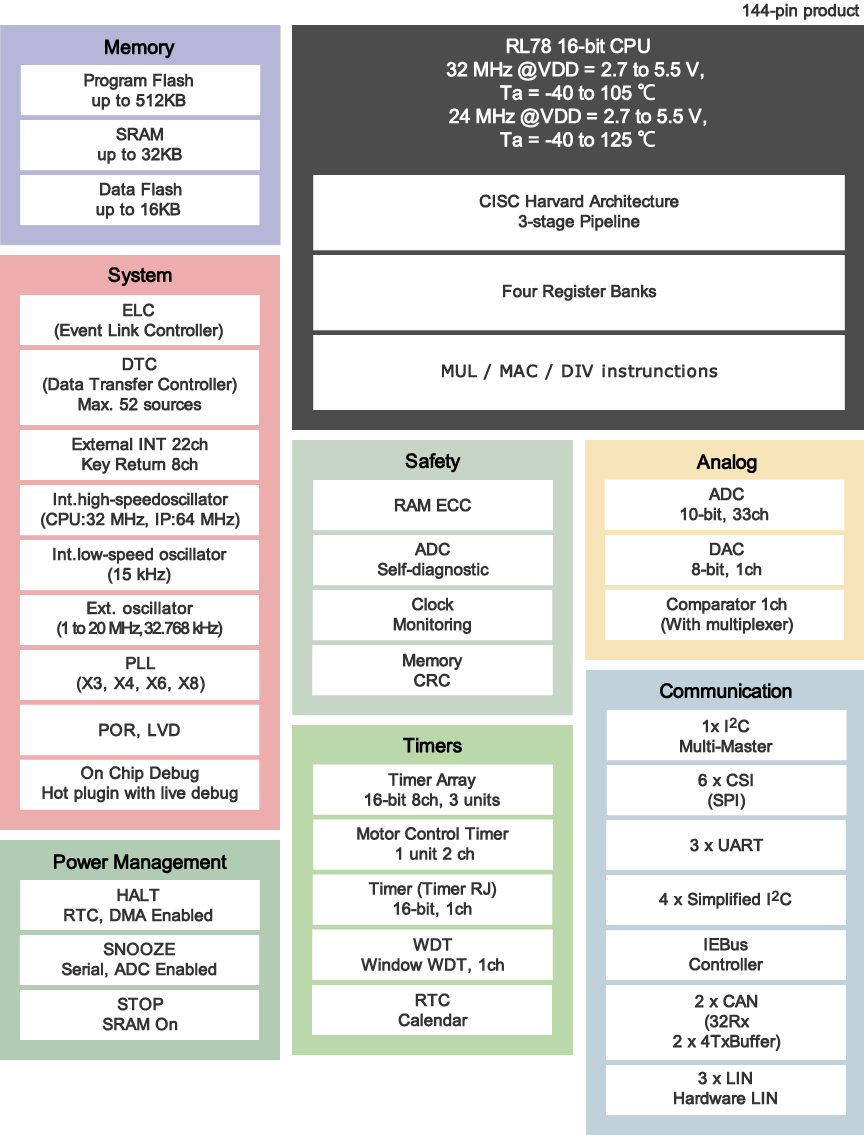

Overview

RL78/F15 automotive microcontrollers employ the RL78 core, which realizes high processing performance while delivering the lowest power consumption in its class. A high-speed on-chip oscillator provides 32MHz CPU operation. An enhanced motor control functionality is offered by the motor control timer (Timer RD). For easy migration, RL78/F15 is pin and software upwards compatible with RL78/F14. The RL78/F15 Group even supports 125 ℃ (target) operation, whereby a CPU clock of 24 MHz can be reached. In addition, an abundance of functions to support functional safety, like ECC on RAM and a stack pointer monitor as well as an A/D converter testing function are available. With packages from 48 to 144-pin, a memory range from 128KB to 512KB flash, and advanced IPs for LIN and 2 channels of CAN communication and IEBus, these products are very well suited for a broad range of cost-sensitive automotive applications like DC and BLDC motor control, HVAC, lighting and many kinds of body applications.

CPU: RL78 core, Max. 32MHz
Voltage: 2.7V to 5.5V
Package: 48-pin HVQFN, 48 to 144-pin LFQFP
Memory: SRAM Max. 32KB, Program Flash Max. 512KB
PWM: PWM Output x 24, 3-phase PWM Output Function
Analog function: 10-bit A/D Converter (ch) x 31, 8-bit D/A Converter (ch) x 1
On-chip Oscillator Freq. (MHz): 64M, 48M, 32M, 24M, 16M, 12M, 8M, 4M, 1M Low-speed Oscillator 15kHz
Others: PLL, RTC, Power-On Reset, Low Voltage Detection

	12V/48V Bidirectional DC/DC Converter
	12V/48V Bidirectional DC/DC Converter with GaN HEMT
	Automotive Battery Management System
	Automotive Body Control Module (BCM) / LED Head Light Unit
	Automotive Heating, Ventilation and Air Conditioning (HVAC)
	Automotive Monitoring Function Extension for Motor Control System
	Battery Charger & DC/DC Control System
	Brushless DC Motor Control Solution for Vehicles
	Diesel Engine System
	Electric Sliding Door for Vehicles
	Electric Window Lifter for Vehicles
	Gasoline Engine System
	Power Distribution Box
	Power Distribution Box with E-Fuse
	Transmission Control System
	Windscreen Wiper

Applications

Car Audio
Body
Chassis & Safety
HEV/EV
Motor Control

Documentation
