特長
- Helium™ Mプロファイルベクタエンジン搭載480MHz Arm® Cortex®-M85
- 1MBもしくは2MBのフラッシュメモリと1MBのSRAM(TCMを含む)
- 32KB I/Dキャッシュと12KBデータフラッシュ
- RGBパラレルおよびMIPI-DSI I/F対応グラフィックスLCDコントローラ
- 2D描画エンジン、16ビットCEUカメラインタフェース
- 32/16/8ビット外部メモリインタフェース(CS/SDRAM)
- Armv8.1-Mアーキテクチャ、TrustZone® サポート
- ルネサスセキュリティIP(RSIP-E51A)
- FSBL(ファーストセキュアブートローダ)用オンチップイミュータブルストレージ
- XIPおよびDOTF対応xSPI準拠のOctal SPI
- USB 2.0ハイスピードおよびフルスピード
- CAN-FD 2チャンネル
- DMA搭載Ethernetコントローラ
- 32ビットおよび16ビットタイマ、32ビット超低消費電力タイマ
- 12ビットADコンバータ、12ビットDAコンバータ
- 高速アナログコンパレータ
- SCI(UART、簡易SPI、簡易I2C)、SDHI、シリアルサウンド
- SPI/I2C/I3C通信インタフェース
- 176ピンから224ピンのパッケージ展開
説明

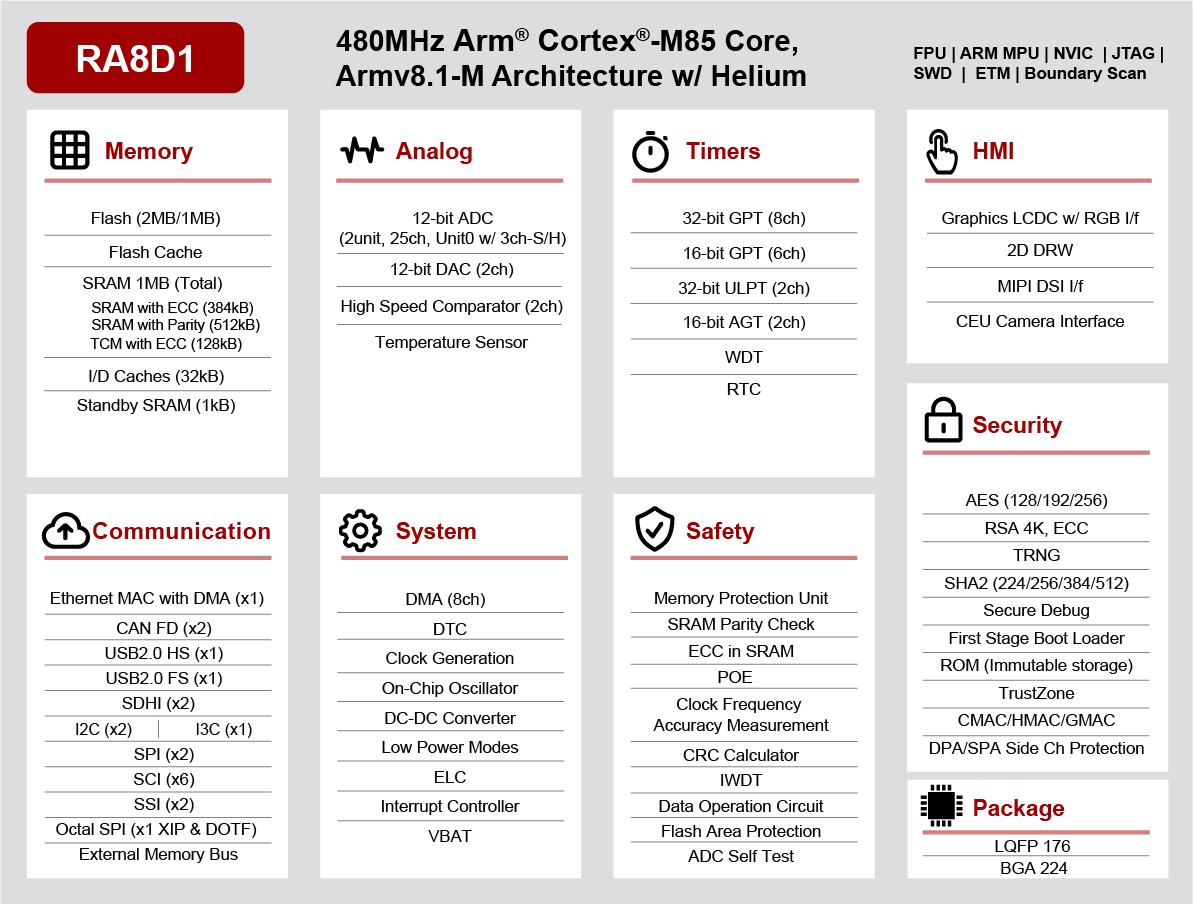

RA8D1グループは、Arm® Cortex®-M85コアを搭載した32ビットマイコンで、ディスプレイを備えたアプリケーションに向けて、MIPI-DSIやパラレルLCDインタフェース備えています。480MHzで3,000CoreMarkスコアを超える画期的な性能を実現し、高解像度ディスプレイやカメラ入力を使用した画像AIアプリケーションに適した、優れたグラフィックス機能を提供します。 産業オートメーション、家庭用電化製品、スマートホーム、コンシューマ、ビル/ホームオートメーション、医療/ヘルスケアなどの市場分野において、多様で高い性能が要求されるディスプレイアプリケーションに対応可能です。
RA8D1は、高性能CM85コアと大容量メモリ、RGBパラレルおよびMIPI-DSIインタフェースを備えた高解像度対応TFT-LCDコントローラ、2D描画エンジン、16ビットカメラインタフェース、複数の外部メモリインタフェースを含む豊富な周辺機能を有しており、多様なグラフィックスおよび画像AIアプリケーションのニーズに対応できるよう最適化されています。用途に合わせて選択可能な176ピンと224ピンのパッケージ製品を用意しています。最新の暗号に対応したセキュリティIPはセキュアエレメント機能を提供し、イミュータブルストレージ、より改善されたセキュアブート、改ざん防止保護機能など、真に安全なIoTを実現するための様々なテクノロジを搭載しています。
RA8D1を使用した評価やシステム開発のため、ルネサスはFlexible Software Packageをはじめとした包括的なハードウェアおよびソフトウェア開発ツール環境を用意しています。
パラメータ
属性 | 値 |
---|---|
Main CPU | Arm Cortex-M85 |
Program Memory (KB) | 1024, 2048 |
RAM (KB) | 1024 |
Carrier Type | Bulk (Tray), Full Carton (Tray) |
Supply Voltage (V) | - |
I/O Ports | 119, 128, 165, 174 |
DRAM I/F | SDRAM |
Temp. Range (°C) | Tj = -40 to +125 |
Operating Freq (Max) (MHz) | 400, 480 |
Ethernet speed | 10M/100M |
EtherCat (ch) (#) | 0 |
USB FS (host ch/device ch) | ( 1 / 1 ) |
USB HS (host ch/device ch) | ( 1 / 1 ) |
USB SS (host ch/device ch) | ( 0 / 0 ) |
SCI or UART (ch) | 6 |
SPI (ch) | 2 |
I2C (#) | 2 |
CAN (ch) | 0 |
CAN-FD (ch) | 2 |
Wireless | No |
SDHI (ch) | 2 |
High Resolution Output Timer | No |
PWM Output (pin#) | 28 |
32-Bit Timer (ch) | 10 |
16-Bit Timer (ch) (#) | 6 |
Standby operable timer | Yes |
Asynchronous General Purpose Timer / Interval Timer (ch) | 2 |
16-Bit A/D Converter (ch) | 0 |
14-Bit A/D Converter (ch) | 0 |
12-Bit A/D Converter (ch) | 24, 25 |
24-Bit Sigma-Delta A/D Converter (ch) | 0 |
12-Bit D/A Converter (ch) | 2 |
8-Bit D/A Converter (ch) | 0 |
Capacitive Touch Sensing Unit (ch) | 0 |
Image Codec | No |
Segment LCD Controller | No |
Security & Encryption | Unique ID, TRNG, AES, ECC, RSA, SHA224/SHA256, SHA384/SHA512, DOTF, Secure Boot, MAC, SPA/DPA Protection, Tamper Detection, Arm TrustZone |
アプリケーション・ブロック図
|
デジタル制御式自動エスプレッソメーカー
大型タッチスクリーンとスマートクラウド接続を備えたAI搭載エスプレッソマシン。
|
|
Ki規格 ワイヤレスパワートランシーバシステム (Tx)
NFC、スマート制御、スケーラブルな設計を備えた高効率のKiワイヤレスパワートランシーバシステム(Tx)。
|
|
Ki規格ワイヤレスパワーレシーバシステム(Rx)
NFC、スマートコントロール、スケーラブルな設計を備えた高効率のKi規格ワイヤレスパワーレシーバシステム(Rx)。
|
|
ハイエンドの機能豊富なHMIプラットフォーム
ディスプレイ解像度、オーディオ、スピーカなどの豊富な機能をサポートする柔軟なHMIプラットフォーム。
|
|
家電および産業システム向けのe-AI対応GUIコントローラ
e-AI対応HMIコントローラは、AIによるスマート制御、予知保全、豊富な接続性を提供。
|
|
オフロードGPS誘導システム
高精度のGPS/GNSSシステムは、農業機械や産業機械の正確なナビゲーションを提供します。
|
その他アプリケーション
- 産業用アプリケーション(産業用HMI、マシンビジョン)
- コンシューマ製品(ビデオ・ドアベル、エクササイズ機器、防犯カメラ、家電製品)
- スマートホーム/スマートビル(サーモスタット、セキュリティパネル、ホームハブ)
- オフィスオートメーション(プリンタディスプレイ、QRコードリーダ、指紋スキャナ)
- ヘルスケア(患者モニタ、血圧モニタ、画像機器)
- 画像AIアプリケーション(人物検出、画像分類、物体検出)
