Overview

The Renesas RX65N is mainstream RX microcontrollers with RXv2 core, large-capacity RAM, and enhanced security, connectivity and human machine interface (HMI) capabilities.

Pin-Memory Diagram of RX65N stanndard products

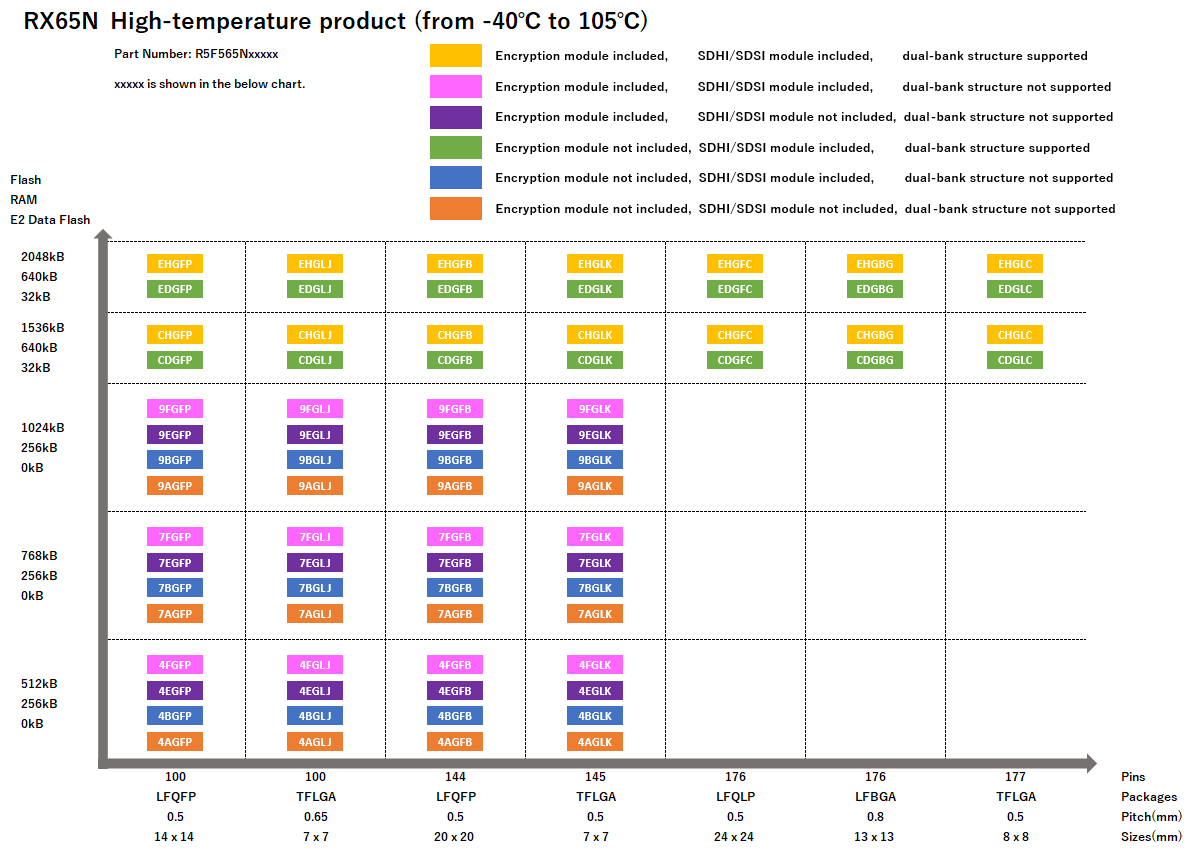

Pin-Memory Diagram of RX65N High-temperature products

RXv2 Core 120 MHz operation (34 CoreMark/mA), single-precision FPU
2.7 to 3.6 V operation
A wide package lineup: 100 to 176-pin
Equipped with various communication interfaces such as Ethernet, USB, CAN, SD host/slave interface, and quad SPI.
Program Flash up to 2 MB, SRAM up to 640 KB
- DualBank function convenient for firmware update *1
HMI
- TFT-LCD controller and 2D drawing engine can reduce CPU load at running of LCD display.*1
Security
- NIST FIPS 140-2 Level 3 CMVP certification *1
- Equipped with Renesas' proprietary hardware secure IP (Trusted Secure IP) that realizes a high level of root-of-trust *1
- Equipped with various encryption engines: AES, TRNG, TDES *1, RSA *1, ECC *1, SHA *1
- Equipped with memory protect functions that protect Flash memory from unintended access to flash
[*1: Only products with 1.5 MB or more code flash memory]

NIST: National Institute of Standards and Technology
FIPS: Federal Information Processing Standards
CMVP: Cryptographic Module Validation Program

	Flow Sensor for Industrial Applications
	Electronic Valve with Flow Meter
	Voice Over Power Line Communication
	Cellular Cloud Connected System
	Cloud and Sensor Solution for IoT Endpoints
	Power Line Feeder Terminal Unit
	IEC 61508 Functional Safety Solution
	Master Actuator for Automatic Home or Building HVAC System
	Slave Actuator for Automatic Home or Building HVAC System
	IP Gateway for Automatic Home or Building HVAC System
	Secure Cloud & Sensor Solution
	Automatic Plant Watering System
	Wi-SUN FAN 1.1 Based High Speed Sub-GHz Wireless Communication
