Overview
Description
Topics
- Supports 2nd OTA
Firmware update for Secondary MCU connected to Primary MCU via UART is supported.
- Support for firmware updates for RX Family and RL78 Family that do not use the cloud.
This development assistance tool helps you easily try firmware update on your device.
This product is a plug-in which extends the Renesas IDE "e² studio".
This product is available free of charge.
Features
- Enables easy introduction of RTOS projects
- Automates various cloud settings such as creating those for IoT devices
- Creating initial firmware required for OTA updates and support for the debugging and programming of devices
- Creating firmware updates, uploading the firmware to the cloud, and making settings required for OTA updates
Release Information
| Product Name | Latest Ver. | Released | Taget Device (Note1) | Details | Download(Note2) | Operating Environment |
|---|---|---|---|---|---|---|
| QE for OTA | V2.2.0 | Jul 04, 2025 | RX Family RL78 Family RA Family | See Release Note | Download | Operating Environment |
Notes
- For detailed support devices, refer to Target Devices
- Installing this Product >>
Target Devices
Design & Development
Related Boards & Kits
Evaluation
RTK7RLG230CSN000BJ
Active
RL78/G23-128p Fast Prototyping Board (RL78/G23-128p FPB)
The RL78/G23-128p Fast Prototyping Board, featuring the RL78/G23 microcontroller, is ideal for various prototype developments. It supports AWS cloud connectivity via the Wi-Fi DA16600 module, OTA firmware updates, LoRa and LoRaWAN-based wireless communication, and so on by sample code. The...
Development
CK-RX65N
Active
Cloud Kit Based on RX65N MCU Group
The CK-RX65N cloud kit enables users to securely connect to the cloud and explore the features of the Renesas RXv2 core based RX65N MCU Group and cloud services.
With multiple network connectivity options, the kit provides a seamless cloud connectivity experience to most of the global cloud...
Starter
RX65N-2MB-Starter-Kit-Plus
Active
Renesas Starter Kit+ for RX65N-2MB
The Renesas Starter Kit+ for RX65N-2MB is the perfect starter kit for developers who are new to the RX65N (Code Flash 2MB, Pin Count 176-pin). The kit includes an LCD display module, on-chip debugging emulator, and integrated development environment so you can start evaluating the RX65N...
Evaluation
RX65N-Cloud-Kit
Active
Renesas RX65N Cloud Kit
The Renesas RX65N Cloud Kit is an RX65N microcontroller-based cloud communications evaluation kit which is an ideal evaluation environment for IoT device developers. You can easily provide Wi-Fi connectivity to Amazon Web Services (AWS) and Microsoft Azure (Azure) to help start developing IoT...
Recommended Documents:
Development
CK-RA6M5
Active
Cloud Kit Based on RA6M5 MCU Group
The CK-RA6M5 cloud kit enables users to securely connect to the cloud and explore the features of the Cortex®-M33 based RA6M5 group of MCUs and cloud services. With multiple network connectivity options, the kit provides a seamless cloud connectivity experience to most of the global cloud...
Recommended Documents:
Evaluation
EK-RA6M5
Active
Evaluation Kit for RA6M5 MCU Group
The EK-RA6M5 evaluation kit enables users to effortlessly evaluate the features of the RA6M5 MCU Group and develop embedded systems applications using the Flexible Software Package (FSP) and e2 studio IDE. Utilize rich on-board features along with your choice of popular ecosystem add-ons to...
Recommended Documents:
Evaluation
EK-RA6M4
Active
Evaluation Kit for RA6M4 MCU Group
The EK-RA6M4 evaluation kit enables users to effortlessly evaluate the features of the RA6M4 MCU Group and develop embedded systems applications using the Flexible Software Package (FSP) and e2 studio IDE. Utilize rich on-board features along with your choice of popular ecosystem add-ons to...
Recommended Documents:
Evaluation
FPB-RX140
Active
Fast Prototyping Board for RX140 MCU Group
The Fast Prototyping Board for RX140 MCU Group comes equipped with an RX140 MCU (R5F51406BGFN). The board is inexpensive for RX140 evaluation and prototype development of various applications. It has an emulator circuit so you can write/debug programs just by connecting it to a PC with a USB...
Recommended Documents:
Starter
RTK0ES1001C00001BJ
Active
Renesas Solution Starter Kit for RX23E-B
The Renesas Solution Starter Kit for RX23E-B is an evaluation tool designed for sensor measurement using the RX23E-B 32-bit microcontroller (MCU). The kit includes an RX23E-B MCU evaluation board equipped with peripherals for sensor measurements and software that can be downloaded from our...
Recommended Documents:
Evaluation
FPB-RX261
Active
Fast Prototyping Board for RX261 MCU Group
The Fast Prototyping Board for RX261 MCU Group comes equipped with an RX261 MCU (R5F52618BGFP). The board is inexpensive for RX261 evaluation and prototype development of various applications. It has an emulator circuit so you can write/debug programs just by connecting it to PC with a USB...
Recommended Documents:
Starter
RX66T-Starter-Kit
Active
Renesas Starter Kit for RX66T
The Renesas Starter Kit for RX66T is the perfect starter kit for developers who are new to the RX66T (Code Flash 512KB, Pin Count 100-pin).
The kit includes an LCD display module and an on-chip debugging emulator. The integrated development environment is provided by Renesas Web, so you can...
Evaluation
RTK5RX6600C00000BJ
Active
Target Board for RX660
The Target Board for RX660 provides an entry point to evaluation, prototyping and developing for the RX660 MCU. Moreover, since this board incorporates an emulator circuit, you can use it for your own application design without the need for further tool investments. This product provides...
Recommended Documents:
Videos & Training
QE for OTA Tutorial: Firmware Update Using MCUboot on RA6M5
This tutorial walks you through the steps to create a bootloader using MCUboot and update the firmware with the new version.
Chapter's Title
00:00 Opening
00:18 Preparing the projects
01:01 Configuring the MCUboot settings
02:31 Creating initial firmware
03:06 Creating updated firmware
03:15 Performing a firmware Update
Related Resources
Video List
News & Blog Posts
Blog Post
Sep 11, 2023
|
Blog Post
Apr 24, 2023
|
Additional Details
Features
Simply proceed through the workflow to realize over-the-air (OTA) firmware updates via the AWS cloud.
QE for OTA provides a graphical user interface that allows you to set up the cloud, import sample projects, manage IoT devices, create firmware, and start OTA updates.

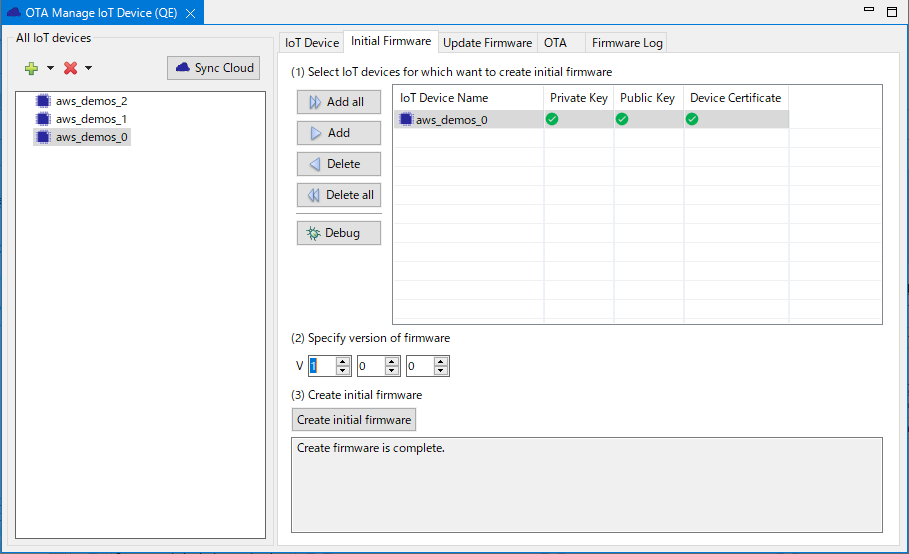

View for creating firmware for individual IoT devices and starting OTA updates
The [OTA Manage IoT Device (QE)] view, which is used to manage IoT devices, has the following features.
- Creating and downloading a device certificate and security key for each IoT device
- Creating an initial version of firmware (with the source code including IoT-device specific information)
- Support for programming boards with the initial firmware
- Creating firmware updates (with the source code including IoT-device specific information
- Uploading firmware updates to the cloud and starting OTA updates
Supported Driver and Middleware
Releases - renesas/iot-reference-rx - GitHub
202210.01-LTS-rx-1.1.3, 202210.01-LTS-rx-1.2.1, FreeRTOS v202210.01-LTS-rx-1.3.1
Releases - renesas/amazon-freertos - GitHub
202107.00-rx-1.0.0, 202107.00-rx-1.0.1
Releases - renesas/azure-rtos - GitHub
6.2.1_rel-rx-1.0.0, 6.2.1_rel-rx-1.0.1, 6.4.0_rel-rx-1.0.0
Releases - renesas/iot-reference-rl78 - GitHub
v202210.01-LTS-rl78-1.0.0, v202210.01-LTS-rl78-1.1.0 (Supported LTE only, not Wi-Fi)
The combinations of the confirmed board and OTA sample program (including RTOS)
| Board or Kit | OTA sample projects(including RTOS) |
|---|---|
| CK-RX65N v1 | FreeRTOS v202107.00-rx-1.0.1, FreeRTOS v202210.01-LTS-rx-1.1.3(LTS #2), FreeRTOS v202210.01-LTS-rx-1.2.1 (LTS #2), FreeRTOS v202210.01-LTS-rx-1.3.1 (LTS #2) |
| AzureRTOS 6.2.1_rel-rx-1.0.0, AzureRTOS 6.2.1_rel-rx-1.0.1, AzureRTOS 6.4.0_rel-rx-1.0.0 | |
| CK-RX65N v2 (Wi-Fi) (Recommended) | FreeRTOS v202210.01-LTS-rx-1.2.1 (LTS #2), FreeRTOS v202210.01-LTS-rx-1.3.1 (LTS #2) |
| RX65N-Cloud-Kit (Note1) | FreeRTOS v202107.00-rx-1.0.0, FreeRTOS v202107.00-rx-1.0.1 |
| RX65N-2MB-Starter-Kit-Plus (Note1) | FreeRTOS v202107.00-rx-1.0.0, FreeRTOS v202107.00-rx-1.0.1 |
| RL78/G23-128p Fast Prototyping Board | FreeRTOS v202210.01-LTS-rl78-1.0.0,FreeRTOS v202210.01-LTS-rl78-1.1.0 (Supported LTE only, not Wi-Fi) |
| CK-RA6M5 v2 | Sample project included in the application note "RA AWS CloudConnectivity and Firmware Update OTA on CK RA6M5 v2 with Ethernet (R11AN0915)” |
| EK-RA6M5 | MCUboot function only |
| EK-RA6M4 | MCUboot function only |
Note
1. Although the operation has been confirmed, it is recommended to use the CK-RX65N.
Boards that have been confirmed to work as secondary MCUs
| Board or Kit | Reference Application Note |
|---|---|
| FPB-RX140 | RX Family Firmware Updating Communications Module Using Firmware Integration Technology (R01AN7757) |
| RSSK-RX23E-B | |
| FPB-RX261 | |
| RSK-RX66T | |
| TB-RX660 | |
| RL78/G23-128p Fast Prototyping Board | RL78/G23 Firmware Updating Communications Module (R01AN7825) |
