Features
- Voltage supply range from 9V to 36V
- Over-voltage peak robustness of ±60V
- Ambient Temperature range -40°C to 125°C
- Configurable driver output current 50mADC to 400mADC
- RDSON of less than 2.5Ω
- Adjustable driver slew rate
- Integrated Wake-up detection
- MCU assisted Wake-up generation (typ. 700mA)
- OWI digital communication and calibration interface
- Integrated Linear Voltage Regulators 3.3V and 5V
- Glitch filter for receiver
- Integrated protection:
- ±1.25kV/2.5A (peak) surge protection for L+, CQ, GND/L- (8/20 μs pulse acc. IEC 61000-4- 5)
- Reverse polarity protection for L+, CQ, GND/L-
- On-chip diagnostics:
- Over temperature detection
- Supply voltage monitor
- Broken chip detection

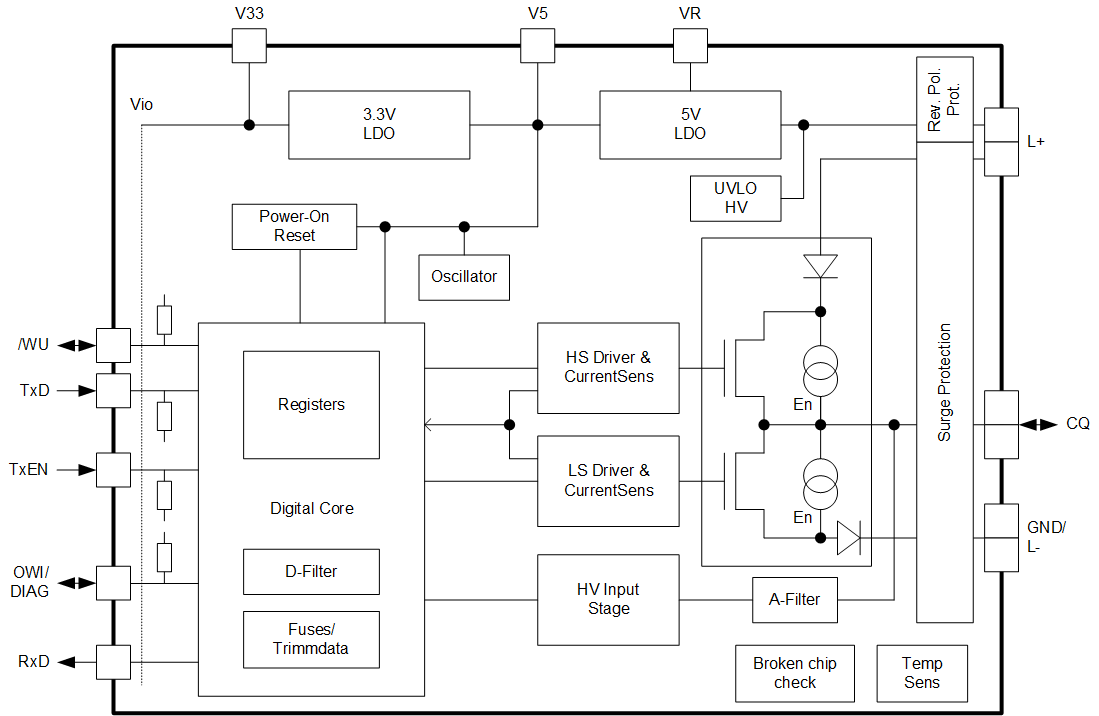

RH4Z2501 - Block Diagram
Description
The RH4Z2501 is a line driver / level shifter IC for IO-link communication with integrated protection. It addresses the IO-Link device physical layer for sensors and actuator systems. Furthermore, the IC can also be used as single channel master. For device configuration and status reading, an OWI communication interface is available. The output drivers allow push-pull operation, with a maximum RDSon of less than 2.5Ω for all operational temperatures. The RH4Z2501 is fabricated in a powerful CMOS mixed-signal technology that allows short supply voltage peaks up to 60V.
Parameters
| Attributes | Value |
|---|---|
| Channels (#) | 1 |
| Master/Device | M/D |
| Advanced Features | Embedded reverse polarity, overvoltage, and surge protection |
| Supply Voltage (V) | 9 - 36 |
| Temp. Range (°C) | -40 to 125°C |
Application Block Diagrams
 | IO-Link Sensors This system enables smart sensor control via IO-Link communication. |
 | Industrial Programmable Logic Controller (PLC) Flexible embedded programmable logic controller (PLC) designed to integrate any type of interface for end-application needs. |
Additional Applications
- Universal cable driver
- IO-Link physical-layer transceiver (PHY)
- IO-Link-compliant devices
- IO-Link-compliant masters
- 24V line driver/level shifter
Complete Your Design
Explore complementary products to elevate your design
RA4M2
100MHz Arm Cortex-M33 TrustZone, High Integration With Lowest Active Power Consumption
Datasheet
RV1S9960A
HIGH CMR, 15Mbps CMOS OUTPUT, LOW FORWARD-CURRENT(IF) 3.3V/5V OPERATION, 15 mm LONG-CREEPAGE 8-PIN LSDIP
Datasheet
ISL85403
2.5A Regulator with Integrated High-Side MOSFET for Synchronous Buck or Boost Buck Converter
Datasheet
ISL3176E
±15kV ESD Protected, 3.3V, Full Fail-Safe, Low Power, High Speed or Slew Rate Limited, RS-485/RS-422 Transceivers
Datasheet
RA6M3
32-bit Microcontrollers with 120MHz with USB High-Speed, Ethernet and TFT controller
Datasheet
RX65N
32-bit Microcontrollers with RXv2 Core, Large-capacity RAM, and Enhanced Security, Connectivity and HMI Capabilities
Datasheet
| Part Number | Status | Samples | Stock | Package | Budgetary Price (USD) | Lead Count (#) | Carrier Type | Moisture Sensitivity Level (MSL) | Internal TVS Surge Protection | Pitch (mm) | Pkg. Dimensions (mm) | Qty. per Reel (#) | Pb (Lead) Free | Pb Free Category | Temp. Range (°C) | Country of Assembly | Country of Wafer Fabrication |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| RH4Z2501BJ3GNM#HD0 | Active | Available | In Stock | DFN | 1ku | $1.59 | 12# | Reel | 1 | Yes | 0.5mm | 3.0 x 3.0 x 0.75 | 1800# | Yes | e3 Sn | -40 to 125°C | THAILAND | GERMANY |
| RH4Z2501BJ3GNM#HD1 | Active | Available | Out of Stock | DFN | 1ku | $1.59 | 12# | Reel | 1 | No | 0.5mm | 3.0 x 3.0 x 0.75 | 1800# | Yes | e3 Sn | -40 to 125°C | THAILAND | GERMANY |
| RH4Z2501BJ8GBM#HD0 | Active | Available | Out of Stock | WLCSP | 15# | Reel | 1 | Yes | 0.4mm | 2.41 x 1.61 x 0.6 | 2500# | Yes | e1 SnAgCu | -40 to 125°C | |||
| RH4Z2501BJ8GBM#HD1 | Active | Available | Out of Stock | WLCSP | 15# | Reel | 1 | No | 0.4mm | 2.41 x 1.61 x 0.6 | 2500# | Yes | e1 SnAgCu | -40 to 125°C |
