An AP4 and Applilet is a standalone tool for automatically generating control programs (device driver programs) for peripheral modules in accordance with user settings. You can select the type of build tool (compiler). The control programs generated for the peripheral modules by the AP4 or Applilet are intended to suit the selected build tool.

Source code can also be generated for the IAR Embedded Workbench from IAR Systems and for MULTI® (support for RH850 and V850 family) from Green Hills Software and for the Development Studio (DS-5™; support for RZ family) from Arm® Limited.

Important: A Note to Users of the AP4 for RX: We recommend that you consider migrating to the Smart Configurator, as it supports the following three functions: importing middleware in the form of FIT modules, generating driver code, and setting pins from the AP4

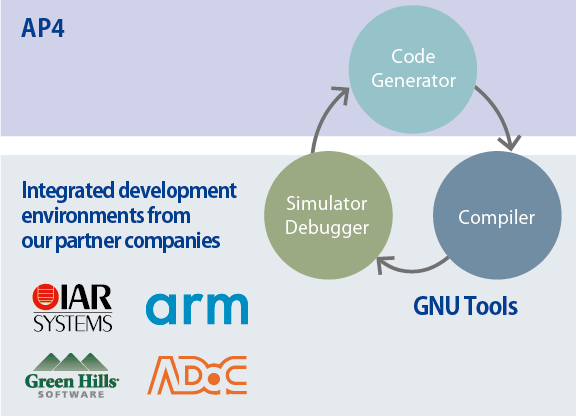

The Code Generator plug-in is useful in conjunction with the GNU tools or Renesas compiler packages.

Features

  • Standalone coding assistance tool
  • Control programs generated for the peripheral modules suit the selected build tool (compiler).
  • Simple operation by an easy-to-follow GUI
  • Includes a feature to check for contention by peripheral modules for pins
  • Supplies functions for operating peripheral modules in the form of an API
  • Learn More

Release Information

Details of upgrade (See Tool News)

Operating Environment

Documentation & Downloads

Title Other Languages Type Format File Size Date
User Guides & Manuals
Code Generator User's Manual: RL78 API Reference 日本語 Manual PDF 4.64 MB
Code Generator Tool User's Manual RX API Reference 日本語 Manual PDF 1.99 MB
AP4 User's Manual: RH850 API Reference 日本語 Manual PDF 1.08 MB
Downloads
AP4 for RZ V1.10.00 日本語 Software EXE 12.17 MB
Tool News
[Upgrade to revision] e² studio Code Generator Plug-in V2.17.0, AP4 Coding Assistance Tool for RZ V1.10.00 日本語 Tool News - Release PDF 87 KB
[Notes] CS+ Code Generator for RH850, AP4 Coding Assistance Tool for RH850 日本語 Tool News - Note PDF 130 KB
[Upgrade to revision] e² studio Code Generator Plug-in, AP4 Coding Assistance Tool for RZ 日本語 Tool News - Release PDF 98 KB
[Upgrade to revision] CS+ Code Generator for RL78 (CS+ for CC) V2.19.00, CS+ Code Generator for RL78 (CS+ for CA,CX) V2.19.00, e² studio Code Generator Plug-in V2.15.00, AP4 Coding Assistance Tool for RL78 V1.18.00, Applilet3 Coding Assist 日本語 Tool News - Release PDF 146 KB
[Upgrade to revision] e² studio Code Generator Plug-in V2.15.0, AP4 Coding Assistance Tool for RZ V1.09.00 日本語 Tool News - Release PDF 138 KB
[Upgrade to revision] CS+ Code Generator for RL78 (CS+ for CC), CS+ Code Generator for RL78 (CS+ for CA,CX), e² studio Code Generator Plug-in, AP4 Coding Assistance Tool for RL78, Applilet3 Coding Assistance Tool for RL78 日本語 Tool News - Release PDF 91 KB
[Notes] e² studio Code Generator Plug-in, AP4 Coding Assistance Tool for RZ 日本語 Tool News - Note PDF 181 KB
[Notes] e² studio Code Generator Plug-in, AP4 Coding Assistance Tool for RZ 日本語 Tool News - Note PDF 94 KB
[Upgrade to revision] CS+ Code Generator for RL78 (CS+ for CC), CS+ Code Generator for RL78 (CS+ for CA,CX), e² studio Code Generator Plug-in, AP4 Coding Assistance Tool for RL78, Applilet3 Coding Assistance Tool for RL78 日本語 Tool News - Release PDF 101 KB
[Upgrade to revision] e² studio Code Generator Plug-in AP4 Coding Assistance Tool for RZ 日本語 Tool News - Release PDF 134 KB
Note on Using the Following Tools: 日本語 Tool News - Note PDF 62 KB
Note on Using the Following Tools: 日本語 Tool News - Note PDF 48 KB
[Upgrade to revision] CS+ Code Generator for RH850, AP4 Coding Assistance Tool for RH850 日本語 Tool News - Release PDF 99 KB
[Upgrade to revision] CS+ Code Generator for RL78 (CS+ for CC), CS+ Code Generator for RL78 (CS+ for CA,CX), e² studio Code Generator Plug-in, AP4 Coding Assistance Tool for RL78, Applilet3 Coding Assistance Tool for RL78 日本語 Tool News - Release PDF 105 KB
[Notes] AP4 Coding Assistance Tool for RH850 日本語 Tool News - Note PDF 98 KB
[Upgrade to revision] CS+ Code Generator for RH850, AP4 Coding Assistance Tool for RH850 日本語 Tool News - Release PDF 98 KB
[Upgrade to revision]CS+ Code Generator for RX, e² studio Code Generator Plug-in, AP4 Coding Assistance Tool for RX 日本語 Tool News - Release PDF 101 KB
[Upgrade to revision] CS+ Code Generator for RL78 (CS+ for CC), CS+ Code Generator for RL78 (CS+ for CA,CX), e² studio Code Generator Plug-in, AP4 Coding Assistance Tool for RL78, Applilet3 Coding Assistance Tool for RL78 日本語 Tool News - Release PDF 103 KB
[Notes] CS+ Code Generator for RX, e² studio Code Generator Plug-in, AP4 Coding Assistance Tool for RX 日本語 Tool News - Note PDF 239 KB
[Notes] CS+ Code Generator for RL78 (CS+ for CC), CS+ Code Generator for RL78 (CS+ for CA,CX), e² studio Code Generator Plug-in, Applilet3 Coding Assistance Tool for RL78 日本語 Tool News - Note PDF 142 KB
[Notes] CS+ Code Generator for RX, e² studio Code Generator Plug-in, AP4 Coding Assistance Tool for RX 日本語 Tool News - Note PDF 110 KB
[Upgrade to revision] e² studio Code Generator Plug-in, AP4 Coding Assistance Tool for RZ 日本語 Tool News - Release PDF 73 KB
[Upgrade to revision] CS+ Code Generator for RL78 (CS+ for CC), CS+ Code Generator for RL78 (CS+ for CA,CX), e² studio Code Generator Plug-in, AP4 Coding Assistance Tool for RL78, Applilet3 Coding Assistance Tool for RL78 日本語 Tool News - Release PDF 75 KB
[Upgrade to revision]CS+ Code Generator for RX, e² studio Code Generator Plug-in, AP4 Coding Assistance Tool for RX 日本語 Tool News - Release PDF 149 KB
[Notes] CS+ Code Generator for RX, e² studio Code Generator Plug-in, AP4 Coding Assistance Tool for RX 日本語 Tool News - Note PDF 355 KB
[Notes] e² studio Code Generator Plug-in, AP4 Coding Assistance Tool for RZ 日本語 Tool News - Note PDF 96 KB
[Upgrade to revision]CS+ Code Generator for RX e² studio Code Generator Plug-in AP4 Coding Assistance Tool for RX 日本語 Tool News - Release PDF 102 KB
[Notes] CS+ Code Generator for RX, e² studio Code Generator Plug-in, AP4 Coding Assistance Tool for RX 日本語 Tool News - Note PDF 110 KB
[Notes] CS+ Code Generator for RL78 (CS+ for CC), CS+ Code Generator for RL78 (CS+ for CA, CX), e² studio Code Generator Plug-in, Applilet3 Coding Assistance Tool for RL78 日本語 Tool News - Note PDF 218 KB
[Notes] e² studio Code Generator Plug-in, AP4 Coding Assistance Tool for RZ 日本語 Tool News - Note PDF 205 KB
[Upgrade to revision] CS+ Code Generator for RL78 (CS+ for CC) CS+ Code Generator for RL78 (CS+ for CA,CX) e² studio Code Generator Plug-in AP4 Coding Assistance Tool for RL78 Applilet3 Coding Assistance Tool for RL78 日本語 Tool News - Release PDF 99 KB
[Notes] e² studio Code Generator Plug-in, AP4 Coding Assistance Tool for RZ 日本語 Tool News - Note PDF 116 KB
[Upgrade to revision] CS+ Code Generator for RX, e² studio Code Generator Plug-in, AP4 Coding Assistance Tool for RX 日本語 Tool News - Release PDF 51 KB
[Upgrade to revision] e² studio Code Generator Plug-in, AP4 Coding Assistance Tool for RZ 日本語 Tool News - Release PDF 95 KB
[Upgrade to revision] CS+ Code Generator for RX e² studio (Code Generator Plug-in) AP4 Coding Assistance Tool for RX 日本語 Tool News - Release PDF 94 KB
[Upgrade to revision] e² studio Code Generator Plug-in AP4 Coding Assistance Tool for RZ 日本語 Tool News - Release PDF 88 KB
[Upgrade to revision] CS+ Code Generator for RL78 (CS+ for CC) CS+ Code Generator for RL78 (CS+ for CA,CX) e² studio Code Generator Plug-in AP4 Coding Assistance Tool for RL78 Applilet3 Coding Assistance Tool for RL78 日本語 Tool News - Release PDF 95 KB
[Upgrade to revision] e² studio (Code Generator Plug-in) AP4 Coding Assistance Tool for RZ 日本語 Tool News - Release PDF 117 KB
[Notes] CS+ Code Generator for RX e² studio (Code Generator Plug-in) AP4 Coding Assistance Tool for RX 日本語 Tool News - Note PDF 142 KB
[Upgrade to revision] CS+ Code Generator for RL78 (CS+ for CC), CS+ Code Generator for RL78 (CS+ for CA,CX), e² studio (Code Generator Plug-in), AP4 coding assistance tool for RL78, Applilet3 coding assistance tool for RL78 日本語 Tool News - Release PDF 151 KB
[Upgrade to revision] CS+ Code Generator for RX e² studio (Code Generator Plug-in) AP4 Coding Assistance Tool for RX 日本語 Tool News - Release PDF 142 KB
[Upgrade to revision] e² studio (Code Generator Plug-in) AP4 Coding Assistance Tool for RZ 日本語 Tool News - Release PDF 124 KB
Note on Using the Following Tools: CS+ Code Generator for RL78 (CS+ for CC), CS+ Code Generator for RL78 (CS+ for CA and CX), e² studio Code Generator Plug-in, Applilet3 Coding Assistance Tool for RL78 日本語 Tool News - Note PDF 55 KB
Note on Using the Following Tools: CS+ Code Generator for RL78 (CS+ for CC), CS+ Code Generator for RL78 (CS+ for CA and CX), e² studio Code Generator Plug-in, Applilet3 Coding Assistance Tool for RL78 日本語 Tool News - Note PDF 60 KB
Revisions to the Following Tools: CS+ Code Generator for RX, AP4 Coding Assistance Tool for RX 日本語 Tool News - Release PDF 296 KB
Notes on Using the Following Tools: CS+ Code Generator for RX, e² studio (Code Generator Plug-in), AP4 Coding Assistance Tool for RX 日本語 Tool News - Note PDF 267 KB
Notes on Using the Following Tools CS+ Code Generator for RL78 (CS+ for CC)CS+ Code Generator for RL78 (CS+ for CA and CX)e² studio (Code Generator Plug-in)Applilet3 Coding Assistance Tool for RL78 日本語 Tool News - Note PDF 204 KB
Note on Using the e² studio (Code Generator Plug-in) and the AP4 Coding Assistance Tool for RZ 日本語 Tool News - Note PDF 247 KB
Notes on Using the Following ToolsCS+ Code Generator for RX e² studio (Code Generator Plug-in)AP4 Coding Assistance Tool for RX 日本語 Tool News - Note PDF 252 KB
Notes on Using the Following Tools CS+ Code Generator for RX e² studio (Code Generator Plug-in) AP4 Coding Assistance Tool for RX 日本語 Tool News - Note PDF 203 KB
Revisions to the Following Tools: CS+ Code Generator for RX, Code Generator Plug-in for the e² studio, AP4 Coding Assistance Tool for RX 日本語 Tool News - Release PDF 378 KB
Revisions to the Following Tools: CS+ Code Generator for RL78 (CS+ for CC), CS+ Code Generator for RL78 (CS+ for CA, CX), Code Generator Plug-in for the e² studio, AP4 Coding Assistance Tool for RL78 日本語 Tool News - Release PDF 326 KB
Notes on Using the Following Tools: CS+ Code Generator for RX, e² studio (Code Generator Plug-in), AP4 Coding Assistance Tool for RX 日本語 Tool News - Note PDF 386 KB
Notes on using CS+ Code Generator for RL78 (CS+ for CA,CX), CS+ Code Generator for RL78 (CS+ for CC), e² studio (Code Generator Plug-in), AP4 Coding Assistance Tool for RL78, and Applilet3 Coding Assistance Tool for RL78 日本語 Tool News - Note PDF 210 KB
Note on Using the CS+ Code Generator for RX, the e² studio (Code Generator Plug-in), and the AP4 Coding Assistance Tool for RX 日本語 Tool News - Note PDF 204 KB
Revision of the AP4 Coding Assistance Tool for RZ 日本語 Tool News - Release PDF 262 KB
Revision of the AP4 Coding Assistance Tool for RL78 日本語 Tool News - Release PDF 259 KB
Revision of the AP4 Coding Assistance Tool for RX 日本語 Tool News - Release PDF 315 KB
Revision of the Applilet3 Coding Assistance Tool for RL78 日本語 Tool News - Release PDF 260 KB
Note on Using the AP4 Coding Assistance Tool for RZ 日本語 Tool News - Note PDF 204 KB
Note on Using the AP4 Coding Assistance Tool for RX 日本語 Tool News - Note PDF 207 KB
Revision of Applilet3 for RL78 日本語 Tool News - Release PDF 315 KB
Revision and Change to the Name of the Application Leading Tool for RX 日本語 Tool News - Release PDF 382 KB
Revision and Change to the Name of the Application Leading Tool for RL78 日本語 Tool News - Release PDF 322 KB
Release of the AP4 Coding Assistance Tool for RZ 日本語 Tool News - Release PDF 378 KB
Note on Using the Application Leading Tool for RX Tool News - Note PDF 204 KB
Note on Using Application Leading Tool RL78, Applilet3 for RL78 Tool News - Note PDF 274 KB
Note on Using Application Leading Tool RX Tool News - Note PDF 202 KB
Application Leading Tool for RX and Application Leading Tool for RL78 Revised Tool News - Release PDF 380 KB
Application Leading Tool for RX and Application Leading Tool for RL78 Revised Tool News - Release PDF 368 KB
Applilet3 for V850, Applilet3 for RL78, and Applilet3 for 78K Revised Tool News - Release PDF 551 KB
Note on Using Applilet3 for RL78 Tool News - Note PDF 202 KB
Note on Using Application Leading Tool for RL78 Tool News - Note PDF 201 KB
Note on Using Application Leading Tool for RX Tool News - Note PDF 202 KB
Application Leading Tool for RL78 Revised Tool News - Release PDF 313 KB
Applilet3 for RL78 Revised Tool News - Release PDF 314 KB
Application Leading Tool for RX Revised Tool News - Release PDF 259 KB
Note on Using Application Leading Tool for RX Tool News - Note PDF 203 KB
Note on Using Application Leading Tool for RL78 Tool News - Note PDF 202 KB
Note on Using Applilet3 for RL78 Tool News - Note PDF 204 KB
Applilet3 for RL78 Revised Tool News - Release PDF 371 KB
Applilet3 for 78K Revised Tool News - Release PDF 372 KB
Application Leading Tool for RL78 Revised Tool News - Release PDF 315 KB
Application Leading Tool for RX Revised Tool News - Release PDF 315 KB
Applilet3 for RL78 Revised Tool News - Release PDF 261 KB
Application Leading Tool for RL78 Revised Tool News - Release PDF 312 KB
Applilet3 for RL78 Revised Tool News - Release PDF 312 KB
Applilet3 for RL78, Applilet3 for 78K and Applilet3 for V850 Revised Tool News - Release PDF 368 KB
Application Leading Tool for RL78 Revised Tool News - Release PDF 418 KB
Application Leading Tool for RX Revised Tool News - Release PDF 315 KB
Note on Using Application Leading Tool for RL78/L13 Tool News - Note PDF 202 KB
Note on Using Automatic Driver Generator Applilet3 Tool News - Note PDF 202 KB
Note on Using Application Leading Tool for RX111 Tool News - Note PDF 203 KB
Application Leading Tool for RL78 Family Published Tool News - Release PDF 415 KB
Application Leading Tool for RX Family Published Tool News - Release PDF 370 KB
Applilet3 for RL78 Family Revised Tool News - Release PDF 314 KB
Note on Using Automatic Driver Generator Applilet3 for RL78/G14 Tool News - Note PDF 205 KB
Note on Using Automatic Driver Generator Applilet3 for RL78/D1A Tool News - Note PDF 203 KB
Note on Using Automatic Driver Generator Applilet3 Tool News - Note PDF 203 KB
Other
AP4 for RH850 V1.05.00 Release Note 日本語 Release Note PDF 271 KB

Product Lineup

MCU Product Name Latest Ver. Released
Family Series Group
RZ RZ/T RZ/T1 AP4 for RZ V1.10.00
Oct 06, 2020
RH850 RH850/E1x RH850/E1M-S, RH850/E1L AP4 for RH850 (Please contact us.) V1.02.00
Jan 22, 2018
RH850/F1x RH850/F1K AP4 for RH850 V1.05.00
Jul 20, 2018
RX RX100 RX110 (Note1), RX111 (Note1), RX113 (Note1), RX130 (Note1) AP4 for RX V1.15.01
Aug 27, 2018
RX200 RX230 (Note1), RX231 (Note1), RX23T (Note1), RX24T (Note1), RX24U (Note1)
RX600 RX64M (Note1), RX651 (Note1), RX65N (Note1)
RX700 RX71M (Note1)
RL78 RL78/F1x RL78/F1E AP4 for RL78 V1.18.00
Jan 20, 2020
RL78/G1x RL78/G10, RL78/G11, RL78/G1C, RL78/G1D, RL78/G1E, RL78/G1F, RL78/G1G, RL78/G1H
RL78/H1x RL78/H1D
RL78/I1x RL78/I1C, RL78/I1D, RL78/I1E
RL78/L1x RL78/L13, RL78/L1A, RL78/L1C
RL78/D1x RL78/D1A Applilet3 for RL78 V1.18.00
Jan 20, 2020
RL78/F1x RL78/F12, RL78/F13, RL78/F14, RL78/F15
RL78/G1x RL78/G1A, RL78/G12, RL78/G13, RL78/G13A, RL78/G14
RL78/I1x RL78/I1A
RL78/L1x RL78/L12
V850 V850ES/Jx V850ES/Jx3, V850ES/Jx3-E, V850ES/Jx3-H, V850ES/Jx3-L Applilet3 for V850 V1.01.00
Apr 6, 2015
V850E/Sx V850E/Sx3-H
78K 78K0/Ix 78K0/Ix2 Applilet3 for 78K V1.02.00
Apr 6, 2015
78K0/Kx 78K0/Kx2-L
78K0R/Fx 78K0R/Fx3
78K0R/Ix 78K0R/Ix3
78K0R/Kx 78K0R/Kx3, 78K0R/Kx3-A, 78K0R/Kx3-L
78K0R/Lx 78K0R/Lx3
V850 V850ES/Fx V850ES/Fx3 Applilet2 for V850ES/Fx3 V2.43
Oct 10, 2012
V850ES/Sx V850ES/Sx3 Applilet2 for V850ES/Sx3 V2.41
Oct 18, 2012
78K 78K0/Fx 78K0/Fx2 Applilet2 for 78K0/Fx2 V2.42
Oct 18, 2012
78K0/Kx 78K0/Kx2 Applilet2 for 78K0/Kx2 V2.42
Oct 18, 2012
78K0/Lx2 78K0/Lx2 Applilet2 for 78K0/Lx2 (Note2) V2.41
Oct 18, 2012
78K0/Lx3 Applilet2 for 78K0/Lx3 V2.41
Oct 18, 2012
78K0S/Kx 78K0S/Kx1+ Applilet2 for 78K0S/Kx1+ V2.41
Oct 18, 2012

Notes

  1. The Smart Configurator supports these devices of the RX Family. We recommend using the Smart Configurator for new development.
    Regarding the Smart Configurator >>
  2. Discontinued products. Technical support is available.
