[Upgrade to Revision] CS+ Code Generator for RL78 (CS+ for CC/CA,CX) V2.22.00, e² studio Code Generator Plug-in V2.19.0, AP4 Coding Assistance Tool for RL78 V1.21.00, Applilet3 Coding Assistance Tool for RL78 V1.21.00 (PDF | English, 日本語)

The code generator plug-in can automatically generate control programs for peripheral modules (device driver programs). By generating needed source code in accordance with user settings, the plug-in shortens development terms and dramatically reduces costs.

Important: A Note to Users of the Code Generator Plug-in for RX and the RL78/G23 group: We recommend that you consider migrating to the Smart Configurator, as it supports the following three functions: importing middleware in the form of FIT modules, generating driver code, and setting pins from the Code Generator Plug-in.

Overview of Code Generator Plug-in
Visually check how pins are being used

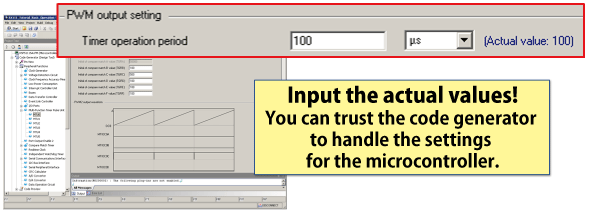

Input the actual values
Overview of Code Generator Plug-in
Visually check how pins are being used
Input the actual values
  • Simple operation of all processes through an easy-to-understand GUI
  • Handles checking for cases where multiple peripheral modules are contending for the same pins
  • An API provides functions to make the peripheral functions operate
  • Since this tool is included in the CS+ and e² studio integrated development environments from Renesas, all processes from editing and building code to debugging can be smoothly executed from the same integrated environment
  • Many application notes and sample code [Learn More]
  • Learn More

CS+ Code Generator:

Details of upgrade (See Tool News)

Operating Environment

FAQ
