The RZ family offers solutions that fuse Renesas' experience in the microprocessor business and the global ecosystem of Arm® partners. This contributes to faster prototype development time and reduced development costs. Development tools, OS, middleware, boards, and other products are available for purchase from our partners.

RZ/A Series

Development Tools for RZ/A2

Integrated Development Environment

  Arm® IAR SYSTEMS RENESAS
Integrated Development Environment Arm DS IAR Embedded Workbench® for Arm® e2studio*3
Compiler Arm Compiler for Embedded *1 IAR C/C++ Compiler *2 GNU Tools *4
ICE
  • DSTREAMTM
  • ULINKproTM
  • ULINKproDTM
  • ULINK2TM
  • I-jetTM/I-jet TraceTM for Arm® Cortex®-A/R/M
  • JTAG jet-Trace
  • J-Link LITE from Segger
  • J-Link Series from Segger *5

*1 : Arm Compiler for Embedded is included in Arm DS. The priced "Arm DS Renesas RZ/A and RZ/T editions", a fully functional evaluation version of Arm DS that expires after 30 days is available free of charge. Contact an Arm DS sales agent for details.

*2 : IAR C/C++ compiler is available in two free versions: one is limited to a code size of 32KB but has no time limit, and the other provides full functionality but is limited to 30 days of use.

*3 : Eclipse-based development environment from Renesas (https://www.renesas.com/e2studio)

*4 : Refer to “Target Builder” at Eclipse-based development environment from Renesas (https://www.renesas.com/e2studio)

*5 : Renesas does not handle ICEs from Segger. Contact a sales agent for details.

Evaluation Boards (Renesas)

CPU boards, Reference boards
Product Name Description MPU Document
RZ/A2M Evaluation Board Kit This evaluation Board Kit is a product to evaluate functions, performance and peripherals of the RZ/A2M. RZ/A2M
324-pin BGA

To purchase, please contact a Renesas sales representative or agent.

Middleware (Renesas)

*Rich lineup of graphics, file system, and other middleware for RZ/A1 applications
Category Function Details Purchasing method
File System FAT FatFs

The middleware for RZ/A2M is in RZ/A2M Software Package (FreeRTOS).

Refer to Web Site.
Graphics Library RGA(Renesas Graphics Architecture) -
Network TCP FreeRTOS+TCP
UDP
DNS, DHCP, ARP
MQTT FreeRTOS
SSL/TSL Mbed TLS
Update System OTA (Over the Air) update * FreeRTOS
Media USB Host (MSC, CDC, HID) -
USB Function (CDC) -
SD Driver Default Mode (12.5MB/s) is supported. If you need High Speed Mode (25MB/s) or UHS-l (50MB/s) support, please contact your local sales.
GUI Tools TES Guiliani TES Guiliani on RZ/A is a cross platform C++ framework to develop visually appealing user interfaces. For getting the "Prepaid by Renesas" TES Guiliani Lite license, please refer to TES Guiliani page.

* : Under Development

Software Development Kit (Renesas)

A software development kit that combines middleware, device drivers, and sample programs for camera input, LCD output, and image adjustment.

Product Name Description
RZ/A2M Software Package (FreeRTOS) This Software Package for the RZ/A2M that supports various RZ/A2M functions such as DRP(Dynamically Reconfigurable Processor), camera input, LCD output, and image adjustment.

Development Tools for RZ/A1

Integrated Development Environment

  Arm® IAR SYSTEMS RENESAS
Integrated Development Environment Arm DS IAR Embedded Workbench® for Arm® e2studio*3
Compiler Arm Compiler for Embedded *1 IAR C/C++ Compiler *2 GNU Tools *4
ICE
  • DSTREAMTM
  • ULINKproTM
  • ULINKproDTM
  • ULINK2TM
  • I-jetTM/I-jet TraceTM for Arm® Cortex®-A/R/M
  • JTAG jet-Trace
  • J-Link LITE from Segger
  • J-Link Series from Segger *5

*1 : Arm Compiler for Embedded is included in Arm DS. The priced "Arm DS Renesas RZ/A and RZ/T editions", a fully functional evaluation version of Arm DS that expires after 30 days is available free of charge. Contact an Arm DS sales agent for details.

*2 : IAR C/C++ compiler is available in two free versions: one is limited to a code size of 32KB but has no time limit, and the other provides full functionality but is limited to 30 days of use.

*3 : Eclipse-based development environment from Renesas (https://www.renesas.com/e2studio)

*4 : Refer to “Target Builder” at Eclipse-based development environment from Renesas (https://www.renesas.com/e2studio)

*5 : Renesas does not handle ICEs from Segger. Contact a sales agent for details.

Evaluation Boards (Renesas)

CPU boards, Reference boards
Product Name Description MPU Document
Renesas Starter Kit+ for RZ/A1H The Renesas Starter Kit+ for RZ/A1H has been developed to speed up device evaluation, code development and so reduce time to market. An Renesas Starter Kit+, as the name suggests, is a complete development kit for the Renesas RZ/A1H device family RZ/A1H 324-pin BGA [e2studio] Renesas Starter Kit+ for RZ/A1H User's Manual (PDF | English, 日本語)
Stream It ! - RZ The STREAM IT! RZ development kit is an out-of-the-box evaluation and development platform suited to a variety of applications requiring performance, connectivity and quality user interfaces. RZ/A1LU 208-pin QFP Stream-it! - RZ-V2 Quick Start Guide (PDF)

To purchase, please contact a Renesas sales representative or agent.

Middleware (Renesas)

* Rich lineup of graphics, file system, and other middleware for RZ/A1 applications
Category Function Details and purchasing method
File System FAT Evaluation version, free version, and paid version available. For details, please contact a seller.
GUI Tools TES Guiliani For getting the “Prepaid by Renesas” TES Guiliani Lite license, please refer to TES Guiliani page.
Graphics Library RGA(Renesas Graphics Architecture)

Media SD Card Driver For details, please contact a seller.

Software Development Kit (Renesas)

A software development kit that combines middleware, device drivers, and sample programs for camera input, LCD output, and image adjustment.

Product Name Description
RZ/A1LU Software Package (FreeRTOS) This Software Package is an HMI software development kit for the RZ/A1LU that provides consistent support for camera input, LCD output, and image adjustment
SDK for Camera (CMSIS-RTOS RTX) This software development kit is for RZ/A1 and is supported for camera input, LCD output and image adjustment.

Partner Software & Tools (RZ/A Series Common)

Design Partners

Accipiter Systems, Inc.

AXONIM

Embedded Expertise

Mobiveil

MSRK Design

TES Electronic Solutions GmbH

Wiseware, Lda.

Software Partners (OS/Driver/Middleware)

aicas, GmbH

Barksteel Systems

Elektrobit

Embedded Office GmbH&Co. KG

ENEA

Express Logic, Inc.

IAR Systems

IKIVO AB

ORYX EMBEDDED

SEGGER Microcontroller GmbH

Tool Vendors (Software/Hardware)

Crank Software

CriticalBlue, Ltd.

Elektrobit

Green Hills Software

IAR Systems

ITTIA

Lauterbach GmbH

Micrium

MicroEJ

Phyton, Inc. Microsystems and Development Tools

ProMik Gmbh

TES Electronic Solutions

RZ/G Series

RZ/G1 Linux BSP

Get Started

RZ/G2 Linux BSP

Get Started

Development Tools for RZ/G

Evaluation Boards

Product Name Mounted MPU
RZ/G2L Evaluation Board Kit RZ/G2L
RZ/G2LC Evaluation Board Kit RZ/G2LC
RZ/G2E Reference Board RZ/G2E
RZ/G2M Reference Board RZ/G2M
Musashi (RZ/G2N) Reference Board RZ/G2N
RZ/G2H Reference Board RZ/G2H
iWave RZ/G1H-PF Development Kit RZ/G1H
iWave RZ/G1M-PF Development Kit RZ/G1M
iWave RZ/G1N-PF Development Kit RZ/G1N
iWave RZ/G1E-PF Development Kit RZ/G1E

RZ/T Series

Integrated Development Environments for RZ/T2M and RZ/T2L

  IAR SYSTEMS RENESAS
Integrated Development Environment IAR Embedded Workbench® for Arm® e2 studio*1
Compiler IAR C/C++ Compiler *2 GNU Tool
Other Tools Renesas smart configurator available Code generation function available as a plug-in.
ICE I-jetTM
JTAGjet-Trace 		 J-Link Series from Segger *3

*1 : Eclipse-based development environment from Renesas（http://japan.renesas.com/e2studio）

*2 : The IAR C/C++ compiler is available in two free versions: one is limited to a code size of 32KB but has no time limit, and the other provides full functionality but is limited to 30 days of use.

*3 : Renesas does not handle ICEs from Segger. Contact a sales agent for details.

Integrated Development Environments for RZ/T1

  IAR SYSTEMS Arm® eSOL RENESAS
Integrated Development Environment IAR Embedded Workbench® for Arm® DS-5 eBinder e2 studio*1
Compiler IAR C/C++ Compiler *2 Arm CC*3 Arm CC*1 GNU Tool *4
Other Tools AP4 code generation tool from Renesas is compatible. AP4 code generation tool from Renesas is compatible. - Code generation function available as a plug-in.
ICE I-jetTM
JTAGjet-Trace 		 DSTREAMTM
ULINKproTM
ULINKproDTM
ULINK2TM 		 PARTNER-Jet2 from Kyoto Microcomputer   adviceLUNAⅡ from DTS INSIGHT J-Link LITE from Segger
J-Link Series from Segger *5

*1 : Eclipse-based development environment from Renesas (http://www.renesas.com/e2studio).

*2 : The IAR C/C++ compiler is available in two free versions: one is limited to a code size of 32KB but has no time limit, and the other provides full functionality but is limited to 30 days of use.

*3 : Arm CC is included in DS-5. In addition to the popularly priced “DS-5 Renesas RZ/A and RZ/T editions”, a fully functional evaluation version of DS-5 that expires after 30 days is available free of charge. Contact your DS-5 dealer for details.

*4 : GNU TOOLS & SUPPORT Web Site (https://llvm-gcc-renesas.com/)

*5 : Renesas does not handle ICEs from Segger. Contact a sales agent for details.

Renesas Electronics

Category Product Name Outline Supported Products
Integrated Development Environment e2 studio
  • e2 studio is an integrated development environment based on the Eclipse open source integrated development environment and CDT plug-ins supporting development in C/C++.
  • The RZ/T compatible e2 studio supports code generation plug-in.
  • The C/C++ code generation plug-in enables users to generate device driver programs for peripheral functions of Renesas microcontrollers and microprocessors with a graphical user interface. A separate compiler installation is needed to activate this plug-in.
 RZ/T1, RZ/T2M, RZ/T2L
Code Generation Support Tool AP4
  • AP4 is a standalone tool that automatically generates peripheral function control programs based on settings entered by the user.
  • Users are able to freely select suitable build tool (compiler) for their development enabling interoperation with integrated development environments.
  • The RZ/T compatible AP4 version generates compatible source code for IAR Embedded Workbench from IAR Systems, Development Studio (DS-5TM) from Arm®, and e2 studio (GNU Tools).
 RZ/T1
Code Generation Support Tool Flexible Software Package (FSP) + Smart Configurator (SC)
  • FSP includes all the necessary board-dependent programs, peripheral function drivers, middleware, and documentation to get started with software development.
  • Smart Configurator is a utility to combine software that meet your needs. Pins and FSP driver settings can be configured using an intuitive GUI, and generate source code tailored to your use case.
  • FSP and Smart Configurator can be used in conjunction with an IDE and are compatible with IAR Embedded Workbench® for Arm from IAR Systems and e2 studio.
 RZ/T2M, RZ/T2L

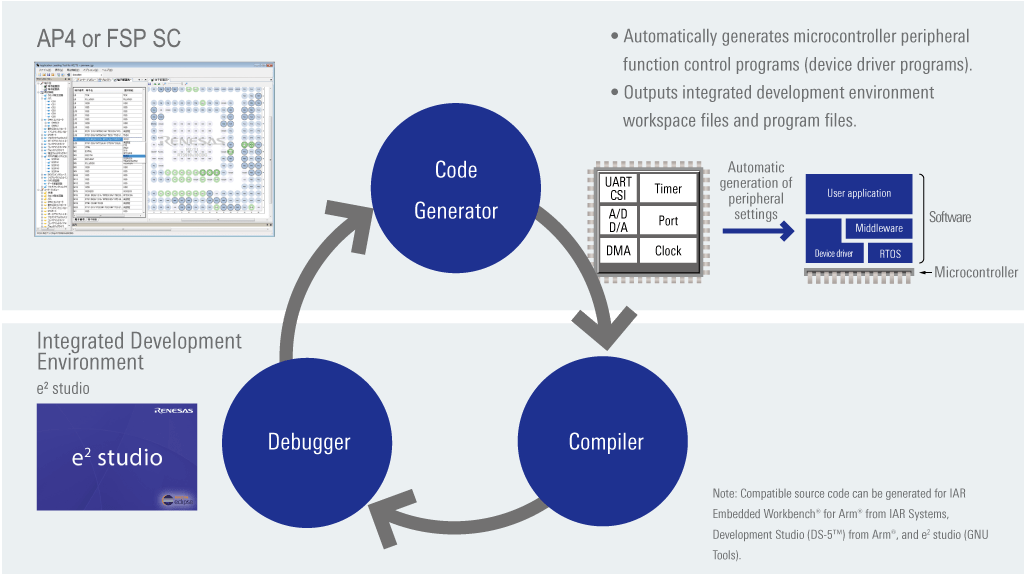

Code generation, compile, and debugging for RZ/T

CPU Evaluation Boards

Product Name Type
Renesas Starter Kit+ for RZ/T2M Starter
Renesas Starter Kit+ for RZ/T2L Starter
RZ/T2M Motor Solution Kit (DC 24V version) (available for rent) Reference
RZ/T2M, RZ/T2L, RZ/N2L Motor Solution Kit (AC 220V version: CN032) (available for rent) Reference
Renesas Starter Kit+ for RZ/T1 Starter
RZ/T1 Motion Control Solution Kit Reference

RZ/N Series

Development Tools for RZ/N2L

Integrated Development Environment

  IAR SYSTEMS RENESAS
Integrated Development Environment IAR Embedded Workbench® for Arm® e2 studio*1
Compiler IAR C/C++ Compiler *2 GNU Tool
Other Tools Renesas smart configurator available Code generation function available as a plug-in.
ICE I-jetTM
JTAGjet-Trace 		 J-Link Series from Segger *3

*1 : Eclipse-based development environment from Renesas（http://japan.renesas.com/e2studio）

*2 : The IAR C/C++ compiler is available in two free versions: one is limited to a code size of 32KB but has no time limit, and the other provides full functionality but is limited to 30 days of use.

*3 : Renesas does not handle ICEs from Segger. Contact a sales agent for details.

Debugger, ICE

  Lauterbach
Debugger TRACE32 PowerView
ICE TRACE32 PowerDebug & PowerTrace
Compiler ●GNU Tool
●Arm CC*1
●IAR C/C++ Compiler*2, etc.

*1 : Arm CC is included in DS-5. In addition to the popularly priced “DS-5 Renesas RZ/A and RZ/T editions”, a fully functional evaluation version of DS-5 that expires after 30 days is available free of charge. Contact your DS-5 dealer for details.

*2 : The IAR C/C++ compiler is available in two free versions: one is limited to a code size of 32KB but has no time limit, and the other provides full functionality but is limited to 30 days of use.

Development Tools for RZ/N1

Integrated Development Environment

OS Compiler Debugger ICE
Linux GCC (GNU Compiler) GDB (GNU Debugger) J-Link series from SEGGER
ThreadX® EWARM (IAR Systems for Arm® Cortex® -A7) I-Jet
HW-RTOS EWARM (IAR Systems for Arm® Cortex® -M3) I-Jet

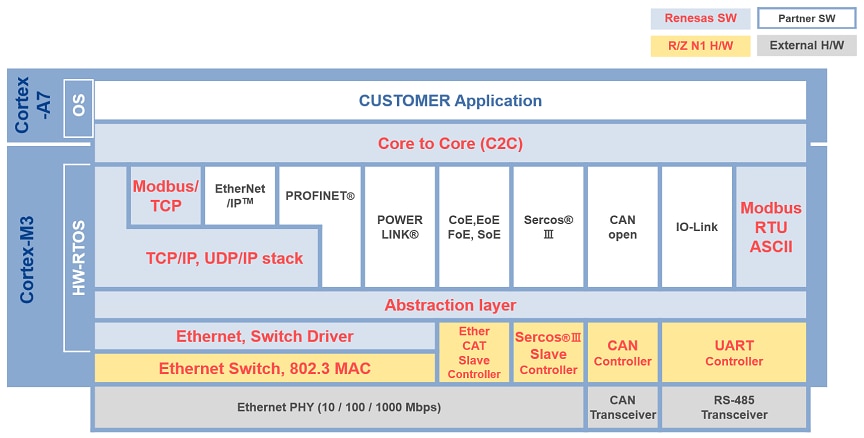

Protocol Stack Software (Refer product page)

RZ/N Protocol Stack

CPU Evaluation Boards

Product Name Type
Renesas Starter Kit+ for RZ/N2L Starter
RZ/T2M, RZ/T2L, RZ/N2L Motor Solution Kit (AC 220V version: CN032) (available for rent) Reference
CONNECT IT! ETHERNET RZ/N Reference
