LTE Cat-M1 Cellular IoT Module
Jump to Page Section:
Back to top
Explore ECAD Models
Overview
Description

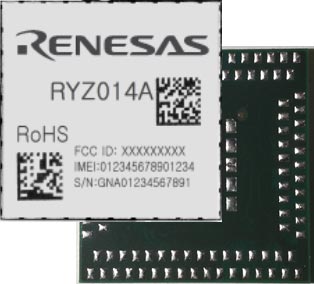

The Renesas RYZ014A module is an all-in-one, single-mode LTE category M1 module with worldwide deployment and roaming capability. The module comprises an LTE Cat-M1 platform and all other elements necessary for a complete LTE Cat-M1 modem system. These include an LTE-optimized transceiver, a single complete RF front-end to support LTE Cat-M1 bands worldwide, and key interfaces, all in a single compact LGA package. The RYZ014A module also includes a carrier-proven LTE Cat-M1 protocol stack and comprehensive software.
Features
- Integrated cellular IoT module for LTE Cat-M1
- 3GPP Release 13
- Field-proven LTE Cat-M1 software stack
- AT command interface
- 20.25 x 21.35mm LGA package with 108 pads
- uSIM Interface
- Voltage 3.1V to 4.5V
- RoHS-compliant, halogen-free
- High output power supporting both power class options 20 and 23dBm
Applications
Applications
- Metering (Electricity/Gas/Water, Automated Meter Reading)
- Smart Home (HVAC, Thermostats)
- Infrastructure (Charge Poles, Parking Systems)
- Industry (Pumps)
- Agriculture
- Wearables & Trackers
Certifications
The RYZ014A meets multiple regional regulatory requirements. Individual certificates are available below. Refer to the RYZ014A documentation for disclaimer, precautions and more details on the certifications.
Japan radio/terminal equipment based on type certification
Implemented RYZ014A has obtained certified construction type certification (certification number: 003-200328).
Note
Certifications are only for the products and jurisdictions indicated in the certification and should not be construed as a certification for any other jurisdiction or different product.
Documentation
| Title | Type | Date | |
|---|---|---|---|
Datasheet
|
|||
PDF840 KB
|
Application Note
|
||
PDF1.03 MB
|
Application Note
|
||
Related Files:
|
Application Note
|
||
PDF1.08 MB
|
Application Note
|
||
PDF1.10 MB
|
Application Note
|
||
Related Files:
|
Application Note
|
||
Related Files:
|
Application Note
|
||
PDF984 KB Related Files:
|
Application Note
|
||
PDF3.69 MB
|
Application Note
|
||
Brochure
|
|||
Flyer
|
|||
PDF331 KB
|
List
|
||
PDF2.82 MB
|
Manual - Hardware
|
||
PDF3.63 MB
|
Manual - Hardware
|
||
ZIP1.40 MB Related Files:
|
Other
|
||
PDF433 KB Related Files:
|
Quick Start Guide
|
||
PDF361 KB
|
Release Note
|
Design & Development
Software & Tools
Software & Tools
| Flexible Software Package (FSP)FSP is an enhanced software package designed to provide easy-to-use, scalable, high-quality software for embedded system designs using Renesas RA Family of Arm Microcontrollers. Note: FSP with e² studio Installer (Platform Installer) will install the e² studio tool, FSP packs, GCC toolchain and Segger J-Link drivers required to use this software. No additional installations are required. | Software Package | Renesas |
Sample Code
Boards & Kits
Boards & Kits
LTE Cat-M1 Cellular IoT Module Evaluation Kit
Cellular modem evaluation kit based on RYZ014A LTE Cat-M1 Cellular IoT Module
The RYZ014A EVK provides everything needed to start evaluating LTE Cat-M1 technology:...
Featured Documents:
PMOD Expansion Board for RYZ014A
The PMOD Expansion Board for RYZ014A provides an entry point to evaluation and developing for the RYZ014A. The PMOD Expansion Board is easy connection to Renesas MCU...
Featured Documents:
Cloud Kit Based on RA6M5 MCU Group
The CK-RA6M5 cloud kit enables users to securely connect to the cloud and explore the features of the Cortex®-M33 based RA6M5 group of MCUs and cloud services. With
Featured Documents:
Cloud Kit Based on RX65N MCU Group
The CK-RX65N cloud kit enables users to securely connect to the cloud and explore the features of the Renesas RXv2 core based RX65N MCU Group and cloud services. With
Featured Documents:
Models
ECAD Models
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.
Product Options
Processing table
| MODULE | Reel | 1000 |
Tips for Using This Parametric Table:
- Hide Filters button in header: Collapse or expands filters
- Column sort buttons in header: Sort Column alphabetically / numerically descending or ascending
- Reset button in header: Reset all filters to the page default
- Full Screen button in header: Expand the table to full screen view (user must close out of full screen before they can interact with rest of page)
- Export button in header: Export the filtered results of the table to an Excel document
- Filter parts search bar in header: Type to filter table results by part number
- Hide column button in column headers: Select to hide columns in table
- AND / OR toggle switches in header: Toggles the logic of this particular filter to be “AND” or “OR” logic for filtering results
- Multiselect checkboxes at beginning of each row in table: Select these checkboxes to compare products against each other
- Document icon next to product name in row: View the featured document for this product
- Chip icon next to the right of the document icon in row: View the block diagram for this product
- Cart icon to the right of the chip icon: Indicates that samples are available for this product
play_circle_filledVideos & Training
RYZ014A Integrated LTE Cat-M1 Cellular IoT Module
This overview shows how the integrated, pre-certified RYZ014A LTE Cat-M1 module expands communication capabilities and eliminates the need for gateways to help design at scale for smart city, smart home, medical, wearable, and industrial systems.
