Overview
Description
The RH850/U2B is Renesas' cross-domain microcontroller series, a new generation of high-end automotive-control devices, designed to address the growing need to integrate multiple applications into a single chip to realize unified electronic control units (ECUs) for the evolving electrical/electronic architecture (E/E architecture). Based on 28 nanometer (nm) process technology, the 32-bit RH850/U2B automotive MCU builds on key functions from Renesas’ RH850/Ex Series for engine control and RH850/Cx Series for xEV to deliver improved performance.
This automotive-control MCU is equipped with up to four 400 megahertz (MHz) CPU cores + up to three dual-core lock-step. Each CPU core integrates virtualization support and Quality-of-Service (QoS) for X-in-1 applications. The latest hardware support technologies realize the integration of multiple ASIL D SW-partitions into one ECU while ensuring Freedom-From-Interference between the concurrently running applications to meet the ISO 26262 ASIL D standard.
The MCU includes security functions fulfilling EVITA Full for enhanced protection against cyber-attacks, enabling the device to support safe and rapid full no-wait Over-the-Air (OTA) software updates as security requirements evolve.
And the MCU incorporates a stand-alone high-performance motor-control accelerator IP (EMU3S) that works in flexible conjunction with multiple dedicated motor-control timer structures like GTM v4.1 and TSG3. As a unique feature, the embedded motor position sensor interface RDC3X (covering resolvers as well as inductive position sensors) provides the option to achieve significant BOM-cost reduction because the usually required external RDC chipset may be omitted.
To enhance the performance level for real-time control the RH850/U2B will be partly equipped with the DFP (DR1000C), a RISC-V based parallel coprocessor IP with vector extension. The DR1000C is ideal for offloading heavy-load arithmetic processing designed to address the evolving performance demands of electric mobility (eMobility), autonomous driving, and next-generation E/E architectures, including their high-level demand in network security. The DR1000C is licensed from DENSO Corp. of Japan.

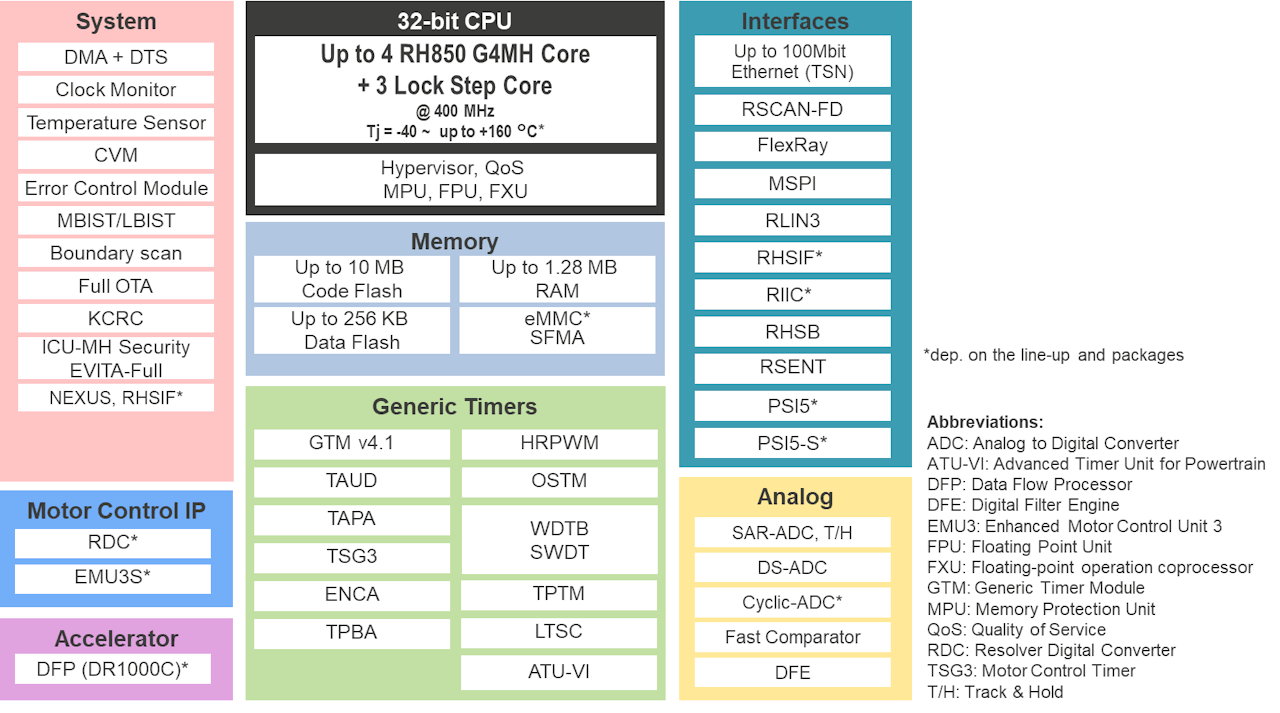

Features
- Key features:
- 400MHz speed for up to 4 + up to 3 (LockStep) RH850 G4MH CPUs
- Top-level ratio of performance vs. power consumption
- Up to 10MB Flash
- Up to 1.28MB RAM
- RISC-V based MIMD high-performance embedded vector processor
- Embedded EMU3S (Embedded motor control unit), RDC3X (Position sensor interface) and TSG3 (motor timer) for field-oriented traction motor (inverter) control
- Up to 4 x ADC (12-bit), with a maximum of 94 channels, including 6+6+0+0 Track and Hold inputs
- Up to 10 x DS-ADCs with a Digital Filter Engine
- Up to 20 x Digital Filter Engine
- GTM v4.1 vehicle motion timer
- High temperature support: up to Tj = 160°C
- State of the Art Interfaces
- Up to 2x 100Mbit Ethernet TSN
- CAN-FD, SPI, RHSB (MSC), RHSIF, SENT, LIN, UART, I2C, PSI5,
- SFMA (Serial flash memory interface)
- eMMC
- Support for FuSa and Security
- Security module with EVITA Full support
- ISO 26262 ASIL D
- Extensive ecosystem supporting the latest standards concerning tool, hardware, and software areas
Comparison
Applications
Design & Development
Software & Tools
Software & Tools
| Software title
|
Software type
|
Company
|
|---|---|---|
| E2 emulator [RTE0T00020KCE00000R] On-chip debugging emulator. Also available as a flash memory programmer. [Support MCU/MPU: RA, RE, RH850, R-Car D1, RL78, RX, RISC-V MCU]
|
Emulator | Renesas |
| CS+ Renesas integrated development environment (IDE) [Support MCU/MPU: RH850, V850, RX, RL78, 78K0R, 78K0]
(Note: CS+ is not generally promoted to U.S. and European customers.)
(Note: To use Smart Configurator on CS+ for RL78/G23 and RX family MCUs, install the Smart Configurator for each MCU family separately downloading from ”Design & Support” > ”Development Tools” > ”Smart Configurator”)
|
IDE and Coding Tool | Renesas |
| RH850 Smart Configurator RH850 Smart Configurator is an automatic driver generation tool for internal peripheral I/O modules through GUI settings.
|
Solution Toolkit | Renesas |
| Cycle-Accurate Simulator for RH850 Instruction simulator that can measure times with accuracy close to actual machine of RH850 under PC environment. For a fee. [Support IDE : CS+]
|
Simulator | Renesas |
| e² studio - information for RH850 Family Eclipse-based Renesas integrated development environment (IDE).
|
IDE and Coding Tool | Renesas |
| Green Hills MULTI Device-Support-Packages Green Hills MULTI Device-Support-Packages include all device specific files to be used with the MULTI IDE.
|
IDE and Coding Tool | Renesas |
| IE850A Emulator System for RH850. This product supports external tracing (Aurora tracing) .
|
Emulator | Renesas |
| Model-Based Development Environment for RH850, R-Car Family [Embedded Target for Virtual Platform] Embedded Target for RH850 Virtual Platform is a development environment that generates peripheral code for target devices from Simulink® models and enables cooperative verification as Virtual Hardware In the Loop Simulation (vHILS) in a virtual environment with Simulink.
|
Model-Based Development | Renesas |
| RH850 Multicore Model-Based Environment [Embedded Target for RH850 Multicore] The Embedded Target for RH850 Multicore is a RH850 model-based multicore environment that simplifies complex driving control for the autonomous-driving era. In addition to the multicore support of the PILS tool for automatic configuration of environments, Embedded Target for Renesas CS+, it can also be interlinked with a model-based parallelization tool from eSOL Co., Ltd.
|
Model-Based Development | Renesas |
| C Compiler Package for RH850 Family [CC-RH] C Compiler Package for RH850 Family [IDE: CS+, e² studio]
|
Compiler/Assembler | Renesas |
| Renesas MCAL Renesas' MCAL (Microcontroller Abstraction Layer) software drivers can be obtained as a stand-alone software package.
|
Software Package | Renesas |
|
11 items
|
||
Sample Code
Boards & Kits
Evaluation
Y-RH850-U2B-292PIN-PB-T1-V1
Active
RH850/U2B 292pin Piggyback Board of RH850 Evaluation Platform
The RH850/U2B 292pin piggyback board supports all devices of the RH850/U2B series in 292pin-package. It can be used standalone or in combination with a mainboard of the RH850 evaluation platform. The modular RH850 evaluation platform consisting of mainboards and piggyback boards is a platform...
Recommended Documents:
Evaluation
Y-RH850-U2B-373PIN-PB-T1-V1
Active
RH850/U2B 373pin Piggyback Board of RH850 Evaluation Platform
The RH850/U2B 373pin piggyback board supports all devices of the RH850/U2B series in 373pin-package. It can be used standalone or in combination with a mainboard of the RH850 evaluation platform. The modular RH850 evaluation platform consisting of mainboards and piggyback boards is a platform...
Recommended Documents:
Evaluation
Y-RH850-U2B-468PIN-PB-T1-V1
Active
RH850/U2B 468pin Piggyback Board of RH850 Evaluation Platform
The RH850/U2B 468pin piggyback board supports all devices of the RH850/U2B series in 468pin-package. It can be used standalone or in combination with a mainboard of the RH850 evaluation platform. The modular RH850 evaluation platform consisting of mainboards and piggyback boards is a platform...
Recommended Documents:
Evaluation
Y-RH850-U2B10-TB
Active
RH850/U2B10 Target Board with Automotive (ASIL-D) Power Management IC
The RH850/U2B10 and Power Management IC Target Board serves as an evaluation board with Arduino form factor. The circuit shows a possible implementation of the RH850/U2B10 MCU and an automotive (ASIL-D) power management IC.
Recommended Documents:
Models
ECAD Models
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on the CAD Model links in the Product Options table. If a symbol or model isn't available, it can be requested directly from SamacSys.
Product Options
Applied Filters:
Videos & Training
RH850/U2x Virtualization Development Platform
To practically reduce the overall number of ECUs in a car, their functions must become integrated as multiple virtual ECUs on a shared physical ECU. A solution to this challenge is the introduction of a hypervisor-related SW system – developed in cooperation between ETAS and Renesas.
Video List
