RZ Family Software & Tools

Development Environment

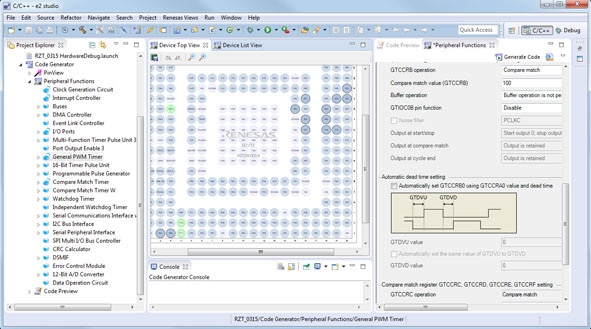

e² studio: Integrated Development Environment Based on Eclipse

e² studio is an integrated development environment based on the Eclipse open source integrated development environment and CDT plug-ins supporting development in C/C++. The version of e² studio that is compatible with the RZ/T series provides support for a code generation plug-in.

C/C++ perspective: code generation plug-in

A code generation plug-in is available that enables the user to generate device driver programs for peripheral functions of Renesas microcontrollers (timers, UART, A/D converter, etc.) by entering settings in a graphical user interface. It is possible to specify the processing of multiplexed pins in a pin table and view a pin assignment diagram to confirm the settings.

Support Tool

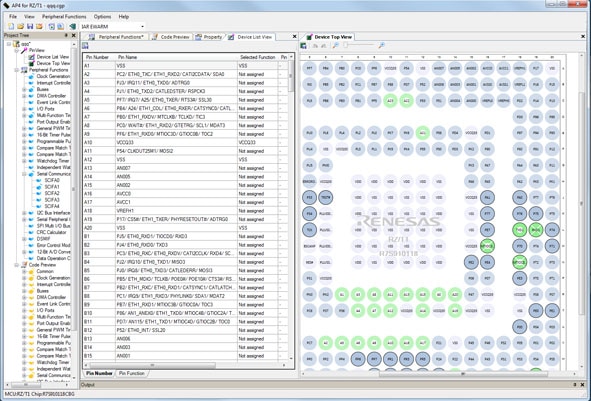

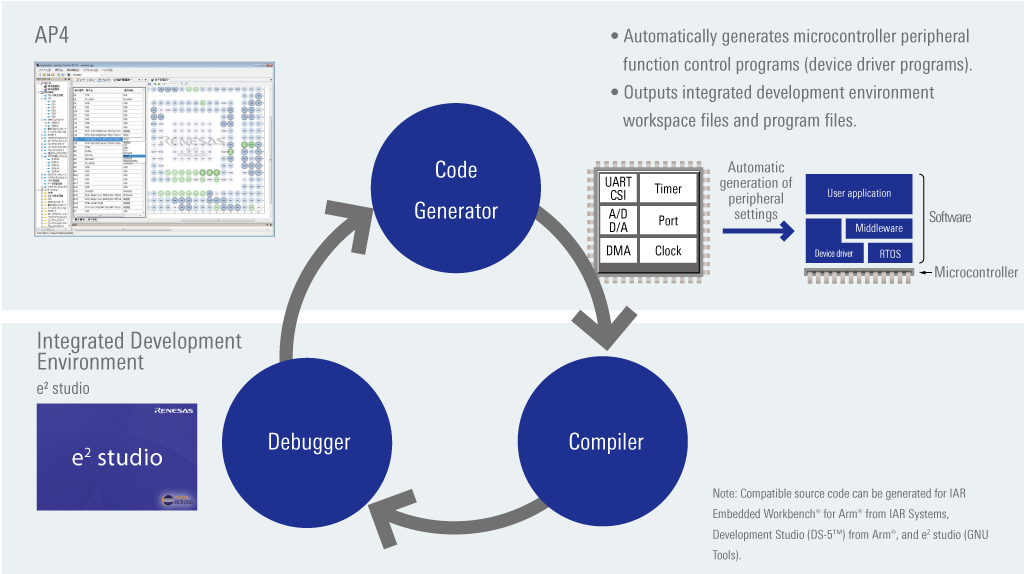

AP4: Code Generation Support Tool

AP4 is a standalone tool that automatically generates peripheral function control programs (device driver programs) based on settings entered by the user. The build tool (compiler) is selectable. This makes it possible to generate peripheral function control program code to match a specific build tool and enables interoperation with integrated development environments.The version of AP4 that is compatible with the RZ/T series can generate compatible source code for IAR Embedded Workbench from IAR Systems, Development Studio (DS-5^TM) from Arm^®, and e2 studio (GNU Tools).

Evaluation Board

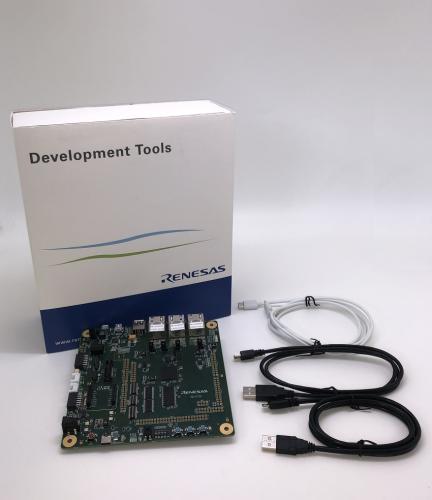

Renesas Starter Kit+ for RZ/T2M

Renesas Starter Kit+ for RZ/T2M is an evaluation and development kit for the RZ/T2M MPU. Since it has an on-board emulator, you can start evaluation by simply connecting the bundled cable with your PC. This board includes rich functional ICs such as Gigabit Ethernet PHY and Octal Flash, and you can evaluate various functions of RZ/T2M without an extension board.

Evaluation Board

RZ/T2M Motor Solution Kit (This solution is available for rent.)

Renesas Starter Kit+ for RZ/T2M is an evaluation and development kit for the RZ/T2M MPU. Since it has an on-board emulator, you can start evaluation by simply connecting the bundled cable with your PC. This board includes rich functional ICs such as Gigabit Ethernet PHY and Octal Flash, and you can evaluate various functions of RZ/T2M without an extension board.

Evaluation Board

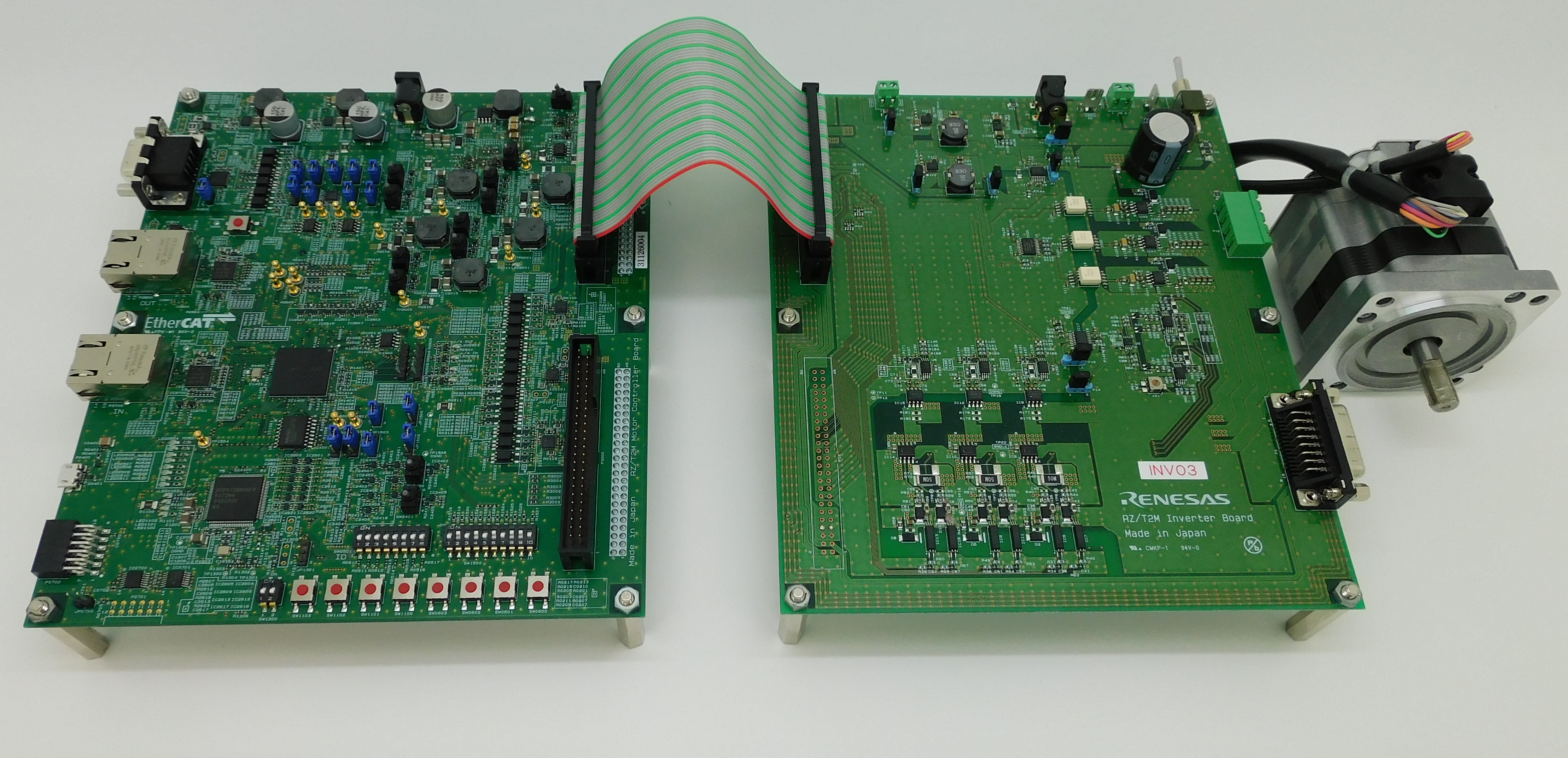

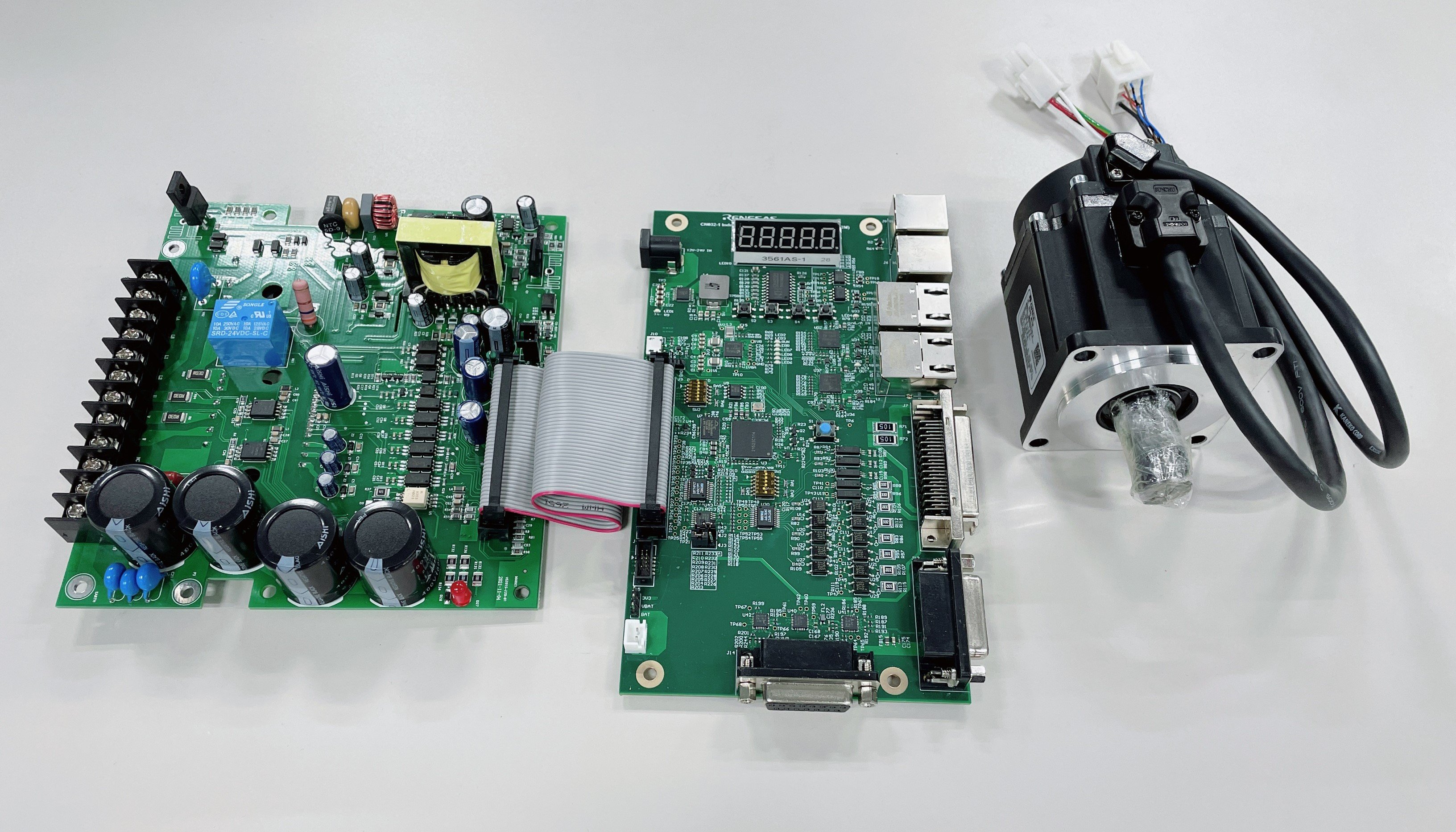

RZ/T2M, RZ/N2L Motor Solution Kit (AC 220V version: CN032) (This solution is available for rent.)

This Motor Solution Kit is a reference kit that enables easy initial evaluation and advanced development of customer's motor control system development using RZ/T2M (or RZ/N2L) with high voltage 220V AC servo motor.

A motor solution board (equipped with RZ/T2M BGA225 or RZ/N2L BGA225, 100-250V AC power supply supported) and 220V AC servo motor(equipped with Tamagawa-seiki absolute encoder) are available for free rental.
Evaluation software, motion utility tools, schematics, and board manuals can be downloaded from following [Documentation] and [Design & Development].

Evaluation Board

Renesas Starter Kit+ for RZ/T1 (DC 24V version)

The Renesas Starter Kit+ for RZ/T1 is the perfect starter kit for developers who are new to the RZ/T1. The kit includes an LCD display module, J-LINK Lite debugging emulator, and e2studio integrated development environment so you can start evaluating the RZ/T1 immediately after opening the box. Please use this product to experience the performance and functions of the RZ/T1.

Evaluation Board

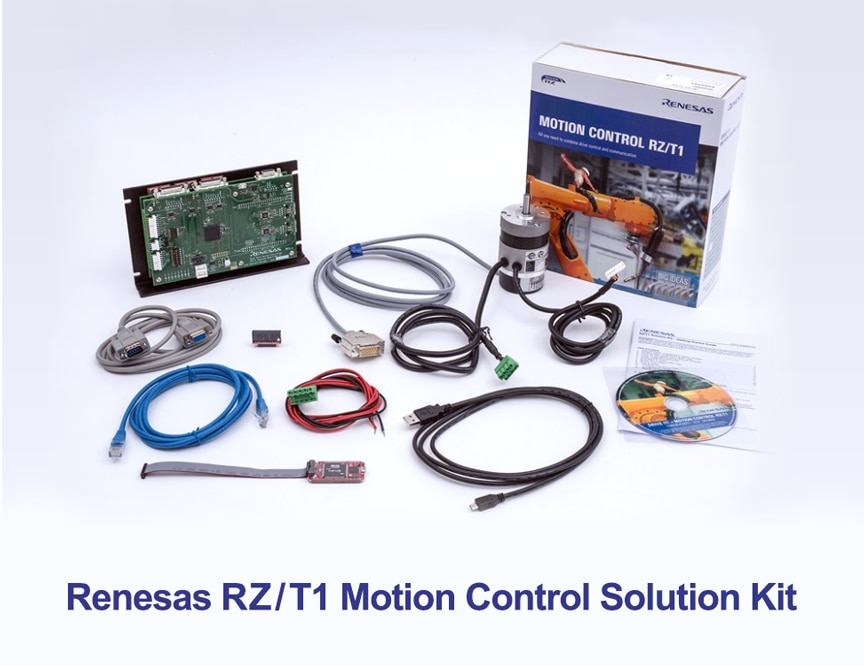

Motion Control Solution Kit for RZ/T1

The RZ/T1 Motion Control Solution Kit is a complete hardware and software solution for the Renesas RZ/T1 MPU. The kit includes an RZ/T1 CPU card, and a dual channel 3-phase inverter to support dual channel servo motor control with current and position feedback. The kit also supports incremental and absolute encoder over A-format^TM ,BiSS^®, EnDat, Tamagawa protocols.

Evaluation Board

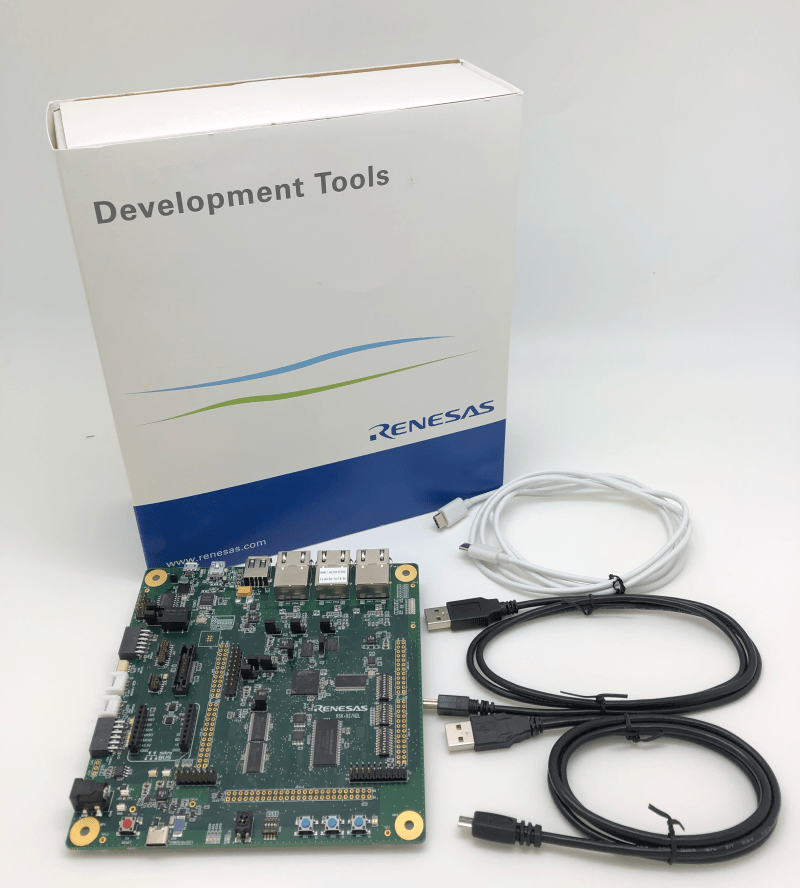

Renesas Starter Kit+ for RZ/N2L

Renesas Starter Kit+ for RZ/N2L is for evaluation or development using the RZ/N2L MPU.
With the on-board emulator, you can start evaluation by simply connecting the bundled cable with your PC. This product has rich functional ICs such as Gigabit Ethernet PHY and Octal Flash, you can fully evaluate functions without an extension board.

Evaluation Board

RZ/T2M, RZ/N2L Motor Solution Kit (AC 220V version: CN032) (This solution is available for rent.)

This Motor Solution Kit is a reference kit that enables easy initial evaluation and advanced development of customer's motor control system development using RZ/T2M (or RZ/N2L) with high voltage 220V AC servo motor.

A motor solution board (equipped with RZ/T2M BGA225 or RZ/N2L BGA225, 100-250V AC power supply supported) and 220V AC servo motor(equipped with Tamagawa-seiki absolute encoder) are available for free rental.
Evaluation software, motion utility tools, schematics, and board manuals can be downloaded from following [Documentation] and [Design & Development].

Evaluation Board

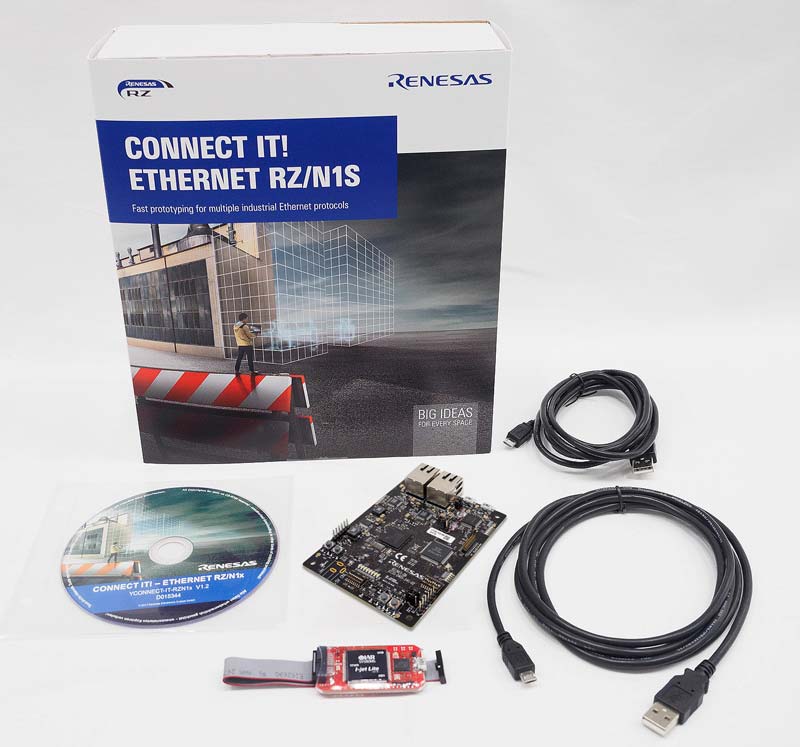

CONNECT IT! ETHERNET RZ/N

CONNECT IT! ETHERNET RZ/N is the perfect solution kit for developers new to developing with the RZ/N1. The kit comes with not only an evaluation board, but also a JTAG emulator and various sample software. By setting up the board according to the startup manual, you can evaluate Linux OS or Renesas R-IN engine (“R-IN engine”), or master and slave communications using EtherCAT or various other protocols In addition to three CPU boards (RZ/N1D, RZ/N1S and RZ/N1L), an expansion board that enables you to evaluate various peripheral functions is also available; you can choose which evaluation board to use according to your application. Experience the performance and function of the RZ/N1 through this CONNECT IT! ETHERNET RZ/N kit.
