The DA7218 is a high-performance, low power audio codec optimized for use in portable applications or wearable devices. It has single-ended headphone outputs with headphone detect for use in accessories, offering excellent left to right channel separation and common mode noise rejection.

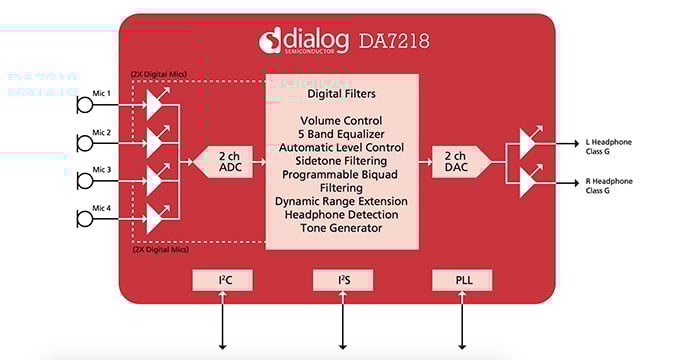

DA7218 also has a stereo DAC to headphone output path and ultra-low power operating modes to support always-on audio detect applications. It contains two analog microphone input paths, or up to four digital microphone input paths, or a combination of both. The other chip in this family, the DA7217 has differential headphone outputs without headphone detect, and has been designed for use inside headset devices.


  • Superior hi-fidelity audio performance for immersive record and playback
  • Sub 500µW always-on power extends battery life for audio activity detection
  • Flexible programming filtering (sideband, voice) enhances voice and audio playback
  • Mixed sample rate support for wideband applications
  • Supports the latest generation of low power analog and digital microphones
  • Small package footprint with an optimized ballout conducive to low cost PCB manufacturing


  • High-performance stereo DAC to headphone playback path with 110dB dynamic range
  • 4mW stereo playback power consumption
  • DAC digital filters with audio and voice mode options, five-band equalizer and five programmable biquad stages
  • Dedicated low-latency digital sideband filter with three programmable biquad stages
  • High-performance microphone to ADC record path with a 105dB dynamic range
  • 2.5mW stereo record power consumption
  • ADC digital filters with audio and voice mode options
  • 500µW always-on record mode with automatic level detection
  • Hybrid analog/digital automatic level control to dynamically control the record level
  • Shutdown mode offering current consumption during standby of 2.5µA
  • Two low noise microphone bias regulators with programmable output voltage and ultra-low power mode
  • Ability to differentiate between stereo and mono headsets
  • Automatic detection of headset removal and confirmation of headset insertion




  • Wired headsets
  • Wired headphones
  • Audio accessories
  • Portable gaming controller
  • Tablets and eReaders
