Overview

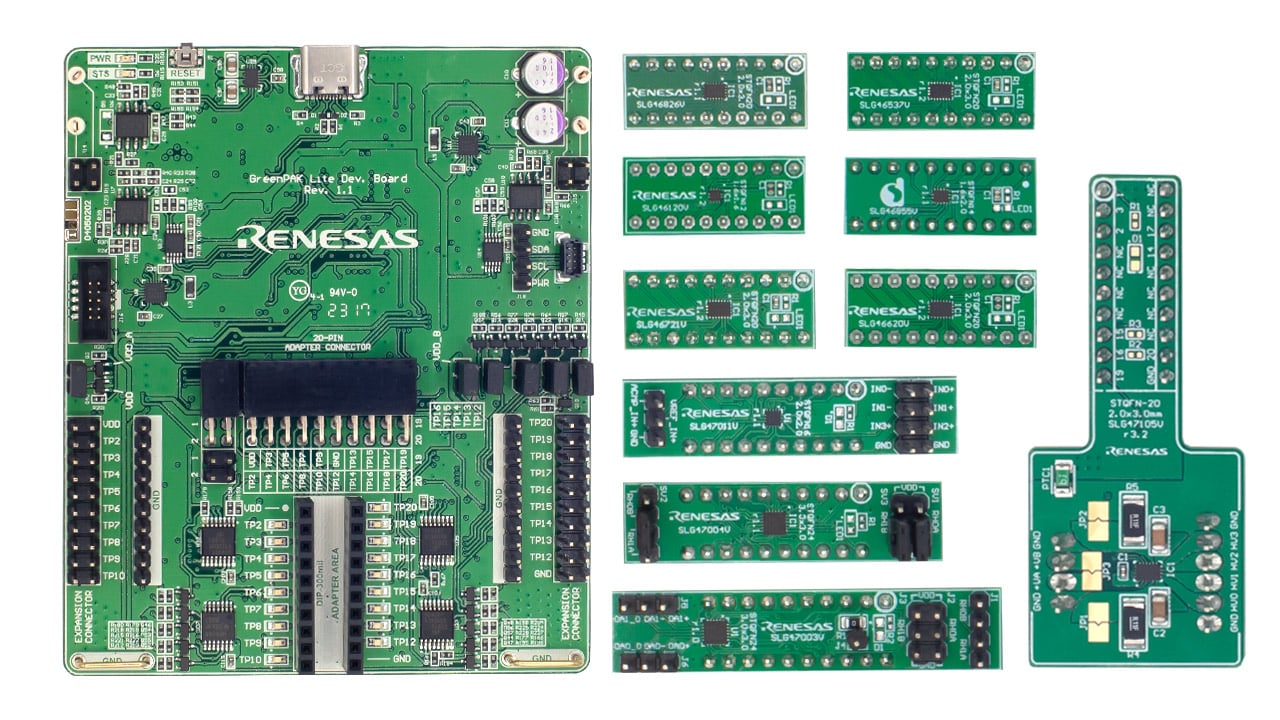

The SLG4DVKLITEINTRO-KIT is an all-in-one development kit designed for engineers and developers starting new projects with GreenPAK™ programmable mixed-signal ICs. The kit includes the SLG4DVKLITE Lite Development Board with USB cable and ten DIP proto boards (SLG46120V-DIP, SLG46721V-DIP, SLG46620V-DIP, SLG46537V-DIP, SLG46826V-DIP, SLG47105V-DIP, SLG47004V-DIP, SLG47003V-DIP, SLG47011V-DIP, SLG46855V-DIP).
This kit is ideal for rapid evaluation, prototyping, and development with a wide range of GreenPAK devices, making it a perfect starting point for new mixed-signal designs.
Features
- Includes the SLG4DVKLITE GreenPAK Lite Development Board with USB cable
- Comes with 10 DIP Prototyping Boards
- USB 2.0 powered and supports USB-I2C bridge functionality
- Dual VDD support for flexible power options
- Built-in current meter for both VDD and VDD2 sources
- 18 individually configurable test points (TP) for signal monitoring and integration
- Onboard LED state indication
- Programmable software button
- Configurable dual-pin header for user schematic integration and expansion
- Four floating hooks for oscilloscope/probe connection
Products in the Design
GreenPAK: Programmable Mixed-Signal Products
SLG47105-E Active
HVPAK Programmable Mixed-Signal IC with Extended Temperature Range, VDD Range: 2.3-5.5V, 12 GPIOs, 2 ACMPs, I2C, Quad Half-Bridge Driver (13.2V, 2A)
Sample & Buy
SLG4DVKLITEINTRO-KIT
Active| Pb (Lead) Free: | Yes |
| ECCN (US): | EAR99 |
| HTS (US): | 8473.30.1180 |
1u | $60.00Budgetary Price
Add-on Hardware
Additional boards that work with this platform. Some may be required for full functionality or to evaluate specific features.
GreenPAK SLG46120 20-Pin DIP Prototyping Board
SLG46120V-DIP Active
Provides a simple way to prototype mixed-signal designs using the SLG46120 GreenPAK device. Designed for fast breadboard-based experimentation.
Recommended Documents:
GreenPAK SLG46537 (STQFN-20) 20-Pin DIP Prototyping Board
SLG46537V-DIP Active
Supports breadboard prototyping with the SLG46537 GreenPAK device. Designed for early-stage validation of state-machine-based mixed-signal designs.
Recommended Documents:
GreenPAK SLG46620 (STQFN-20) 20-Pin DIP Prototyping Board
SLG46620V-DIP Active
Facilitates fast breadboard prototyping with the SLG46620 GreenPAK mixed-signal matrix. Designed for early functional validation.
Recommended Documents:
GreenPAK SLG46721 20-Pin DIP Prototyping Board
SLG46721V-DIP Active
Facilitates breadboard prototyping with the SLG46721 GreenPAK mixed-signal matrix. Designed for quick functional experimentation.
Recommended Documents:
GreenPAK SLG46826 20-Pin DIP Prototyping Board
SLG46826V-DIP Active
Support rapid breadboard prototyping of in-system programmable mixed-signal designs using the SLG46826 GreenPAK DIP board.
Recommended Documents:
GreenPAK SLG46855 20-Pin DIP Prototyping Board
SLG46855V-DIP Active
Enable quick breadboard evaluation of mixed-signal functions using the SLG46855 GreenPAK device in a standard DIP layout.
Recommended Documents:
GreenPAK SLG47004 20-Pin DIP Prototyping Board
SLG47004V-DIP Active
Prototype analog mixed-signal circuits quickly using the SLG47004 AnalogPAK device in a breadboard-friendly DIP format.
Recommended Documents:
HVPAK SLG47105 20-Pin DIP Prototyping Board
SLG47105V-DIP Active
Prototype high-voltage mixed-signal designs using the SLG47105 HVPAK device in a DIP form factor for breadboard testing.
Recommended Documents:

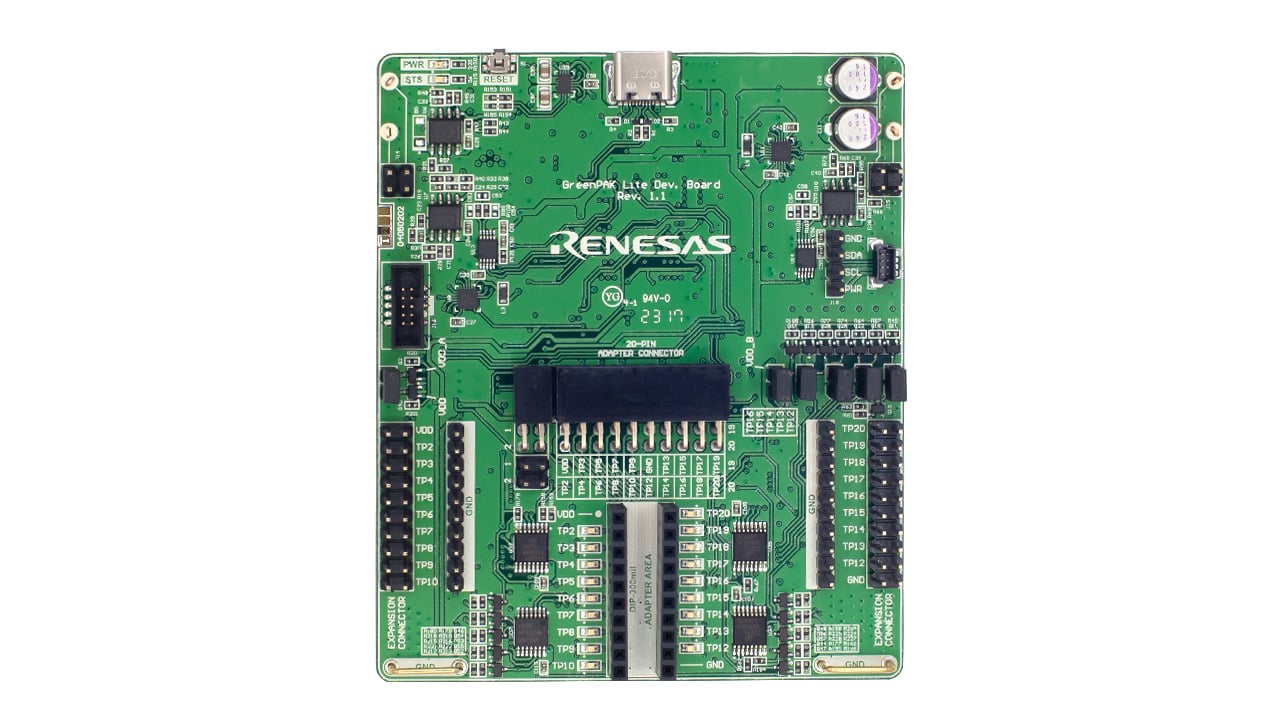

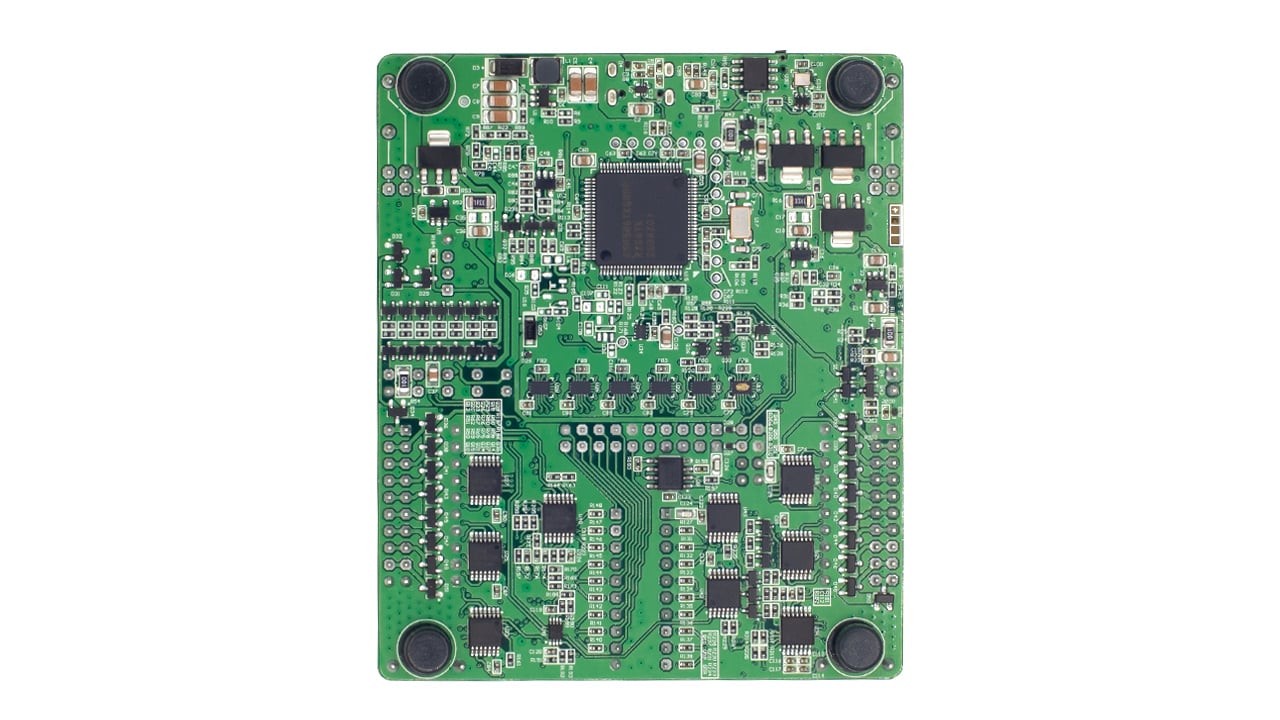

GreenPAK Lite Development Board
SLG4DVKLITE Active
Program, emulate, and test GreenPAK devices using a streamlined development board integrated with Go Configure software.
Recommended Documents:
AnalogPAK SLG47003 20-Pin DIP Prototyping Board
SLG47003V-DIP Active
Enable breadboard‑based analog prototyping using a DIP‑format board for the SLG47003 AnalogPAK device.
Recommended Documents:
AnalogPAK SLG47011 20-Pin DIP Prototyping Board
SLG47011V-DIP Active
Prototype ADC‑enabled mixed‑signal designs quickly using a DIP‑compatible AnalogPAK prototyping board.
Recommended Documents:
