Overview
Description

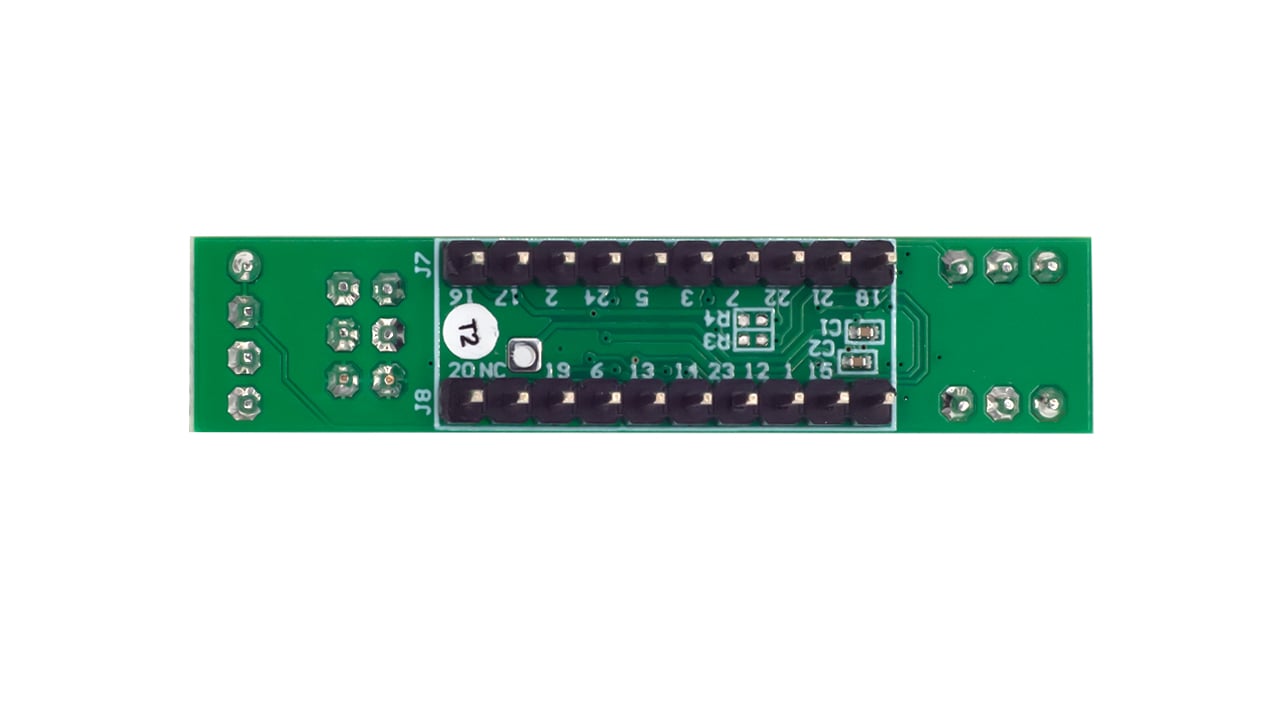

The SLG47003V-DIP 20-pin DIP prototyping board is perfect for breadboarding and fast prototypes using the SLG47003 programmable mixed-signal matrix IC. It requires the DIP Adapter (SLG4SA-DIP) to use it with the GreenPAK™ Advanced Development Board.
The GreenPAK™ DIP Adapter is a small PCB that allows users to adapt STQFN packages into a DIP footprint. This board can speed up your design prototyping and testing. With a small board size of 0.43 x 2.00 inches, it uses a 20-pin DIP footprint with a 0.3-inch width.
Features
- Simplifies prototyping of SMT ICs
- Optional VDD LED indicator
- Decoupling capacitor included
- Optional I²C pull-up resistors
- A 0R 0805 resistor for disconnecting VDD and VDDA
- Optional 1-pin header for VDDA
- Low cost
Applications
Documentation
|
|
|
|
|---|---|---|
| Type | Title | Date |
| Quick Start Guide | PDF 334 KB | |
| Manual - Development Tools | PDF 1.50 MB | |
2 items
|
||
Design & Development
Software & Tools
Software & Tools
| Software title
|
Software type
|
Company
|
|---|---|---|
| Go Configure Software Hub Go Configure Software Hub provides development support for a variety of products, including GreenPAK configurable mixed signal matrix and ForgeFPGA™ devices.
|
Software Package | Renesas |
1 item
|
||
Related Boards & Kits
Boards & Kits
GreenPAK Advanced Development Board
The GreenPAK™ Advanced Development Board provides full programming, emulation, and testing functions for the GreenPAK programmable mixed-signal devices - for use with SLG46xxxX-SKT/SLG47xxxV-SKT socket kits.
The board works in tandem with the GreenPAK Designer software (built into the Go... Read More
Test This Board Remotely
GreenPAK Lite Development Board
The GreenPAK™ Lite Development Board provides full programming, emulation, and testing functions for GreenPAK devices, working in conjunction with the Go Configure™ Software Hub. Board functionality is provided by the RX66T MCU from Renesas.
GreenPAK DIP Adapter for GreenPAK Advanced Development Board
The GreenPAK™ DIP Adapter for the GreenPAK Advanced Development Board allows for using the SLG46xxxV-DIP and SLG47xxxV-DIP prototyping boards with the GreenPAK Advanced Development Board. It acts as the bridge between the advanced and DIP development platforms.
Product Options
| Part Number | Status | Stock | Budgetary Price (USD) | Sampleable | Pb (Lead) Free | ECCN (US) | HTS (US) |
|---|---|---|---|---|---|---|---|
| SLG47003V-DIP | Active | In Stock | 1u | $4 | N/A | Yes | EAR99 | 8473.30.1180 |
