Evaluation Kit for RA2A1 MCU Group
The EK-RA2A1 evaluation kit enables users to effortlessly evaluate the features of the RA2A1 MCU Group and develop embedded systems applications using Renesas' Flexible...
Overview
Description
download Download Latest FSP (v5.1.0):
FSP Windows Platform Installer
FSP Linux Platform Installer
FSP RASC Windows Installer
FSP RASC Linux Installer
See All FSP Releases & Patches on GitHub

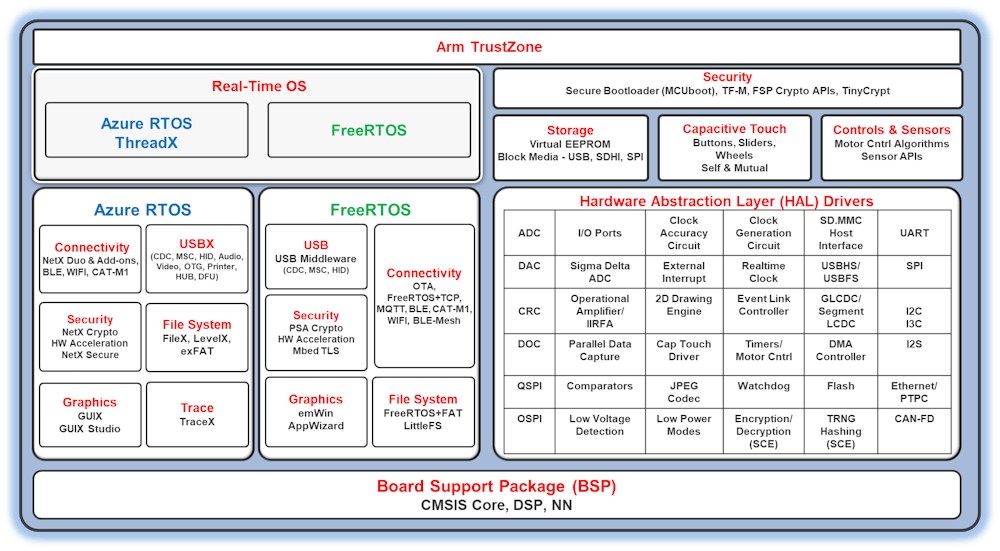

The Renesas Flexible Software Package (FSP) is an enhanced software package designed to deliver user-friendly, scalable, high-quality software for embedded system designs using the Renesas RA family of Arm Microcontrollers, ensuring software compatibility across the RA family, from entry-level to high-performance microcontrollers. With the support of new Arm® TrustZone® and other advanced security features, FSP provides a quick and versatile way to build secure, connected IoT devices using production-ready drivers, Azure® RTOS, FreeRTOS™, and other middleware stacks.
FSP includes best-in-class HAL drivers with high performance and low memory footprint. Middleware stacks with Azure RTOS and FreeRTOS integration are included to ease the implementation of complex modules like communication and security. The e² studio IDE provides support with intuitive configurators and intelligent code generation to make programming and debugging easier and faster.
FSP uses an open software ecosystem and provides flexibility in using bare-metal programming, including Azure RTOS or FreeRTOS, your preferred RTOS, legacy code, and third-party ecosystem solutions. FSP and e² studio can be used free of charge on any Renesas device.
Features
- Small memory footprint HAL drivers
- Intuitive configurator and code generator
- Static and dynamic analysis using industry-standard tools
- Application support using RTOS and non-RTOS environments
- Azure RTOS and its middleware stacks with Flexible Software Package
- Azure RTOS ThreadX, NetX Duo & Add-ons, USBX, GUIX & GUIX Studio, FileX, TraceX, exFAT, LevelX, NetX Duo Secure & NetX Crypto (HW acceleration)
- FreeRTOS support – Includes Kernel and set of software libraries
- FreeRTOS Kernel, FreeRTOS-Plus-TCP, Core MQTT, Core HTTP/HTTPS, Task pool, Secure Sockets, Cellular Interface
- Tool configurable RTOS resources (Threads, mutexes, etc.)
- Middleware stacks from Renesas and third parties.
- TCP/IP and other connectivity protocol stacks including MQTT
- USB middleware support for CDC, HID, and MSC
- Wireless connectivity through Cellular (Cat-M1), Wi-Fi, and Bluetooth Low Energy LE 5.0 (BLE Mesh)
- File System support with FreeRTOS+FAT and LittleFS
- Storage (Block Media) support for SDMMC, SPI, and USB.
- Virtual EEPROM on Flash
- Capacitive touch middleware to implement widgets like Button, Slider, and Wheels.
- Motor control algorithms
- Secure Bootloader through MCUboot
- Sensor Module APIs
- TrustZone support (for applications on CM33-based MCUs)
- TrustZone enabled drivers and middleware
- Easy-to-use tool support for TrustZone configuration
- PSA Level 2 Certified
- AWS qualified for FreeRTOS
- Easy connectivity options to major cloud providers
- Secure connections through NetX Duo Secure and Mbed TLS
- Cryptographic APIs and integrated Hardware Acceleration support
- Arm PSA Cryptographic APIs
- Azure RTOS NetX Crypto APIs
- Ultimate security with FSP Crypto APIs (SCE9 protected mode)
- TinyCrypt targeting constrained devices
- Graphics interface support and tools
- Segger emWin (RA customers can use Segger emWin graphic tools and libraries for free from Downloads below)
- Azure RTOS GUIX and GUIX Studio (available free on Microsoft Apps Store)
- Secure debugging capabilities
- Extensive tool support from Renesas and leading third-party solutions
- Integrated package with all required components for easy setup and starting development (single installer with e2 studio, CMSIS packs, toolchain, and Segger J-Link drivers)
- Complete source code available through GitHub
Release Information
For additional information and links go to GitHub.
v5.1.0
Release Notes
Flexible Software Package (FSP) for Renesas RA MCU Family, version 5.1.0.
Minimum e2 studio version for FSP 5.1.0 is e2 studio 2023-10
Download the FSP with e2 studio Windows installer for this release: FSP Windows Platform Installer
Download the FSP with e2 studio Linux AppImage for this release: FSP Linux Platform Installer
Refer to https://en-support.renesas.com/knowledgeBase/19934358 for information on installing e2 studio and related software components in a Linux PC.
If using IAR or Keil MDK, download the Renesas Advanced Smart Configurator for this release:
FSP RASC Windows Installer
FSP RASC Linux Installer
All installers are available in the Assets section of this release.
Refer to the README.md in the FSP root folder for setup instructions, hardware details, and related links.
Features Added
- Support for new devices:
- RA8D1 MCU
- RA8T1 MCU
- Support for new development kits:
- EK-RA8D1
- MCK-RA8T1
- Added SCI_B LIN driver (r_sci_b_lin)
- Added support for multiple data collector instances
- Added ability to control the transmit power on the DA14531 via the existing APIs
- Support USB PPRN for FreeRTOS
- Added a new driver to support using the DA16xxx HTTP stack with FSP
Fixes and Improvements
- Arm® GNU Toolchain updated to version 13.2
- J-Link updated to version 7.92o
- Improved CTSU measurement accuracy by correcting correction calculation
Known Issues
- Potential issue with AES CCM support in PSA Crypto (under investigation)
- Potential issue with ZMOD4xxx RAQ support on CM4 devices (under investigation)
- EWARM support for RA8M1, RA8D1, RA8T1 and RA2E3
EWARM version 9.40.1 does not contain support for RA8M1, RA8D1, RA8T1, and RA2E3. To develop for these devices, It will be necessary to install support patch files which can be downloaded by EWARM v9.40.1 users from the IAR MyPages system. - The following is not yet supported in projects using LLVM Compiler:
- Bluetooth® Low Energy (LE) Mesh modules
- RYZ Cellular AWS support
- USB HMSC does not work with secure project on RA4, RA6 and RA8 series devices other than GCC compiler (deploys TrustZone®).
Target Devices
