RX74N

Features

600MHz RXv3e core (6.01 CoreMark/MHz*), double-precision FPU, and register bank save function that speeds up interrupt response
- *Typical for RXv3e core
1.62V to 3.63V operation (system, USB, and analog power supplies can be separated)
Junction temperature (Tj): -40℃ to 125℃
Large-capacity memory: 1MB code MRAM with dual bank, 48KB data MRAM, 1.5MB SRAM w/ ECC
Supports XiP (eXecute-in-Place) from external octal flash and RAM with on-the-fly decryption
Package: 100,144,176-pin QFP, 176, 224, 320-pin BGA
Up to 197 I/O ports
SD host interface (supports SD memory/SDIO 1 or 4-bit SD bus)
USB 2.0 Host/Function/OTG (supports high speed (480Mbps), full speed (12Mbps), low speed (1.5Mbps)
CAN FD (ISO 11898-1-2015 compliant, up to 150Mbps transfer)
Various other connectivity functions (SCI, I3C, I2S, etc.)
32-bit general-purpose PWM timer, 8-bit PWM timer, 16-bit/32-bit compare match timer, RTC
200MHz PWM control and high-resolution PWM
16-bit A/D converter, 12-bit D/A converter, temperature sensor
AES, ChaCha2.0, RSA, ECC, SHA512, and SHA3-512 encryption engines, tamper detection function, Protect Zone function

Find Other Products in RX 32-Bit Performance/Efficiency MCUs

Pin-memory diagram featuring 600MHz standard products for RX74N.

Pin-memory diagram featuring 480MHz standard products for RX74N.

Pin-memory diagram featuring 300MHz standard products for RX74N.

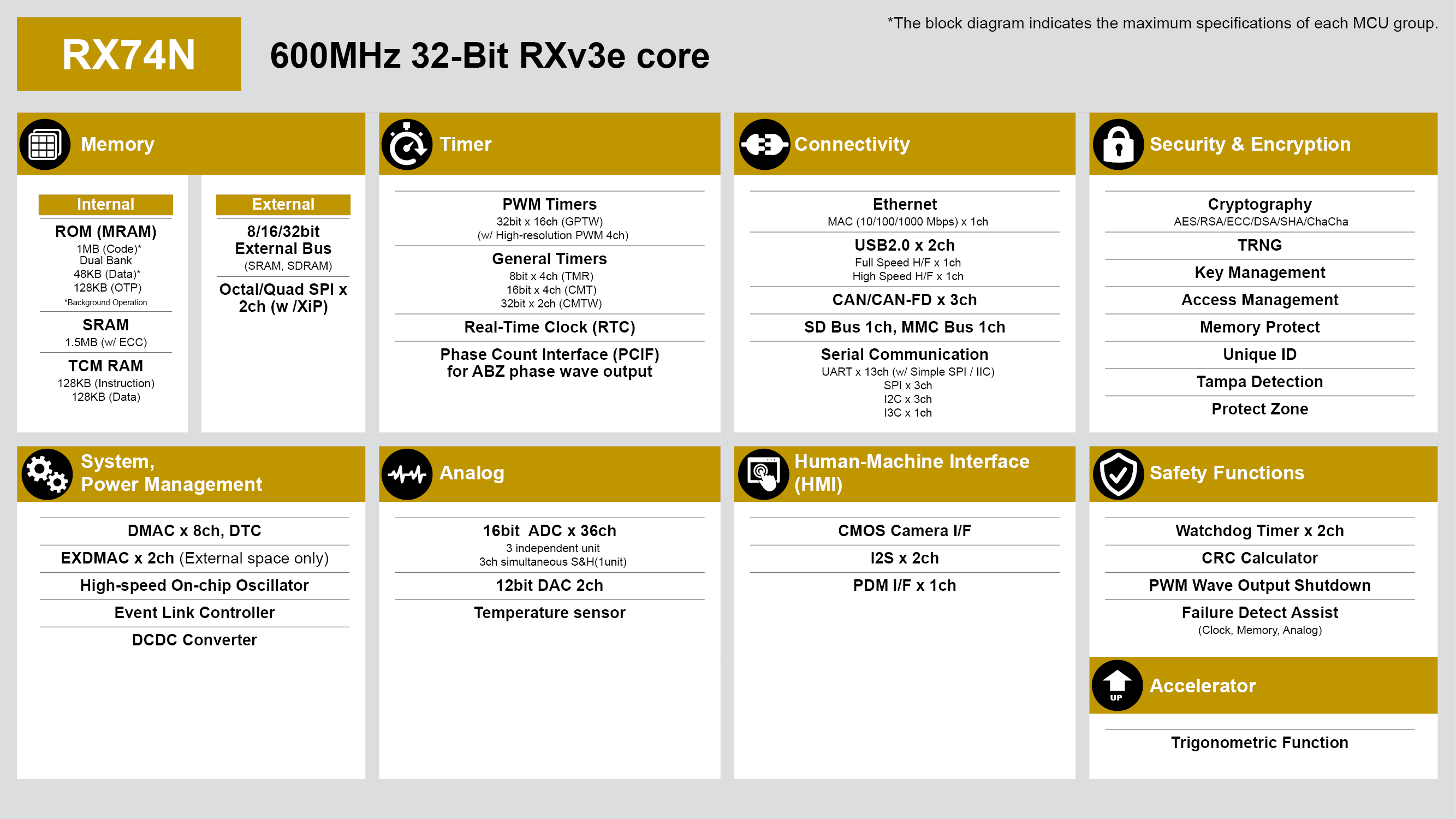

RX74N Block Diagram

Description

RX74N is the highest-performance RX MCU designed for applications in industrial and building automation, as well as energy management. Built on 22nm process technology, it combines a high-performance RXv3e core operating at up to 600MHz with large-capacity memory and an optimized bus architecture to deliver high-speed, efficient processing.

Integrated Gigabit Ethernet connectivity and a rich set of peripheral functions provide the flexibility required for a wider range of industrial embedded systems and connected devices. Protect Zone and advanced security functions further enhance system security for connected industrial applications.

Compared with RX72N, the RX74N delivers improved processing performance and enhanced system capabilities. Integrating high-performance processing, industrial networking, and security functions into a single MCU, it helps to simplify system design and reduce development effort. RX74N is ideal for a broad range of industrial applications, including smart meters, power conditioners, AC servos, robots, and HVAC controllers.

Parameters

Attributes	Value
Main CPU	RXv3e
Program Memory (KB)	512, 1024
RAM (KB)	1536
Carrier Type	Full Carton (Tray), Full Tray (Tray)
Supply Voltage (V)	1.62 - 3.63
I/O Ports	75, 103, 123, 162, 200
DRAM I/F	No, SDRAM I/F
Temp. Range (°C)	Tj = -40 to +125
Operating Freq (Max) (MHz)	300, 480, 600
Ethernet speed	10M/100M, 10M/100M/1G
Ethernet (ch)	1
EtherCat (ch) (#)	0
USB FS (host ch/device ch)	( 1 / 1 )
USB HS (host ch/device ch)	( 0 / 0 ), ( 1 / 1 )
USB SS (host ch/device ch)	( 0 / 0 )
SCI or UART (ch)	11, 13
SPI (ch)	16
I2C (#)	15, 16
CAN (ch)	3
CAN-FD (ch)	0, 3
Wireless	No
SDHI (ch)	1
High Resolution Output Timer	No
PWM Output (pin#)	34
32-Bit Timer (ch)	16, 17
16-Bit Timer (ch) (#)	4
8-Bit Timer (ch)	4
Standby operable timer	No
12-Bit A/D Converter (ch)	0
24-Bit Sigma-Delta A/D Converter (ch)	0
16-Bit D/A Converter (ch)	0
12-Bit D/A Converter (ch)	1, 2
8-Bit D/A Converter (ch)	0
Capacitive Touch Sensing Unit (ch)	0
Segment LCD Controller	No
Security & Encryption	Unique ID, AES, RSA, CHA-CHA20, ECC, SHA-1, SHA-2, SHA-3, HMAC, TRNG, Protect Zone

Package Options

Pkg. Type	Pkg. Dimensions (mm)	Lead Count (#)	Pitch (mm)
LFBGA	13 x 13 x 1.6	176	0.8
LFBGA	13 x 13 x 1.6	224	0.8
LFBGA	17 x 17 x 1.6	320	0.8
LFQFP	14 x 14 x 1.6	100	0.5
LFQFP	20 x 20 x 1.7	144	0.5
LFQFP	24 x 24 x 1.6	176	0.5

Product Comparison


	RX74N	RX72N	RX74M
Main CPU	RXv3e	RXv3	RXv3e
Operating Freq (Max) (MHz)	300, 480, 600	240	300, 480, 600
Program Memory (KB)	512, 1024	2048, 4096	512
RAM (KB)	1536	1024	1536
Ethernet speed	10M/100M, 10M/100M/1G	10M/100M	10M/100M, 10M/100M/1G
Ethernet (ch)	1	1, 2	2
EtherCat (ch) (#)	0	0	0, 2
Lead Count (#)	100, 144, 176, 224, 320	100, 144, 145, 176, 224	100, 144, 176, 224, 320
I/O Ports	75, 103, 123, 162, 200	79, 112, 137, 183	75, 103, 123, 162, 200

Application Block Diagrams

	Smart HVAC Control with Integrated Slave Actuator This slave actuator design for HVAC systems offers low power, secure bidirectional packet data flow, and automatic routing.
	Smart HVAC Master Actuator Smart HVAC master actuator with AI-driven set points, multi-sensor data, and fail-safe redundancy.

Additional Applications

Industrial Automation
AC Servo
Robot
PLC
Remote I/O
Building Automation
HVAC Controller
Energy Management System (EMS)
Smart Meter
Power Conditioner
