Overview

The RL78/G1H microcontroller supports IEEE 802.15.4e/g and has industry’s lowest power consumption - min. 5.8 mA (3.3 V) at stand-by mode in RF receipt. The balun circuit and filter circuit make the antenna circuit design easy. And it can be reduced external parts for cost reduction. It can be reduced CPU load and can be made easy development by built-in hardware functions for IEEE 802.15.4e/g compliant especially Wi-SUN. We also offer transceiver RAA604S00 conforming to IEEE 802.15.4e/g that can be used in combination with a microcontroller. (The document is here.).

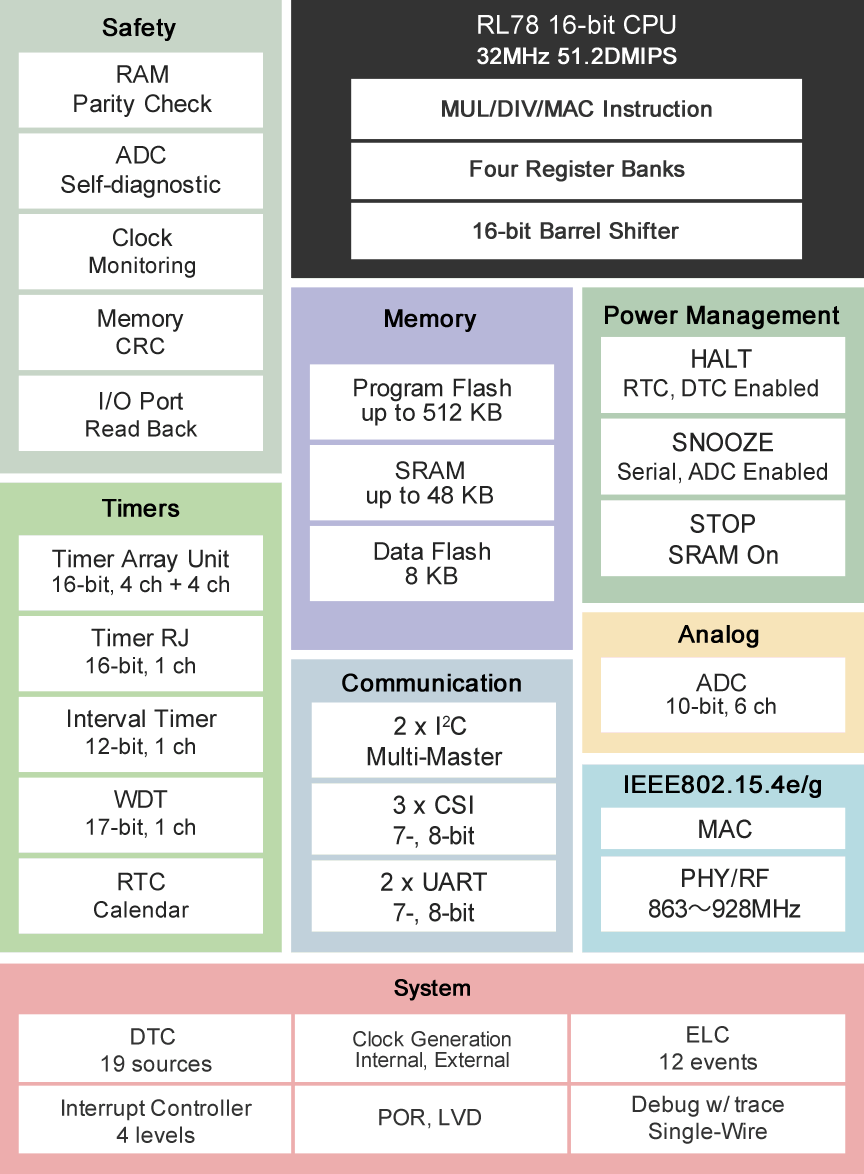

[RL78/G1H]
- CPU: RL78 core, Max. 32MHz
- RF frequency range: 863MHz to 928MHz
- Data rate: 2FSK/GFSK; up to 300kbps
- Voltage: 1.8V to 3.6V
- Package: 64-pin HVQFN
- Memory: SRAM Max. 48KB, Program Flash Max. 512KB
- Timer: 16-bit Timer (ch) x 9, Watchdog Timer (ch) x 1, 12-bit Interval Timer x 1 ch
- PWM:
- Analog function: 10-bit A/D Converter (ch) x 6
- On-chip oscillator frequency (MHz): High-speed: 32, 24, 16, 12, 8, 4, 1MHz
  Low-speed: 15kHz
- Others: RTC, power-on reset, low voltage detection

[RAA604S00]
- RF frequency range: 863MHz to 928MHz
- Data rate: 2FSK/GFSK; up to 300kbps
- Timer: 32-bit timer function
- Voltage: 1.8V to 3.6V
- Package: 32-pin HVQFN (5×5) (0.5 mm pitch)

	Power Meter with RF Communication
	Wi-SUN FAN-Based High Output Sub-GHz Wireless Communication
	IEEE 802.15.4g-Based Battery-Powered Sub-GHz Wireless Communication

Applications

Home appliances
Metering
Sub-GHz wireless communication solutions
