Features
- VDSS = 80V
- Standard-level gate drive voltage: VGS(th) = 2.0~4.0V
- Super low on-state resistance: RDS(on) = 2.4mΩ max.
- ID = 175A
- Low input capacitance
- Low thermal resistance
- Package: SO8-FL (5x6)
- 100% Avalanche tested
- Pb-free lead plating: RoHS compliant
- MSL1 classified according to IPC/JEDEC J-STD-020

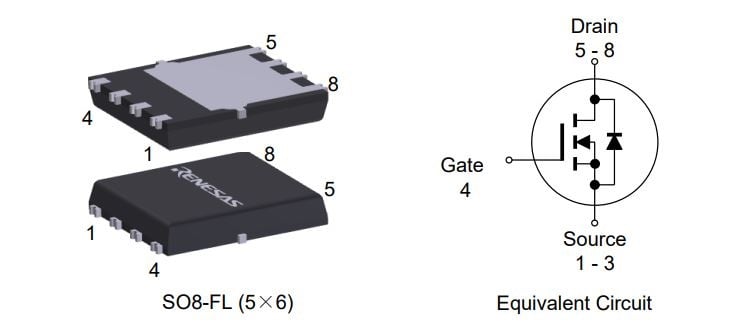

RBE024N08R1SZN6 Outline
Description
The RBE024N08R1SZN6 N-channel power MOSFET features REXFET-1 split-gate technology and is offered in a 5x6 SO8-FL package. The SO8-FL package features ultra-compact, leadless designs with Wettable Flanks to support enhanced thermal performance, reliability, and ease of assembly.
Renesas' REXFET-1 split-gate technology is well-suited for applications that require low RDS(on) and switching capability, making it ideal for high-power and high-frequency applications.
Parameters
| Attributes | Value |
|---|---|
| Qualification Level | Industrial |
| Nch/Pch | Nch |
| Channels (#) | 1 |
| Standard Pkg. Type | SO8-FL 5x6 BSC |
| Gate Level | Standard |
| VDSS (Max) (V) | 80 |
| ID (A) | 175 |
| RDS (ON) (Max) @10V (mohm) | 2.4 |
| Pch (W) | 165 |
| Ciss (Typical) (pF) | 6900 |
| Qg typ (nC) | 95 |
| Series Name | REXFET-1 |
Package Options
| Pkg. Type | Pkg. Dimensions (mm) | Lead Count (#) |
|---|---|---|
| SO8-FL | 5.15 x 6.10 x 1.00 | 8 |
Application Block Diagrams
 | Humanoid Battery Management System Integrated humanoid robot BMS enabling safe, real-time power management, protection, and battery-state control. |
 | Single-Stage DAB-Based Solar Microinverter The system delivers 500W of high‑density, high‑efficiency GaN‑based microinverter power. |
 | E-Bike System A complete e-bike system with advanced MCUs, power, and BMS devices extends travel and enhances control. |
Additional Applications
- Motor control
- Data center
- Energy infrastructure
- Industrial automation
- DC/DC power conversion
- Power tools
- Robotics
