RL78/G1N Fast Prototyping Board (RL78/G1N FPB)
The RL78/G1N Fast Prototyping Board is an evaluation board that is equipped with an RL78/G1N microcontroller, a new product in the RL78 microcontroller family that...
Overview
Description
Even though the RL78/G1N microcontroller has a small pin-count 20-pin package, it is an 8-bit general-purpose microcontroller equipped with large current output terminals for driving LEDs. It allows direct drive of 8-segment 6-digit high brightness LEDs. It is suitable for small appliances, simple lighting fixtures and LED displays for portable batteries, etc.

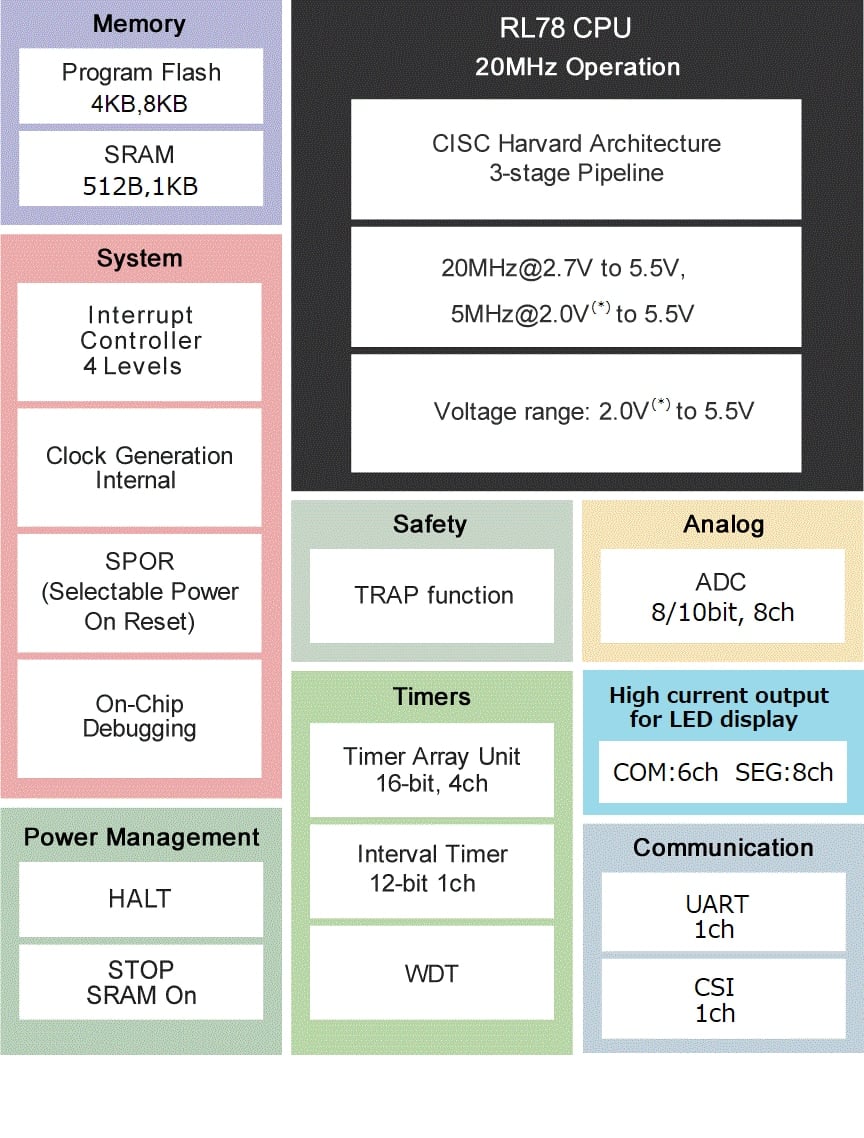

Features
- CPU: RL78 core, Max. 20MHz
- Voltage: 2.0V to 5.5V
- Package: 20-pin TSSOP
- Memory: SRAM Max. 1KB, Program Flash Max. 8KB
- Timer: 16-bit Timer (ch) x 4, Watchdog Timer (ch) x 1, 12-bit Interval Timer x 1 ch
- PWM Output: 3
- Analog function: 8/10-bit A/D Converter (ch) x 8
- On-chip Oscillator Freq. (MHz): 1.25MHz-20MHz (VDD=2.7V-5.5V), 1.25MHz-5MHz (VDD=2.0V *Note)-5.5V)
*Note: Use with a voltage range of 2.25V to 5.5V because it includes detection voltage (VSPOR) for the selectable power-on-reset (SPOR) circuit. - Others: Clock/buzzer output, Power-on-reset, On-chip debugger interface
Comparison
Applications
Applications
- Home Appliances
- Office
- Home
Design & Development
Software & Tools
Software & Tools
| Software title
|
Software type
|
Company
|
|---|---|---|
| CS+ Renesas integrated development environment (IDE) [Support MCU/MPU: RH850, V850, RX, RL78, 78K0R, 78K0]
(Note: CS+ is not generally promoted to U.S. and European customers.)
(Note: To use Smart Configurator on CS+ for RL78/G23 and RX family MCUs, install the Smart Configurator for each MCU family separately downloading from ”Design & Support” > ”Development Tools” > ”Smart Configurator”)
|
IDE and Coding Tool | Renesas |
| C Compiler Package for RL78 Family [CC-RL] C Compiler Package for RL78 Family [IDE: CS+, e² studio]
|
Compiler/Assembler | Renesas |
| Sound Playback/Compression System [M3S-S2-Tiny] for RL78 Family Sound playback system for RL78 Family
|
Sound / Voice | Renesas |
| Crypto Library Robust encode library to ensure security for all types of system developments
|
Security / Crypto | Renesas |
| SPI/QSPI Serial Flash Memory, QSPI Serial Phase Change Memory Driver Device Driver for SPI and QSPI Serial Flash Memory and QSPI Serial Phase Change Memory
|
Serial Memory | Renesas |
| Renesas Flash Programmer (Programming GUI) Flash memory programming software [Support MCU/MPU and devices: RA, RE, RX, RL78, RH850, RISC-V MCU Renesas Synergy, DA1453x, DA1459x, DA1469x, DA1470x, Power Management, Renesas USB Power Delivery Family, ICs for Motor Driver/Actuator Driver, V850, 78K0R, 78K0]
|
Programmer (Unit/SW) | Renesas |
| PG-FP6 Flash memory programmer [Programming software: Dedicated GUI-based software, the "FP6 Terminal"] [Support MCU/MPU and devices: RA, RE, RX, RL78, RH850, RISC-V MCU, Renesas Synergy, Power Management, Renesas USB Power Delivery Family, ICs for Motor Driver/Actuator Driver, SuperH RISC engine, V850, 78K, R8C]
|
Programmer (Unit/SW) | Renesas |
| IAR Embedded Workbench for Renesas RL78 IAR Embedded Workbench provides extensive support for RL78 devices. IAR Embedded Workbench is a complete set of development tools with leading optimization technology for creating powerful automotive applications.
|
IDE and Coding Tool | IAR Systems |
| Renesas IAR Embedded Workbench Device-Support-Packages Renesas IAR Embedded Workbench Device-Support-Packages include all device-specific files to be used with the Embedded Workbench IDE.
|
IDE and Coding Tool | Renesas |
9 items
|
||
Sample Code
Boards & Kits
Boards & Kits
LED Electronic Safe Box Reference Design
An LED electronic safe box has an electronic lock installed in the door, which can be locked and unlocked by entering a specific code into the keypad. The LED displays...
Featured Documents:
Models
ECAD Models
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.
Processing table
PLP |
Program Memory (KB) |
RAM (KB) |
Lead Count (#) |
Temp. Range |
Bit Size |
CPU |
Data Flash (KB) |
Supply Voltage (V) |
Operating Freq (Max) (MHz) |
RTC |
LVD |
DMA |
I/O Ports |
Timer |
ADC |
Moisture Sensitivity Level (MSL) |
Price (USD) | 1ku |
Buy / Sample |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Part Number | |||||||||||||||||||
| N/A | 4 | 0.5 | 20 | -40 to 85°C | 8 | RL78 | 0 | 2 - 5.5 | 20 | Yes | Yes | No | 18 | 12-bit x 1-ch, 16-bit x 4-ch | 10-bit x 8-ch | 3 | |||
| N/A | 4 | 0.5 | 20 | -40 to 85°C | 8 | RL78 | 0 | 2 - 5.5 | 20 | Yes | Yes | No | 18 | 12-bit x 1-ch, 16-bit x 4-ch | 10-bit x 8-ch | 3 | 0.7324 | ||
| N/A | 8 | 1 | 20 | -40 to 85°C | 8 | RL78 | 0 | 2 - 5.5 | 20 | Yes | Yes | No | 18 | 12-bit x 1-ch, 16-bit x 4-ch | 10-bit x 8-ch | 3 | 0.6448 | ||
| N/A | 8 | 1 | 20 | -40 to 85°C | 8 | RL78 | 0 | 2 - 5.5 | 20 | Yes | Yes | No | 18 | 12-bit x 1-ch, 16-bit x 4-ch | 10-bit x 8-ch | 3 | |||
| N/A | 4 | 0.5 | 20 | -40 to 85°C | 8 | RL78 | 0 | 2 - 5.5 | 20 | Yes | Yes | No | 18 | 12-bit x 1-ch, 16-bit x 4-ch | 10-bit x 8-ch | 3 | 0.6497 | ||
| N/A | 4 | 0.5 | 20 | -40 to 85°C | 8 | RL78 | 0 | 2 - 5.5 | 20 | Yes | Yes | No | 18 | 12-bit x 1-ch, 16-bit x 4-ch | 10-bit x 8-ch | 3 | |||
| N/A | 8 | 1 | 20 | -40 to 85°C | 8 | RL78 | 0 | 2 - 5.5 | 20 | Yes | Yes | No | 18 | 12-bit x 1-ch, 16-bit x 4-ch | 10-bit x 8-ch | 3 | |||
| N/A | 8 | 1 | 20 | -40 to 85°C | 8 | RL78 | 0 | 2 - 5.5 | 20 | Yes | Yes | No | 18 | 12-bit x 1-ch, 16-bit x 4-ch | 10-bit x 8-ch | 3 | |||
| N/A | 8 | 1 | 20 | -40 to 85°C | 8 | RL78 | 0 | 2 - 5.5 | 20 | Yes | Yes | No | 18 | 12-bit x 1-ch, 16-bit x 4-ch | 10-bit x 8-ch | 3 | |||
| N/A | 4 | 0.5 | 20 | -40 to 85°C | 8 | RL78 | 0 | 2 - 5.5 | 20 | Yes | Yes | No | 18 | 12-bit x 1-ch, 16-bit x 4-ch | 10-bit x 8-ch | 3 | |||
| N/A | 4 | 0.5 | 20 | -40 to 85°C | 8 | RL78 | 0 | 2 - 5.5 | 20 | Yes | Yes | No | 18 | 12-bit x 1-ch, 16-bit x 4-ch | 10-bit x 8-ch | 3 | |||
| N/A | 8 | 1 | 20 | -40 to 85°C | 8 | RL78 | 0 | 2 - 5.5 | 20 | Yes | Yes | No | 18 | 12-bit x 1-ch, 16-bit x 4-ch | 10-bit x 8-ch | 3 |
