This compact and high-performance ceiling fan solution includes the simplest motor control, power factor correction (PFC) and sensors for indoor environment detection. The RX13T 32-bit microcontroller supports sensorless vector control and PFC with fewer peripheral devices. And, the solution supports intelligent function using indoor environmental data via gas sensor and humidity and temperature sensor. Furthermore, this ceiling fan solution supports remote control using a Bluetooth® Low Energy (LE) 5.1 module.

System Benefits​:

  • Compact and high-performance motor control and PFC block by MCU for motor control (RX13T)
    • BLDC motor drive by sensorless vector control
    • Continuous current mode PFC that is suitable for large load fluctuation application
  • High precision measurement solution of an indoor environment with gas sensor (ZMOD4410) and humidity and temperature sensor (HS3001)
  • The world’s smallest and lowest power Bluetooth 5.1 module (DA14531)

Target Applications:

  • Ceiling fans
  • Air purifiers
  • Air conditioners
  • Ventilation fans

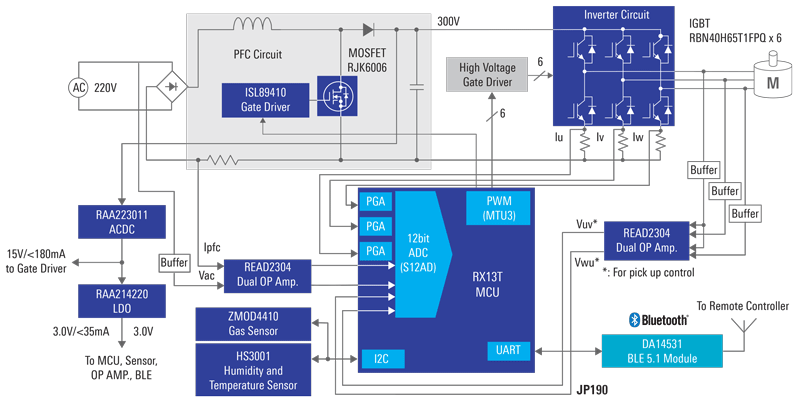

Large Power BLDC Ceiling Fan with PFC
Legend for Renesas/Dialog System Diagrams

Related Products

Product Description Featured Document Ordering

Buck Converter
RAA223011 700V AC/DC Regulator with Ultra-Low Standby Power and up to 4W Output Power Datasheet Buy/Sample

Digital Gas Sensor
ZMOD4410 Indoor Air Quality Sensor Platform Datasheet Buy/Sample

Humidity Sensor
HS3001 High-Performance Relative Humidity and Temperature Sensor Datasheet Buy/Sample

Insulated Gate Bipolar Transistor (IGBT)
RBN40H65T1FPQ-A0 IGBT 650V, 40A, TO-247A, Built-In Fast-Recovery Diode (FRD) Datasheet Buy/Sample

Linear Regulator (LDO)
RAA214220 20V, 150mA Linear Regulator Datasheet Buy/Sample

Microcontroller
RX13T 32-Bit Microcontrollers for Single Motor Control Applications; Reduces Footprint and BOM Costs User's Manual Buy/Sample

MOSFET
RJK6006DPP-A0 Nch Single Power MOSFET, 600V, 5A, 1600Mohm, To-220FPA Datasheet Buy/Sample

MOSFET Driver
ISL89410 High Speed, Dual Channel Power MOSFET Driver Datasheet Buy/Sample

Operational Amplifier
READ2304GSN High Drivability and High Slew Rate, Input Output Full Range, CMOS Dual Operational Amplifier, VIO ≤±6mV, SR = 8V/μs, GBW = 6MHz Datasheet Buy/Sample

System-on-Chip (SoC)
DA14531 World’s Smallest and Lowest Power Bluetooth 5.1 System-on-Chip Datasheet Buy/Sample
