Features
- 30mOhm, 650V GaN Device in TOLT package
- JEDEC-qualified GaN technology
- Dynamic RDS(on)eff production tested
- Zero reverse recovery charge
- Reduced crossover loss
- Achieves increased efficiency in both hard-switched and soft-switched circuits, enabling:
- Increased power density
- Reduced system size and weight
- Overall reduction in system cost
Description

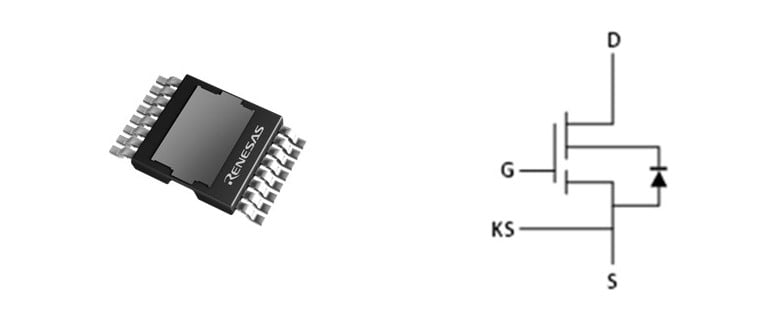

The TP65H030G4PRS, 650V, 30mΩ Gallium Nitride (GaN) FET in a top-side-cooled TOLT package, is a normally-off device using Renesas' Gen IV plus SuperGaN® platform. It combines a high-voltage GaN High Electron Mobility Transistor (HEMT) with an optimized low-voltage silicon MOSFET to deliver superior performance, standard drive, ease of adoption, and enhanced reliability.
Parameters
| Attributes | Value |
|---|---|
| Blocking Capability | Uni-Directional Switch |
| Qualification Level | Standard |
| Vds min (V) | 650 |
| V(TR)DSS max (V) | 800 |
| RDSON (Typ) (mΩ) | 30 |
| RDSON (max) (mΩ) | 41 |
| Vth typ (V) | 4 |
| Id max @ 25°C (A) | 55.7 |
| Qg typ (nC) | 24.5 |
| Qoss (nC) | 135 |
| Ron * Qoss (FOM) | 4050 |
| Ciss (Typical) (pF) | 1500 |
| Coss (Typical) (pF) | 127 |
| Mounting Type | Surface Mount |
| Temp. Range (°C) | -55 to +150°C |
Package Options
| Pkg. Type |
|---|
| TOLT |
Application Block Diagrams
 | Isolated Motor Drive Power Stage Isolated GaN-based three-phase inverter motor drive power stage for high-performance motor applications up to 3kW. |
 | 3.3kW Integrated OBC and DC/DC Integrated 3.3kW OBC and HV-to-LV DC/DC platform with a shared transformer, enabling simultaneous charging of high-voltage and low-voltage batteries. |
 | 400VDC, 2kW+ GaN Half-Bridge Arduino Shield 400V GaN half-bridge Arduino shield enabling high-efficiency AC/DC power conversion up to 2kW with scalable prototyping. |
 | 3.7kW Single-Stage Matrix Converter High‑efficiency single‑stage AC/DC matrix converter using BDS GaN devices and a high‑frequency transformer for compact, high‑power operation. |
 | Smart BLDC Ceiling Fan with PFC Smart ceiling fan enhances air quality with sensorless vector control and remote Wi-Fi/Bluetooth LE operation. |
Additional Applications
- AI datacenter and telecom power supplies
- E-mobility charging
- PV inverter
- Uninterruptible Power Supply (UPS)
- Battery Energy Storage System (BESS)
