Overview

Access Control is one of the most critical functions of a secured network. By applying a Network Search Engine (NSE) to handle access control tasks is key to any ACL solution.

Renesas NSE enables the following features in Data Center network gateway appliances running 400Gb/s real-time network traffic.

  • Packet filtering by ACL (Access Control List) for network security.
  • QoS (Quality of Service) by setting priorities for specific packets.
Access Control List (ACL) Solution Overview

Demo System

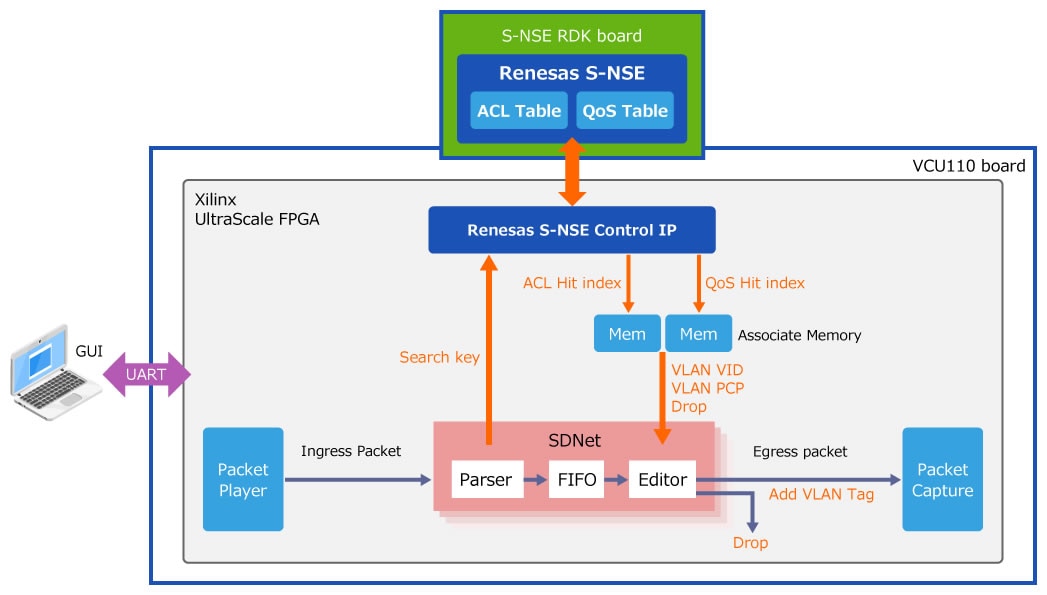

Renesas' ACL demo system utilizes the Xilinx SDNet Development Environment to control the NSE device to realize 400 Gb/s line rate speed.

Demo GUI features

  • User controllable "Ingress Packet" generator. (up to 400Gb/s)
  • Packet filtering rules can be defined and updated in Live Traffic
  • "Egress Packet" data distribution display in real-time chart

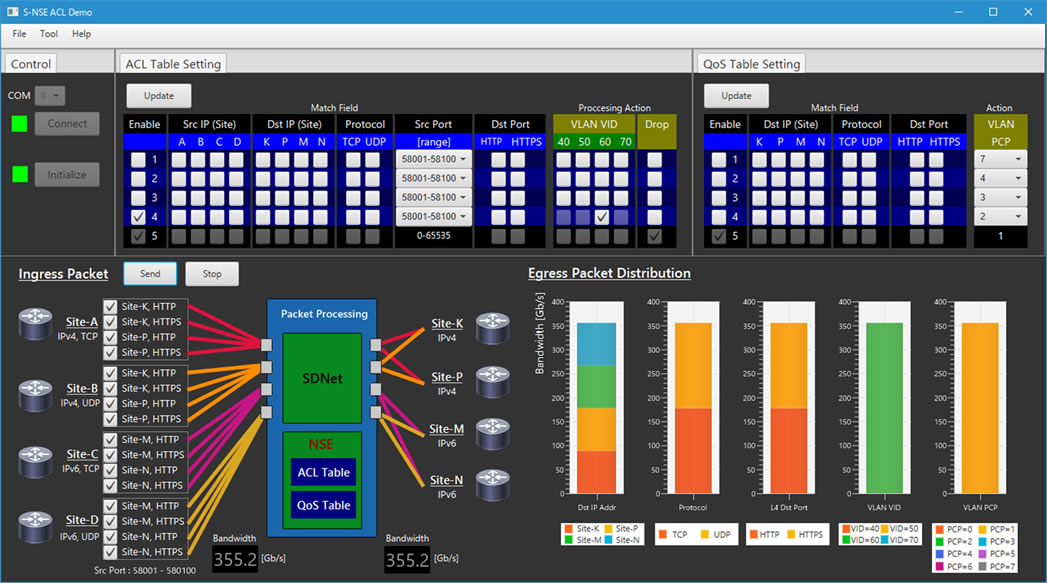

Access Control List (ACL) Solution Demo System GUI
Access Control List (ACL) Solution Demo System

Deliverables

ACL Demonstration Package Description
GUI software Java jar file format
FPGA design data MCS file format
Document Demonstration Guide
