パワーマネジメント

電源･モータ駆動･高周波増幅･ロードスイッチなど各用途に適したパワーMOSFET製品を展開しています。民生機器の各信頼性レベルに合わせて製品化しております。

［注意］弊社の車載向けアナログ＆パワー製品に関しての使用上のご注意 (PDF)があります。必ずご一読下さい。

汎用パワーMOSFET

ルネサスの汎用パワーMOSFETは高効率駆動、低放熱設計をサポートします。スイッチング用途（モーター駆動等）、ロードスイッチ用途に適しており、低オン抵抗/高速スイッチ/高ロバストネスを実現します。

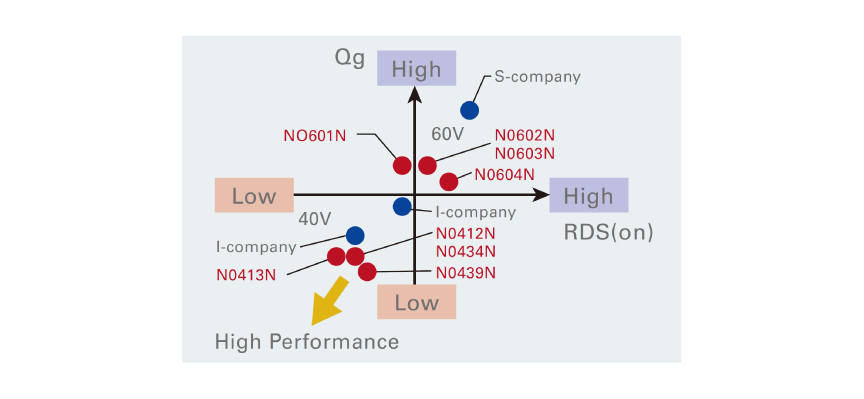

モータ駆動用Nch MOSFET

産業分野向けで要求される大電流に対応し、低オン抵抗かつ低ゲート電荷量の製品シリーズです。

特長

  • 大電流対応（Id=100A [Ta=25℃ ] ）
  • 低オン抵抗（2.3m ～ 2.75m Ω（Typ.）/40V 耐圧品）
  • システムの高効率化で動作時間延長、低発熱でヒートシンク/システムの小型化
  • 低ゲート電荷量（Qg）（68nC（Typ.）/40V耐圧品）
  • 駆動回路への負荷軽減で高効率駆動、ゲートドライバの最適化でより小型化
  • 55V 耐圧品、60V耐圧品の低Qg製品も開発中

モータ駆動用Nch MOSFET

用途・アプリケーション

  • 電動工具、電動アシスト自転車等のモータ駆動機器

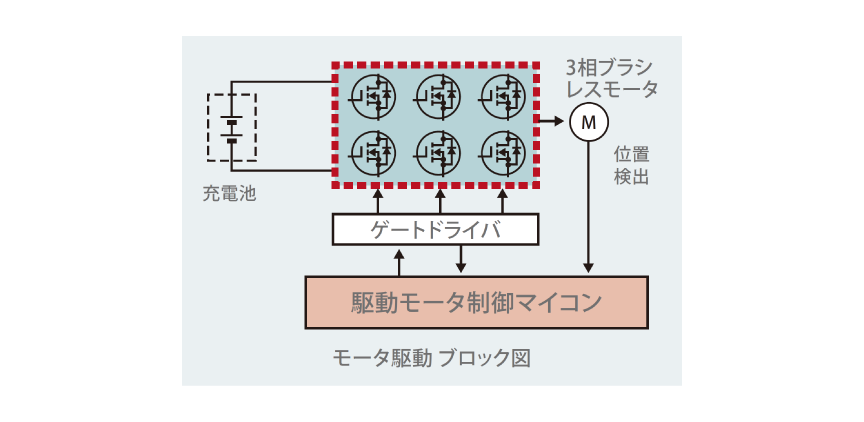

モータ駆動用Nch MOSFETブロック図

ロードスイッチ用Nch MOSFET

電源システムの効率をアップ、デバイス使用数の削減により大電流に対応するための並列接続数を削減し、ネットワークサーバやストレージシステムの省電力化や省スペース化に貢献できる製品シリーズです。

特長

  • 低損失を要求するロードスイッチ用途にお勧め。
    ※UPA2766T1A：RDS(on)=0.72mΩ(Typ.)
  • 5 x 6mm外形の小型パッケージを採用（8pHVSON）

用途・アプリケーション

  • サーバ電源のORingスイッチ
  • 携帯機器等のバッテリ保護回路

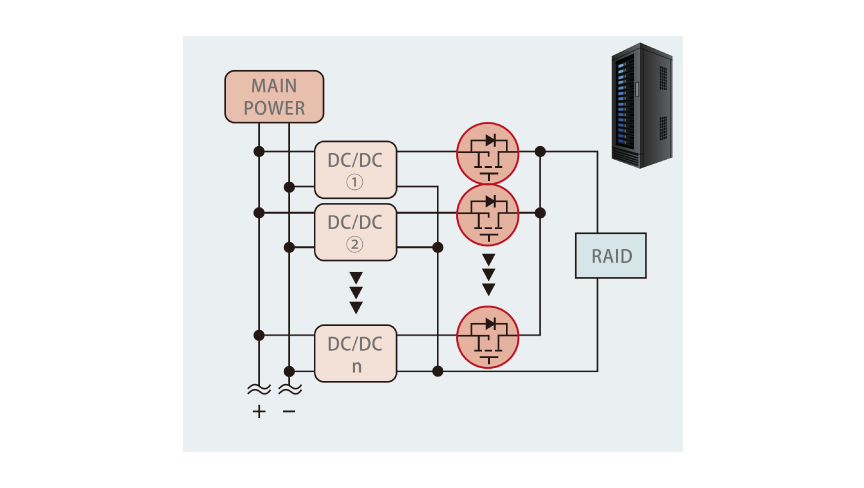

MOSFETS for Load Switching Diagram

セレクションテーブル

    Processing table
    Nch/Pch
    Channels (#)
    Pkg. Type
    Standard Pkg. Type
    VDSS (Max) (V)
    ID (A)
    RDS (ON) (Max) @10V or 8V (mohm)
    RDS (ON) (Max) @ 4V or 4.5V or 5V (m ohm)
    RDS (ON) (Max) @2.5V or 1.8V (mohm)
    RDS (ON) (Typical) @ 10V / 8V (mohm)
    Pch (W)
    Vgs (off) (Max) (V)
    VGSS
    Ciss (Typical) (pF)
    QG (nC) typ (nC)
    Mounting Type
    Application
    Series Name
    Target applications
    Function
    Automotive Qual.
    型名
    2SJ598-ZK
    Pch Single Power Mosfet -60V -12A 130Mohm Mp-3Zk/To-252    		 Pch 1 MP-3ZK TO-252 / DPAK -60 -12 130 190 23 -2.5 -20 720 15 Surface Mount Consumer Use, Industrial
    2SJ601-ZK
    Pch Single Power Mosfet -60V -36A 31Mohm Mp-3Zk/To-252    		 Pch 1 MP-3ZK TO-252 / DPAK -60 -36 31 46 65 -2.5 -20 3300 63 Surface Mount Consumer Use, Industrial
    2SJ687-ZK
    Pch Single Power Mosfet -20V -20A 7.0Mohm Mp-3Zk/To-252    		 Pch 1 MP-3ZK TO-252 / DPAK -20 -20 7 20 36 -1.45 -12 4400 57 Surface Mount Consumer Use, Industrial
    2SK1317
    Nch Single Power Mosfet 1500V 2.5A 12000Mohm To-3P    		 Nch 1 TO-3P TO-3P 1500 2.5 12000 9000 100 4 20 990 Through Hole Consumer Use, Industrial
    2SK1835
    Silicon N Channel MOSFET    		 Nch 1 TO-3P TO-3P 1500 4 7000 4600 125 4 20 1700 Through Hole Consumer Use, Industrial
    2SK2225
    Nch Single Power Mosfet 1500V 2A Mohm To-3Pfm    		 Nch 1 TO-3PFM TO-3PF 1500 2 12000 9000 50 4 20 990 Through Hole Consumer Use, Industrial
    2SK2225-80-E
    Nch Single Power MOSFET 1500V 2A 12000mOhm TO-3PFP    		 Nch 1 TO-3PFP TO-3PF 1500 2 12000 9000 50 4 20 990 Through Hole Consumer Use, Industrial
    2SK3812-ZP
    Nch Single Power Mosfet 60V 110A 2.8Mohm Mp-25Zp/To-263    		 Nch 1 MP-25ZP TO-263 / D2PAK 60 110 2.8 3.7 213 2.5 20 16800 250 Surface Mount Consumer Use, Industrial
    N0400P
    Pch Single Power Mosfet -40V -15A 40Mohm Mp-3Zk/To-252    		 Pch 1 MP-3ZK TO-252 / DPAK -40 -15 40 73 25 -1.5 -12 1400 16 Surface Mount Consumer Use, Industrial
    N0412N
    Nch Single Power Mosfet 40V 100A 3.7Mohm To-220    		 Nch 1 TO-220 TO-220 40 100 3.7 119 4 20 5550 100 Through Hole Consumer Use, Industrial N0 Series
    N0413N
    Nch Single Power Mosfet 40V 100A 3.3Mohm To-263    		 Nch 1 MP-25ZK TO-263 / D2PAK 40 100 3.3 119 4 20 5550 100 Surface Mount Consumer Use, Industrial N0 Series
    N0434N
    Nch Single Power Mosfet 40V 100A 3.7Mohm To-262    		 Nch 1 TO-262 TO-262 / I2PAK 40 100 3.7 119 4 20 5550 100 Through Hole Consumer Use, Industrial N0 Series
    N0435N
    Power MOSFETs with Support for High-efficiency Drive and Low Heat Design    		 Nch 1 MP-25LK 40 80 4.8 3.9 +20/-20 3200 62 Through Hole Consumer Use, Industrial
    N0436N
    Power MOSFETs with Support for High-efficiency Drive and Low Heat Design    		 Nch 1 TO-252 TO-252 / DPAK 40 56 4.7 3.9 +20/-20 3200 62 Surface Mount Consumer Use, Industrial
    N0438N
    Power MOSFETs with Support for High-efficiency Drive and Low Heat Design    		 Nch 1 TO-252 TO-252 / DPAK 40 52 7.5 6.1 +20/-20 1900 36 Surface Mount Consumer Use, Industrial
    N0601N
    Nch Single Power Mosfet 60V 100A 4.2Mohm To-263    		 Nch 1 MP-25ZK TO-263 / D2PAK 60 100 4.2 156 4 20 7730 133 Surface Mount Consumer Use, Industrial N0 Series
    N0602N
    Nch Single Power Mosfet 60V 100A 4.6Mohm To-220    		 Nch 1 TO-220 TO-220 60 100 4.6 156 4 20 7730 133 Through Hole Consumer Use, Industrial N0 Series
    N0603N
    Nch Single Power Mosfet 60V 100A 4.6Mohm To-262    		 Nch 1 TO-262 TO-262 / I2PAK 60 100 4.6 156 4 20 7730 133 Through Hole Consumer Use, Industrial N0 Series
    N0604N
    Nch Single Power Mosfet 60V 82A 6.5Mohm To-220    		 Nch 1 TO-220 TO-220 60 82 6.5 116 4 20 4150 75 Through Hole Consumer Use, Industrial
    N0607N
    N-Channel Power Mosfet 60 V, 65 A, 8.4 MΩ    		 Nch 1 TO-252 TO-252 / DPAK 60 65 8.4 87.4 4 20 3300 58 Surface Mount Consumer Use, Industrial
    N0608N
    N-Channel Power Mosfet 60 V, 52 A, 14.3 mΩ    		 Nch 1 TO-252 TO-252 / DPAK 60 52 14.3 12.3 +20/-20 1950 37 Surface Mount Consumer Use, Industrial
    N0608N
    Power MOSFETs with Support for High-efficiency Drive and Low Heat Design    		 Nch 1 TO-252 TO-252 / DPAK 60 52 14.3 12.3 +20/-20 1950 37 Surface Mount Consumer Use, Industrial
    N0609N
    Power MOSFETs with Support for High-efficiency Drive and Low Heat Design    		 Nch 1 MP-25LK 60 120 3 2.5 +20/-20 11300 210 Through Hole Consumer Use, Industrial
    RBK04U04GNS
    Nch Single Power MOSFETs 40V 35A 1.5mohm HSON-8pin    		 Nch 1 HSON Power SON-8 5x6 40 35 1.5 1.2 83 4 +20/-20 6900 111 Surface Mount Consumer Use, Industrial
    RJE0601JPE
    Silicon P Channel MOS FET Series Power Switching    		 Pch 1 LDPAK(S)-(1) TO-263 / D2PAK -60 -40 27 22 50 Surface Mount Automotive Use, Industrial Thermal FETs Yes
    RJE0603JPE
    Silicon P Channel MOS FET Series Power Switching    		 Pch 1 LDPAK(S)-(1) TO-263 / D2PAK -60 -50 15 12 100 Surface Mount Automotive Use, Industrial Thermal FETs Yes
    RJE0605JPD
    Silicon P Channel MOS FET Series Power Switching    		 Pch 1 DPAK(S) TO-252 / DPAK -60 -10 75 58 30 Surface Mount Automotive Use, Industrial Thermal FETs Yes
    RJE0605JPV
    Silicon P Channel MOS FET Series Power Switching    		 Pch 1 MP-3ZK TO-252 / DPAK -60 -10 75 58 30 Surface Mount Automotive Use, Industrial Thermal FETs Yes
    RJE0607JSP
    Silicon P Channel MOS FET Series Power Switching    		 Pch 2 SOP SOP-8 / SOIC-8 -60 -1.5 260 140 2 Surface Mount Automotive Use, Industrial Thermal FETs Yes
    RJE0609JPD
    Silicon P Channel MOS FET Series Power Switching    		 Pch 1 DPAK(S) TO-252 / DPAK -60 -4 100 79 30 Surface Mount Automotive Use, Industrial Thermal FETs Yes
    RJE0609JPV
    Silicon P Channel MOS FET Series Power Switching    		 Pch 1 MP-3ZK TO-252 / DPAK -60 -4 100 79 30 Surface Mount Automotive Use, Industrial Thermal FETs Yes
    RJE0615JSP
    -60 V, -10A Silicon P Channel Thermal FET Power Switching    		 Pch 1 SOP SOP-8 / SOIC-8 -60 -10 65 53 2.5 Surface Mount Automotive Use, Industrial Thermal FETs Yes
    RJE0616JSP
    –60V, –10A, P Channel Thermal FET Power Switching    		 Pch 1 SOP SOP-8 / SOIC-8 -60 -4 90 77 2.5 Surface Mount Automotive Use, Industrial Thermal FETs Yes
    RJE0617JSP
    –60V, –1.5A, P Channel Thermal FET Power Switching    		 Pch 2 SOP SOP-8 / SOIC-8 -60 -1.5 350 425 272 1.5 Surface Mount Automotive Use, Industrial Thermal FETs Yes
    RJE0618JSP
    Silicon P Channel MOSFET Series Power Switching    		 Pch 1 SOP SOP-8 / SOIC-8 -60 -10 120 98 2.5 Surface Mount Automotive Use, Industrial Thermal FETs Yes
    RJE0620JPD
    –60V, –2A, P Channel Thermal FET Power Switching    		 Pch 1 DPAK(S) TO-252 / DPAK -60 -10 120 180 100 40 Surface Mount Automotive Use, Industrial Thermal FETs Yes
    RJE0621JSP
    –60V, –2A, P Channel Thermal FET Power Switching    		 Pch 2 SOP SOP-8 / SOIC-8 -60 -2 270 400 231 2 Surface Mount Automotive Use, Industrial Thermal FETs Yes
    RJE0623JSP
    Silicon P Channel MOSFET Series Power Switching    		 Pch 1 SOP SOP-8 / SOIC-8 -60 -1.5 350 425 272 1.5 Surface Mount Automotive Use, Industrial Thermal FETs Yes
    RJE0625JPV
    Pチャネル サーマルFETシリーズ 電力スイッチング    		 Pch 1 MP-3ZP MP-3ZP -60 -17 61 46.6 50 Surface Mount Automotive Use, Industrial Thermal FETs Yes
    RJF0408JPD
    Silicon N Channel MOSFET Series Power Switching    		 Nch 1 DPAK(S) TO-252 / DPAK 40 30 25 19 30 Surface Mount Automotive Use, Industrial Thermal FETs Yes
    RJF0409JSP
    40V、5AシリコンNチャネルサーマルFETパワースイッチング    		 Nch 2 SOP SOP-8 / SOIC-8 40 5 86 70 1.5 Surface Mount Automotive Use, Industrial Thermal FETs Yes
    RJF0410JPE
    40V - 40A - N Channel Thermal FET Power Switching    		 Nch 1 LDPAK(S)-(1) TO-263 / D2PAK 40 40 13 9 100 Surface Mount Automotive Use, Industrial Thermal FETs Yes
    RJF0411JPD
    Thermal FETs    		 Nch 1 DPAK(S) TO-252 / DPAK 40 34 37 23.8 40 Surface Mount Automotive Use, Industrial Thermal FETs Yes
    RJF0412JSP
    40 V - 10A - N Channel MOS FET Power Switching    		 Nch 1 SOP SOP-8 / SOIC-8 40 10 37 23 2.5 Surface Mount Automotive Use, Industrial Thermal FETs Yes
    RJF0604DPD
    60V, 5A Silicon N Channel Thermal FET Power Switching    		 Nch 1 DPAK(S) TO-252 / DPAK 60 5 75 100 42 30 Surface Mount Consumer Use, Industrial Thermal FETs
    RJF0604JPD
    60V, 5A Silicon N Channel Thermal FET Power Switching    		 Nch 1 DPAK(S) TO-252 / DPAK 60 5 75 100 42 30 Surface Mount Automotive Use, Industrial Thermal FETs Yes
    RJF0605DPD
    Silicon N Channel MOS FET Series Power Switching    		 Nch 1 DPAK(S) TO-252 / DPAK 60 20 38 50 24 40 Surface Mount Consumer Use, Industrial Thermal FETs
    RJF0605JPD
    Silicon N Channel MOS FET Series Power Switching    		 Nch 1 DPAK(S) TO-252 / DPAK 60 20 38 50 24 40 Surface Mount Automotive Use, Industrial Thermal FETs Yes
    RJF0605JPV
    Thermal FETs    		 Nch 1 MP-3ZK TO-252 / DPAK 60 20 38 50 24 40 Surface Mount Automotive Use, Industrial Thermal FETs Yes
    RJF0606DPE
    Nch Power MOSFETs    		 Nch LDPAK(S)-(1) TO-263 / D2PAK 60 40 19 25 12 50 Surface Mount Consumer Use, Industrial Thermal FETs
    Parametric Table tips

    Tips for Using This Parametric Table:

    • Hide Filters button in header: Collapse or expands filters
    • Column sort buttons in header: Sort Column alphabetically / numerically descending or ascending
    • Reset button in header: Reset all filters to the page default
    • Full Screen button in header: Expand the table to full screen view (user must close out of full screen before they can interact with rest of page)
    • Export button in header: Export the filtered results of the table to an Excel document
    • Filter parts search bar in header: Type to filter table results by part number
    • Hide column button in column headers: Select to hide columns in table
    • AND / OR toggle switches in header: Toggles the logic of this particular filter to be “AND” or “OR” logic for filtering results
    • Multiselect checkboxes at beginning of each row in table: Select these checkboxes to compare products against each other
    • Document icon next to product name in row: View the featured document for this product
    • Chip icon next to the right of the document icon in row: View the block diagram for this product
    • Cart icon to the right of the chip icon: Indicates that samples are available for this product
