Features
- Voltage supply: 3.3V±0.3V or 5.0V±0.5V
- Qualified for industrial applications operating from -40°C to +125°C
- Output Interfaces: analog 12-bit, PWM 12/14-bit, I2C 14-bit
- High-accuracy sensor with 11-bit accuracy and 14-bit resolution
- Automatic gain control (AGC) to compensate for air-gap variations
- Autocalibration and 16-point linearization for enhanced accuracy
- Overvoltage ±18V, reverse-polarity ±18V, ESD, and short-circuit protection features
- On-chip failure diagnostics
- External auxiliary sensor input
Description

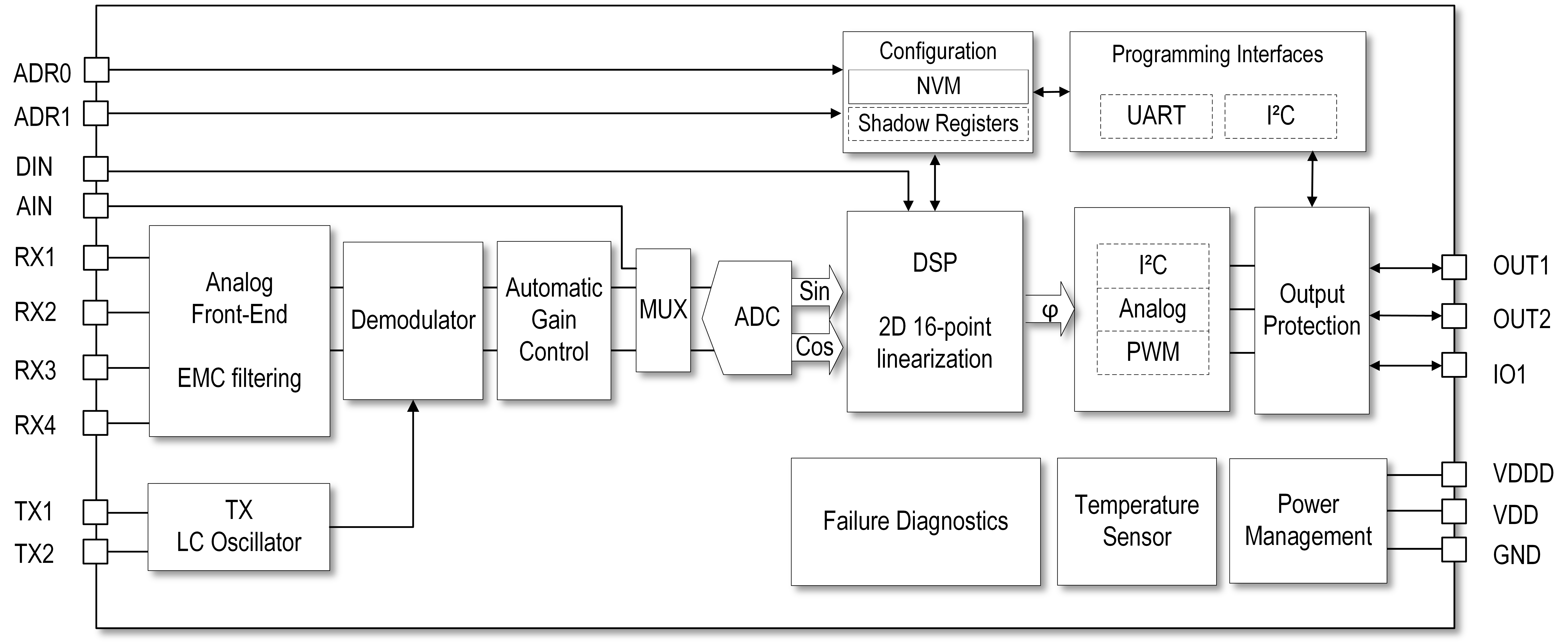

The RAA2P4200 is a magnet-free, inductive position sensor IC designed for absolute rotary, linear, or arc position sensing in industrial applications. It operates on the principle of eddy currents, detecting the position of a simple metallic target that is moving above a set of coils, comprising one transmitter coil and two receiver coils.
Inductive sensing technology offers significant advantages over magnetic technology, including greater flexibility, easier system integration, and enhanced performance, reliability, and cost efficiency. As a result, it is becoming the preferred choice for a wide range of industrial applications.
Parameters
| Attributes | Value |
|---|---|
| Function | Position Sensor |
| Resolution (bits) | 14 |
| Supply Voltage (V) | 3.3 - 5 |
| Interface | Analog, PWM, I2C |
| Temp. Range (°C) | -40 to +125°C |
Package Options
| Pkg. Type | Pkg. Dimensions (mm) | Lead Count (#) | Pitch (mm) |
|---|---|---|---|
| TSSOP | 5.0 x 4.4 x 1.0 | 16 | 0.65 |
Application Block Diagrams
|
Gear Shifter
Smart gear shifter with IPS and MCU enables precise, durable, and efficient control.
|
|
Insulin Pump
Insulin pumps provide automatic, precise insulin delivery with CGM integration for better glucose control.
|
|
Infusion Pump
The infusion pump ensures controlled drug delivery with high stability, accuracy, and long-lasting battery life.
|
Additional Applications
- Sensing for industrial and warehouse automation
- Service robots
- Power tools
- Personal electronics
- Household appliances
- Non-road vehicles
- 3D printers
- Textile
- CNC machine
