Overview
Description
The RTKA2P4200S00000BE inductive position sensor evaluation kit is a contactless position sensing kit for evaluating rotary or linear sensor performance. The kit includes software for product configuration, and the GUI can be easily installed. The communication board connects seamlessly to a PC for quick setup and evaluation.
The RTKA2P4200S00000BE kit features the RAA2P4200 magnet-free inductive position sensor IC, designed for absolute rotary, linear, or arc position sensing in industrial applications.

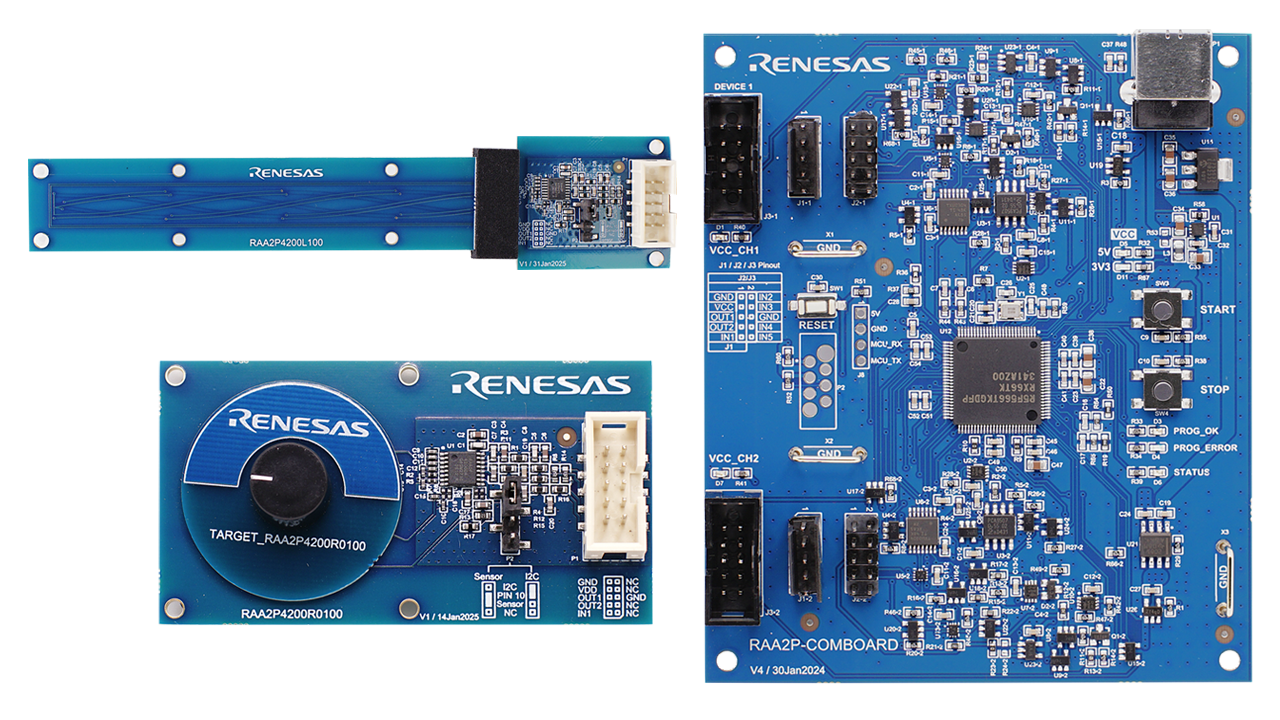

The RTKA2P4200S00000BE evaluation kit includes the RAA2P-COMBOARD communication board, RAA2P4200R0100 (32mm diameter, 360-degree rotary module), RAA2P4200L100 (100mm linear sensing module), USB-B cable, and two interface cables.
Features
- Robust contactless position sensing kit for industrial applications
- Configurable IC with I2C, analog, and PWM interfaces
- Suitable for 3.3V or 5.0V applications
Applications
- Industrial automation
- Household appliances
- Power tools
- Printers
- Low-speed applications
Documentation
Featured Documentation
Log in required to subscribe
|
|
|
|
|---|---|---|
| Type | Title | Date |
| Quick Start Guide |
PDF
656 KB
The RTKA2P4200S00000BE is a Renesas evaluation kit designed to help users quickly evaluate and familiarize themselves with the RAA2P4200 inductive position sensor. It includes a communication board and two sensor modules designed to detect both rotary and linear motion. This quick start guide outlines essential steps to set up and operate the hardware efficiently.
|
|
| Manual - Software | RAA2P4200 Programming Manual
The RAA2P4200 is a single-channel, industrial-grade inductive position sensor designed for rotary, linear, and arc motion detection in automation and robotics. This document outlines the necessary steps to set up, program, and calibrate the sensor.
|
|
| Quick Start Guide | IPS RAA2Pxxxx Evaluation Software Quick Start Guide
RAA2Pxxxx is Renesas' family of high-accuracy inductive position sensors. This document outlines the procedures for configuring and operating the RAA2Pxxxx Evaluation Software (GUI), which is fully compatible with all evaluation kits in the RAA2Pxxxx series.
|
|
| PCB Design Files | RAA2P4200L100 Design Files
The RAA2P4200L100 is a compact linear reference design from Renesas, based on the RAA2P4200 inductive position sensor. This package contains the Gerber design files, which can be imported into your PCB layout.
|
|
| PCB Design Files | RAA2P4200R0100 Design Files
The RAA2P4200R0100 is a rotary reference design from Renesas, based on the RAA2P4200 inductive position sensor. This package contains the Gerber design files, which can be imported into your PCB layout.
|
|
| Report |
PDF
754 KB
The RAA2P4200L100 is a compact Renesas linear reference design based on the RAA2P4200 inductive position sensor. It is capable of performing absolute linear position sensing for strokes up to 10cm. The RAA2P4200L100 achieves 14-bit resolution and ±0.08mm accuracy. This measurement report outlines the sensor coil design's performance and presents the corresponding measurement results.
|
|
| Report |
PDF
614 KB
The RAA2P4200R0100 Renesas rotary reference design is based on the RAA2P4200 inductive position sensor. It features 14-bit resolution and is equipped with I²C, analog, and PWM interfaces. This measurement report outlines the sensor coil design's performance and presents the corresponding measurement results.
|
|
7 items
|
||
Design & Development
Software & Tools
Software Downloads
|
|
|
|
|---|---|---|
| Type | Title | Date |
| Software & Tools - Software | RAA2Pxxxx IPS Evaluation Software (GUI)
RAA2Pxxxx is Renesas' family of high-accuracy inductive position sensors. This package contains the necessary files to install and operate the RAA2Pxxxx Evaluation Software (GUI), which is fully compatible with all evaluation kits in the RAA2Pxxxx series.
|
|
| Software & Tools - Software | RAA2P3xxx/4xxx Python Code Example
RAA2Pxxxx is Renesas' family of high-accuracy inductive position sensors. This package provides Python code for communicating with the sensor and performing compensation and calibration using the Renesas RAA2P-COMBOARD, making it suitable for quick testbench setup and automated calibration.
|
|
| Software & Tools - Software | Linearization Demo
RAA2Pxxxx is Renesas' family of high-accuracy inductive position sensors. This package includes sample code for calculating linearization points from simple measurements.
|
|
3 items
|
||
Sample Code
Sample Code
Filters
|
||
|---|---|---|
| Type | Title | Date Date |
| Sample Code | RAA2P4xxx RH850 Interface Code Example
RAA2P4xxx is Renesas' family of high-accuracy industrial-grade inductive position sensors. This package offers ready-to-use sample code for seamless communication between Renesas RH850 32-bit automotive MCUs and inductive position sensors, tailored to the selected interface.
|
|
1 item
|
||
Product Options
| Part Number | Status | Stock | Sampleable | Requires Terms and Conditions |
|---|---|---|---|---|
| RTKA2P4200S00000BE | Active | In Stock | Available | Does not require acceptance of Terms and Conditions |
