Overview
Renesas offers monitoring functions using a tiny CMIC*1 in a variety of motor control applications. CMIC GreenPAK™ is a cost-effective NVM*2 programmable device that allows automotive designers to integrate many system functions into a single AEC-Q100 qualified IC, resulting in minimizing component count and board space.
System Benefits:

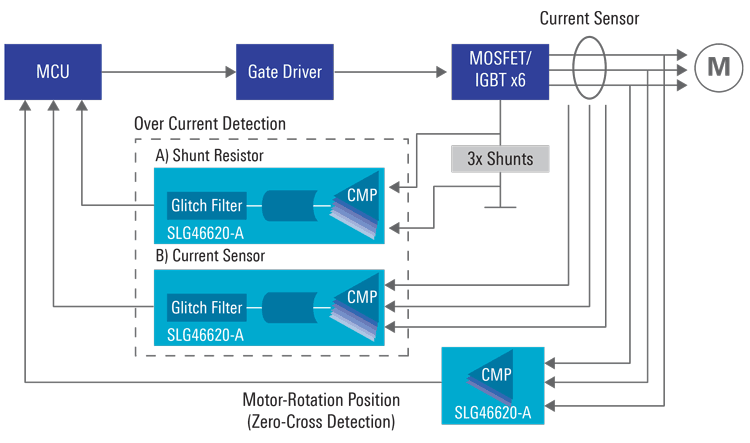

- Provides an overcurrent detection system using a shunt resistor for 12V motor systems and a current sensor for xEV motor systems.
- Provides motor rotation position detection through a zero-cross comparator in a square-wave motor controller system.
- Enables retrofitting the CMIC to existing designs.
- The GreenPAK designer software/development kit enables quick modification to changing design requirements and increase productivity at the design and prototype verification stages.
*1 CMIC: Configurable Mixed-Signal IC
*2 NVM: Non-Volatile Memory
Related Products
| Product | Description | Featured Document | Ordering |
|---|---|---|---|
| Microcontroller | |||
| RL78/F14 | 16-Bit MCU with Ultra-Low Power and Built-in CAN/LIN (30 - 100 pins, 23 - 86 GPIOs) |
User's Manual | Select Specific Device |
| RL78/F15 | 16-Bit MCU with Ultra-Low Power and Built-in CAN/LIN (48 - 144 pins, 38 - 130 GPIOs) |
User's Manual | Select Specific Device |
| RH850/C1M-Ax | Microcontroller with G3MH CPU Core Ideal for HEV/EV Motor Control | User's Manual | Contact Sales |
| RH850/C1H | Ideal for Motor Control in HEV/EV. Dual-Core High-End In-Vehicle Microcontroller with 2-Channel Resolver/Digital Converter | Contact Sales | Contact Sales |
| RH850/C1M | Ideal for Motor Control in HEV/EV. High-End In-Vehicle Microcontroller with Resolver/Digital Converter | Contact Sales | Contact Sales |
| RH850/F1KM-S1 | 32-Bit High-End Automotive Microcontrollers Ideal for Body Applications | User's Manual | Select Specific Device |
| RH850/F1KM-S4 | 32-Bit High-end Automotive Microcontrollers Ideal for Body Applications | User's Manual | Select Specific Device |
| RH850/F1L | Dual-Core, High-End In-Vehicle Microcontrollers for Body Applications | Contact Sales | Contact Sales |
| MOSFET | |||
| RBA250N10 | N-Channel Power MOSFET 100V/250A Designed for High Current Switching Applications | Datasheet | Contact Sales |
| NP50N04YUK | N-Channel Single Power MOSFET 40V, 50A, 4.8mohm, HSON-8, Automotive | Datasheet | Contact Sales |
| IGBT | |||
| RJQ7031/RJU7032 | Insulated Gate Bipolar Transistor (IGBT) and Fast Recovery Diode (FRD) | Contact Sales | Contact Sales |
| Gate Driver | |||
| ISL78434 | 100V Boot, 4A Peak, Half-Bridge Driver with Single PWM Input and Adaptive Dead Time Control | Datasheet | Buy/Sample |
| R2A25110 | Intelligent Gate Driver for IGBT Drive with Micro Isolator | Datasheet | Contact Sales |
| Configurable Mixed-Signal IC (CMIC) | |||
| SLG46620-A | Automotive GreenPAK™ Programmable Mixed-Signal Matrix | Datasheet | Buy/Sample |
