概要

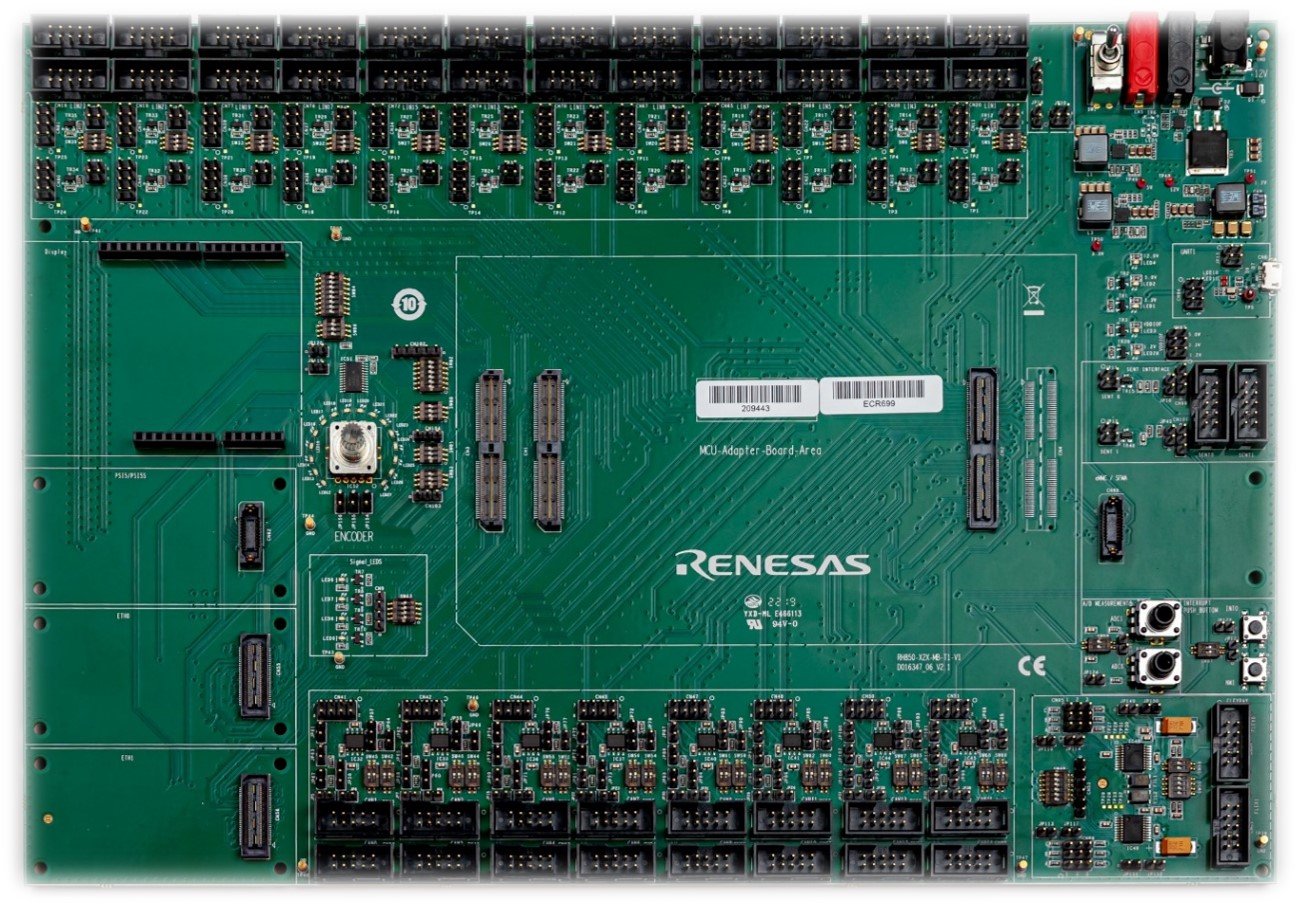

The RH850 Generation 2 Mainboard provides communication interfaces to the RH850 Piggyback boards. The modular RH850 Evaluation System, comprising mainboards and piggyback boards, serves as a platform for evaluating the features and performance of Renesas' 32-bit RH850 microcontrollers.
特長
- Adaptation headers to connect the MCU Piggyback boards
- 12V power supply connection
- 2 DC/DC Regulators (configurable for 3.3V, 5.0V)
- DC power jack (ID=2.1mm, center positive)
- 4mm banana jacks (1x red, 1x black)
- Communication interfaces:
- 16x CAN(-FD) ports
- 24x LIN ports
- 2x FlexRay ports
- 2x Ethernet ports (with exchangeable PHY Ext. boards)
- 2x UART/RS232 ports
- 2x SENT ports
- 20x signal LEDs (active high), 1x rotary switch
- 2x push buttons, 2x analog input potentiometers
- TFT Touch Display Interface Connector (Arduino Standard)
サンプル＆ご購入
適用されたフィルター
拡張ハードウェア
本プラットフォーム対応の追加ボード。一部は、すべての機能を利用するため、または特定機能を評価するために必要となる場合があります。
RH850/F1x, RH850/F1Kx 176-pin Piggyback Board of RH850 Evaluation Platform
Expands the RH850 Evaluation Platform to support 176-pin RH850/F1x and F1Kx devices. Designed for modular automotive MCU evaluation.
RH850/E2x 373pin Piggyback Board of RH850 Evaluation Platform
Extend the RH850 Evaluation Platform to support 373‑pin RH850/E2x devices. Enables modular evaluation of automotive MCUs across multiple configurations.
推奨ドキュメント:
RH850/E2x 468pin Piggyback Board of RH850 Evaluation Platform
Support evaluation of 468‑pin RH850/E2x devices within the modular RH850 Evaluation Platform. Designed for flexible automotive MCU assessment.
推奨ドキュメント:
RH850評価システム RH850 Gen2メインボード用 eMMC/SFMA拡張ボード
eMMC/SFMA拡張ボードはRH850第2世代メインボードと組み合わせて使用できます。 本ボードは、eMMCカードインタフェースおよび外部NOR／NANDシリアルフラッシュメモリ用のシリアルメモリインタフェース（SFMA）を提供します。 メインボードのコアハードウェア構成を変更することなく、評価機能を拡張するためのアドオンボードとして使用されます。
SENT Interface Extension Board for the RH850 Generation 2 Mainboard of RH850 Evaluation System
Y-RH850-SENT-EXT-BRD-V2 アクティブ
Evaluate SENT‑based sensor interfaces on RH850 MCUs using an extension board designed for precise automotive signal processing.
TFT Display Extension Board for the RH850 Generation 2 Mainboard of RH850 Evaluation System
Y-RH850-TFT-EXT-BRD アクティブ
Add TFT display evaluation capability to the RH850 platform using a simple extension board for graphical interface development.
Ethernet Extension Board for 1000BASE-T1
Evaluate automotive Ethernet connectivity with a 1000BASE‑T1 extension board designed for RH850 and R‑Car platforms.
RH850/F1x 48pin Piggyback Board of RH850 Evaluation Platform
Evaluate RH850/F1x MCUs in a 48‑pin package using a modular piggyback board compatible with the RH850 evaluation platform.
推奨ドキュメント:
RH850/F1x 64pin Piggyback Board of RH850 Evaluation Platform
Evaluate RH850/F1x MCUs in a 64-pin package with a modular development platform designed for efficient device assessment and application development. Integrates seamlessly with the RH850 Evaluation Platform.
推奨ドキュメント:
RH850/F1x 80pin Piggyback Board of RH850 Evaluation Platform
Support evaluation of RH850/F1x devices in an 80‑pin package with a flexible piggyback board for standalone or platform‑based development.
RH850/F1x 100pin Piggyback Board of RH850 Evaluation Platform
Enable scalable evaluation of RH850/F1x MCUs in a 100‑pin package using the modular RH850 evaluation platform.
推奨ドキュメント:
RH850/F1x 144pin Piggyback Board of RH850 Evaluation Platform
Evaluate RH850/F1x MCUs in a 144‑pin package with a piggyback board designed for modular and reusable development workflows.
推奨ドキュメント:
RH850/F1x 233pin Piggyback Board of RH850 Evaluation Platform
Assess high‑pin‑count RH850/F1x devices using a 233‑pin piggyback board compatible with the RH850 evaluation platform.
RH850/F1x 272pin Piggyback Board of RH850 Evaluation Platform
Support evaluation of large‑package RH850/F1x MCUs using a 272‑pin piggyback board for the modular RH850 platform.
RH850/F1x 324pin Piggyback Board of RH850 Evaluation Platform
Evaluate high‑density RH850/F1x devices with a 324‑pin piggyback board designed for advanced automotive MCU development.
RH850/U2A 144pin Piggyback Board of RH850 Evaluation Platform
Evaluate RH850/U2A MCUs in a 144‑pin package using a modular piggyback board for automotive development.
RH850/U2A 156pin Piggyback Board of RH850 Evaluation Platform
The RH850/U2A 156pin Piggyback Board supports all devices of the RH850/U2A series in 156pin-package. It can be used standalone or in combination with a mainboard of the RH850 evaluation platform. The modular RH850 evaluation platform consisting of mainboards and piggyback boards is a platform... 続きを読む
RH850/U2A 176pin Piggyback Board of RH850 Evaluation Platform
Enable scalable evaluation of RH850/U2A MCUs using a 176‑pin piggyback board on the RH850 platform.
RH850/U2A 292pin Piggyback Board of RH850 Evaluation Platform
Evaluate high‑pin‑count RH850/U2A devices using a 292‑pin piggyback board designed for advanced system testing.
RH850/U2A 373pin Piggyback Board of RH850 Evaluation Platform
Assess RH850/U2A MCUs in very high pin‑count packages using a modular piggyback board architecture.
RH850/U2A 516pin Piggyback Board of RH850 Evaluation Platform
Support evaluation of the largest RH850/U2A devices with a 516‑pin piggyback board for complex automotive systems.
RH850/P1X 100pin Piggyback Board of RH850 Evaluation Platform
Evaluate RH850/P1X MCUs in a 100‑pin package using a modular piggyback board on the RH850 platform.
RH850/P1X 144pin Piggyback Board of RH850 Evaluation Platform
Support evaluation of RH850/P1X devices in a 144‑pin package with a reusable piggyback board design.
RH850/P1X-C 80pin Piggyback Board of RH850 Evaluation Platform
Evaluate RH850/P1X‑C MCUs in an 80‑pin package using a compact piggyback board for automotive development.
RH850/P1X-C 100pin Piggyback Board of RH850 Evaluation Platform
Assess RH850/P1X‑C devices in a 100‑pin package using a modular piggyback board for the RH850 platform.
RH850/P1X-C 144pin Piggyback Board of RH850 Evaluation Platform
Evaluate RH850/P1X‑C MCUs in a 144‑pin package with a flexible piggyback board for scalable system development.
RH850/P1X-C 156pin Piggyback Board of RH850 Evaluation Platform
Evaluate RH850/P1M‑C MCUs in a 156‑pin package using a modular piggyback board compatible with the RH850 evaluation platform.
推奨ドキュメント:
RH850/P1X-C 292pin Piggyback Board of RH850 Evaluation Platform
Support evaluation of high‑pin‑count RH850/P1M‑C and P1H‑C devices with a 292‑pin piggyback board for scalable automotive development.
RH850/P1X-C 404pin Piggyback Board of RH850 Evaluation Platform
Evaluate RH850/P1H‑C emulation devices using a 404‑pin piggyback board designed for advanced system validation on the RH850 platform.
RH850/E2x 292pin Piggyback Board of RH850 Evaluation Platform
Evaluate RH850/E2x MCUs in a 292‑pin package using a modular piggyback board compatible with the RH850 evaluation platform.
推奨ドキュメント:
RH850/U2B 373pin Piggyback Board of RH850 Evaluation Platform
Evaluate RH850/U2B MCUs in a 373‑pin package using a modular piggyback board on the RH850 platform.
RH850/U2B 468pin Piggyback Board of RH850 Evaluation Platform
Support evaluation of high‑pin‑count RH850/U2B devices with a 468‑pin piggyback board for scalable development.
RH850/U2B 292pin Piggyback Board of RH850 Evaluation Platform
Evaluate RH850/U2B MCUs in a 292‑pin package using a flexible piggyback board on the RH850 evaluation system.
