RX13T

Renesas MCU Guide

Download the mobile app

Overview

The RX13T Group of microcontrollers is equipped with the proven RX Family RXv1 core operating at 32MHz, a floating point unit (FPU), an inverter control timer, and a 12-bit A/D converter, allowing high-efficiency inverter control of brushless DC motors with one device. They are highly compatible with existing RX devices so it is easy to convert hardware and software from previous designs. The lineup includes small 32-pin and 48-pin packages with built-in features such as programmable gain amplifier (PGA), comparator, data flash, and high-speed on-chip oscillator (HOCO). These on-chip features can help reduce board area and the BOM components in the design.

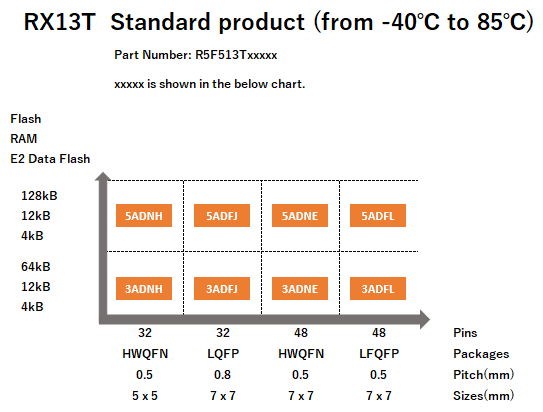

Pin-Memory Diagram of RX13T stanndard products

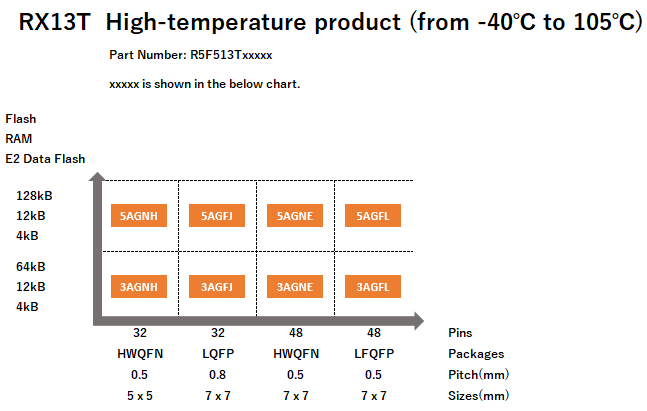

Pin-Memory Diagram of RX13T High-temperature products

RXv1 core operating at 32MHz operation (3.12 CoreMark/MHz)
Floating Point Unit (FPU)
2.7V to 5.5V operation
Operating temperature range, -40 °C to 105 °C
Memory resources: 128KB Flash, 12KB SRAM and 4KB data flash
Inverter control timer
12-bit, 8-channel A/D converter with 3 channel simultaneous sample and hold circuit
3-channel comparator and a 3-channel programmable gain amplifier (PGA)
High-speed clock oscillator (HOCO) with 1% accuracy

	Three-Phase Induction Motor Solution
	RX13T Motor Control
	Large Power BLDC Ceiling Fan with PFC
	240V AC BLDC Motor Control
	DTDS HV BLDC Fan Solution
	DTDS Inverter Fridge Solution

Applications

Industrial
Office automation
Home appliances
