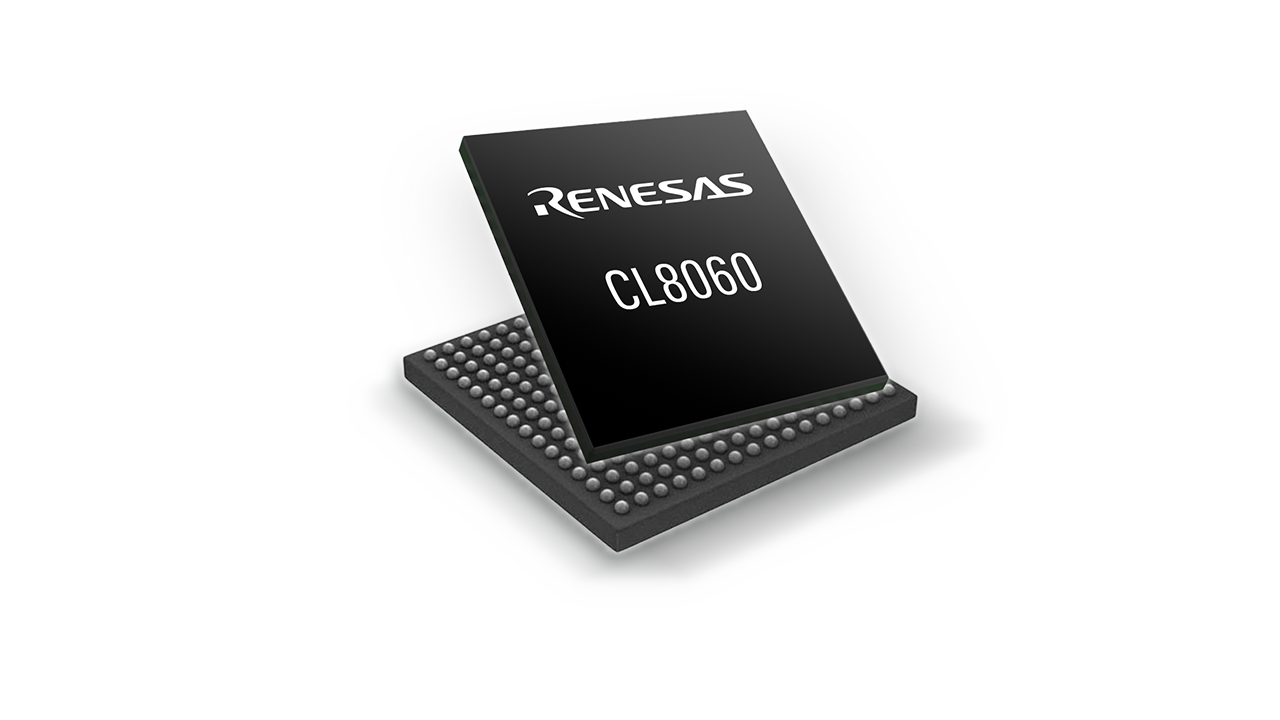

The CL8060 is a high-performing, highly integrated Wi-Fi 6 (802.11ax) R2 PCIe chip that delivers best Wi-Fi network performance for its size by combining two Wi-Fi 6 radios into a single 11x11mm PCIe chip. The chip employs two concurrent dual-band Wi-Fi 6 radios that can drive aggregated PHY/data link speeds up to 6Gbps. The two independent radios can function as an access point, client, AP/CLI, connectivity + dedicated spectrum intelligent engine.
CL8060 integrates dual MAC, dual PHY, analog and RFIC in a single package, including the required CPUs and memories to run more of the wireless LAN functions on-chip, eliminating the need for costly external memories. Interface to the host is over a dual-lane PCIe 3.0 interface.
The CL8060 is designed to support standard based features addressing security, quality of service and international regulation, as well as above-standard integrated value-add functionalities based on embedded and edge software technologies.
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.
