Overview

The Renesas RA6M5 group uses the high-performance Arm® Cortex®-M33 core with TrustZone®. In concert with the Secure Crypto Engine it offers Secure Element functionality. The integrated Ethernet MAC with individual DMA ensures high data throughput. The RA6M5 is built on a highly efficient 40nm process and is supported by an open and flexible ecosystem concept—the Flexible Software Package (FSP), built on FreeRTOS—and is expandable to use other RTOSes and middleware. The RA6M5 is suitable for IoT applications requiring Ethernet, future proof security, large embedded RAM, and low active power consumption down to 107uA/MHz running the CoreMark® algorithm from Flash.

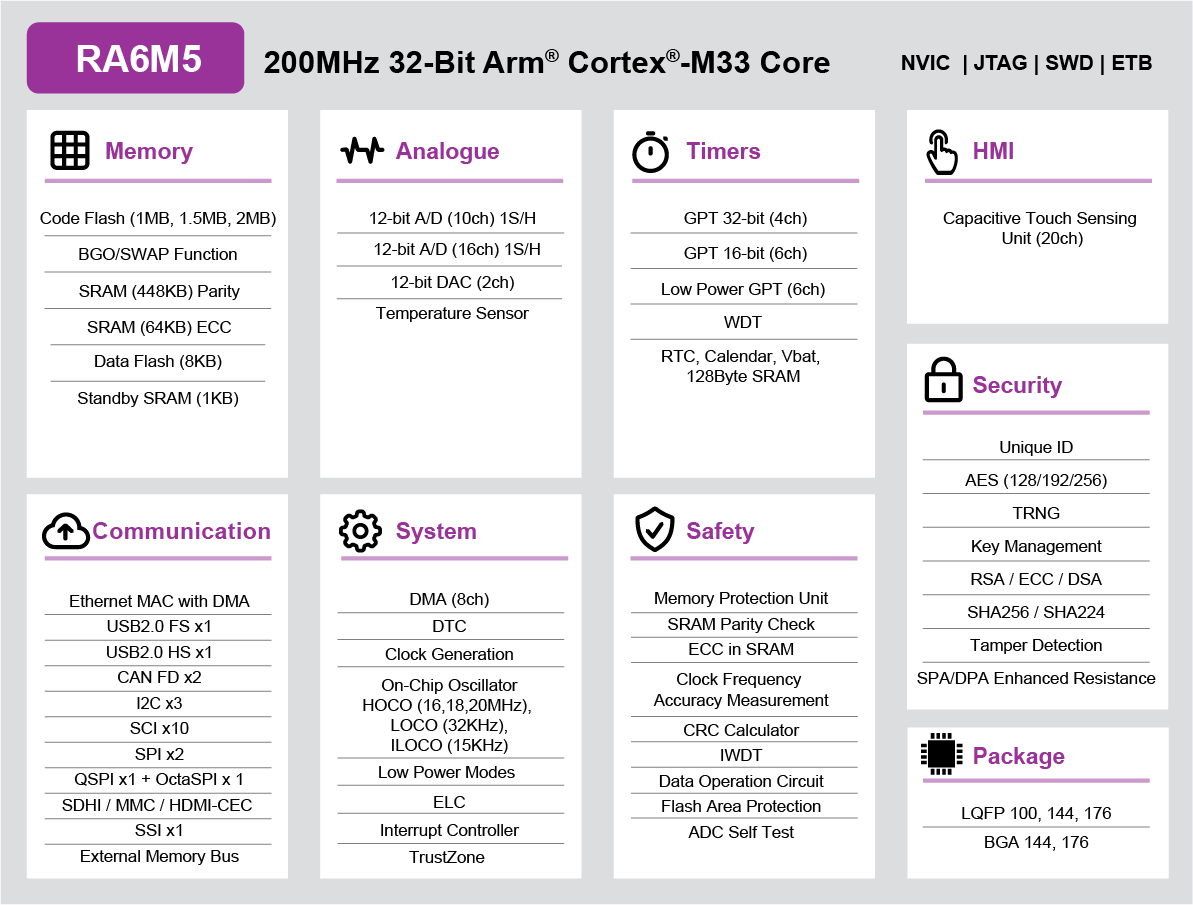

RA6M5 Block Diagram
RA6M5 Block Diagram
  • 200MHz Arm® Cortex®-M33 with TrustZone®
  • Secure element functionality
  • 1MB - 2MB Flash memory and 448kB SRAM with Parity and 64kB SRAM with ECC
  • Dual-bank-Flash with background operation, and block swap functionality
  • 8kB Data Flash to store data as in EEPROM
  • Scalable from 100-pin to 176-pin packages
  • Ethernet controller with DMA
  • Capacitive touch sensing unit
  • USB 2.0 High-Speed and Full Speed
  • CAN FD (CAN 2.0B option)
  • QuadSPI and OctaSPI
  • SCI (UART, Simple SPI, Simple I2C)
  • SPI/ I2C multimaster interface
  • SDHI and MMC

Applications

  • Wired Ethernet applications
  • Enhanced Security (fire detection, burglar detection, panel control)
  • Metering (electricity, automated meter reading)
  • Industry (robotics, door openers, sewing machines, vending machines, UPS)
  • HVAC (heating, air conditioning, boiler control)
  • General purpose

Documentation

Type Title Date
Datasheet
RA6M5 Group Datasheet
PDF 2.25 MB 日本語
Manual - Hardware
RA6M5 Group User's Manual: Hardware
PDF 22.32 MB 日本語
Application Note
EK-RA6M5 Example Project Bundle
PDF 70 KB
Related Files:
Flyer
[Flyer] E2Emulator[RTE0T00020KCE00000R]
PDF 340 KB 日本語 , 简体中文
Application Note
RA Family Design Guide for Sub-Clock Circuits
PDF 934 KB 日本語
Application Note
RA Family Capacitive Touch Software Filter Sample Program
PDF 2.37 MB 日本語
Related Files:
Brochure
Industrial Networks Brochure
PDF 8.18 MB 日本語
Guide
RA Family Nomenclature
PDF 606 KB
Technical Update
Precaution of TPIU register access without connection of OCD emulator
PDF 159 KB 日本語
Technical Update
RA6M5 Group, Correction of CAN FD
PDF 437 KB 日本語
Technical Update
The restriction of disconnecting OCD emulator
PDF 102 KB 日本語
Application Note
RA Family, RL78 Family, RX Family, Renesas Synergy™ Platform CTSU Self Test Software
PDF 2.77 MB
Application Note
HS300x Sample application - Sample Code
PDF 3.64 MB 日本語
Related Files:
Technical Update
RA4E2 Group, RA4M2 Group, RA4M3 Group, RA6E1 Group, RA6E2 Group, RA6M4 Group, RA6M5 Group, correction of Serial Sound Interface Enhanced (SSIE)
PDF 192 KB 日本語
Technical Update
RA4M2 Group, RA4M3 Group, RA6M4 Group, RA6M5 Group, correction of Secure Cryptographic Engine (SCE9)
PDF 94 KB 日本語
Technical Update
RA2A1 Group, RA2E1 Group, RA2L1 Group, RA4E1 Group, RA4M2 Group, RA4M3 Group, RA6E1 Group, RA6M4 Group, RA6M5 Group, correction of I2C Bus Interface (IIC)
PDF 126 KB 日本語
Technical Update
The Correction and the Additional Specification of CAN FD
PDF 278 KB 日本語
Application Note
RYZ024A and RA MCU Firmware Upgrade from Host MCU
PDF 1.86 MB 日本語
Related Files:
Application Note
RA family MCU Injection current to prevent damage to MCU Application Notes
PDF 188 KB
Flyer
Renesas RA6M5 Group
PDF 480 KB 日本語
Technical Update
Addition of usage for Cache
PDF 129 KB 日本語
Technical Update
Notes on Self-Programming of the Flash Memory
PDF 177 KB 日本語
Application Note
Renesas RA Securing Data at Rest Using the Arm® TrustZone®
PDF 1.96 MB
Related Files:
Application Note
RA Family IEC60730/60335 Self Test Library for RA MCU (CM33 Class-C)
PDF 1.93 MB 日本語
Related Files:
Application Note
Getting Started with ADC Interleaved Mode Application – Application Project
PDF 1.92 MB
Related Files:
Technical Update
Addition of HOCOCR2 register for HOCO clock control
PDF 516 KB 日本語
Application Note
Capacitive Sensor MCU Capacitive Touch Noise Immunity Guide
PDF 1.58 MB 日本語
Application Note
Standard Boot Firmware for the RA family MCUs Based on Arm® Cortex®-M33
PDF 1.91 MB
Application Note
Implementing Production Programming Tools for RA Cortex-M33 with Device Lifecycle Management
PDF 3.12 MB
Related Files:
Application Note
RA AWS Cloud Connectivity on CK-RA6M5 with Cellular– Getting Started Guide
PDF 1.23 MB
Related Files:
Application Note
RA AWS MQTT/TLS Cloud Connectivity Solution – Cellular Application Project
PDF 788 KB 日本語
Related Files:
Application Note
RA Family Guidelines for Using the S Cache on the System Bus
PDF 1.04 MB
Related Files:
Technical Update
RA4M3 Group, RA6M4 Group, RA6M5 Group, adding 144 pin BGA packages with operating temperature -40 to +105 °C support
PDF 113 KB 日本語
Application Note
Arm® DSP Examples
PDF 1.00 MB
Related Files:
Application Note
Renesas RA Security Design with Arm TrustZone - IP Protection
PDF 3.75 MB 简体中文
Related Files:
Application Note
RA6 Quick Design Guide
PDF 1.96 MB 日本語 , 简体中文
Application Note
Capacitive Sensor Microcontrollers CTSU Capacitive Touch Introduction Guide
PDF 2.33 MB 日本語
Technical Update
RA4M2 Group, RA4M3 Group, RA6E1 Group, RA6M4 Group, RA6M5 Group, correction of Serial Sound Interface Enhanced (SSIE)
PDF 511 KB 日本語
Application Note
Getting Started with CoreMark Benchmarking
PDF 1.20 MB
Related Files:
Application Note
RA AWS Cloud Connectivity on CK-RA6M5 with Ethernet – Getting Started Guide
PDF 1.02 MB
Application Note
RA AWS MQTT/TLS Cloud Connectivity Solution – Ethernet Application Project
PDF 672 KB
Related Files:
Product Reliability Report
R7FA6M5XXX Reliability Report
PDF 419 KB
Technical Update
RA4E1 Group, RA4M2 Group, RA4M3 Group, RA6E1 Group, RA6M4 Group, RA6M5 Group, correction of DBLANS[4:0] bits in the ADCSR register
PDF 137 KB 日本語
Technical Update
RA4E1 Group, RA4M2 Group, RA4M3 Group, RA6E1 Group, RA6M4 Group, RA6M5 Group, correction of Quad Serial Peripheral Interface (QSPI)
PDF 165 KB 日本語
Technical Update
RA4M2 Group, RA4M3 Group, RA6E1 Group, RA6M4 Group, RA6M5 Group, correction of Serial Sound Interface Enhanced (SSIE)
PDF 512 KB 日本語
Other
RA6 Class C VDE Certification
PDF 171 KB
Application Note
NIST SP800-90B Entropy Assessment Report for RA6M5
PDF 67 KB
Technical Update
RA6M4 Group, RA4M3 Group, RA6M5 Group, correction of Thermal Resistance Value
PDF 147 KB 日本語
Application Note
RA6 Secure Bootloader Using MCUboot and Internal Code Flash
PDF 2.02 MB
Related Files:
Brochure
Building Automation Brochure
PDF 19.79 MB 日本語
Application Note
RA6 Secure Firmware Update using MCUboot and Flash Dual Bank – Application Project
PDF 2.98 MB 日本語
Related Files:
Application Note
Injecting Plaintext User Keys – Application Project
PDF 1.12 MB
Related Files:
White Paper
Solving IoT Security Issues with Embedded Microcontrollers
PDF 289 KB
Application Note
Injecting and Updating Secure User Keys for RA Family – Application Project
PDF 3.50 MB
Related Files:
Application Note
RA Ethernet Design and Custom PHY Setup using FSP
PDF 658 KB
Application Note
Secure Crypto Engine Operational Modes – Application Note
PDF 183 KB
Application Note
Capacitive Sensor Microcontrollers CTSU Capacitive Touch Electrode Design Guide Rev.2.00
PDF 8.01 MB 日本語 , 简体中文
Technical Update
Notes on Self-Programming of the Flash Memory
PDF 157 KB 日本語
Application Note
Flash Memory Programming
PDF 2.02 MB
Brochure
Capacitive Touch Sensor Solution Brochure
PDF 5.28 MB 日本語 , 简体中文
Application Note
Renesas RA Family Device Lifecycle Management Key Installation
PDF 2.44 MB 简体中文
Related Files:
Application Note
Using QE and FSP to Develop Capacitive Touch Applications
PDF 2.23 MB 日本語
Application Note
RA FSP MQTT/TLS Azure Cloud Connectivity Solution Application Note
PDF 1.64 MB
Related Files:
Technical Update
RA6M4 Group, RA6M5 Group, RA4M3 Group, RA6E1 Group, correction of note on Cache specifications
PDF 199 KB 日本語
Product Change Notice
Assembly materials change for RA/SYNERGY family LQFP package products (IMO-AZ-22-0006-1)
PDF 171 KB 日本語
Application Note
Renesas RA Family Exception Handling - Application Project
PDF 2.53 MB
Related Files:
Application Note
RA AWS MQTT/TLS Cloud Connectivity Solution Application Project
PDF 1.82 MB
Related Files:
Manual - Development Tools
EK-RA6M5 v1 – User's Manual
PDF 5.10 MB 日本語
Application Note
RA Family Guidelines for USB 2.0 Board Design
PDF 421 KB 日本語
Technical Update
GPT : Modified description for OADF and OBDF bits
PDF 228 KB 日本語
Technical Update
RA6M4 Group, RA6M5 Group, correction of CSn Control Register (CSnCR) bit
PDF 107 KB 日本語
Application Note
Converting Applications from e² studio to IAR or Keil for RA – Application Note
PDF 4.37 MB 日本語
White Paper
Crypto Acceleration for IoT: A Quantitative Comparison of Internal and External Solutions
PDF 628 KB
Application Note
NIST SP800-22r1a Random Number Statistical Test Report for RA6M5 – Application Note
PDF 56 KB
Technical Update
RA4M2 Group, RA4M3 Group, RA6M4 Group, RA6M5 Group, numbers of IO ports
PDF 183 KB 日本語
Technical Update
RA6M4 Group, RA6M5 Group, correction of Octa Serial Peripheral Interface (OSPI)
PDF 260 KB 日本語
Technical Update
RA4M2 Group, RA4M3 Group, RA6M4 Group, RA6M5 Group, addition of CTSU register bit (CTSUERRS)
PDF 310 KB 日本語
Technical Update
RA4M2 Group, RA4M3 Group, RA6M4 Group, RA6M5 Group, correction of SRAM Parity Error Operation After Detection Register (PARIOAD)
PDF 111 KB 日本語
Technical Update
RA6M5 Group, addition of pin list and package dimensions for 176 BGA
PDF 523 KB 日本語
Technical Update
RA6M5 Group, Note on the number of ADC channels.
PDF 449 KB 日本語
Quick Start Guide
EK-RA6M5 – Quick Start Guide
PDF 1.63 MB 日本語
Application Note
Notes on RA6M5 Group High-Temperature Operation
PDF 254 KB
Application Note
RA Family IEC 60730/60335 Self Test Library for RA MCU (CM33)
PDF 1.76 MB 日本語
Related Files:
Application Note
RA Family IEC 60730/60335 Self Test Library for RA MCU (CM4_CM23)
PDF 1.73 MB 日本語
Related Files:
Application Note
Getting Started with the Wi-Fi Modules on FSP
PDF 891 KB
Related Files:
Application Note
RA Azure IoT Cloud Connectivity Solution
PDF 1.78 MB
Related Files:
White Paper
The Benefits of Using Arm® TrustZone® in Your Design
PDF 1.38 MB 日本語 , 简体中文
Application Note
RA Arm® TrustZone® Tooling Primer
PDF 1.11 MB
Application Note
Migrating Projects to New FSP Version
PDF 645 KB
Flyer
Renesas Software and Tools Flash Memory Programmer PG-FP6
PDF 417 KB 日本語 , 简体中文
White Paper
Secure Internet Communication for IoT Applications
PDF 196 KB 日本語 , 简体中文
White Paper
Securing your IP and Protecting Sensitive Data
PDF 178 KB 日本語 , 简体中文
White Paper
Security for the Connected World
PDF 169 KB 日本語 , 简体中文
White Paper
How to Solve the 6 Top Security Challenges of Embedded IoT Design
PDF 660 KB 日本語 , 简体中文
Other
Semiconductor Package Mount Manual
PDF 10.28 MB 日本語 , 简体中文
General Reliability Literature
Semiconductor Reliability Handbook
PDF 14.70 MB 日本語
Add 30 hidden items
96 items

Design & Development

Software & Tools
Flexible Software Package (FSP)
FSP is an enhanced software package designed to provide easy-to-use, scalable, high-quality software for embedded system designs using Renesas RA Family of Arm Microcontrollers. Note: FSP with e² studio Installer (Platform Installer) will install the e² studio tool, FSP packs, GCC toolchain, and Segger J-Link drivers required to use this software. No additional installations are required.
Downloads
Securing your IP and Protecting Sensitive DataHow to Solve the 6 Top Security Challenges of Embedded IoT DesignSecurity for the Connected WorldSecure Internet Communication for IoT ApplicationsThe Benefits of Using Arm® TrustZone® in Your Design
RA Azure IoT Cloud Connectivity SolutionRenesas RA Family Device Lifecycle Management Key InstallationRA Arm® TrustZone® Tooling PrimerMigrating Projects to New FSP VersionInjecting Plaintext User Keys – Application ProjectGetting Started with the Wi-Fi Modules on FSPEK-RA6M5 Example Project BundleRA FSP MQTT/TLS Azure Cloud Connectivity Solution Application NoteRA AWS MQTT/TLS Cloud Connectivity Solution Application ProjectConverting Applications from e² studio to IAR or Keil for RA – Application NoteRA Family Guidelines for Using the S Cache on the System BusInjecting and Updating Secure User Keys for RA Family – Application ProjectRA6 Secure Bootloader Using MCUboot and Internal Code FlashRenesas RA Family Exception Handling - Application ProjectRA6 Secure Firmware Update using MCUboot and Flash Dual Bank – Application ProjectEK-RA6M5 Example Project BundleGetting Started with ADC Interleaved Mode Application – Application ProjectGetting Started with ADC Interleaved Mode Application – Application ProjectRA Family IEC60730/60335 Self Test Library for RA MCU (CM33 Class-C)RA Family IEC60730/60335 Self Test Library for RA MCU (CM33 Class-C) - Sample CodeRenesas RA Securing Data at Rest Using the Arm® TrustZone® - Sample CodeRenesas RA Securing Data at Rest Using the Arm® TrustZone®RYZ024A and RA MCU Firmware Upgrade from Host MCU - Sample CodeRYZ024A and RA MCU Firmware Upgrade from Host MCU
 Software Package Renesas
QE for Capacitive Touch: Development Assistance Tool for Capacitive Touch Sensors
In developing embedded system using the capacitive touch sensor of MCUs, you can easily setup initial configurations of the touch interface as well as process the tuning of sensors, and reduce development time. [Plugin for Renesas IDE "e2 studio"] [Standalone Version] [Support MCU/MPU:RA, RL78, RX, Renesas Synergy™]
Downloads
Using QE and FSP to Develop Capacitive Touch ApplicationsCapacitive Sensor Microcontrollers CTSU Capacitive Touch Electrode Design Guide Rev.2.00Capacitive Sensor MCU Capacitive Touch Noise Immunity GuideRA Family Capacitive Touch Software Filter Sample ProgramRA Family Capacitive Touch Software Filter Sample Program
 Solution Toolkit Renesas
E2 emulator Lite [RTE0T0002LKCE00000R]
On-chip debugging emulator. Also available as a flash memory programmer. [Support MCU/MPU: RA, RE, RL78, RX]
 Emulator Renesas
E2 emulator [RTE0T00020KCE00000R]
On-chip debugging emulator. Also available as a flash memory programmer. [Support MCU/MPU: RA, RE, RH850, R-Car D1, RL78, RX]
 Emulator Renesas
RA Smart Configurator
The Renesas RA Smart Configurator (RA SC) is a desktop application that helps you in configuring software systems (including a Board Support Package (BSP), drivers, RTOS, and middleware) for RA-Family MCUs when you are using a third-party IDE and toolchain.
 Solution Toolkit Renesas
PG-FP6
Flash memory programmer [Programming software: Dedicated GUI-based software, the "FP6 Terminal"] [Support MCU/MPU and devices: RA, RE, RX, RL78, RH850, Renesas Synergy, Power Management, Renesas USB Power Delivery Family, ICs for Motor Driver/Actuator Driver, SuperH RISC engine, V850, 78K, R8C]
 Programmer (Unit/SW) Renesas
Renesas Flash Programmer (Programming GUI)
Flash memory programming software [Support MCU/MPU and devices: RA, RE, RX, RL78, RH850, Renesas Synergy, Power Management, Renesas USB Power Delivery Family, ICs for Motor Driver/Actuator Driver, V850, 78KR, 78K0]
 Programmer (Unit/SW) Renesas
Sensor Software Modules for Renesas MCU Platforms
Middleware (FIT module and FSP module) and sample software packages that enable control and data acquisition for Renesas sensor products.
Downloads
HS300x Sample application - Sample Code
 Sensor Renesas
Security Key Management Tool
Key wrapping tool for key management systems using Renesas security IP. Enables secure installation and update of user application and device lifecycle management (DLM) keys.
Solution Toolkit Renesas
e² studio - information for RA Family
Eclipse-based Renesas integrated development environment (IDE). [Support MCU/MPU: RA, RE, RX, RL78, RH850, Renesas Synergy, RZ]
IDE and Coding Tool Renesas
SEGGER emWin GUI Library for Renesas RA Products
SEGGER's emWin graphics library is a ready-to-use solution that provides a versatile and professional GUI platform for creating interactive and high-quality graphical user interfaces on any type of display for the Renesas RA family.
 Imaging SEGGER
Add 2 hidden items
11 items

Sample Code
Type
Title
Date
Sample Code
EK-RA6M5 Example Project Bundle
[Software=RA FSP],[Board=EK-RA6M5]
ZIP 31.96 MB IDE: e2 studio/GCC/AC6, IAR, Keil MDK
Related Files:
Sample Code
RA Family Capacitive Touch Software Filter Sample Program
[Software=RA Flexible Software Package|v5.0.0],[Toolchains=GNU Arm Embedded|10.3-2021.10]]
ZIP 5.03 MB 日本語
Application: Consumer Electronics, Key Technologies
Compiler: GNU ARM Embedded Function: Application Example, HMI IDE: e2 studio
Related Files:
Sample Code
RYZ024A and RA MCU Firmware Upgrade from Host MCU - Sample Code
ZIP 3.36 MB
Related Files:
Sample Code
Renesas RA Securing Data at Rest Using the Arm® TrustZone® - Sample Code
ZIP 1.93 MB
Related Files:
Sample Code
RA Family IEC60730/60335 Self Test Library for RA MCU (CM33 Class-C) - Sample Code
[Software=FSP|v3.5.0],[Toolchains=GNU Arm Embedded|10.3.1.20210824]
ZIP 5.84 MB 日本語
Application: Consumer Electronics
IDE: e2 studio
Related Files:
Sample Code
Getting Started with ADC Interleaved Mode Application – Application Project
[Software=FSP|v4.4.0],[Toolchain: GCC ARM Embedded | 10.3.1.20210824]
ZIP 1.87 MB Compiler: GNUARM-NONE IDE: e2 studio
Related Files:
Sample Code
Implementing Production Programming Tools for RA Cortex-M33 with Device Lifecycle Management
ZIP 2.96 MB
Related Files:
Sample Code
RA AWS MQTT/TLS Cloud Connectivity Solution – Cellular Application Project
[Software=RA FSP|v4.2.0]
ZIP 5.96 MB Compiler: GNUARM-None IDE: e2 studio
Related Files:
Sample Code
RA Family Guidelines for Using the S Cache on the System Bus - Sample Code
ZIP 4.63 MB
Related Files:
Sample Code
Arm® DSP Examples Rev.1.10 - Sample Code
ZIP 4.73 MB
Related Files:
Sample Code
Renesas RA Security Design with Arm TrustZone - IP Protection Rev.1.30 - Sample Code
ZIP 7.36 MB
Related Files:
Sample Code
Getting Started with CoreMark Benchmarking
[Software=FSP | v4.3.0],[Toolchain: IAR compiler v9.32.1, ARM compiler v6.15]
ZIP 2.90 MB IDE: e2 studio
Related Files:
Sample Code
RA AWS MQTT/TLS Cloud Connectivity Solution – Ethernet Application Project
[Software=RA FSP|v4.2.0]
ZIP 6.07 MB Compiler: GNUARM-None IDE: e2 studio
Related Files:
Sample Code
RA6 Secure Bootloader Using MCUboot and Internal Code Flash - Sample Code
MCUboot is a secure bootloader for 32-bit MCUs. It defines a common infrastructure for the bootloader, defines system flash layout on microcontroller systems, and provides a secure bootloader that enables easy software update. [Toolchains=GCC Arm Embedded|9.3.1.20200408] [Software=RA FSP|v4.2.0] [Board=EK-RA6M3;EK-RA6M4]
ZIP 29.00 MB Compiler: GNU Arm Embedded IDE: e2 studio
Related Files:
Sample Code
RA6 Secure Firmware Update using MCUboot and Flash Dual Bank – Application Project
[Software=FSP|v4.0.0]
ZIP 29.61 MB Compiler: GNUARM-NONE IDE: e2 studio
Related Files:
Sample Code
Injecting Plaintext User Keys – Application Project - Sample Code
ZIP 12.60 MB
Related Files:
Sample Code
Injecting and Updating Secure User Keys for RA Family - Sample Code
ZIP 13.95 MB
Related Files:
Sample Code
Renesas RA Family Device Lifecycle Management Key Installation Rev.2.00 - Sample Code
ZIP 2.21 MB
Related Files:
Sample Code
RA FSP MQTT/TLS Azure Cloud Connectivity Solution Application Note - Sample Code
This application project is built with the integrated “Azure IoT SDK for Embedded C” package which allows small embedded (IoT) devices like Renesas RA family of MCUs RA6M3, RA6M4, and RA6M5 to communicate with Azure services.
ZIP 9.71 MB IDE: e2 studio
Related Files:
Sample Code
Renesas RA Family Exception Handling - Application Project - Sample Code
The application project uses the Flexible Software Package (FSP) of the RA family|| the GNU GCC compiler|| and the integrated development environment e2 studio IDE to demonstrate an exception handling flow for multiple possible faults.
ZIP 2.69 MB Compiler: GNU ARM Embedded IDE: e2 studio, Keil
Related Files:
Sample Code
RA AWS MQTT/TLS Cloud Connectivity Solution Application Project - Sample Code
The application example provided in the package uses AWS IoT Core. The detailed steps in this document show first-time AWS IoT Core users how to configure the AWS IoT Core platform to run this application example.
ZIP 4.89 MB IDE: e2 studio
Related Files:
Sample Code
RA Family IEC 60730/60335 Self Test Library for RA MCU (CM33) Rev.1.00 - Sample Code
ZIP 5.06 MB 日本語 Compiler: GNU ARM Embedded, ICCARM Function: Security IDE: e2 studio, IAR EWARM
Related Files:
Sample Code
RA Family IEC 60730/60335 Self Test Library for RA MCU (CM4_CM23) Rev.1.00 - Sample Code
[Toolchains=GCC Arm Embedded|9.2.1.20191025] [Software=RA FSP|v1.1.0]
ZIP 8.83 MB 日本語 Compiler: GNU Arm Embedded, IAR Compiler for Arm Function: Security IDE: e2 studio, IAR EWARM
Related Files:
Sample Code
Getting Started with the Wi-Fi Modules on FSP Rev.1.00 - Sample Code
The driver for the new module is developed while referencing the existing Wi-Fi driver provided by FSP as a starting point.
ZIP 929 KB IDE: e2 studio
Related Files:
Sample Code
RA Azure IoT Cloud Connectivity Solution Rev.1.00 - Sample Code
ZIP 2.01 MB IDE: e2 studio
Related Files:
25 items

Boards & Kits

EK-RA6M5 Kit

EK-RA6M5

Evaluation
Order Now

Evaluation Kit for RA6M5 MCU Group

The EK-RA6M5 evaluation kit enables users to effortlessly evaluate the features of the RA6M5 MCU Group and develop embedded systems applications using the Flexible...

Featured Documents:
EK-RA6M5 – Quick Start Guide
EK-RA6M5 v1 – User's Manual
EK-RA6M5 v1 - Design Package
CK-RA6M5 Baseboard

CK-RA6M5

Development
Order Now

Cloud Kit Based on RA6M5 MCU Group

The CK-RA6M5 cloud kit enables users to securely connect to the cloud and explore the features of the Cortex®-M33 based RA6M5 group of MCUs and cloud services. With...

Featured Documents:
CK-RA6M5 v2 – Quick Start Guide
CK-RA6M5 v1 – Quick Start Guide
Arduino Portenta C33

PORTENTA-C33

Development
Order Now

Arduino Portenta C33 for Developing Cost-effective, Real-time Applications

Optimize your way to automation with Arduino Pro's streamlined Portenta C33 module, with industrial-grade quality and guaranteed security. Ideal for developing...

ECAD Models

Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.

Explore ECAD Models
Diagram of ECAD Models

Models
Type Title Date
Model - IBIS
IBIS Models for RA6M5 (inc. BGA144)
ZIP 2.74 MB
Model - BSDL
BSDL Files for RA6M5
ZIP 133 KB
2 items

Product Options

    Processing table
    PLP
    Carrier Type
    CPU
    Operating Freq (Max) (MHz)
    Program Memory (KB)
    Data Flash (KB)
    RAM (KB)
    ECC SRAM
    Lead Count (#)
    Pkg. Type
    Pkg. Dimensions (mm)
    Pitch (mm)
    I/O Ports
    Supply Voltage (V)
    Temp. Range
    External Memory Bus (bit)
    Floating Point Unit
    DMA/DTC
    External Interrupt Pins (#)
    USBFS (host ch/device ch)
    USBHS (host ch/device ch)
    Ethernet (ch)
    CAN (ch)
    CAN-FD (ch)
    SCI (ch)
    SPI (ch)
    I2C (#)
    I3C (ch)
    LIN (#)
    SSI (ch)
    QSPI Interface (#)
    OSPI (ch)
    SDHI (ch)
    Capacitive Touch Sensing Unit (ch)
    Camera I/F (Parallel)
    Segment LCD Controller
    Wireless
    IrDA
    32-Bit Enhanced Timer (ch)
    32-Bit Timer (ch)
    16-bit Enhanced Timer (ch)
    16-Bit Timer (ch) (#)
    8-Bit Timer (ch)
    AGT (ch)
    Watchdog Timer (ch)
    24-Bit Sigma-Delta A/D Converter (ch)
    16-Bit A/D Converter (ch)
    14-Bit A/D Converter (ch)
    12-Bit A/D Converter (ch)
    10-Bit A/D Converter (ch)
    12-Bit D/A Converter (ch)
    8-Bit D/A Converter (ch)
    High-Speed Analog Comparator (ch)
    Low-Power Analog Comparator (ch)
    PGA (ch)
    OPAMP (ch) (#)
    Temperature Sensor (ch) (#)
    RTC
    LVD
    Security & Encryption
    Power-On Reset
    Sub-clock (32.768 kHz)
    On-chip Oscillator
    Debug Interface
    Replacement Product
    Replacement Remark
    Buy / Sample
    Part Number
    R7FA6M5AH2CBG#AC0
    play_circleActive
    memory
    view_in_ar
    Samples Available
    		 N/A Bulk (Tray) ARM Cortex-M33 200 2048 8 512 Yes 176 BGA 24 x 24 x 1.7 0.5 133 2.7 - 3.6 Ta=-40 to 85°C 16/8 Single 8/1 16 ( 1 / 1 ) ( 1 / 1 ) 1 2 0 10 2 3 0 0 1 1 1 1 20 No No No No 0 4 0 6 0 6 2 0 0 0 26 0 2 0 0 0 0 0 1 Yes Yes 128-bit Unique ID, AES(128/192/256), ARM TrustZone, ECC/RSA(4K)/DSA, GHASH, SHA224/SHA256, TRNG, Tamper Detection Yes Yes Yes JTAG/SWD Get Samples,
    R7FA6M5AH3CFC#AA0
    play_circleActive
    memory
    view_in_ar
    Samples Available
    		 N/A Bulk (Tray) ARM Cortex-M33 200 2048 8 512 Yes 176 LQFP 13 x 13 x 1.4 0.8 133 2.7 - 3.6 Ta=-40 to 105°C 16/8 Single 8/1 16 ( 1 / 1 ) ( 1 / 1 ) 1 2 0 10 2 3 0 0 1 1 1 1 20 No No No No 0 4 0 6 0 6 2 0 0 0 26 0 2 0 0 0 0 0 1 Yes Yes 128-bit Unique ID, AES(128/192/256), ARM TrustZone, ECC/RSA(4K)/DSA, GHASH, SHA224/SHA256, TRNG, Tamper Detection Yes Yes Yes JTAG/SWD Get Samples,
    R7FA6M5AH3CFB#AA0
    play_circleActive
    memory
    view_in_ar
    Samples Available
    		 2037 Dec Bulk (Tray) ARM Cortex-M33 200 2048 8 512 Yes 144 LQFP 20 x 20 x 1.4 0.5 110 2.7 - 3.6 Ta=-40 to 105°C 16/8 Single 8/1 16 ( 1 / 1 ) ( 0 / 0 ) 1 2 0 10 2 3 0 0 1 1 1 1 20 No No No No 0 4 0 6 0 6 2 0 0 0 22 0 2 0 0 0 0 0 1 Yes Yes 128-bit Unique ID, AES(128/192/256), ARM TrustZone, ECC/RSA(4K)/DSA, GHASH, SHA224/SHA256, TRNG, Tamper Detection Yes Yes Yes JTAG/SWD Get Samples,
    R7FA6M5AH3CFP#AA0
    play_circleActive
    memory
    view_in_ar
    Samples Available
    		 2037 Dec Bulk (Tray) ARM Cortex-M33 200 2048 8 512 Yes 100 LQFP 14 x 14 x 1.7 0.5 76 2.7 - 3.6 Ta=-40 to 105°C 8 Single 8/1 16 ( 1 / 1 ) ( 0 / 0 ) 1 2 0 10 2 3 0 0 1 1 1 1 12 No No No No 0 4 0 6 0 6 2 0 0 0 17 0 2 0 0 0 0 0 1 Yes Yes 128-bit Unique ID, AES(128/192/256), ARM TrustZone, ECC/RSA(4K)/DSA, GHASH, SHA224/SHA256, TRNG, Tamper Detection Yes Yes Yes JTAG/SWD Get Samples,
    R7FA6M5AG2CBG#AC0
    play_circleActive
    memory
    view_in_ar
    Samples Available
    		 N/A Bulk (Tray) ARM Cortex-M33 200 1536 8 512 Yes 176 BGA 24 x 24 x 1.7 0.5 133 2.7 - 3.6 Ta=-40 to 85°C 16/8 Single 8/1 16 ( 1 / 1 ) ( 1 / 1 ) 1 2 0 10 2 3 0 0 1 1 1 1 20 No No No No 0 4 0 6 0 6 2 0 0 0 26 0 2 0 0 0 0 0 1 Yes Yes 128-bit Unique ID, AES(128/192/256), ARM TrustZone, ECC/RSA(4K)/DSA, GHASH, SHA224/SHA256, TRNG, Tamper Detection Yes Yes Yes JTAG/SWD Get Samples,
    R7FA6M5AG3CFC#AA0
    play_circleActive
    memory
    view_in_ar
    Samples Available
    		 N/A Bulk (Tray) ARM Cortex-M33 200 1536 8 512 Yes 176 LQFP 13 x 13 x 1.4 0.8 133 2.7 - 3.6 Ta=-40 to 105°C 16/8 Single 8/1 16 ( 1 / 1 ) ( 1 / 1 ) 1 2 0 10 2 3 0 0 1 1 1 1 20 No No No No 0 4 0 6 0 6 2 0 0 0 26 0 2 0 0 0 0 0 1 Yes Yes 128-bit Unique ID, AES(128/192/256), ARM TrustZone, ECC/RSA(4K)/DSA, GHASH, SHA224/SHA256, TRNG, Tamper Detection Yes Yes Yes JTAG/SWD Get Samples,
    R7FA6M5AG3CFB#AA0
    play_circleActive
    memory
    view_in_ar
    Samples Available
    		 2037 Dec Bulk (Tray) ARM Cortex-M33 200 1536 8 512 Yes 144 LQFP 20 x 20 x 1.4 0.5 110 2.7 - 3.6 Ta=-40 to 105°C 16/8 Single 8/1 16 ( 1 / 1 ) ( 0 / 0 ) 1 2 0 10 2 3 0 0 1 1 1 1 20 No No No No 0 4 0 6 0 6 2 0 0 0 22 0 2 0 0 0 0 0 1 Yes Yes 128-bit Unique ID, AES(128/192/256), ARM TrustZone, ECC/RSA(4K)/DSA, GHASH, SHA224/SHA256, TRNG, Tamper Detection Yes Yes Yes JTAG/SWD Get Samples,
    R7FA6M5AG3CFP#AA0
    play_circleActive
    memory
    view_in_ar
    Samples Available
    		 2037 Dec Bulk (Tray) ARM Cortex-M33 200 1536 8 512 Yes 100 LQFP 14 x 14 x 1.7 0.5 76 2.7 - 3.6 Ta=-40 to 105°C 8 Single 8/1 16 ( 1 / 1 ) ( 0 / 0 ) 1 2 0 10 2 3 0 0 1 1 1 1 12 No No No No 0 4 0 6 0 6 2 0 0 0 17 0 2 0 0 0 0 0 1 Yes Yes 128-bit Unique ID, AES(128/192/256), ARM TrustZone, ECC/RSA(4K)/DSA, GHASH, SHA224/SHA256, TRNG, Tamper Detection Yes Yes Yes JTAG/SWD Get Samples,
    R7FA6M5BH2CBG#AC0
    play_circleActive
    memory
    view_in_ar
    Samples Available
    		 N/A Bulk (Tray) ARM Cortex-M33 200 2048 8 512 Yes 176 BGA 24 x 24 x 1.7 0.5 133 2.7 - 3.6 Ta=-40 to 85°C 16/8 Single 8/1 16 ( 1 / 1 ) ( 1 / 1 ) 1 0 2 10 2 3 0 0 1 1 1 1 20 No No No No 0 4 0 6 0 6 2 0 0 0 26 0 2 0 0 0 0 0 1 Yes Yes 128-bit Unique ID, AES(128/192/256), ARM TrustZone, ECC/RSA(4K)/DSA, GHASH, SHA224/SHA256, TRNG, Tamper Detection Yes Yes Yes JTAG/SWD Get Samples,
    R7FA6M5BG2CBG#AC0
    play_circleActive
    memory
    view_in_ar
    Samples Available
    		 N/A Bulk (Tray) ARM Cortex-M33 200 1536 8 512 Yes 176 BGA 24 x 24 x 1.7 0.5 133 2.7 - 3.6 Ta=-40 to 85°C 16/8 Single 8/1 16 ( 1 / 1 ) ( 1 / 1 ) 1 0 2 10 2 3 0 0 1 1 1 1 20 No No No No 0 4 0 6 0 6 2 0 0 0 26 0 2 0 0 0 0 0 1 Yes Yes 128-bit Unique ID, AES(128/192/256), ARM TrustZone, ECC/RSA(4K)/DSA, GHASH, SHA224/SHA256, TRNG, Tamper Detection Yes Yes Yes JTAG/SWD Get Samples,
    R7FA6M5BG3CFC#AA0
    play_circleActive
    memory
    view_in_ar
    Samples Available
    		 N/A Bulk (Tray) ARM Cortex-M33 200 1536 8 512 Yes 176 LQFP 13 x 13 x 1.4 0.8 133 2.7 - 3.6 Ta=-40 to 105°C 16/8 Single 8/1 16 ( 1 / 1 ) ( 1 / 1 ) 1 0 2 10 2 3 0 0 1 1 1 1 20 No No No No 0 4 0 6 0 6 2 0 0 0 26 0 2 0 0 0 0 0 1 Yes Yes 128-bit Unique ID, AES(128/192/256), ARM TrustZone, ECC/RSA(4K)/DSA, GHASH, SHA224/SHA256, TRNG, Tamper Detection Yes Yes Yes JTAG/SWD Get Samples,
    R7FA6M5BG3CFB#AA0
    play_circleActive
    memory
    view_in_ar
    Samples Available
    		 2037 Dec Bulk (Tray) ARM Cortex-M33 200 1536 8 512 Yes 144 LQFP 20 x 20 x 1.4 0.5 110 2.7 - 3.6 Ta=-40 to 105°C 16/8 Single 8/1 16 ( 1 / 1 ) ( 0 / 0 ) 1 0 2 10 2 3 0 0 1 1 1 1 20 No No No No 0 4 0 6 0 6 2 0 0 0 22 0 2 0 0 0 0 0 1 Yes Yes 128-bit Unique ID, AES(128/192/256), ARM TrustZone, ECC/RSA(4K)/DSA, GHASH, SHA224/SHA256, TRNG, Tamper Detection Yes Yes Yes JTAG/SWD Get Samples,
    R7FA6M5BG3CFP#AA0
    play_circleActive
    memory
    view_in_ar
    Samples Available
    		 2037 Dec Bulk (Tray) ARM Cortex-M33 200 1536 8 512 Yes 100 LQFP 14 x 14 x 1.7 0.5 76 2.7 - 3.6 Ta=-40 to 105°C 8 Single 8/1 16 ( 1 / 1 ) ( 0 / 0 ) 1 0 2 10 2 3 0 0 1 1 1 1 12 No No No No 0 4 0 6 0 6 2 0 0 0 17 0 2 0 0 0 0 0 1 Yes Yes 128-bit Unique ID, AES(128/192/256), ARM TrustZone, ECC/RSA(4K)/DSA, GHASH, SHA224/SHA256, TRNG, Tamper Detection Yes Yes Yes JTAG/SWD Get Samples,
    R7FA6M5BF2CBG#AC0
    play_circleActive
    memory
    view_in_ar
    Samples Available
    		 N/A Bulk (Tray) ARM Cortex-M33 200 1024 8 512 Yes 176 BGA 24 x 24 x 1.7 0.5 133 2.7 - 3.6 Ta=-40 to 85°C 16/8 Single 8/1 16 ( 1 / 1 ) ( 1 / 1 ) 1 0 2 10 2 3 0 0 1 1 1 1 20 No No No No 0 4 0 6 0 6 2 0 0 0 26 0 2 0 0 0 0 0 1 Yes Yes 128-bit Unique ID, AES(128/192/256), ARM TrustZone, ECC/RSA(4K)/DSA, GHASH, SHA224/SHA256, TRNG, Tamper Detection Yes Yes Yes JTAG/SWD Get Samples,
    R7FA6M5BF3CFC#AA0
    play_circleActive
    memory
    view_in_ar
    Samples Available
    		 N/A Bulk (Tray) ARM Cortex-M33 200 1024 8 512 Yes 176 LQFP 13 x 13 x 1.4 0.8 133 2.7 - 3.6 Ta=-40 to 105°C 16/8 Single 8/1 16 ( 1 / 1 ) ( 1 / 1 ) 1 0 2 10 2 3 0 0 1 1 1 1 20 No No No No 0 4 0 6 0 6 2 0 0 0 26 0 2 0 0 0 0 0 1 Yes Yes 128-bit Unique ID, AES(128/192/256), ARM TrustZone, ECC/RSA(4K)/DSA, GHASH, SHA224/SHA256, TRNG, Tamper Detection Yes Yes Yes JTAG/SWD Get Samples,
    R7FA6M5BF3CFB#AA0
    play_circleActive
    memory
    view_in_ar
    Samples Available
    		 2037 Dec Bulk (Tray) ARM Cortex-M33 200 1024 8 512 Yes 144 LQFP 20 x 20 x 1.4 0.5 110 2.7 - 3.6 Ta=-40 to 105°C 16/8 Single 8/1 16 ( 1 / 1 ) ( 0 / 0 ) 1 0 2 10 2 3 0 0 1 1 1 1 20 No No No No 0 4 0 6 0 6 2 0 0 0 22 0 2 0 0 0 0 0 1 Yes Yes 128-bit Unique ID, AES(128/192/256), ARM TrustZone, ECC/RSA(4K)/DSA, GHASH, SHA224/SHA256, TRNG, Tamper Detection Yes Yes Yes JTAG/SWD Get Samples,
    R7FA6M5BF3CFP#AA0
    play_circleActive
    memory
    view_in_ar
    Samples Available
    		 2037 Dec Bulk (Tray) ARM Cortex-M33 200 1024 8 512 Yes 100 LQFP 14 x 14 x 1.7 0.5 76 2.7 - 3.6 Ta=-40 to 105°C 8 Single 8/1 16 ( 1 / 1 ) ( 0 / 0 ) 1 0 2 10 2 3 0 0 1 1 1 1 12 No No No No 0 4 0 6 0 6 2 0 0 0 17 0 2 0 0 0 0 0 1 Yes Yes 128-bit Unique ID, AES(128/192/256), ARM TrustZone, ECC/RSA(4K)/DSA, GHASH, SHA224/SHA256, TRNG, Tamper Detection Yes Yes Yes JTAG/SWD Get Samples,
    R7FA6M5BH3CFB#AA0
    play_circleActive
    memory
    view_in_ar
    Samples Available
    		 2037 Dec Bulk (Tray) ARM Cortex-M33 200 2048 8 512 Yes 144 LQFP 20 x 20 x 1.4 0.5 110 2.7 - 3.6 Ta=-40 to 105°C 16/8 Single 8/1 16 ( 1 / 1 ) ( 0 / 0 ) 1 0 2 10 2 3 0 0 1 1 1 1 20 No No No No 0 4 0 6 0 6 2 0 0 0 22 0 2 0 0 0 0 0 1 Yes Yes 128-bit Unique ID, AES(128/192/256), ARM TrustZone, ECC/RSA(4K)/DSA, GHASH, SHA224/SHA256, TRNG, Tamper Detection Yes Yes Yes JTAG/SWD Get Samples,
    R7FA6M5BH3CFC#AA0
    play_circleActive
    memory
    view_in_ar
    Samples Available
    		 N/A Bulk (Tray) ARM Cortex-M33 200 2048 8 512 Yes 176 LQFP 13 x 13 x 1.4 0.8 133 2.7 - 3.6 Ta=-40 to 105°C 16/8 Single 8/1 16 ( 1 / 1 ) ( 1 / 1 ) 1 0 2 10 2 3 0 0 1 1 1 1 20 No No No No 0 4 0 6 0 6 2 0 0 0 26 0 2 0 0 0 0 0 1 Yes Yes 128-bit Unique ID, AES(128/192/256), ARM TrustZone, ECC/RSA(4K)/DSA, GHASH, SHA224/SHA256, TRNG, Tamper Detection Yes Yes Yes JTAG/SWD Get Samples,
    R7FA6M5BH3CFP#AA0
    play_circleActive
    memory
    view_in_ar
    Samples Available
    		 2037 Dec Bulk (Tray) ARM Cortex-M33 200 2048 8 512 Yes 100 LQFP 14 x 14 x 1.7 0.5 76 2.7 - 3.6 Ta=-40 to 105°C 8 Single 8/1 16 ( 1 / 1 ) ( 0 / 0 ) 1 0 2 10 2 3 0 0 1 1 1 1 12 No No No No 0 4 0 6 0 6 2 0 0 0 17 0 2 0 0 0 0 0 1 Yes Yes 128-bit Unique ID, AES(128/192/256), ARM TrustZone, ECC/RSA(4K)/DSA, GHASH, SHA224/SHA256, TRNG, Tamper Detection Yes Yes Yes JTAG/SWD Get Samples,
    R7FA6M5AH2CBM#BC0
    play_circleActive
    memory
    view_in_ar
    Samples Available
    		 N/A Full Carton (Tray) ARM Cortex-M33 200 2048 8 512 Yes 144 BGA 7 x 7 x 1.29 0.5 110 2.7 - 3.6 Ta=-40 to 85°C 16/8 Single 8/1 16 ( 1 / 1 ) ( 0 / 0 ) 1 2 0 10 2 3 0 0 1 1 1 1 20 No No No No 0 4 0 6 0 6 2 0 0 0 22 0 2 0 0 0 0 0 1 Yes Yes 128-bit Unique ID, AES(128/192/256), ARM TrustZone, ECC/RSA(4K)/DSA, GHASH, SHA224/SHA256, TRNG, Tamper Detection Yes Yes Yes JTAG/SWD Get Samples,
    R7FA6M5AG2CBM#BC0
    play_circleActive
    memory
    view_in_ar
    Samples Available
    		 N/A Full Carton (Tray) ARM Cortex-M33 200 1536 8 512 Yes 144 BGA 7 x 7 x 1.29 0.5 110 2.7 - 3.6 Ta=-40 to 85°C 16/8 Single 8/1 16 ( 1 / 1 ) ( 0 / 0 ) 1 2 0 10 2 3 0 0 1 1 1 1 20 No No No No 0 4 0 6 0 6 2 0 0 0 22 0 2 0 0 0 0 0 1 Yes Yes 128-bit Unique ID, AES(128/192/256), ARM TrustZone, ECC/RSA(4K)/DSA, GHASH, SHA224/SHA256, TRNG, Tamper Detection Yes Yes Yes JTAG/SWD Get Samples,
    R7FA6M5BH2CBM#BC0
    play_circleActive
    memory
    view_in_ar
    Samples Available
    		 N/A Full Carton (Tray) ARM Cortex-M33 200 2048 8 512 Yes 144 BGA 7 x 7 x 1.29 0.5 110 2.7 - 3.6 Ta=-40 to 85°C 16/8 Single 8/1 16 ( 1 / 1 ) ( 0 / 0 ) 1 0 2 10 2 3 0 0 1 1 1 1 20 No No No No 0 4 0 6 0 6 2 0 0 0 22 0 2 0 0 0 0 0 1 Yes Yes 128-bit Unique ID, AES(128/192/256), ARM TrustZone, ECC/RSA(4K)/DSA, GHASH, SHA224/SHA256, TRNG, Tamper Detection Yes Yes Yes JTAG/SWD Get Samples,
    R7FA6M5BG2CBM#BC0
    play_circleActive
    memory
    view_in_ar
    Samples Available
    		 N/A Full Carton (Tray) ARM Cortex-M33 200 1536 8 512 Yes 144 BGA 7 x 7 x 1.29 0.5 110 2.7 - 3.6 Ta=-40 to 85°C 16/8 Single 8/1 16 ( 1 / 1 ) ( 0 / 0 ) 1 0 2 10 2 3 0 0 1 1 1 1 20 No No No No 0 4 0 6 0 6 2 0 0 0 22 0 2 0 0 0 0 0 1 Yes Yes 128-bit Unique ID, AES(128/192/256), ARM TrustZone, ECC/RSA(4K)/DSA, GHASH, SHA224/SHA256, TRNG, Tamper Detection Yes Yes Yes JTAG/SWD Get Samples,
    R7FA6M5BF2CBM#BC0
    play_circleActive
    memory
    view_in_ar
    Samples Available
    		 N/A Full Carton (Tray) ARM Cortex-M33 200 1024 8 512 Yes 144 BGA 7 x 7 x 1.29 0.5 110 2.7 - 3.6 Ta=-40 to 85°C 16/8 Single 8/1 16 ( 1 / 1 ) ( 0 / 0 ) 1 0 2 10 2 3 0 0 1 1 1 1 20 No No No No 0 4 0 6 0 6 2 0 0 0 22 0 2 0 0 0 0 0 1 Yes Yes 128-bit Unique ID, AES(128/192/256), ARM TrustZone, ECC/RSA(4K)/DSA, GHASH, SHA224/SHA256, TRNG, Tamper Detection Yes Yes Yes JTAG/SWD Get Samples,
    R7FA6M5AH3CBM#BC0
    play_circleActive
    memory
    view_in_ar
    Samples Available
    		 N/A Full Carton (Tray) ARM Cortex-M33 200 2048 8 512 Yes 144 BGA 7 x 7 x 1.29 0.5 110 2.7 - 3.6 Ta=-40 to 105°C 16/8 Single 8/1 16 ( 1 / 1 ) ( 0 / 0 ) 1 2 0 10 2 3 0 0 1 1 1 1 20 No No No No 0 4 0 6 0 6 2 0 0 0 22 0 2 0 0 0 0 0 1 Yes Yes 128-bit Unique ID, AES(128/192/256), ARM TrustZone, ECC/RSA(4K)/DSA, GHASH, SHA224/SHA256, TRNG, Tamper Detection Yes Yes Yes JTAG/SWD Get Samples,
    R7FA6M5AG3CBM#BC0
    play_circleActive
    memory
    view_in_ar
    Samples Available
    		 N/A Full Carton (Tray) ARM Cortex-M33 200 1536 8 512 Yes 144 BGA 7 x 7 x 1.29 0.5 110 2.7 - 3.6 Ta=-40 to 105°C 16/8 Single 8/1 16 ( 1 / 1 ) ( 0 / 0 ) 1 2 0 10 2 3 0 0 1 1 1 1 20 No No No No 0 4 0 6 0 6 2 0 0 0 22 0 2 0 0 0 0 0 1 Yes Yes 128-bit Unique ID, AES(128/192/256), ARM TrustZone, ECC/RSA(4K)/DSA, GHASH, SHA224/SHA256, TRNG, Tamper Detection Yes Yes Yes JTAG/SWD Get Samples,
    R7FA6M5BH3CBM#BC0
    play_circleActive
    memory
    view_in_ar
    Samples Available
    		 N/A Full Carton (Tray) ARM Cortex-M33 200 2048 8 512 Yes 144 BGA 7 x 7 x 1.29 0.5 110 2.7 - 3.6 Ta=-40 to 105°C 16/8 Single 8/1 16 ( 1 / 1 ) ( 0 / 0 ) 1 0 2 10 2 3 0 0 1 1 1 1 20 No No No No 0 4 0 6 0 6 2 0 0 0 22 0 2 0 0 0 0 0 1 Yes Yes 128-bit Unique ID, AES(128/192/256), ARM TrustZone, ECC/RSA(4K)/DSA, GHASH, SHA224/SHA256, TRNG, Tamper Detection Yes Yes Yes JTAG/SWD Get Samples,
    R7FA6M5BG3CBM#BC0
    play_circleActive
    memory
    view_in_ar
    Samples Available
    		 N/A Full Carton (Tray) ARM Cortex-M33 200 1536 8 512 Yes 144 BGA 7 x 7 x 1.29 0.5 110 2.7 - 3.6 Ta=-40 to 105°C 16/8 Single 8/1 16 ( 1 / 1 ) ( 0 / 0 ) 1 0 2 10 2 3 0 0 1 1 1 1 20 No No No No 0 4 0 6 0 6 2 0 0 0 22 0 2 0 0 0 0 0 1 Yes Yes 128-bit Unique ID, AES(128/192/256), ARM TrustZone, ECC/RSA(4K)/DSA, GHASH, SHA224/SHA256, TRNG, Tamper Detection Yes Yes Yes JTAG/SWD Get Samples,
    R7FA6M5BF3CBM#BC0
    play_circleActive
    memory
    view_in_ar
    Samples Available
    		 N/A Full Carton (Tray) ARM Cortex-M33 200 1024 8 512 Yes 144 BGA 7 x 7 x 1.29 0.5 110 2.7 - 3.6 Ta=-40 to 105°C 16/8 Single 8/1 16 ( 1 / 1 ) ( 0 / 0 ) 1 0 2 10 2 3 0 0 1 1 1 1 20 No No No No 0 4 0 6 0 6 2 0 0 0 22 0 2 0 0 0 0 0 1 Yes Yes 128-bit Unique ID, AES(128/192/256), ARM TrustZone, ECC/RSA(4K)/DSA, GHASH, SHA224/SHA256, TRNG, Tamper Detection Yes Yes Yes JTAG/SWD Get Samples,
    R7FA6M5AH2CBG#BC0
    play_circleActive
    memory
    view_in_ar
    Samples Available
    		 N/A Full Carton (Tray) ARM Cortex-M33 200 2048 8 512 Yes 176 BGA 24 x 24 x 1.7 0.5 133 2.7 - 3.6 Ta=-40 to 85°C 16/8 Single 8/1 16 ( 1 / 1 ) ( 1 / 1 ) 1 2 0 10 2 3 0 0 1 1 1 1 20 No No No No 0 4 0 6 0 6 2 0 0 0 26 0 2 0 0 0 0 0 1 Yes Yes 128-bit Unique ID, AES(128/192/256), ARM TrustZone, ECC/RSA(4K)/DSA, GHASH, SHA224/SHA256, TRNG, Tamper Detection Yes Yes Yes JTAG/SWD Get Samples,
    R7FA6M5AH3CFC#BA0
    play_circleActive
    memory
    view_in_ar
    Samples Available
    		 N/A Full Carton (Tray) ARM Cortex-M33 200 2048 8 512 Yes 176 LQFP 13 x 13 x 1.4 0.8 133 2.7 - 3.6 Ta=-40 to 105°C 16/8 Single 8/1 16 ( 1 / 1 ) ( 1 / 1 ) 1 2 0 10 2 3 0 0 1 1 1 1 20 No No No No 0 4 0 6 0 6 2 0 0 0 26 0 2 0 0 0 0 0 1 Yes Yes 128-bit Unique ID, AES(128/192/256), ARM TrustZone, ECC/RSA(4K)/DSA, GHASH, SHA224/SHA256, TRNG, Tamper Detection Yes Yes Yes JTAG/SWD Get Samples,
    R7FA6M5AH3CFB#BA0
    play_circleActive
    memory
    view_in_ar
    Samples Available
    		 N/A Full Carton (Tray) ARM Cortex-M33 200 2048 8 512 Yes 144 LQFP 20 x 20 x 1.4 0.5 110 2.7 - 3.6 Ta=-40 to 105°C 16/8 Single 8/1 16 ( 1 / 1 ) ( 0 / 0 ) 1 2 0 10 2 3 0 0 1 1 1 1 20 No No No No 0 4 0 6 0 6 2 0 0 0 22 0 2 0 0 0 0 0 1 Yes Yes 128-bit Unique ID, AES(128/192/256), ARM TrustZone, ECC/RSA(4K)/DSA, GHASH, SHA224/SHA256, TRNG, Tamper Detection Yes Yes Yes JTAG/SWD Get Samples,
    R7FA6M5AH3CFP#BA0
    play_circleActive
    memory
    view_in_ar
    Samples Available
    		 N/A Full Carton (Tray) ARM Cortex-M33 200 2048 8 512 Yes 100 LQFP 14 x 14 x 1.7 0.5 76 2.7 - 3.6 Ta=-40 to 105°C 8 Single 8/1 16 ( 1 / 1 ) ( 0 / 0 ) 1 2 0 10 2 3 0 0 1 1 1 1 12 No No No No 0 4 0 6 0 6 2 0 0 0 17 0 2 0 0 0 0 0 1 Yes Yes 128-bit Unique ID, AES(128/192/256), ARM TrustZone, ECC/RSA(4K)/DSA, GHASH, SHA224/SHA256, TRNG, Tamper Detection Yes Yes Yes JTAG/SWD Get Samples,
    R7FA6M5AG2CBG#BC0
    play_circleActive
    memory
    view_in_ar
    Samples Available
    		 N/A Full Carton (Tray) ARM Cortex-M33 200 1536 8 512 Yes 176 BGA 24 x 24 x 1.7 0.5 133 2.7 - 3.6 Ta=-40 to 85°C 16/8 Single 8/1 16 ( 1 / 1 ) ( 1 / 1 ) 1 2 0 10 2 3 0 0 1 1 1 1 20 No No No No 0 4 0 6 0 6 2 0 0 0 26 0 2 0 0 0 0 0 1 Yes Yes 128-bit Unique ID, AES(128/192/256), ARM TrustZone, ECC/RSA(4K)/DSA, GHASH, SHA224/SHA256, TRNG, Tamper Detection Yes Yes Yes JTAG/SWD Get Samples,
    R7FA6M5AG3CFC#BA0
    play_circleActive
    memory
    view_in_ar
    Samples Available
    		 N/A Full Carton (Tray) ARM Cortex-M33 200 1536 8 512 Yes 176 LQFP 13 x 13 x 1.4 0.8 133 2.7 - 3.6 Ta=-40 to 105°C 16/8 Single 8/1 16 ( 1 / 1 ) ( 1 / 1 ) 1 2 0 10 2 3 0 0 1 1 1 1 20 No No No No 0 4 0 6 0 6 2 0 0 0 26 0 2 0 0 0 0 0 1 Yes Yes 128-bit Unique ID, AES(128/192/256), ARM TrustZone, ECC/RSA(4K)/DSA, GHASH, SHA224/SHA256, TRNG, Tamper Detection Yes Yes Yes JTAG/SWD Get Samples,
    R7FA6M5AG3CFB#BA0
    play_circleActive
    memory
    view_in_ar
    Samples Available
    		 N/A Full Carton (Tray) ARM Cortex-M33 200 1536 8 512 Yes 144 LQFP 20 x 20 x 1.4 0.5 110 2.7 - 3.6 Ta=-40 to 105°C 16/8 Single 8/1 16 ( 1 / 1 ) ( 0 / 0 ) 1 2 0 10 2 3 0 0 1 1 1 1 20 No No No No 0 4 0 6 0 6 2 0 0 0 22 0 2 0 0 0 0 0 1 Yes Yes 128-bit Unique ID, AES(128/192/256), ARM TrustZone, ECC/RSA(4K)/DSA, GHASH, SHA224/SHA256, TRNG, Tamper Detection Yes Yes Yes JTAG/SWD Get Samples,
    R7FA6M5AG3CFP#BA0
    play_circleActive
    memory
    view_in_ar
    Samples Available
    		 N/A Full Carton (Tray) ARM Cortex-M33 200 1536 8 512 Yes 100 LQFP 14 x 14 x 1.7 0.5 76 2.7 - 3.6 Ta=-40 to 105°C 8 Single 8/1 16 ( 1 / 1 ) ( 0 / 0 ) 1 2 0 10 2 3 0 0 1 1 1 1 12 No No No No 0 4 0 6 0 6 2 0 0 0 17 0 2 0 0 0 0 0 1 Yes Yes 128-bit Unique ID, AES(128/192/256), ARM TrustZone, ECC/RSA(4K)/DSA, GHASH, SHA224/SHA256, TRNG, Tamper Detection Yes Yes Yes JTAG/SWD Get Samples,
    R7FA6M5BH2CBG#BC0
    play_circleActive
    memory
    view_in_ar
    Samples Available
    		 N/A Full Carton (Tray) ARM Cortex-M33 200 2048 8 512 Yes 176 BGA 24 x 24 x 1.7 0.5 133 2.7 - 3.6 Ta=-40 to 85°C 16/8 Single 8/1 16 ( 1 / 1 ) ( 1 / 1 ) 1 0 2 10 2 3 0 0 1 1 1 1 20 No No No No 0 4 0 6 0 6 2 0 0 0 26 0 2 0 0 0 0 0 1 Yes Yes 128-bit Unique ID, AES(128/192/256), ARM TrustZone, ECC/RSA(4K)/DSA, GHASH, SHA224/SHA256, TRNG, Tamper Detection Yes Yes Yes JTAG/SWD Get Samples,
    R7FA6M5BG2CBG#BC0
    play_circleActive
    memory
    view_in_ar
    Samples Available
    		 N/A Full Carton (Tray) ARM Cortex-M33 200 1536 8 512 Yes 176 BGA 24 x 24 x 1.7 0.5 133 2.7 - 3.6 Ta=-40 to 85°C 16/8 Single 8/1 16 ( 1 / 1 ) ( 1 / 1 ) 1 0 2 10 2 3 0 0 1 1 1 1 20 No No No No 0 4 0 6 0 6 2 0 0 0 26 0 2 0 0 0 0 0 1 Yes Yes 128-bit Unique ID, AES(128/192/256), ARM TrustZone, ECC/RSA(4K)/DSA, GHASH, SHA224/SHA256, TRNG, Tamper Detection Yes Yes Yes JTAG/SWD Get Samples,
    R7FA6M5BG3CFC#BA0
    play_circleActive
    memory
    view_in_ar
    Samples Available
    		 N/A Full Carton (Tray) ARM Cortex-M33 200 1536 8 512 Yes 176 LQFP 13 x 13 x 1.4 0.8 133 2.7 - 3.6 Ta=-40 to 105°C 16/8 Single 8/1 16 ( 1 / 1 ) ( 1 / 1 ) 1 0 2 10 2 3 0 0 1 1 1 1 20 No No No No 0 4 0 6 0 6 2 0 0 0 26 0 2 0 0 0 0 0 1 Yes Yes 128-bit Unique ID, AES(128/192/256), ARM TrustZone, ECC/RSA(4K)/DSA, GHASH, SHA224/SHA256, TRNG, Tamper Detection Yes Yes Yes JTAG/SWD Get Samples,
    R7FA6M5BG3CFB#BA0
    play_circleActive
    memory
    view_in_ar
    Samples Available
    		 N/A Full Carton (Tray) ARM Cortex-M33 200 1536 8 512 Yes 144 LQFP 20 x 20 x 1.4 0.5 110 2.7 - 3.6 Ta=-40 to 105°C 16/8 Single 8/1 16 ( 1 / 1 ) ( 0 / 0 ) 1 0 2 10 2 3 0 0 1 1 1 1 20 No No No No 0 4 0 6 0 6 2 0 0 0 22 0 2 0 0 0 0 0 1 Yes Yes 128-bit Unique ID, AES(128/192/256), ARM TrustZone, ECC/RSA(4K)/DSA, GHASH, SHA224/SHA256, TRNG, Tamper Detection Yes Yes Yes JTAG/SWD Get Samples,
    R7FA6M5BG3CFP#BA0
    play_circleActive
    memory
    view_in_ar
    Samples Available
    		 N/A Full Carton (Tray) ARM Cortex-M33 200 1536 8 512 Yes 100 LQFP 14 x 14 x 1.7 0.5 76 2.7 - 3.6 Ta=-40 to 105°C 8 Single 8/1 16 ( 1 / 1 ) ( 0 / 0 ) 1 0 2 10 2 3 0 0 1 1 1 1 12 No No No No 0 4 0 6 0 6 2 0 0 0 17 0 2 0 0 0 0 0 1 Yes Yes 128-bit Unique ID, AES(128/192/256), ARM TrustZone, ECC/RSA(4K)/DSA, GHASH, SHA224/SHA256, TRNG, Tamper Detection Yes Yes Yes JTAG/SWD Get Samples,
    R7FA6M5BF2CBG#BC0
    play_circleActive
    memory
    view_in_ar
    Samples Available
    		 N/A Full Carton (Tray) ARM Cortex-M33 200 1024 8 512 Yes 176 BGA 24 x 24 x 1.7 0.5 133 2.7 - 3.6 Ta=-40 to 85°C 16/8 Single 8/1 16 ( 1 / 1 ) ( 1 / 1 ) 1 0 2 10 2 3 0 0 1 1 1 1 20 No No No No 0 4 0 6 0 6 2 0 0 0 26 0 2 0 0 0 0 0 1 Yes Yes 128-bit Unique ID, AES(128/192/256), ARM TrustZone, ECC/RSA(4K)/DSA, GHASH, SHA224/SHA256, TRNG, Tamper Detection Yes Yes Yes JTAG/SWD Get Samples,
    R7FA6M5BF3CFC#BA0
    play_circleActive
    memory
    view_in_ar
    Samples Available
    		 N/A Full Carton (Tray) ARM Cortex-M33 200 1024 8 512 Yes 176 LQFP 13 x 13 x 1.4 0.8 133 2.7 - 3.6 Ta=-40 to 105°C 16/8 Single 8/1 16 ( 1 / 1 ) ( 1 / 1 ) 1 0 2 10 2 3 0 0 1 1 1 1 20 No No No No 0 4 0 6 0 6 2 0 0 0 26 0 2 0 0 0 0 0 1 Yes Yes 128-bit Unique ID, AES(128/192/256), ARM TrustZone, ECC/RSA(4K)/DSA, GHASH, SHA224/SHA256, TRNG, Tamper Detection Yes Yes Yes JTAG/SWD Get Samples,
    R7FA6M5BF3CFB#BA0
    play_circleActive
    memory
    view_in_ar
    Samples Available
    		 N/A Full Carton (Tray) ARM Cortex-M33 200 1024 8 512 Yes 144 LQFP 20 x 20 x 1.4 0.5 110 2.7 - 3.6 Ta=-40 to 105°C 16/8 Single 8/1 16 ( 1 / 1 ) ( 0 / 0 ) 1 0 2 10 2 3 0 0 1 1 1 1 20 No No No No 0 4 0 6 0 6 2 0 0 0 22 0 2 0 0 0 0 0 1 Yes Yes 128-bit Unique ID, AES(128/192/256), ARM TrustZone, ECC/RSA(4K)/DSA, GHASH, SHA224/SHA256, TRNG, Tamper Detection Yes Yes Yes JTAG/SWD Get Samples,
    R7FA6M5BF3CFP#BA0
    play_circleActive
    memory
    view_in_ar
    Samples Available
    		 N/A Full Carton (Tray) ARM Cortex-M33 200 1024 8 512 Yes 100 LQFP 14 x 14 x 1.7 0.5 76 2.7 - 3.6 Ta=-40 to 105°C 8 Single 8/1 16 ( 1 / 1 ) ( 0 / 0 ) 1 0 2 10 2 3 0 0 1 1 1 1 12 No No No No 0 4 0 6 0 6 2 0 0 0 17 0 2 0 0 0 0 0 1 Yes Yes 128-bit Unique ID, AES(128/192/256), ARM TrustZone, ECC/RSA(4K)/DSA, GHASH, SHA224/SHA256, TRNG, Tamper Detection Yes Yes Yes JTAG/SWD Get Samples,
    R7FA6M5BH3CFC#BA0
    play_circleActive
    memory
    view_in_ar
    Samples Available
    		 N/A Full Carton (Tray) ARM Cortex-M33 200 2048 8 512 Yes 176 LQFP 13 x 13 x 1.4 0.8 133 2.7 - 3.6 Ta=-40 to 105°C 16/8 Single 8/1 16 ( 1 / 1 ) ( 1 / 1 ) 1 0 2 10 2 3 0 0 1 1 1 1 20 No No No No 0 4 0 6 0 6 2 0 0 0 26 0 2 0 0 0 0 0 1 Yes Yes 128-bit Unique ID, AES(128/192/256), ARM TrustZone, ECC/RSA(4K)/DSA, GHASH, SHA224/SHA256, TRNG, Tamper Detection Yes Yes Yes JTAG/SWD Get Samples,
    R7FA6M5BH3CFB#BA0
    play_circleActive
    memory
    view_in_ar
    Samples Available
    		 N/A Full Carton (Tray) ARM Cortex-M33 200 2048 8 512 Yes 144 LQFP 20 x 20 x 1.4 0.5 110 2.7 - 3.6 Ta=-40 to 105°C 16/8 Single 8/1 16 ( 1 / 1 ) ( 0 / 0 ) 1 0 2 10 2 3 0 0 1 1 1 1 20 No No No No 0 4 0 6 0 6 2 0 0 0 22 0 2 0 0 0 0 0 1 Yes Yes 128-bit Unique ID, AES(128/192/256), ARM TrustZone, ECC/RSA(4K)/DSA, GHASH, SHA224/SHA256, TRNG, Tamper Detection Yes Yes Yes JTAG/SWD Get Samples,
    R7FA6M5BH3CFP#BA0
    play_circleActive
    memory
    view_in_ar
    Samples Available
    		 N/A Full Carton (Tray) ARM Cortex-M33 200 2048 8 512 Yes 100 LQFP 14 x 14 x 1.7 0.5 76 2.7 - 3.6 Ta=-40 to 105°C 8 Single 8/1 16 ( 1 / 1 ) ( 0 / 0 ) 1 0 2 10 2 3 0 0 1 1 1 1 12 No No No No 0 4 0 6 0 6 2 0 0 0 17 0 2 0 0 0 0 0 1 Yes Yes 128-bit Unique ID, AES(128/192/256), ARM TrustZone, ECC/RSA(4K)/DSA, GHASH, SHA224/SHA256, TRNG, Tamper Detection Yes Yes Yes JTAG/SWD Get Samples,
    Parametric Table tips

    Tips for Using This Parametric Table:

    • Hide Filters button in header: Collapse or expands filters
    • Column sort buttons in header: Sort Column alphabetically / numerically descending or ascending
    • Reset button in header: Reset all filters to the page default
    • Full Screen button in header: Expand the table to full screen view (user must close out of full screen before they can interact with rest of page)
    • Export button in header: Export the filtered results of the table to an Excel document
    • Filter parts search bar in header: Type to filter table results by part number
    • Hide column button in column headers: Select to hide columns in table
    • AND / OR toggle switches in header: Toggles the logic of this particular filter to be “AND” or “OR” logic for filtering results
    • Multiselect checkboxes at beginning of each row in table: Select these checkboxes to compare products against each other
    • Document icon next to product name in row: View the featured document for this product
    • Chip icon next to the right of the document icon in row: View the block diagram for this product
    • Cart icon to the right of the chip icon: Indicates that samples are available for this product

    Companion Products

    ISL80015
    Compact Synchronous Buck Converter
    Order now
    Datasheet
    ISL85412
    Wide VIN 150mA Synchronous Buck Regulator
    Order now
    Datasheet
    RAA211605
    60V 0.5A DC/DC Step-Down Regulator with 450kHz Switching Frequency
    Order now
    Datasheet
    ISL80505
    High Performance 500mA LDO
    Order now
    Datasheet
    RAA214220
    20V, 150mA Linear Regulator
    Order now
    Datasheet
    RAA214401
    150mA Wide Input Range Ultra Low Quiescent Current Linear Regulator
    Order now
    Datasheet
    RAA211651
    60V 5A Low Quiescent Current Integrated Switching Regulator
    Order now
    Datasheet
    ISL9122A
    Ultra-Low IQ Buck-Boost Regulator with Bypass
    Order now
    Datasheet
    RAA223011
    700V AC/DC Regulator with Ultra-Low Standby Power and up to 5W Output Power
    Order now
    Datasheet
    Sensor Products

    Low power, high-accuracy environmental sensor and sensor IC solutions

    Order now
    RS-485, RS-422 & RS-232

    Basic, low cost and enhanced RS-232 and RS-485/422 transceivers

    Order now
    DA16200MOD
    Ultra-Low Power Wi-Fi Modules for Battery Powered IoT Devices
    Order now
    Datasheet
    DA16600MOD
    Ultra-Low Power Wi-Fi + Bluetooth® Low Energy Combo Modules for Battery Powered IoT Devices
    Order now
    Datasheet
    DA14531MOD
    SmartBond TINY™ Bluetooth® Low Energy Module
    Order now
    Datasheet

    Support

    RA Forum
    RA Family FAQs
    Contact Technical Support
    Get Samples
    RA Video Library
    RA Online Training Modules
    Product Longevity Program (PLP)
    MCU / MPU Selection Tool
    Contact a Sales Representative

    Renesas Samples

    Select an orderable part number:

    Orderable Part ID Sample
    R7FA6M5AG2CBG#AC0
    Availability
    Add to request
    R7FA6M5AG2CBG#BC0
    Availability
    Add to request
    R7FA6M5AG2CBM#BC0
    Availability
    Add to request
    R7FA6M5AG3CBM#BC0
    Availability
    Add to request
    R7FA6M5AG3CFB#AA0
    Availability
    Add to request
    R7FA6M5AG3CFB#BA0
    Availability
    Add to request
    R7FA6M5AG3CFB#HA0
    Availability
    Add to request
    R7FA6M5AG3CFC#AA0
    Availability
    Add to request
    R7FA6M5AG3CFC#BA0
    Availability
    Add to request
    R7FA6M5AG3CFP#AA0
    Availability
    Add to request
    R7FA6M5AG3CFP#BA0
    Availability
    Add to request
    R7FA6M5AH2CBG#AC0
    Availability
    Add to request
    R7FA6M5AH2CBG#BC0
    Availability
    Add to request
    R7FA6M5AH2CBM#BC0
    Availability
    Add to request
    R7FA6M5AH3CBM#BC0
    Availability
    Add to request
    R7FA6M5AH3CFB#AA0
    Availability
    Add to request
    R7FA6M5AH3CFB#BA0
    Availability
    Add to request
    R7FA6M5AH3CFC#AA0
    Availability
    Add to request
    R7FA6M5AH3CFC#BA0
    Availability
    Add to request
    R7FA6M5AH3CFP#AA0
    Availability
    Add to request
    R7FA6M5AH3CFP#BA0
    Availability
    Add to request
    R7FA6M5BF2CBG#AC0
    Availability
    Add to request
    R7FA6M5BF2CBG#BC0
    Availability
    Add to request
    R7FA6M5BF2CBM#BC0
    Availability
    Add to request
    R7FA6M5BF3CBM#BC0
    Availability
    Add to request
    R7FA6M5BF3CFB#AA0
    Availability
    Add to request
    R7FA6M5BF3CFB#BA0
    Availability
    Add to request
    R7FA6M5BF3CFC#AA0
    Availability
    Add to request
    R7FA6M5BF3CFC#BA0
    Availability
    Add to request
    R7FA6M5BF3CFP#AA0
    Availability
    Add to request
    R7FA6M5BF3CFP#BA0
    Availability
    Add to request
    R7FA6M5BG2CBG#AC0
    Availability
    Add to request
    R7FA6M5BG2CBG#BC0
    Availability
    Add to request
    R7FA6M5BG2CBM#BC0
    Availability
    Add to request
    R7FA6M5BG3CBM#BC0
    Availability
    Add to request
    R7FA6M5BG3CFB#AA0
    Availability
    Add to request
    R7FA6M5BG3CFB#BA0
    Availability
    Add to request
    R7FA6M5BG3CFC#AA0
    Availability
    Add to request
    R7FA6M5BG3CFC#BA0
    Availability
    Add to request
    R7FA6M5BG3CFP#AA0
    Availability
    Add to request
    R7FA6M5BG3CFP#BA0
    Availability
    Add to request
    R7FA6M5BH2CBG#AC0
    Availability
    Add to request
    R7FA6M5BH2CBG#BC0
    Availability
    Add to request
    R7FA6M5BH2CBM#BC0
    Availability
    Add to request
    R7FA6M5BH3CBM#BC0
    Availability
    Add to request
    R7FA6M5BH3CFB#AA0
    Availability
    Add to request
    R7FA6M5BH3CFB#BA0
    Availability
    Add to request
    R7FA6M5BH3CFC#AA0
    Availability
    Add to request
    R7FA6M5BH3CFC#BA0
    Availability
    Add to request
    R7FA6M5BH3CFP#AA0
    Availability
    Add to request
    R7FA6M5BH3CFP#BA0
    Availability
    Add to request

    Resources

    Renesas RA Partner Ecosystem Overview Page
    micro-ROS Solutions External Link
    RA6 Series Kits for Renesas Advanced (RA) Microcontrollers

    Kickstart IoT and embedded systems development using Renesas EK-RA6M5, EK-RA6M4, and EK-RA6M3 evaluation kits for the RA6 MCU series. This video provides an overview of the kit architecture, key features, a quick start example project, and many useful resources to begin innovating quickly with Renesas RA MCUs.

    Video List
    RA6 Series Kits for Renesas Advanced (RA) Microcontrollers
    RA6M5 200MHz Arm® Cortex®-M33 MCUs with Extensive Communication Options
    Introducing the Renesas RA Family of 32-Bit Microcontrollers
    Evaluation Kits for Renesas Advanced (RA) Microcontrollers

    Events & Webinars

    News & Blog Posts

    Simplify the Robotics Design Process with RA MCUs and micro-ROS Blog Post Mar 27, 2023
    Using Example Projects to Support RA MCU Designs Blog Post Oct 6, 2022
    Get Where You’re Going with the Official Renesas RA Family Guide Blog Post Jun 29, 2021
    5 Reasons Why the RA6M5 is the Perfect MCU for Your Secure Platform Design Blog Post Mar 20, 2021

    Pin Count / Memory Size

    Flash: 2MB
    RAM: 512kB    		●●●●
    Flash: 1.5MB
    RAM: 512kB    		●●●●
    Flash: 1MB
    RAM: 512kB    		●●●●
    Pin Count
    Package
    Size
    Pitch    		100-pin
    LQFP
    14x14mm
    0.5mm    		144-pin
    LQFP
    20x20mm
    0.5mm    		176-pin
    LQFP
    24x24mm
    0.5mm    		176-pin
    BGA
    13x13mm
    0.8mm
