This reference design allows for the control of multiple servos using the Robot Operating System (ROS). Our RA6M5 MCU, featuring the high-performance Arm^® Cortex^®-M33, integrates communication interfaces like Ethernet and USB for seamless Pub/Sub messaging between ROS nodes. By utilizing our ISL81401 buck-boost controller and other power devices, we deliver the precise voltage needed for each servo and the entire system.

Features

Supports XRCE-DDS client used for ROS by the high-performance RA6M5
Can control multiple servos via 1-wire UART and RS-485
Supports Pub/Sub communication via Ethernet, USB, and Wi-Fi modules

Applications

Robotics

JP177-ROSBODYREFZ Reference Design Board - Top

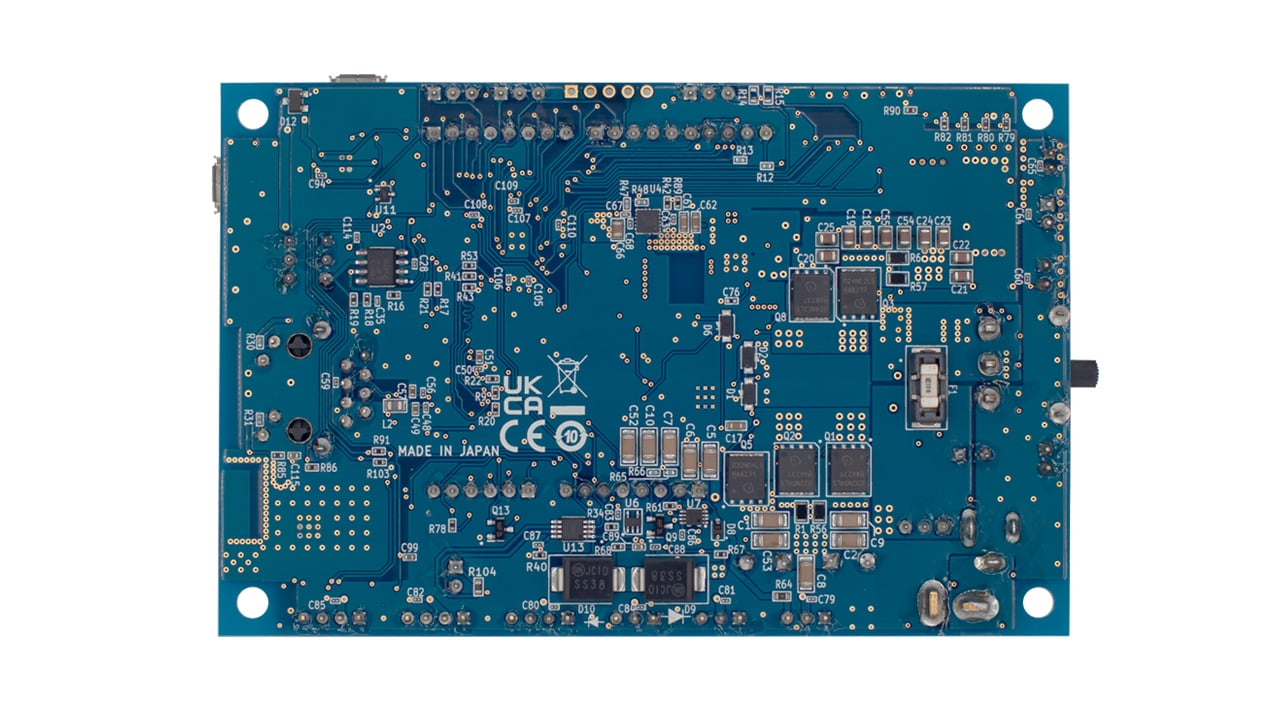

JP177-ROSBODYREFZ Reference Design Board - Bottom

JP177-ROSBODYREFZ Reference Design Board

Products in the Design

3D illustration featuring top and bottom views of LFBGA IC chip package with 100 lead count.

RA Arm Cortex-M MCUs

RA6M5

200MHz Arm Cortex-M33 TrustZone, Highest Integration with Ethernet and CAN FD

Datasheet

ISL3179E	High ESD Protected, +125°C, 40Mbps, 3.3V, Full Fail-Safe, RS-485/RS-422 Transceivers
ISL81401A	40V Unidirectional 4-Switch Synchronous Buck-Boost Controller
ISL88002	Ultra-Low Power 3 Ld Voltage Supervisors in SC-70 and SOT-23 Packages
RAA211650	60V 5A Integrated Switching Regulator
RAA214020	5.5V 2A Ultra-Low Noise, High PSRR, LDO
