Dual General Purpose Micropower, RRIO Operational Amplifiers
Jump to Page Section:
Overview
Description
The ISL28214 is a dual general purpose micropower, rail-to-rail input and output (RRIO) operational amplifier with a supply voltage range of 1.8V to 5.5V. Key features are a low supply current of 390μA maximum per channel at room temperature, a low bias current, and a wide input voltage range, which enables the ISL28214 device to be an excellent general purpose op amp for a wide range of applications. The ISL28214 is available in the MSOP8, SO8 and SOT23-8 packages. And, the device operate across the extended temperature range of -40 °C to +125 °C.
Features
- Low current consumption: 390μA
- Wide supply range: 1.8V to 5.5V
- Gain-bandwidth product: 5MHz
- Input bias current: 20pA, Max.
- Operating temperature range: -40 °C to +125 °C
- Packages: MSOP8, SO8, SOT23-8
Applications
| Edge Keyword Detection | |
|
48V Mobility Solution |
|
Smart Solar Irrigation Pump Controller |
| Robotic Lawn Mower | |
|
3KW Off-Board Electric Vehicle (EV) Charger |
|
Pure Sine Wave Home Inverter |
Applications
- Power supply control/regulation
- Process control
- Signal gain/buffers
- Active filters

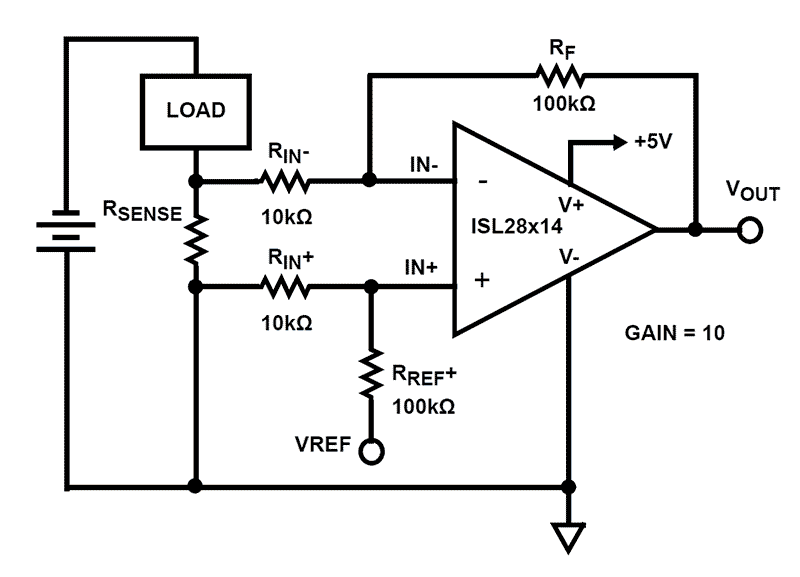

- Current shunt sensing
- Transimpedance amp
