Overview

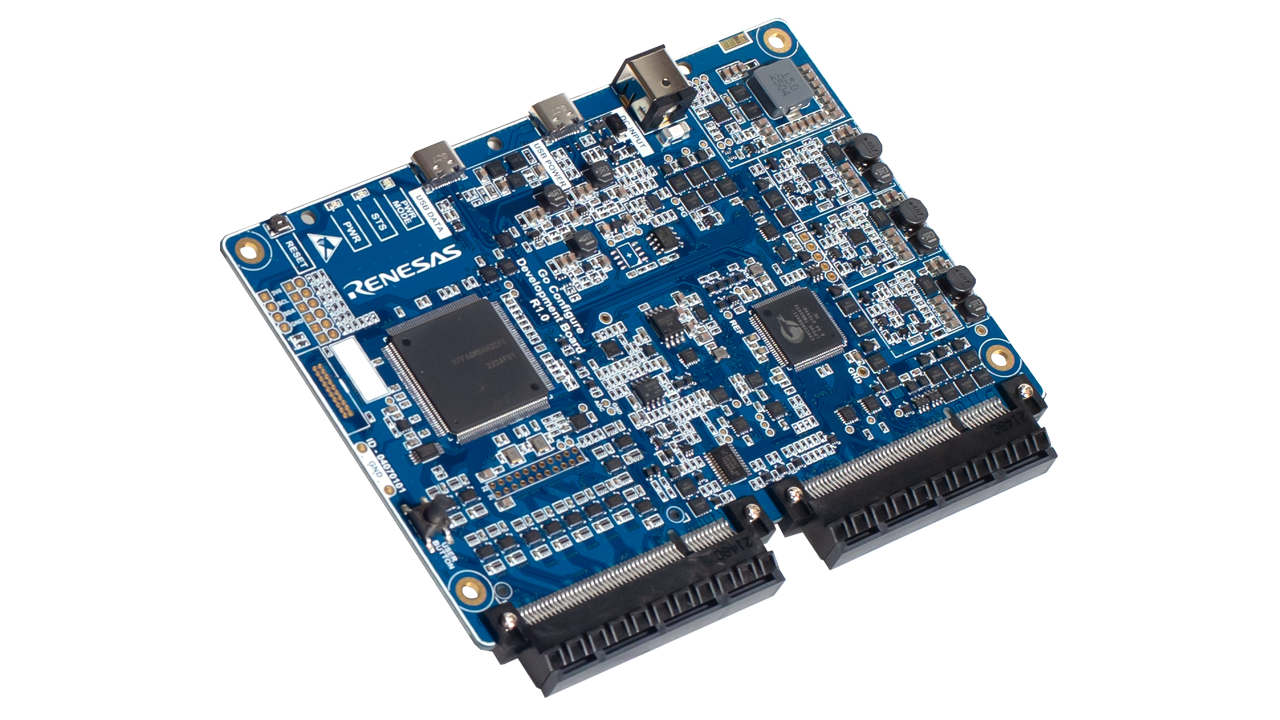

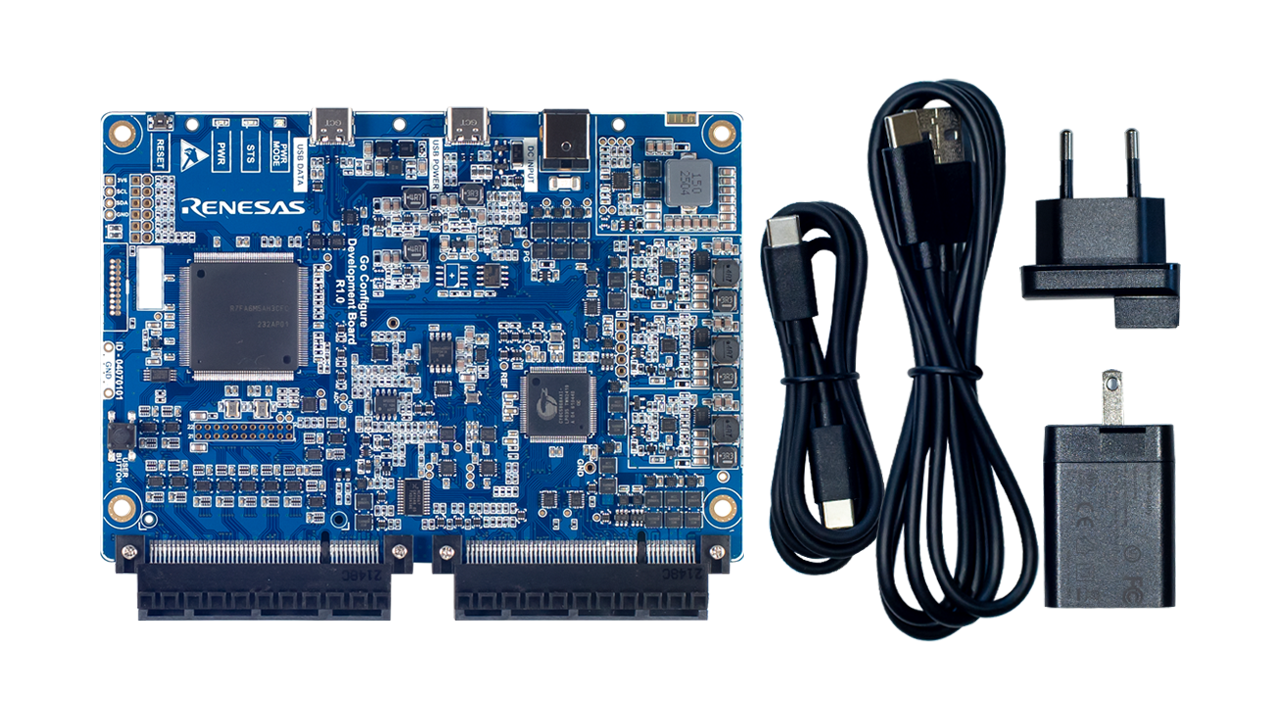

The Go Configure™ Development Board is a universal development board for Renesas' ForgeFPGA™ and GreenPAK™ products.
A set of compatible socket cards is available for a quick and easy start to the development process. This board is ideal for rapid prototyping, evaluation, and development of the Renesas FPGA and GreenPAK programmable mixed-signal devices. It is tightly integrated with the Go Configure Software Hub, which offers a graphical interface for design creation, simulation, and device programming.
Features
- Supports read, emulation, and programming functionality for ForgeFPGA and GreenPAK products
- ForgeFPGA devices interface directly with the Go Configure Development Board using device-specific socket cards, whereas GreenPAK devices connect through the GreenPAK Extension Card
- Flexible power interconnections, including support for dual Vdd supply
- Multiple combinations of power sources, including USB Type-C input with USB Power Delivery (PD) support
- Rich onboard analog and digital functions, like analog and digital generators, and ramp generators for power lines
- Designed for seamless integration with the Go Configure Software Hub, providing centralized control of programming, emulation, power management, and test functions
- Supports ForgeFPGA emulation, OTP configuration programming, and onboard Flash programming through device-specific socket cards
