Wi-Fi 6 Concurrent Dual Band 4T4R PCIe Chip
Jump to Page Section:
Overview
Description

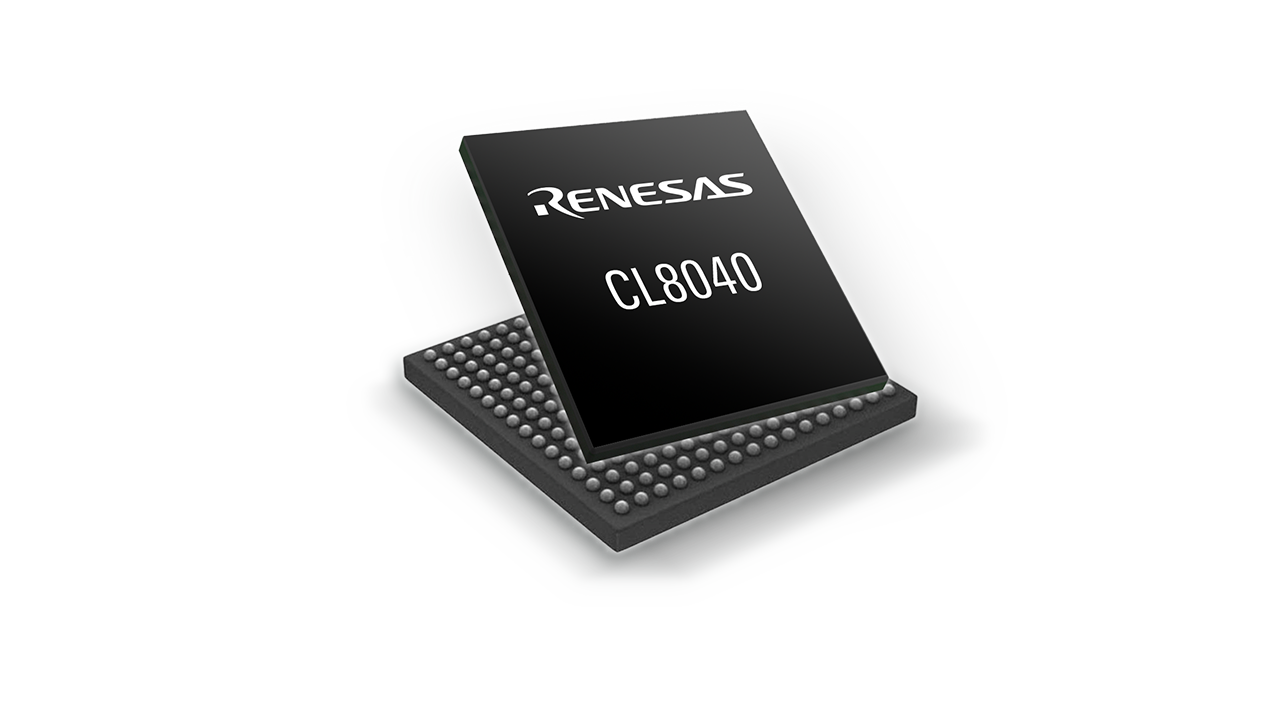

The CL8040 is a high-performing, highly integrated Wi-Fi 6 (802.11ax) R2 single PCIe chip that delivers the best Wi-Fi network performance for its size by combining two Wi-Fi 6 radios into a single 11x11mm PCIe chip. The chip employs two concurrent dual-band Wi-Fi 6 radios with 4T4R architecture that can drive aggregated PHY/data link speeds up to 4.8Gbps. The two independent radios can function as an access point, client, AP/CLI, connectivity + dedicated spectrum intelligent engine.
CL8040 integrates dual MAC, dual PHY, analog and RFIC in a single package, including the required CPUs and memories to run more of the wireless LAN functions on-chip, eliminating the need for costly external memories. Interface to the host is over a dual-lane PCIe 3.0 interface.
The CL8040 is designed to support standard based features addressing security, quality of service and international regulation, as well as above-standard integrated value-add functionalities based on embedded and edge software technologies.
Features
- Wi-Fi 6 (802.11ax) R2
- Concurrent dual band, dual transceiver
- 4.8Gbps aggregated PHY/data link speed
- Single PCIe 3.0 (dual-lane) interface
- Small 11x11 BGA package
- DL/UL MU-OFDMA support
- DL/UL MU-MIMO support
- Beamforming support
- Uplink scheduling
- QAM 1024 (MCS 10, 11) modulation
- 20, 40, 80, 160MHz support in 5GHz
- 20 and 40MHz support in 2.4GHz
- WEP, WPA, WPA2, WPA3, TKIP, AES, WAPI
- QoS-WMM, WMM-PS
- IEEE 802.11e, h, i, k, r, v, w, z support
- Advanced spectrum intelligence
Applications
| Wired & Wireless IEEE 1588 Solution | |
|
Industrial Gateway with Wi-Fi 6 |
| High Throughput Wi-Fi 6 Router | |
| Wireless Electronic Gaming Table | |
|
Connected Android Cluster |
Applications
- Home Gateways
- Multimedia Gateways
- Enterprise Access Points
- SMB Access Points
- Routers
- Extenders
- Mesh Nodes
- Bandwidth-Intense Connected IoT
- Smart TVs
- Industrial PLCs
