Overview
Description

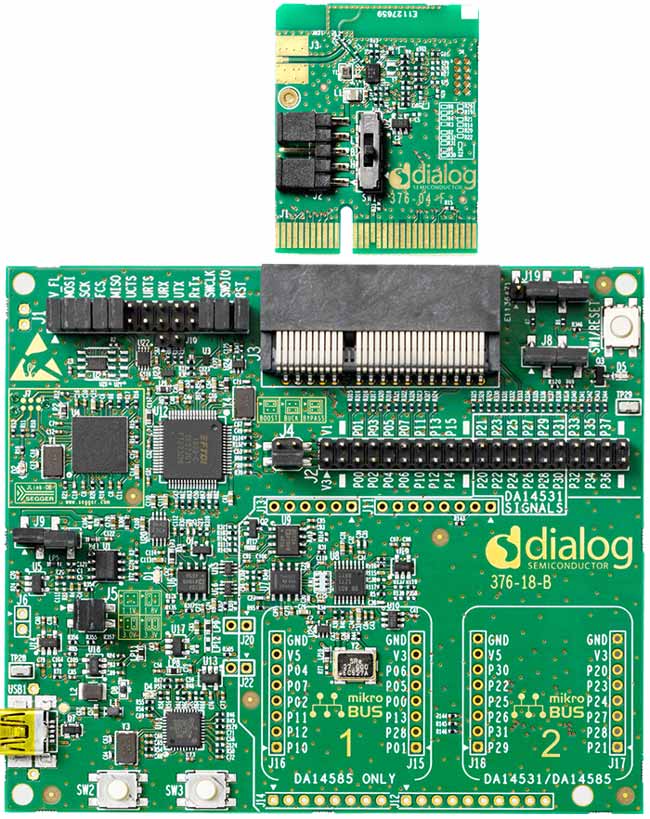

The DA14531 SmartBond TINY™ Development Kit Pro is the ideal way to quickly and easily get started developing applications and products using the DA14531 Bluetooth® Low Energy (LE) system-on-chip (SoC).
Features
- Two mikroBUS™ header interfaces and one Arduino interface, enabling you to expand the functionality of the kits with hundreds of available click boards and shields
- Embedded printed antenna and SMA connector capability enable you to perform RF measurements
- Onboard 2-Mbit SPI data Flash
- Onboard SEGGER chip gives you complete debugging capability
- One user LED
- Two user buttons and one reset button
- Mini USB port to provide power and data interfacing to a PC
- Support for coin cell battery
- Software
- SmartSnippets™ Studio, to profile and fine-tune the power consumption of your application
- Support Keil® Integrated Development Environment
- Free Software Development Kit (SDK) for peripheral and Bluetooth LE examples
- Set of software examples built on top of the SDK is available for download
Applications
