Overview
Description
The DA14531 SmartBond TINY™ Development Kit Pro (DA14531-00FXDEVKT-P) is the ideal way to quickly and easily get started developing applications and products using the DA14531 Bluetooth® Low Energy (LE) system-on-chip (SoC).

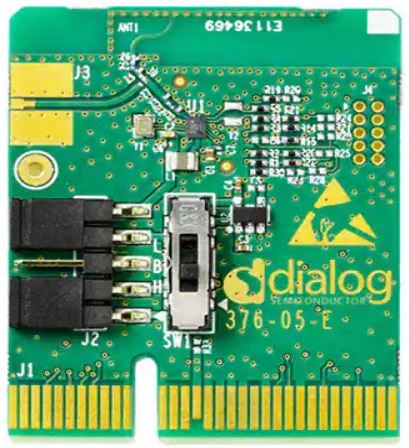

The DA14531-00OGDB-P is the WL-CSP daughterboard that can be ordered separately for the DA14531 SmartBond TINY™ Development Kit Pro's motherboard.
Features
- Embedded printed antenna
- RF port output (connector not included)
- DA14531 power mode configuration switch (only for backward compatibility with DA1458x DK PRO motherboard)
- Current measurement port to connect external measurement equipment
- Onboard JTAG connector
- Support for coin cell battery (battery holder not included)
Applications
