The R9A02G011 is a USB Power Delivery Controller that is based on the Universal Serial Bus (USB) Power Delivery Specification Revision 3.0 and USB Type-C™ Cable and Connecter Specification Revision 1. 3. The R9A02G011 performs negotiation for more current and/or higher voltages over the USB cable (VBUS) than are defined in the USB2.0, USB3.0 or BC1.2 specifications, and controls circuitry to select local power source or power sink. The R9A02G011 uses a 300kbps BMC modulated signal through the CC wire in the USB Type-C™ cable. It comes in a small 32-pin QFN package and integrates several commonly required external components, making it ideally suited for applications with limited PCB space. In addition, the R9A02G011 incorporates Renesas' low-power technologies.

Features

  • Compliant with USB Power Delivery Specification Revision 3.0 and USB Type-C™ Cable and Connector Specification Revision 1.3.
    • Certified by USB Implementers Forum: TID=1061007 (Silicon), 1020074 (E-marker)
    • Supports Programmable Power Supply
    • Supports IEC63002
    • Supports up to 260 bytes data transfer
    • Supports all USB Type-C™ Connection State Diagrams for USB Type-C™ port contro
  • Compliant with USB Power Delivery Specification Revision 2.0
    • Certified by USB Implementers Forum: TID=1000004 (Silicon), 1020073 (E-marker)
    • Supports alternate mode and electronically marked cables
    • Supports Dual Role operation and Role Swap protocol
    • Supports Dead Battery operation
  • Single Power Supply with wide voltage range from 3.0 to 5.5V

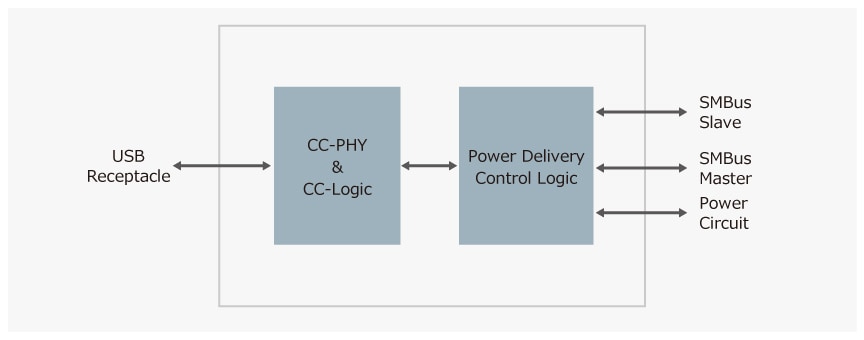

  • Integrated CC-PHY and CC-logic
  • On-chip Flash ROM
  • On-chip Oscillator
  • On-chip Power-On-Reset (POR) circuit
  • Small Footprint
    • Small and low pin count package with simple pin assignment for PCB layout
    • Integration of many peripheral components
  • Supports SMBus Master and Slave interfaces
  • Suitable for Energy Star and EuP specifications for low-power PC peripheral systems.

Applications

  • USB outlet, Portable Charger/Power Bank
  • AC Adapter, USB PD Hub, PC
  • Mobile Device (Smartphone, Tablet), Docking Station
  • PC Peripheral Device (Monitor, Printer, Router, External HDD)
  • Home Electronics (DTV, STB, Home Gateway)
  • POS, Measuring instrument

descriptionDocumentation

Title language Type Format File Size Date
Datasheets & Errata
star R9A02G011 Data Sheet Datasheet PDF 578 KB
R5H30313XB08 for USB Type-C™ Authentication Data Sheet Datasheet PDF 396 KB
User Guides & Manuals
R9A02G011 User's Manual: Hardware Manual - Hardware PDF 1.21 MB
Application Notes & White Papers
R9A02G011/R9J02G012 Using SMBus Slave Interface Application Note PDF 471 KB
R9A02G011 / R9J02G012 Firmware development guide for USB Type-C™ Authentication (R19AN0061EJ0200) Application Note PDF 2.13 MB
R9A02G011 / R9J02G012 Flash memory Programming Guide Application Note PDF 899 KB
Tool News
[Notes] Renesas Flash Programmer 日本語 Tool News - Note PDF 29 KB
Other
Power Delivery Controller R9A02G011" Pamphlet" 日本語 Flyer PDF 91 KB

memoryBoards & Kits

Part Number Title Type Company
RTK-251-1PowerBank3 3-cell Li-ion Battery Power Bank Reference Board with USB-Type-C™ Port Evaluation Renesas
RTK-251-BuckBoostConverter2 DC-DC Module Evaluation Kit for Universal USB Power Delivery AC Adaptor Evaluation Renesas
RTK-251-DRPEVB Firmware Development Evaluation Kit for Universal USB Power Delivery Evaluation Renesas

NOTE:
This product uses SuperFlash(R) technology licensed from Silicon Storage Technology, inc. SuperFlash(R) is a registered trademark of Silicon Storage Technology, Inc. in several countries including the United States and Japan.
