Overview
Description

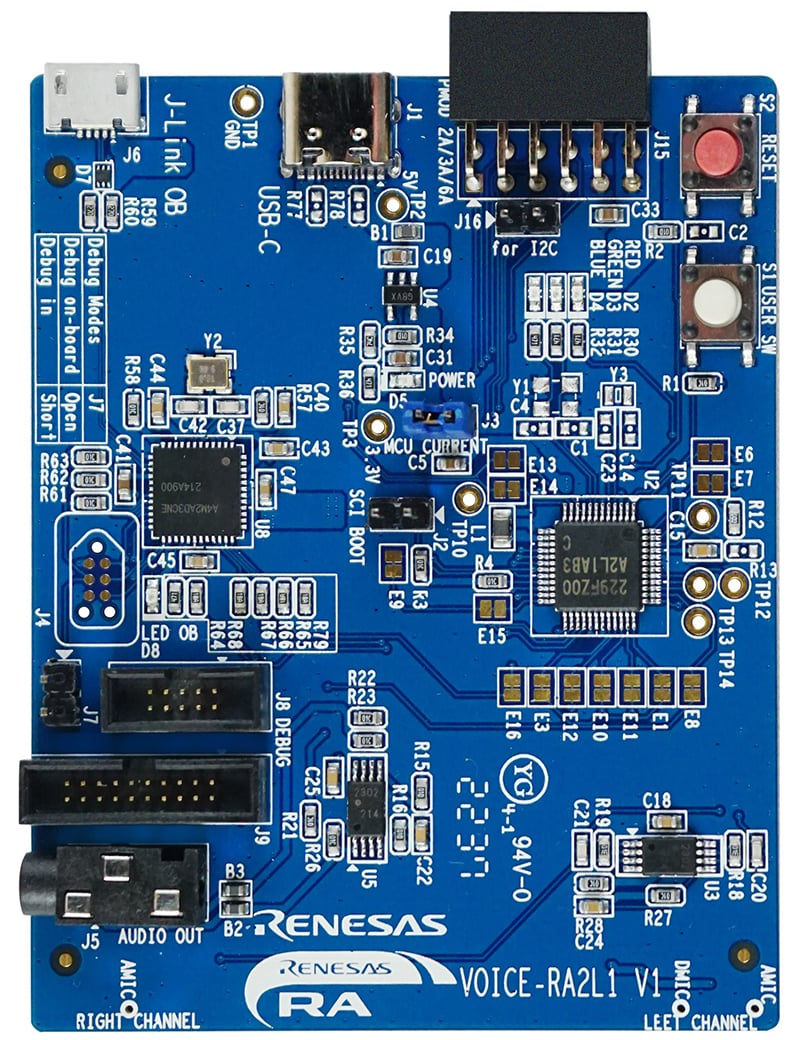

Easy-to-use hardware platform for Voice User Interface (VUI) solutions based on the RA2L1 MCU.
This VUI partner-enabled solution is based on the RA family of 32-bit MCUs. The hardware platform is used for all VUI partner-enabled solutions provided by Renesas within the Renesas Ready Partner Network. It demonstrates how easy it is to control your system with a simple voice command interface without extensive coding experience or in-house expertise.
You will build an enhanced working solution that recognizes your own voice commands to trigger the corresponding operation using the Renesas Partner Network Solutions utilizing the Voice Hardware Platform.
Features
- Hardware Features:
- Compact VUI solution using RA2L1. Small 10mm x 10mm size to fit into end product.
- Local voice recognition algorithm, no network connectivity needed.
- Choices of digital and analog microphones are populated for alternative input options.
- External QSPI flash memory enhances storage for voice samples and library data.
- Cyberon DSpotter Enabled Features:
- Global language support of 40+ languages worldwide.
- Support voice tag function to let a user change command by voice recording.
- Support voice response function for acknowledge. Enhance user experience.
- DSMT tool support wake-word and commands customization, performance tuning, testing, no prior neural network knowledge needed.
- Low Bill of Materials (BOM) cost and footprint. The minimum requirements are the MCU, one DMIC, and a power supply.
Applications
|
Edge Voice User Interface (VUI)
Voice control with RA MCUs offers efficient, network-free voice recognition for smart devices.
|
Additional Applications
- Network‑independent endpoint voice UI for edge applications
- IoT devices
- Home appliances
- Wearable/Hearable devices
Documentation
|
|
|
|
|---|---|---|
| Type | Title | Date |
| Manual - Development Tools | PDF 498 KB | |
| PCB Design Files | ZIP 223 KB | |
| Quick Start Guide | Voice Kit RA2L1 Quick Start Guide
|
|
| Brochure | PDF 3.63 MB | |
| Flyer | PDF 656 KB | |
| White Paper |
PDF
794 KB
This Design Journey demonstrates how to integrate Renesas RA6/4/2 MCUs with Cyberon DSpotter Voice UI technology to create a local, non-connected speech recognition solution for LED-based light bulb control. By designing a simple circuit and accompanying software, this guide highlights the ease, efficiency, and maintainability of incorporating Voice UI into your product using the RA6 Voice Kit.
|
|
| White Paper |
PDF
441 KB
Traditional voice or speech recognition technology is based on a trained model with specific words or phrases. Natural language processing is word-order independent. This requires large computing power to run the real time data through a neural network. The Cyberon approach is different, allowing the algorithms to run on a small, general purpose MCU.
|
|
| Flyer | PDF 446 KB 日本語 | |
8 items
|
||
Design & Development
Software & Tools
Software & Tools
| Software title
|
Software type
|
Company
|
|---|---|---|
| Cyberon DSpotter Provides local voice trigger and command recognition with robust noise reduction. Consumes very low resources while delivering high-accuracy performance. Runs on Renesas RA microcontroller unit (MCU) family, RX671, and RX72N, supporting multiple languages, connectivity functions, and security capabilities depending on the selected MCU. Enables offline operation without cloud connectivity for privacy and reliability.
|
AI | Cyberon |
| RA Flexible Software Package (FSP) FSP is an enhanced software package designed to provide easy-to-use, scalable, high-quality software for embedded system designs using Renesas RA Family of Arm Microcontrollers.
Note: FSP with e² studio Installer (Platform Installer) will install the e² studio tool, FSP packs, GCC toolchain, and Segger J-Link drivers required to use this software. No additional installations are required.
|
Software Package | Renesas |
2 items
|
||
Sample Code
Related Boards & Kits
Boards & Kits
RA6E1 Voice User Demonstration Kit
Easy-to-use hardware platform for Voice User Interface (VUI) solutions based on the RA6E1 MCU.
This VUI partner-enabled solution is based on the RA family of 32-bit MCUs. The hardware platform is used for all VUI partner-enabled solutions provided by Renesas within the Renesas Ready Partner... Read More
Test This Board Remotely
RA4E1 Voice User Demonstration Kit
Easy-to-use hardware platform for Voice User Interface (VUI) solutions based on the RA4E1 MCU.
This VUI partner-enabled solution is based on the RA family of 32-bit MCUs. The hardware platform is used for all VUI partner-enabled solutions provided by Renesas within the Renesas Ready Partner... Read More
Product Options
| Part Number | Status | Stock | Sampleable | Key Features | MCU/MPU | Additional Features |
|---|---|---|---|---|---|---|
| TW001-VUIA2L1POCZ | Active | Out of Stock | Available | Low MHz Consumption | RA2L1 (Arm C23, MHz, 256KB/32KB/8KB, 48LQFP) | 1xDMIC, 2xAMIC, USB-C/B, UART, DAC AUDIO OUT, 2xOP-AMP, J-Link Segger |
