LoRa®-based Solutions for RA Family

LoRa^®-based Solutions for Low Power

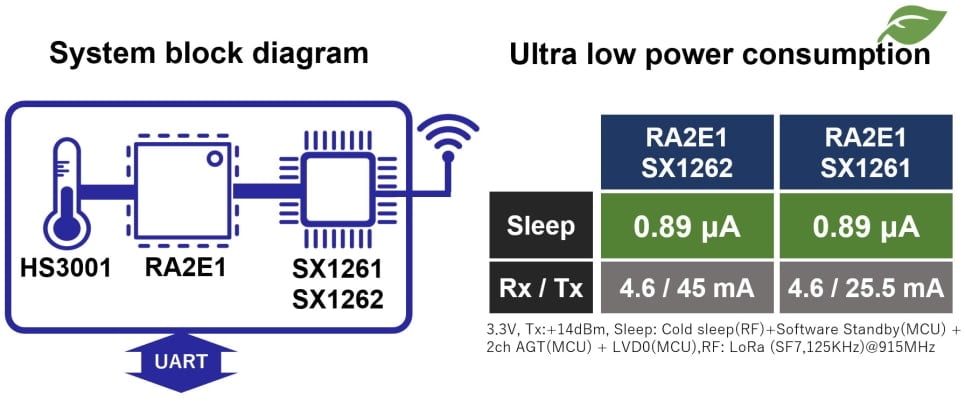

One of Renesas’ solutions comprises a low power RA2E1 microcontroller and a LoRa^® transceiver (Semtech SX1261/SX1262) for low power operation. This solution contributes to the realization of IoT sensor end-devices with long battery life.


LoRaWAN^® Average Current (Estimation): LoRaWAN^® Class A Operation - TX + RX (ACK)


Low power consumption of LoRaWAN^® stack

• LoRaWAN^® stack shifts RF part to the most suitable low consumption mode automatically according to the internal operating state.
• MCU part can be shifted to a low consumption mode during frame sending and receiving.
• Low power timer function optimized for intermittent operation is supported. This can also be used from an application.

Development Environment for Easy Development and Evaluation

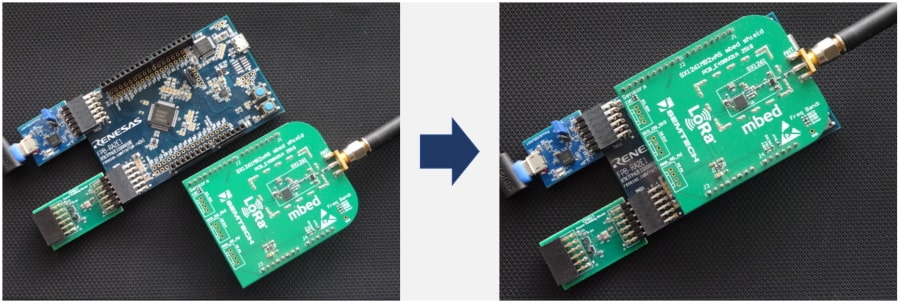

The software development environment consists of the RA2E1 Fast Prototyping Board and the Semtech SX1261/SX1262. The use of wireless receivers and transmitters is restricted by international standards and domestic regulations. Wireless receivers and transmitters must therefore be used in accordance with the applicable laws and regulations of the country in which they are being used.


Software for Ease of Design

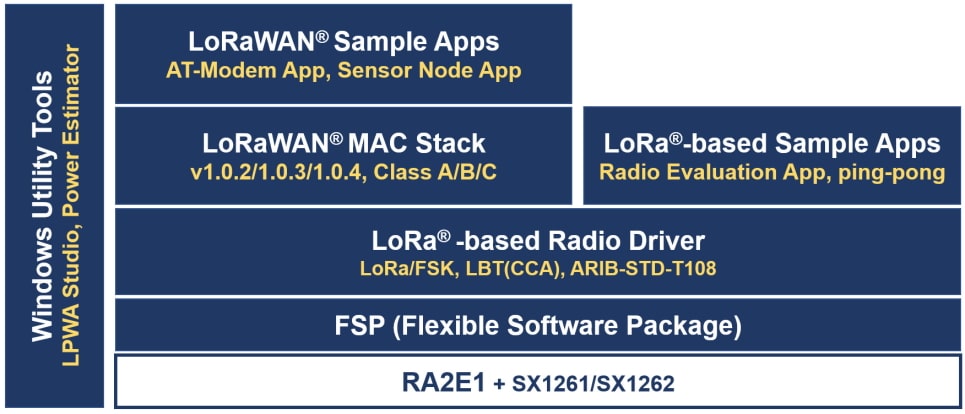

Renesas offers software for controlling a LoRa^® transceiver (Semtech SX1261/SX1262) using a low power RA2E1 microcontroller. For applications that require interoperability, there is the LoRaWAN^® protocol stack based on the LoRaWAN^® specification which implements LoRaWAN^® protocol (Class A, Class B* and Class C) specified in the specification version 1.0.2/1.0.3/1.0.4. Control is performed using AT commands. For applications for which interoperability is not necessary, there is a radio driver for LoRa^® for custom protocol implementation. (*Class B conforms to version 1.0.3/1.0.4) If FUOTA (Firmware Update Over The Air) is required, please contact us individually.


Wireless Communication Tools for Ease of Evaluation

Renesas offers tools that make evaluating characteristics easy. Renesas LPWA Studio can perform continuous CW/Modulation transmission, PER (Packet Error Rate) / BER (Bit Error Rate) measurement, and RSSI measurement. It also has a sniffer function that captures LoRa^®/GFSK modulation frames over the air and displays analysis results, as well as a function that transmits temperature/humidity sensor information of HS3001 connected to the transmitting node and visualizes it at the receiving node. Renesas also offers a tool that estimates power consumption.


Example of Application

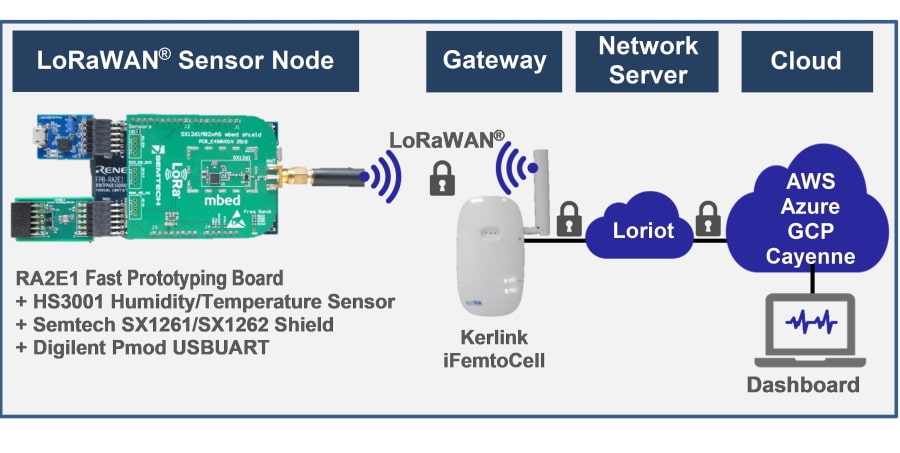

• Introduces you how to visualize sensor data transmitted by the RA2 Sensor Node to the Cloud (AWS/Azure/GCP/Cayenne) via LoRaWAN^® networks. Refer to LoRaWAN^® Sensor Demo.
