概要
Description

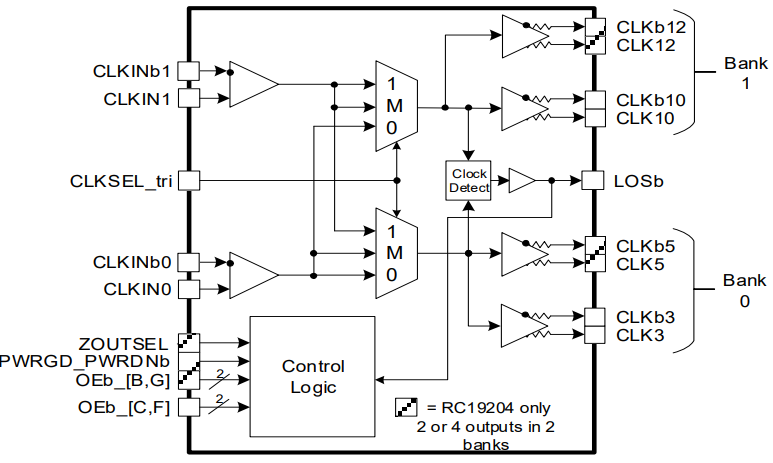

The RC19204 is a 2:4 PCIe Gen6 multiplexer that is backward compatible to earlier PCIe generations. The RC19204 provides ultra-low additive jitter and reduced in-to-out delay performance for better design-margin and incorporates several features for easier and more robust design.
特長
- LP-HCSL outputs eliminate up to 16 termination resistors.
- PCIe Gen 1–6 compliance
- 2:4 or two 1:2 multiplexer options
- Drive both source-terminated and double-terminated loads selectable 85Ω and 100Ω output impedance
- Open-drain LOS (Loss-Of-Signal) indication output
- Power down tolerance (PDT)
- Flexible startup sequencing (FSS)
- Automatic clock parking (ACP)
- Dedicated OE# pins to control group output

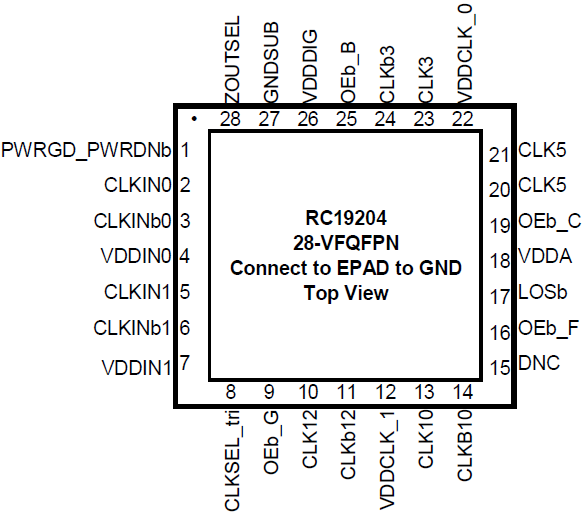

- 4 × 4 mm 28-VFQFPN package
アプリケーション
設計・開発
ソフトウェア／ツール
モデル
ECADモデル
[製品選択]テーブル内の製品名をクリックするとSamacSysが提供する回路図シンボル、PCBフットプリント、3D CADモデルがご確認いただけます。 お探しのシンボルやモデルが見つからない場合、Webサイトから直接リクエストできます。
製品選択
Processing table
| 85, 100 | Tray | -40 to 105°C | 28 | VFQFPN | サンプルを入手, | |
| 85, 100 | Reel | -40 to 105°C | 28 | VFQFPN |
