E2 emulator [RTE0T00020KCE00000R]

Overview

Topics

[Upgrade to Version] e² studio Integrated Development Environment 2023-04 (PDF | English, 日本語)
[Upgrade to Revision] Renesas Flash Programmer V3.11.02 (PDF | English, 日本語)

See Release Information for the latest Topics for each MCU.

The E2 emulator is an advanced on-chip debugging emulator and flash programmer developed with the concept of greater efficiency in development. The combination of its high-speed downloading and various software and hardware solutions will contribute to reducing development times.

High-speed download up to twice as fast as E1
The download speed is up to twice as fast as the E1 emulator. This substantially reduces waiting time for downloading the control programs to one-half at a maximum.
Hot plug-in function available without an optional adapter
Although the E1 emulator required an optional hot plug adapter sold separately to use the hot plug-in function, the E2 emulator does not need it.
Board interface compatible with that of E1
he E2 emulator can be connected to the user system that was designed for the E1 emulator because the pin arrangement to be connected to the user system has compatibility with the E1 emulator. [Learn More : the optional products for E2 ]
Support for new MCUs with next-generation cores
MCUs that have next-generation cores, such as those of the RH850/E2x series (which incorporate the G4MH core) or the RX66T group (which incorporate the new RXv3 core for the RX family) can be debugged.

Features for for RL78 and RX Families
- Support for the input and output of external triggers [Learn More: ToolNews]
  For example, you can set up the stopping of programs or of the measurement of waveforms by simply using the test lead which comes with the E2 emulator to connect the emulator to an external measuring instrument with the CS+ integrated development environment or the e² studio integrated development environment.
- Current Consumption Tuning Solution
  In conjunction with the QE for Current Consumption, a dedicated tool for measuring current drawn, the E2 emulator is capable of the following items. These shorten the time taken to tune currents.
  - Measuring current with the E2 emulator alone
  - Stopping a program when an excessive current is detected
  - Visualizing the relationship between program operations and current

Features for RH850 Family 　
- CAN Communications Time Measurement Solution
  The following CAN-related tasks are possible in conjunction with the CS+ integrated development environment or the MULTI® integrated development environment (GHS MULTI) from Green Hills Software. This eases verifying the speed of CAN communications in terms of system requirements.
  - Measuring the reception processing time in CAN communications with the E2 emulator alone
  - Stopping a program when the reception processing time exceeds the design value
  - Visualizing the history of CAN communications
- Support for the input and output of external triggers [Learn More: ToolNews]
  For example, you can set up the stopping of programs or of the measurement of waveforms by simply using the test lead which comes with the E2 emulator to connect the emulator to an external measuring instrument with the CS+ integrated development environment or the MULTI® integrated development environment (GHS MULTI) from Green Hills Software.
- Software Trace Function [Learn More: ToolNews]
  The function enables users to view the execution history of the programs such as the values of the program counter (PC) and the register values together with the debug instructions of MCUs for RH850 family with the CS+ integrated development environment or the MULTI® integrated development environment (GHS MULTI) from Green Hills Software. Using this feature, unlike the conventional method of “tracing data with the settings of events and conditions,” users can generate the execution history data such as the PC values and register values simply by inserting the debug instructions to the location where you like to check in the program.his feature is available in all RH850 family MCUs, including the ones do not have internal trace memory when debugging.

Learn More

See the latest Release Information of MCUs.

RA Family RL78 Family RX Family RH850 Family

*Please contact Renesas sales division for RE Family.

Release Information for RA Family

Topics

The E2 emulator supports the new product groups of Motor Control Microcontroller RA4T1, RA6T3.

Purpose of use	Software to be used	Latest Version	Released	Operating Environment
On-chip Debugging	e² studio	(64-bit version) 2023-04	Apr. 20, 2023	Operating Environment
On-chip Debugging	e² studio	(32-bit version) V7.8.0	Apr. 20, 2020
Flash Programming	Renesas Flash Programmer V3	V3.11.02	Apr. 20, 2023

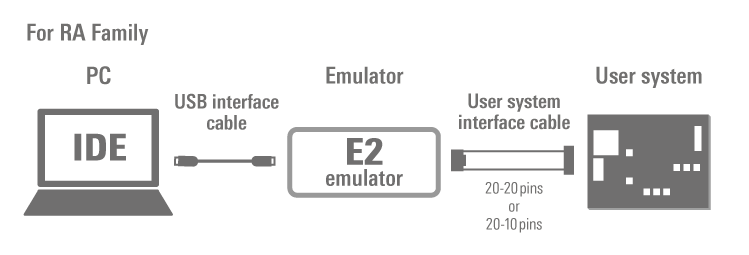

Precautions when using "RA Family"
Please be aware that a User-system interface cable will need to be purchased separately to support RA device debug with E2 using 20-10 pins. Please see Optional Products for RA Family for details.

Release Information for RL78 Family

Purpose of use	Software to be used	Latest Version	Released	Operating Environment
On-chip Debugging	CS+ (CS+ for CC)	V8.09.00 ^Note1	Jan. 20, 2023	Operating Environment
	e² studio	(64-bit version) 2023-04	Apr. 20, 2023
	e² studio	(32-bit version) V7.8.0	Apr. 20, 2020
	IAR Embedded Workbench	A tool produced by Partner. For the details of support for E2, contact IAR Systems directly.
Flash Programming	Renesas Flash Programmer V3	V3.11.02	Apr. 20, 2023	Operating Environment

Note

If you hope to continue to use the product on the Windows 32-bit version, use the CS+ IDE V8.06 and earlier that supports the 32-bit versions
[Notification] End of Support: CS+ Integrated Development Environment for Windows 32-Bit Versions (PDF | English, 日本語)

Release Information for RX Family

Topics

The E2 emulator supports the new product groups of Motor Control Microcontroller RX26T.
The E2 emulator supports the RX65W-A, 32-bit Microcontrollers with Sub-GHz/Wi-SUN Transceiver Supporting OFDM Modulation.

Purpose of use	Software to be used	Latest Version	Released	Operating Environment
On-chip Debugging	CS+ (CS+ for CC)	V8.09.00 ^Note1	2023/01/20	Operating Environment
	e² studio	(64-bit version) 2023-04	2023/04/20
	e² studio	(32-bit version) V7.8.0	2020/04/20
	IAR Embedded Workbench	A tool produced by Partner. For the details of support for E2, contact IAR Systems directly.
Flash Programming	Renesas Flash Programmer V3	V3.11.02	2023/04/20	Operating Environment

Note

If you hope to continue to use the product on the Windows 32-bit version, use the CS+ IDE V8.06 and earlier that supports the 32-bit versions
[Notification] End of Support: CS+ Integrated Development Environment for Windows 32-Bit Versions (PDF | English, 日本語)

Release Information for RH850 Family

Purpose of use	Software to be used	Latest Version	Released	Operating Environment
On-chip Debugging	CS+ (CS+ for CC)	V8.09.00 ^Note1	2023/01/20	Operating Environment
	e² studio	(64-bit version) 2023-04	2023/04/20
	e² studio	(32-bit version) V7.8.0	2020/04/20
	IAR Embedded Workbench	A tool produced by Partner. For the details of support for E2, contact IAR Systems directly.
	Green Hills Multi	A tool produced by Partner. For the details of support for E2, contact Green Hills Software directly.
Flash Programming	Renesas Flash Programmer V3	V3.11.02	2023/04/20	Operating Environment

Note

If you hope to continue to use the product on the Windows 32-bit version, use the CS+ IDE V8.06 and earlier that supports the 32-bit versions
[Notification] End of Support: CS+ Integrated Development Environment for Windows 32-Bit Versions (PDF | English, 日本語)

FAQ

Title
List of know-how when using E1/E20 emulator in CS+ environment (CS+, E2, E2 Lite, E1, E20)
IDE and Programmer Versions Supported by the E2/E2 Lite Emulator (E2, E2 Lite)
Referencing register when using hot plug-in on emulator (CS+, E2, E1) [RH850]
Error message FAIL (“The E2 self-check has failed.”) appears when executing E2 emulator Self Check Program (E2 emulator)

Target Family

Downloads

Title	Type	Date
E2 emulator Self Check Program V.1.02.00 ZIP3.47 MB日本語	Software & Tools - Other	Feb 6, 2021
E2 emulator, E2 emulator Lite Linux driver ZIP0 KB	Software & Tools - Other	Oct 1, 2020
e² studio 2021-07 installer for Windows ZIP1,836.21 MB日本語	Upgrade - IDE	Jul 20, 2021
e² studio 2021-04 installer for Windows ZIP1,816.26 MB日本語	Upgrade - IDE	Apr 14, 2021
e² studio 2021-01 installer for Windows EXE1,637.73 MB日本語	Upgrade - IDE	Jan 21, 2021
CS+ Device Information for RH850 V8.04.01 ZIP89.87 MB日本語	Upgrade - IDE	Oct 20, 2020
e² studio 2020-10 Linux Host (for RA,RZ) ZIP570.25 MB日本語	Upgrade - IDE	Oct 6, 2020
e² studio 2020-10 installer for Windows ZIP1,616.95 MB日本語	Upgrade - IDE	Oct 6, 2020
CS+ for CC Device Information for RL78 V8.04.00 ZIP15.80 MB日本語	Upgrade - IDE	Jul 20, 2020
CS+ for CC Emulator Utilities V1.03.00 ZIP14.18 MB日本語	Upgrade - IDE	Jul 20, 2020
e² studio 2020-04 installer (Offline installer) ZIP1,264.29 MB日本語	Upgrade - IDE	Apr 20, 2020
CS+ for CC Device Information for RL78 V8.03.00 ZIP15.81 MB日本語	Upgrade - IDE	Jan 20, 2020
CS+ QE V3.03.00 ZIP4.03 MB日本語	Upgrade - IDE	Jul 22, 2019
CS+ Utilities V3.05.00 EXE3.62 MB日本語	Upgrade - IDE	Jul 22, 2019
USB Driver for Renesas MCU Tools V2.77.00 (for 64-bit version of Windows OS) ZIP3.25 MB日本語	Upgrade - IDE	Jan 21, 2019
USB Driver for Renesas MCU Tools(E2,E2 Lite,IE850,IE850A,PG-FP5) V2.77.00(for 32-bit version of Windows OS) ZIP3.09 MB日本語	Upgrade - IDE	Jan 21, 2019
e² studio 6.3.0 installer (Offline installer) ZIP952.87 MB日本語	Upgrade - IDE	Jul 2, 2018
External Flash Definition Editor V.1.00 Release 01 ZIP730 KB日本語	Upgrade - Programmer	Mar 5, 2012
